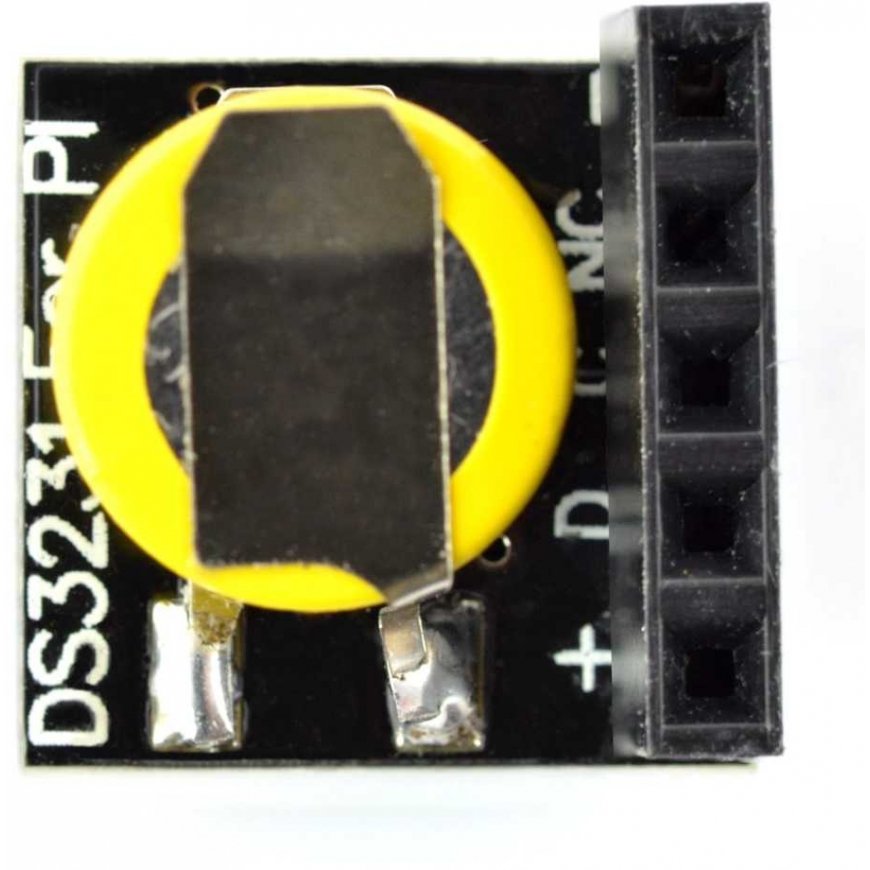

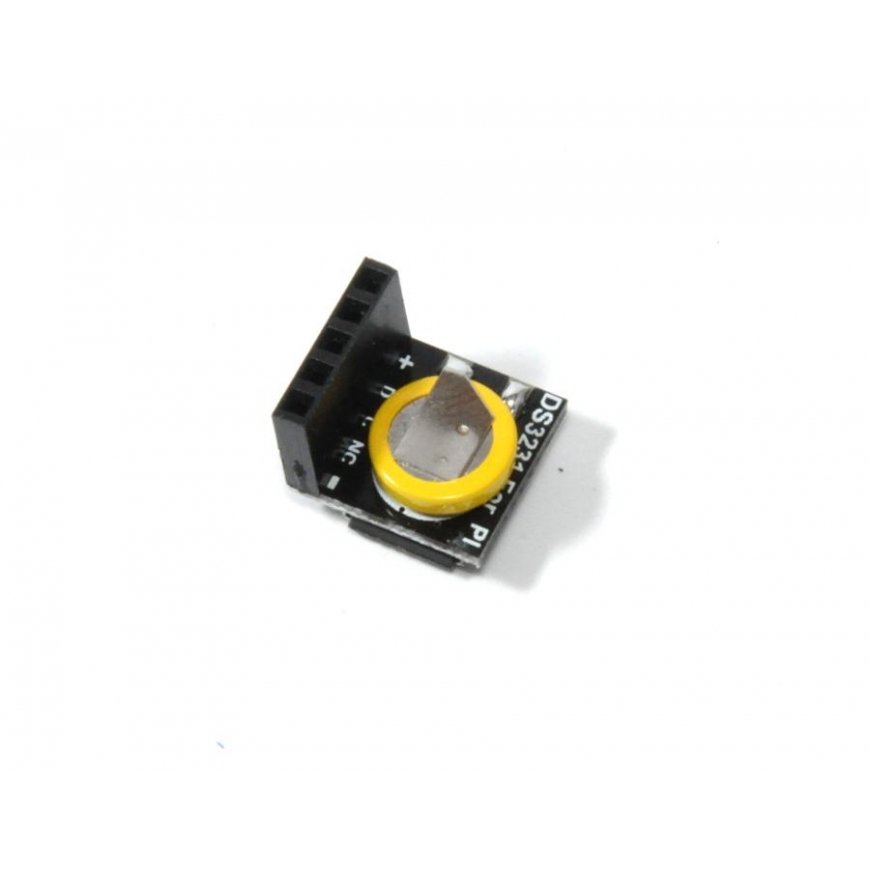

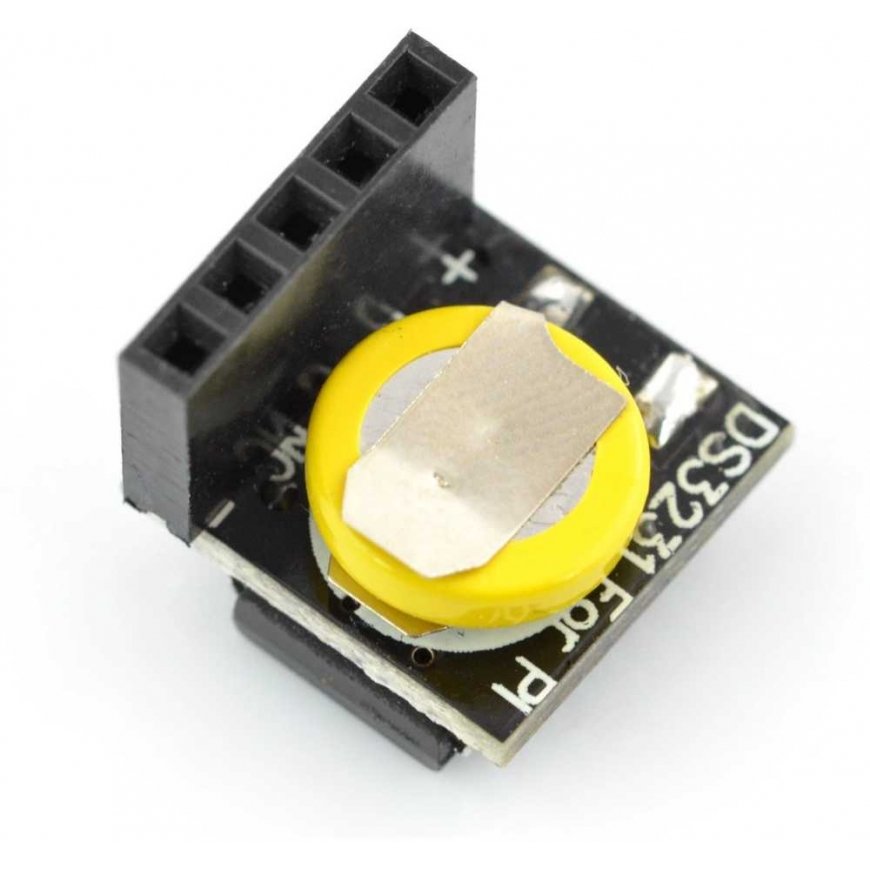

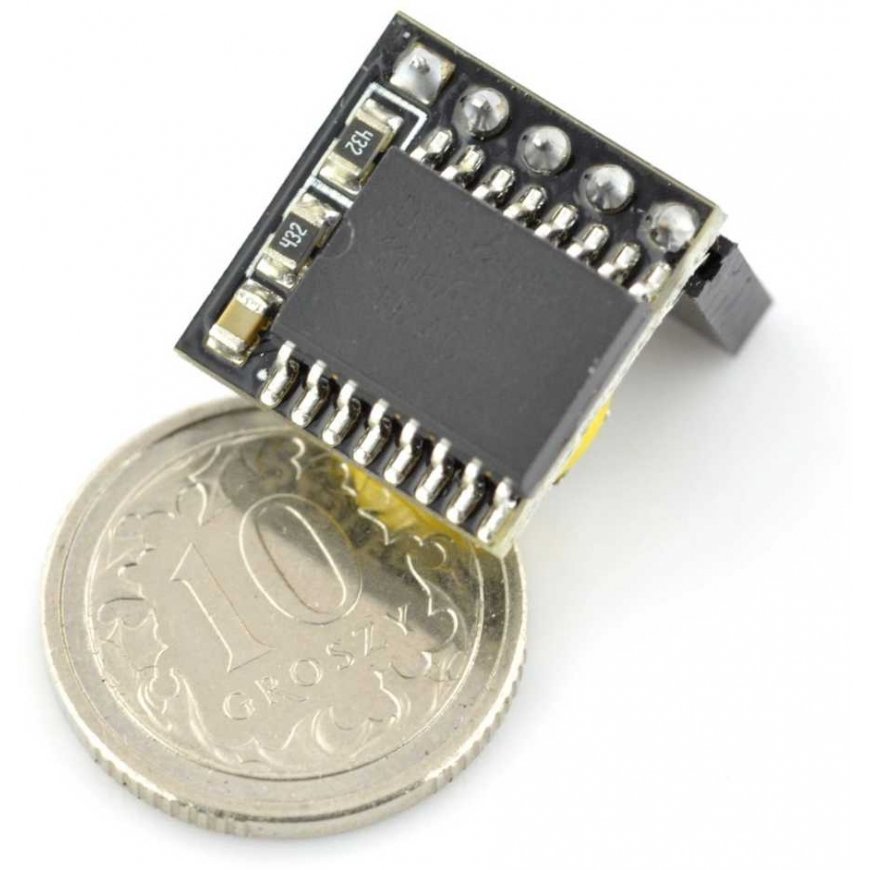

OEM DS3231 time module Raspberry Pi
19.00 €
3810718 AN-03790
5904422373788
Shipping 8-12 b.d.
You are interested in this product?
All about the product
The real-time clock module allows you to read the time in hours, minutes, and seconds, as well as dates: month, day, year. The device is based on the DS3231 system, and the communication interface is I2C bus. The clock works with Arduino and Raspberry Pi.
Specifications:
- Supply voltage: from 2.3V to 5.5V
- Current consumption: from 200 μA (in standby mode 840 nA)
- Driver: DS3231 (documentation)
- Battery factory installed on the board
- Communication: I2C bus (SDA, SCL)
- Bus address: 0x68
- Provides: seconds, hours, minutes, months, days of the week, and years
- Accuracy:
- - at a temperature from 0°C to +40°C: +/- 2 ppm
- - at a temperature from -40°C to +85°C: +/- 3.5 ppm
- Connections: soldered female socket, 2.54mm pitch - compatible with gold strips
- Board dimensions: 14x14x14mm (with connectors)
