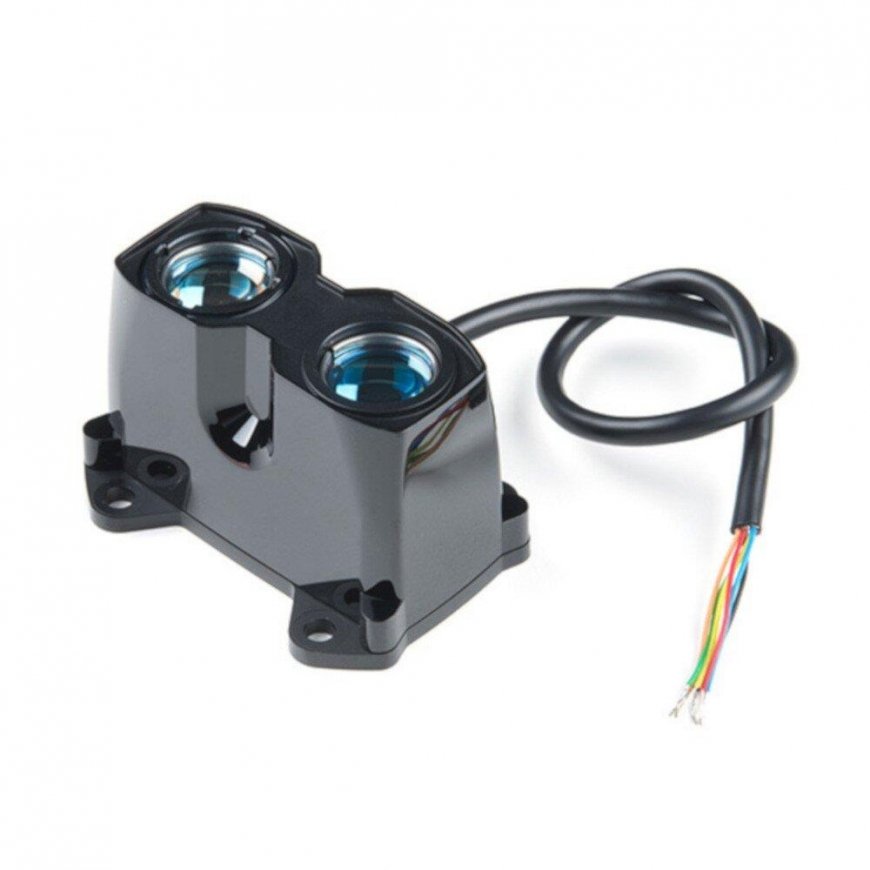

Laser distance sensor Lidar Lite v3HP I2C / PWM, 40 m, SparkFun SEN-14599
309.00 €
Monthly payment from 8,86 €
3810633 AN-12036
0753759180164
Shipping 11-18 b.d.
You are interested in this product?
All about the product
Accurate laser distance sensor operating from 0.05 to 40 m, with an accuracy of 0.025 m. Supply voltage from 4.75 V to 5.5 V, consuming up to 85 mA of current. The device interacts via interfaces: I2C or PWM. The designed light wavelength is 905 nm.
Specifications:
- Supply voltage: from 4.75 V to 5 V
- Supply current: up to 85 mA
- Range: from 0.05 to 40 m
- Accuracy: +/-0.025 m
- Resolution: 1 cm
- Operating frequency: 1000 Hz
- Illumination wavelength: 905 nm / 1.3 W
- Beam divergence: 8 m
- Optical aperture: 12.5 mm
- Operating temperature: from -20 °C to 60 °C
- Interface: PWM or I2C
- Dimensions: 53.5 x 33.5 x 24.5 mm
- Weight: 34 g
