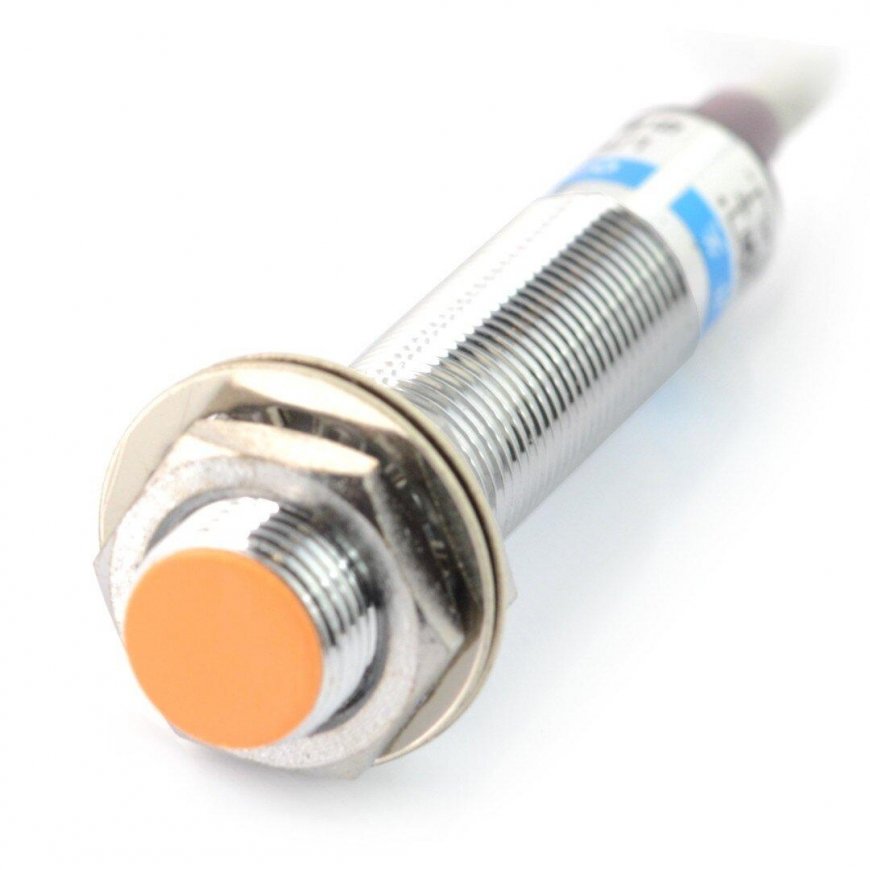

OEM Inductive Distance Sensor LJ12A3-2-Z/AX 2mm 6-36V
21.53 €
3810444 AN-11860
5903351247450
Shipping 11-18 b.d.
You are interested in this product?
All about the product

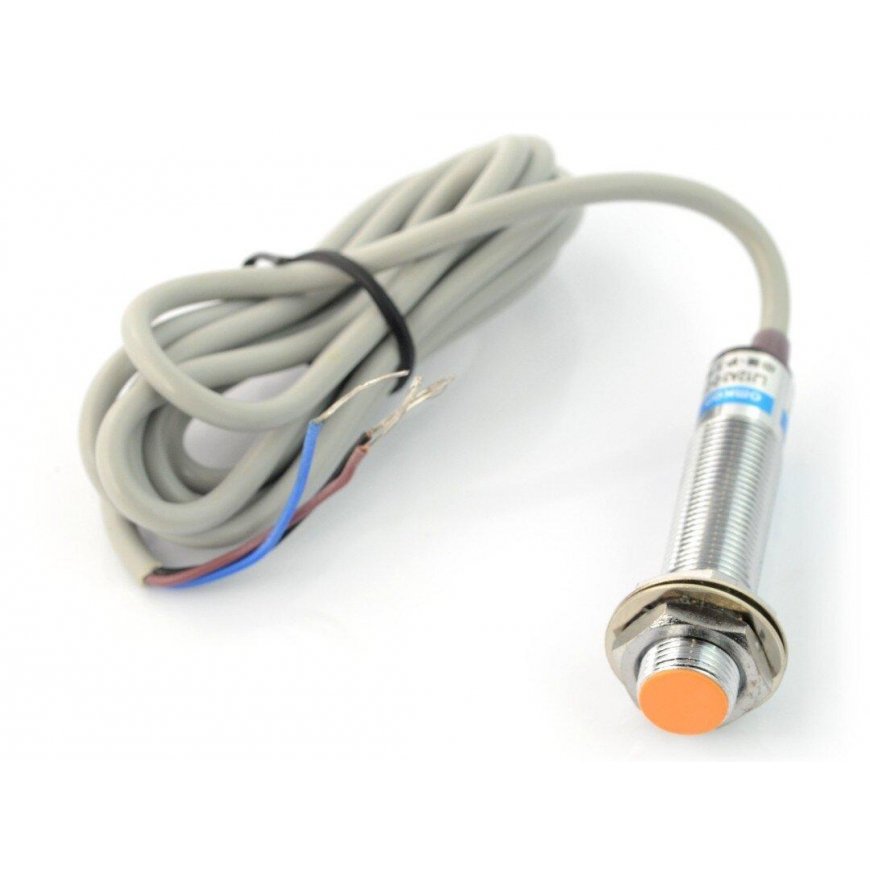

Inductive digital distance sensor with a 100 cm long cable and nuts for easier installation. It detects metal up to 2 mm away. The detection of an object is indicated by a high state output. Powered by a voltage from 6 V to 36 V. Type: NPN.
Specifications:
- Supply voltage: from 6 V to 36 V
- Current consumption: 10 mA
- Measurement range: 0–2 mm ± 10%
- Output signal: digital 300 mA
- Output state: by default, low state, when an object is detected, it changes to high state
- Output type: NPN
- LED indicating object detection
- Detected object: metal
- Response time: less than 2ms
- Operating temperature: from -30 °C to 65 °C
- Diameter: 12 mm
- Sensor length: 56 mm
