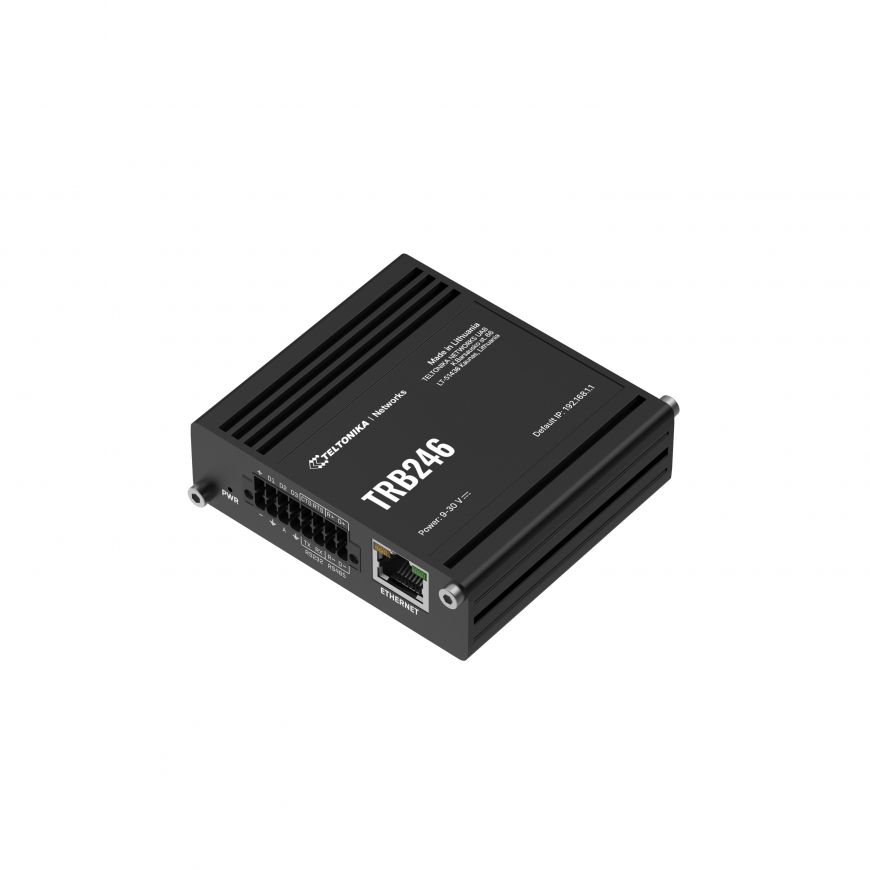

Teltonika Industrial router, IoT LTE gateway TRB246 Cat 4, 1x RJ45 100Mb/s, IP30
178.99 €
Monthly payment from 5,51 €
3808975 TRB246000000
4779051841844, 4779051840755
Shipping 3-7 b.d.
You are interested in this product?
All about the product
The TRB246 is an industrial 4G LTE gateway equipped with I/Os, RS232, RS485, and Ethernet interfaces for IoT solutions requiring versatility and reliable M2M communication support. This gateway has dual SIM functionality and supports multiple protocols, like DNP3, DLMS, and Modbus, vital for ensuring smooth data transmission. Encased in aluminium housing, this industrial-grade IoT gateway can tolerate extreme environmental conditions in manufacturing, agriculture, or construction.Network | |
| Networking standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3az, IEEE 802.11e |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10, 100 |
| Auto MDI/MDI-X | Yes |
| Full duplex | Yes |
| Port forwarding | Yes |
| Ethernet LAN interface type | Fast Ethernet |
Mobile network | |
| Short Message Service (SMS) | Yes |
| SIM card type | MiniSIM |
Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
Management features | |
| Web-based management | Yes |
Security | |
| DMZ support | Yes |
Protocols | |
| DHCP server | Yes |
Design | |
| LED indicators | Power, Status, LAN, Signal strength |
| Product colour | Black |
| Housing material | Aluminium |
Antenna | |
| Antenna connector type | SMA |
| Antennas quantity | 2 |
| Antenna type | External |
Features | |
| Built-in processor | Yes |
| Processor manufacturer | Mediatek |
Power | |
| Power source type | DC |
| External power adapter | Yes |
Operational conditions | |
| Operating temperature (T-T) | -40 - 75 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Weight & dimensions | |
| Width | 83 mm |
| Depth | 74.2 mm |
| Height | 25 mm |
| Weight | 165 g |
Other features | |
| Management platform | RMS |
| Input voltage | 9 - 30 V |
| Mounting | DIN-rail/Wall mounting |
Certificates | |
| Certification | CE, UKCA, RCM, CB, EAC, UCRF, WEEE |
