Lindy 47482 networking cable Black 2 m Cat6a U/FTP (STP)
17.88 €
3808297 47482
4002888474825
Shipping 8-12 b.d.
You are interested in this product?
All about the product

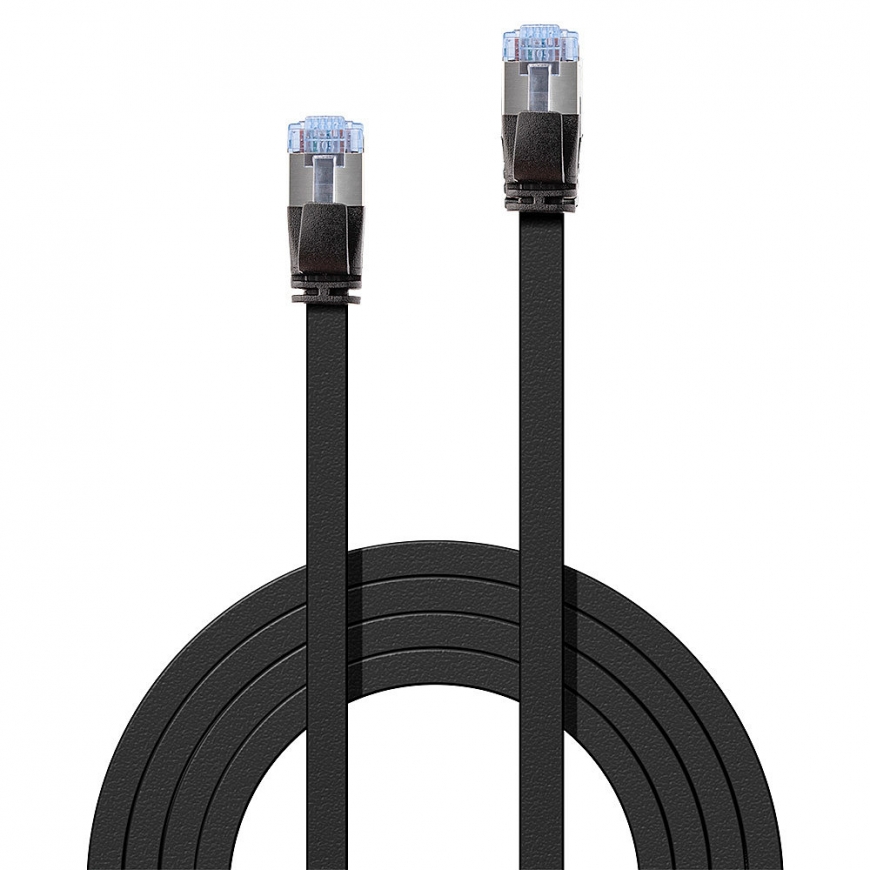

Cat.6A U/FTP flat network cable with support for bandwidth up to 500MHz and features a snagless design with gold plated contacts for ethernet standards up to 10GBase-T.Cat 6A cable, for operating frequencies up to 500MHz, shielded with foil shielded with single pair shielding (U/FTP). Designed as flat ribbon cable for use in environments with restricted or limited installation space. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag.

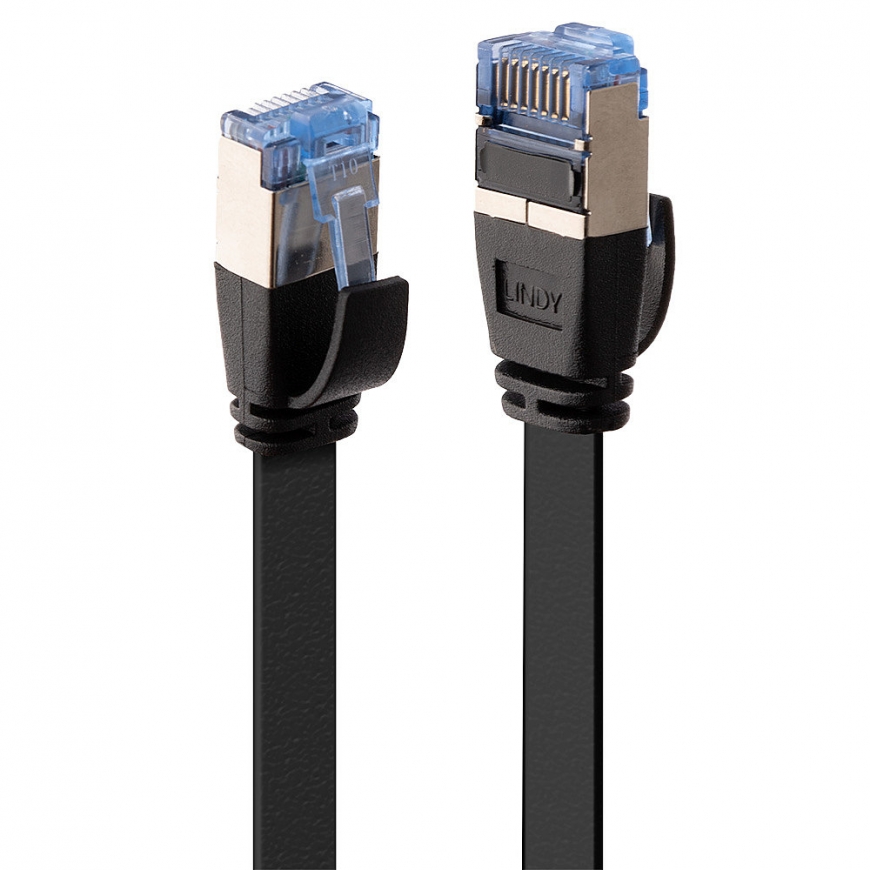

The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal.
The very flexible and thin ribbon cable construction allows the cables to be installed in restricted or limited spaces.
Available lengths: 0.3m, 1m, 2m, 3m, 5m, 10m.
Available colours: Black, White.
Features | |
| Cable length | 2 m |
| Cabling technology | 10/100/1000Base-T(X) |
| Connector 1 | RJ-45 |
| Connector 2 | RJ-45 |
| Connector contacts plating | Nickel/Gold |
| Jacket material | Polyvinyl chloride (PVC) |
| Cable standard | Cat6a |
| Cable shielding | U/FTP (STP) |
| AWG wire size | 32 |
| Frequency | 500 MHz |
| Connector shielding | Yes |
| Connector shield material | Aluminium |
| Conductor material | Copper |
| Product colour | Black |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
Weight & dimensions | |
| Bend radius (min) | 6 cm |
| Connector 1 dimensions (WxDxH) | 11 x 28 x 6 mm |
| Connector 2 dimensions (WxDxH) | 11 x 28 x 6 mm |
Packaging data | |

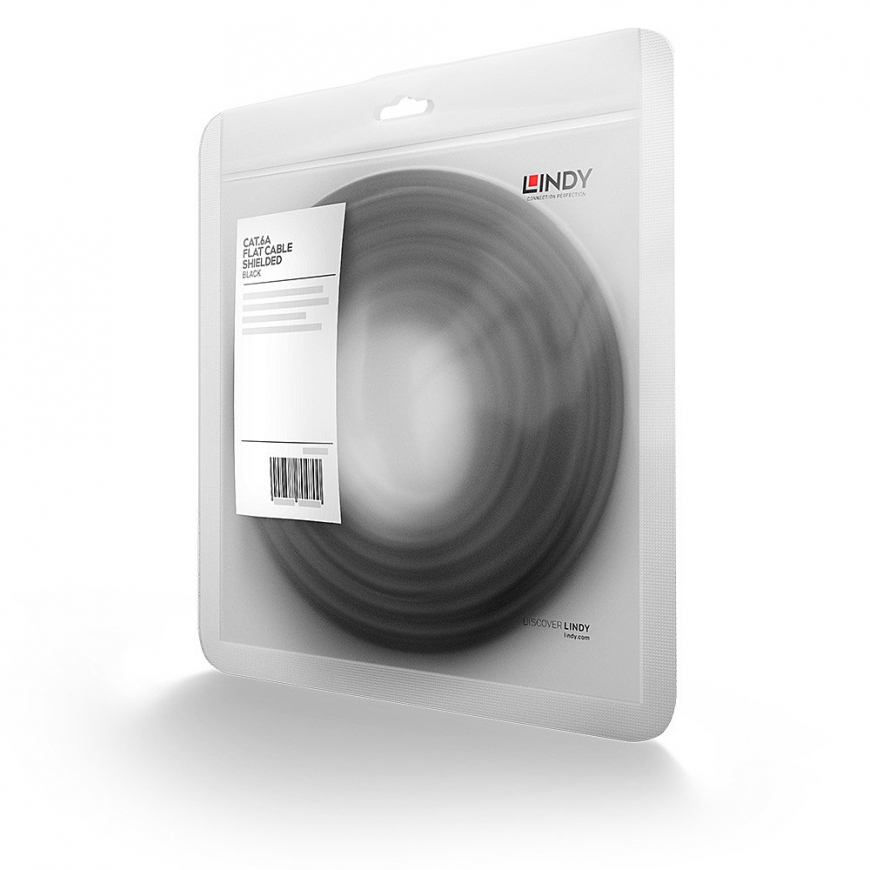

| Package type | Polybag |
Operational conditions | |
| Operating temperature (T-T) | -10 - 60 °C |
| Storage temperature (T-T) | -10 - 40 °C |
Logistics data | |
| Harmonized System (HS) code | 84733080 |
Certificates | |
| Certification | RoHS, REACH, California Proposition 65 |
