The product's shade and actual color may differ from what is shown in the picture, as the images are for illustrative purposes. The product description is general and may not include all the product's features.

DFRobot Leonardo XBee socket, compatible with Arduino

29.00 €
3807337

AN-02684

5904422360948

Shipping 11-18 b.d.

You are interested in this product?
(Read terms of service)

All about the product

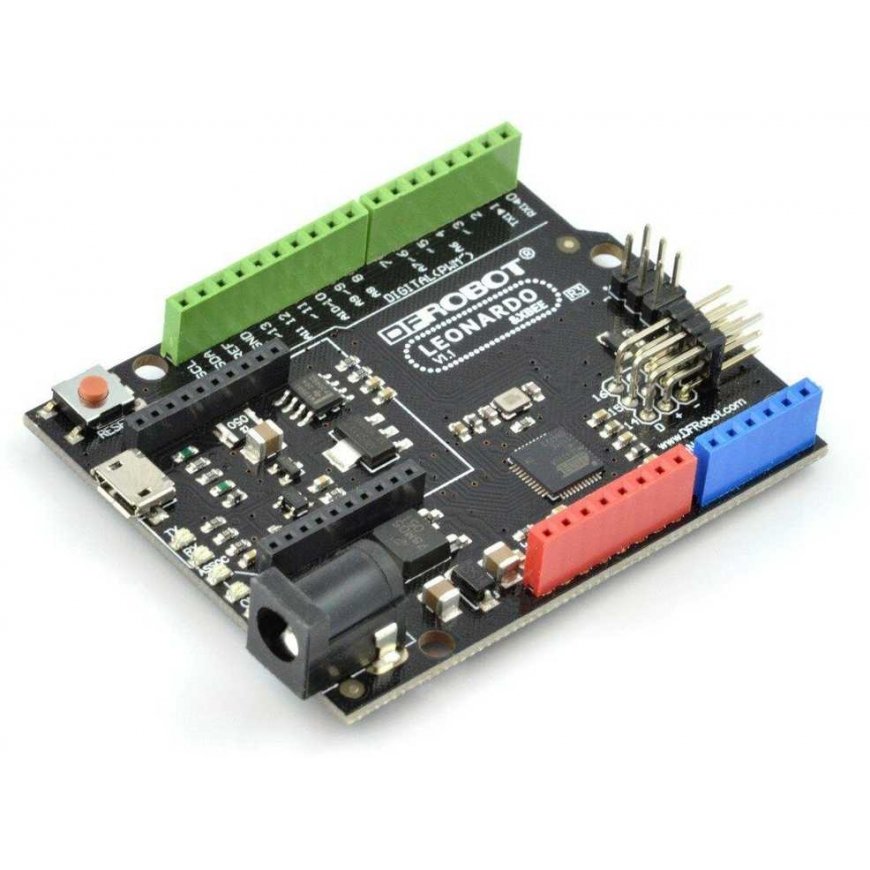

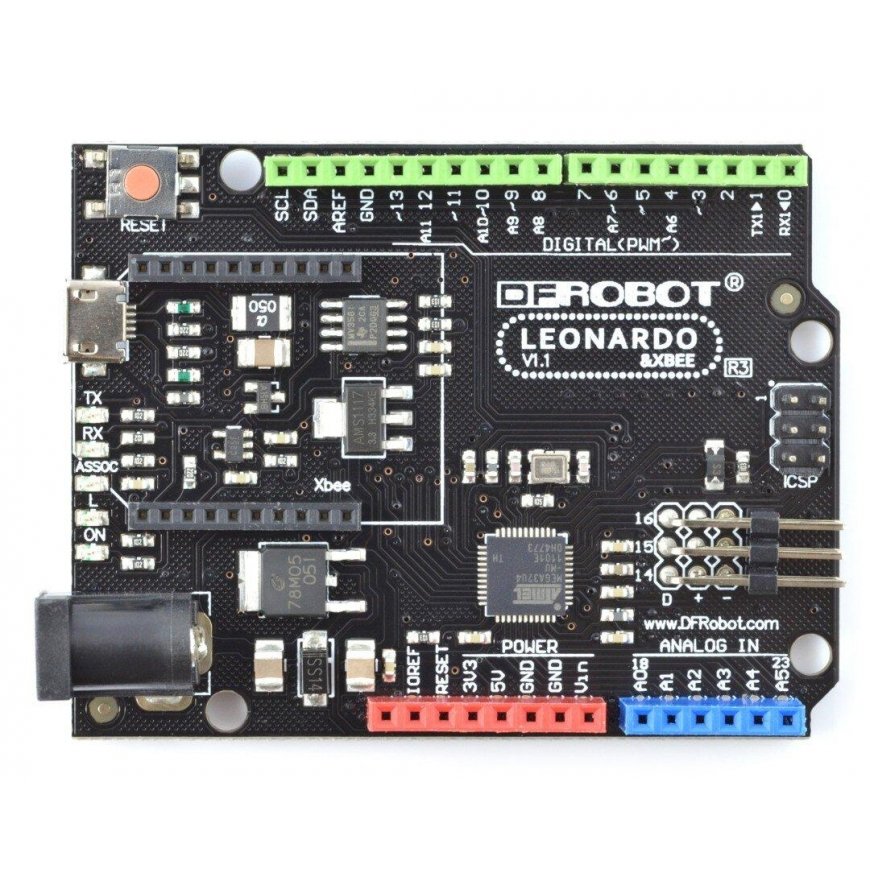

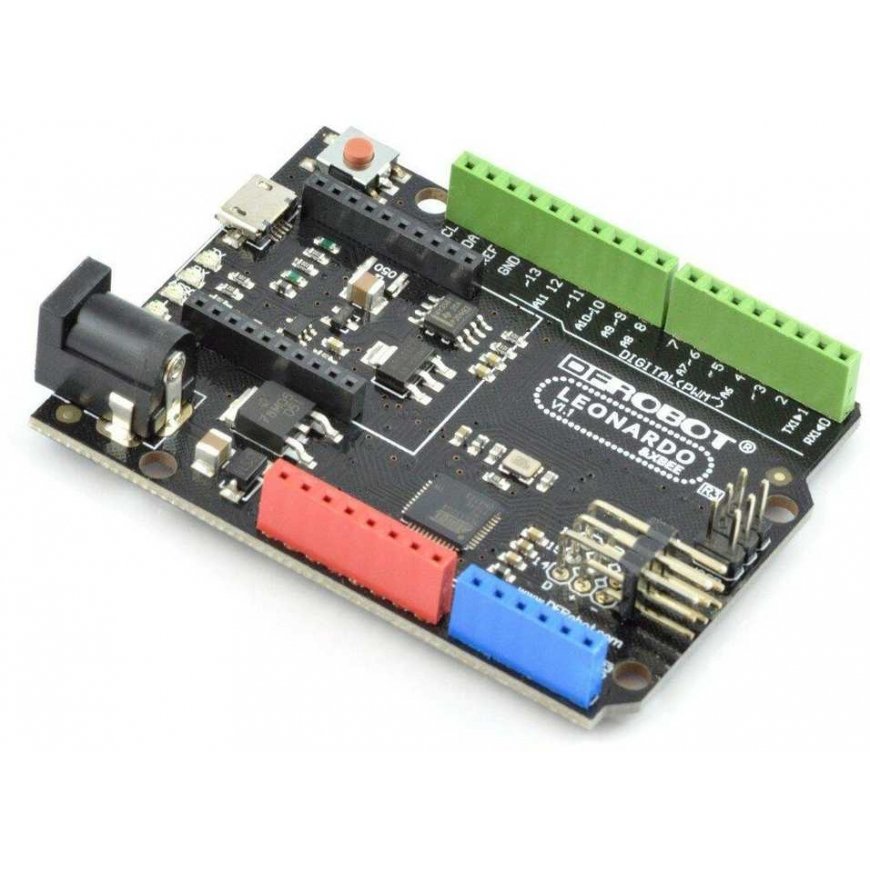

The board features an ATmega32u4 microcontroller, which has 20 digital inputs/outputs, of which 7 can be used as PWM outputs (e.g., for motor control) and 12 as analog inputs. The system operates with a 16 MHz clock signal. The module also has a micro USB connector, a DC power jack, a RESET button, and wires used to connect to an AVR programmer.

Specifications:

  • Power supply voltage: from 7 V to 12 V
  • Programmable via USB
  • Fully compatible with Arduino Leonardo
  • Connector for directly connecting the XBee communication module
  • Microcontroller: ATmega32u4
  • Maximum clock frequency: 16 MHz
  • SRAM: 2.5 KB
  • Flash memory: 32 KB (4 KB is reserved for the bootloader)
  • EEPROM: 1 KB
  • Input/output ports: 20
  • PWM outputs: 7
  • Number of analog inputs: 12 (A/D converter channels)
  • Serial interfaces: UART, SPI, I2C
  • External interrupts
  • Connector: micro USB port (USB cable not included)
  • Solderable ISP connector
  • Dimensions: 75 x 55 x 14 mm
