Tic T834 USB multifunction interface, Pololu 3132
69.01 €
Monthly payment from 2,68 €
3807318 AN-10200
5904422315146
Shipping 11-18 b.d.
You are interested in this product?
All about the product

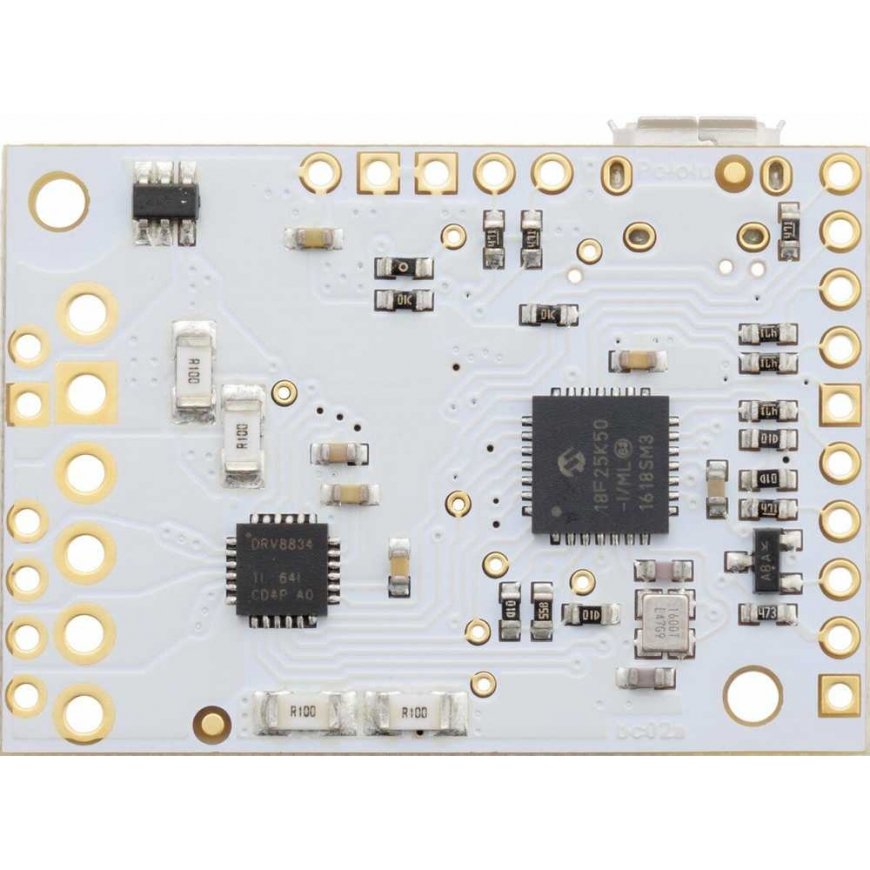

The stepper motor controller has a TI DRV8834. Powered by 2.5 - 10.8 V, with a maximum current consumption of 2 A in the coil. Maximum resolution: 1/32 step. The module allows up to 1.5 A current flow without a heatsink. The controller supports six control interfaces: USB, TTL, I2C, analog, quadrature encoder, RC.
Specifications:
- Motor supply voltage: 2.5 V - 10.8 V
- Current: max. 1.5 A in the coil (cooling up to 2 A)
- Logic part supply voltage: 5 V regulator - external power not required
- Simple control interface
- 6 different operating modes: full step, 1/2, 1/4, 1/8, 1/16, and 1/32 step
- Ability to adjust the motor current using a potentiometer
- Over-temperature protection
- It has 6 control interfaces: USB, serial TTL, I2C, Pulse Servo RC, analog, quadrature encoder
- Maximum step speed: 50000 steps per second
