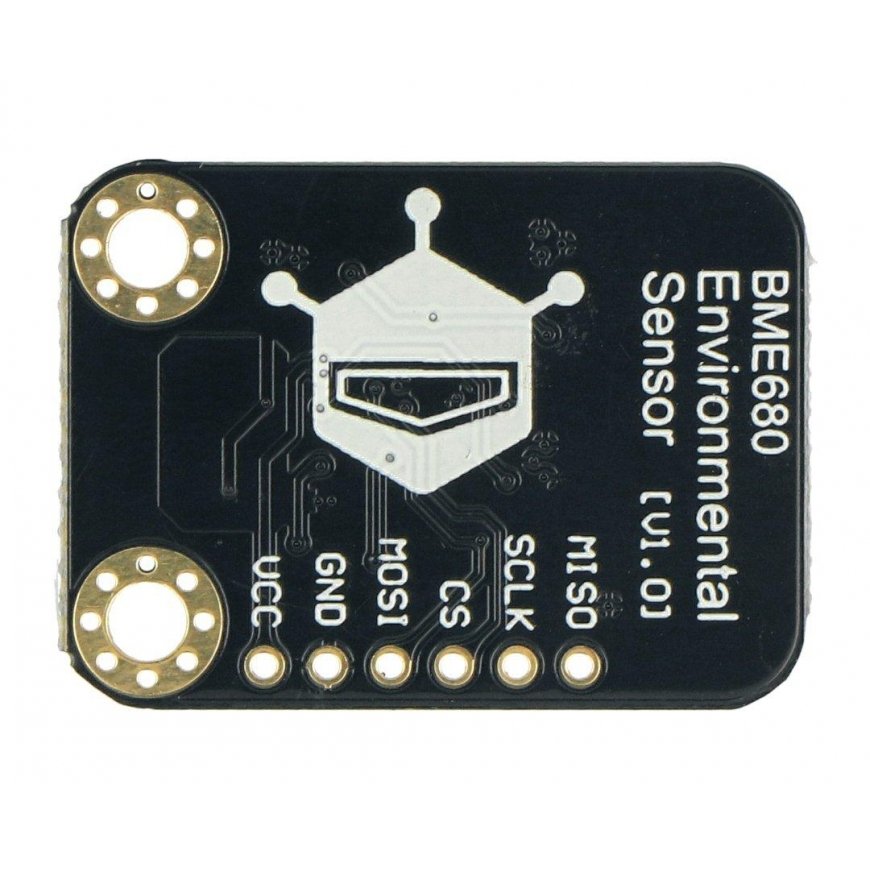

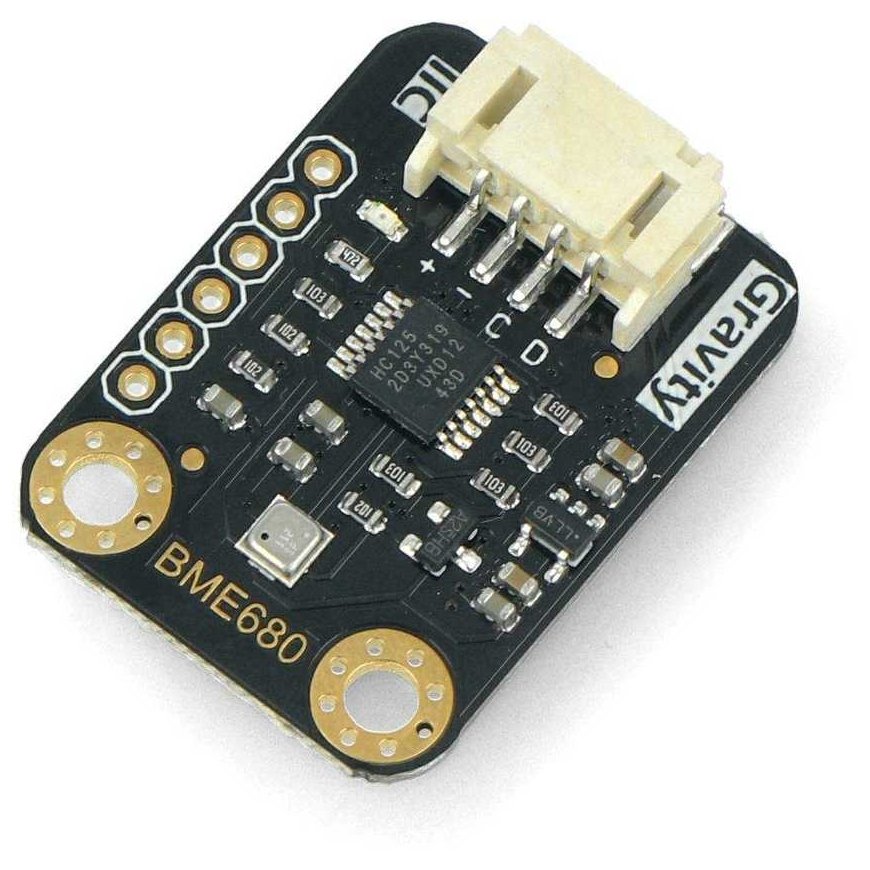

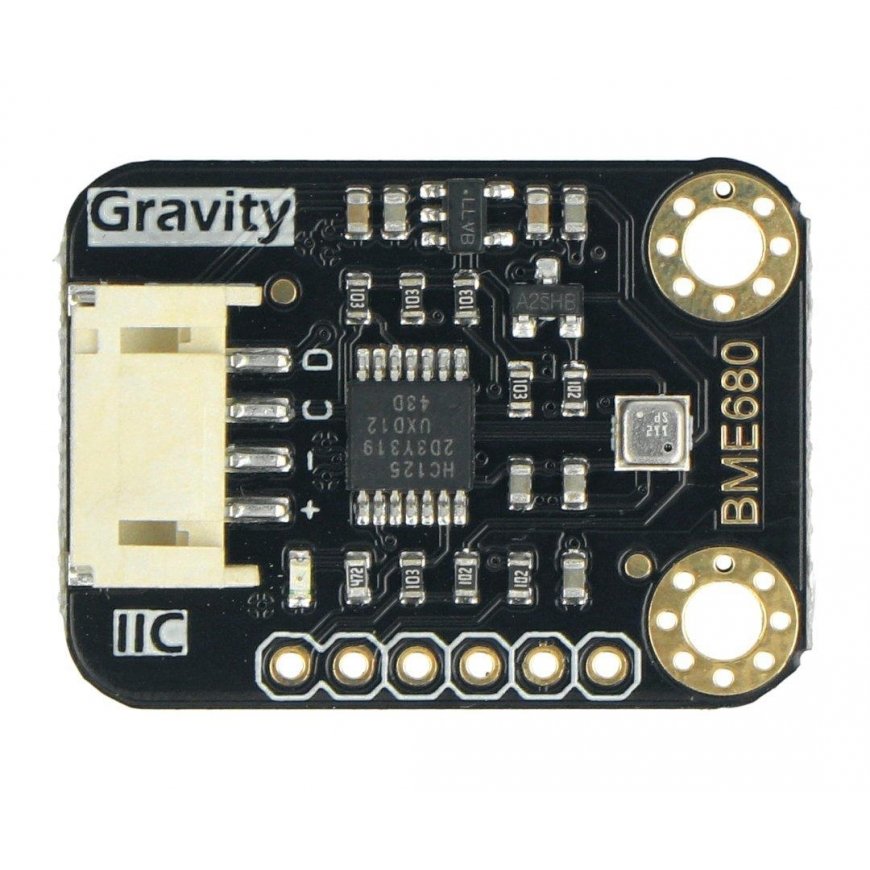

Gravity, BME680 I2C environmental sensor, DFRobot SEN0248
39.00 €
Monthly payment from 1,90 €
3807107 AN-19200
5904422379346
Shipping 8-11 b.d.
You are interested in this product?
All about the product
4-in-1 MEMS environmental sensor with Gravity connector, made by DFRobot. It features an embedded Bosch BME680 chip. The multifunctional module is a combination of a volatile organic compounds (VOC) sensor, temperature sensor, humidity sensor, and barometer. The temperature measurement range is from -40 °C to 85 °C, accuracy +/- 1 °C; at humidity from 0% to 100% RH, accuracy +/- 3% RH; atmospheric pressure from 300 hPa to 1100 hPa measurement accuracy +/- 0.6 hPa.
Specifications:
- Module: volatile organic compounds (VOC), temperature, humidity, and barometer sensor
- Embedded chip: BME680
- Technology: MEMS
- Embedded interface: Gravity I2C
- Optional interface: SPI
- Input voltage range: from 3.3 V to 5 V
- Current consumption: 5 mA (25 mA when measuring VOC)
- Temperature measurement range: from -40 °C to 85 °C
- Accuracy: +/- 1 °C (from 0 °C to 65 °C)
- Humidity measurement range: from 0% to 100% RH
- Measurement accuracy: +/- 3% RH (varies from 20% to 80% RH at 25 °C)
- Atmospheric pressure measurement range: from 300 hPa to 1100 hPa
- Measurement accuracy: +/- 0.6 hPa (varies from 300 hPa to 1100 hPa when temperature is from 0 °C to 65 °C)
- IAQ (indoor air quality) range: from 0 to 500 (the higher the score, the worse the air quality)
- Module dimensions: 30 x 22 mm

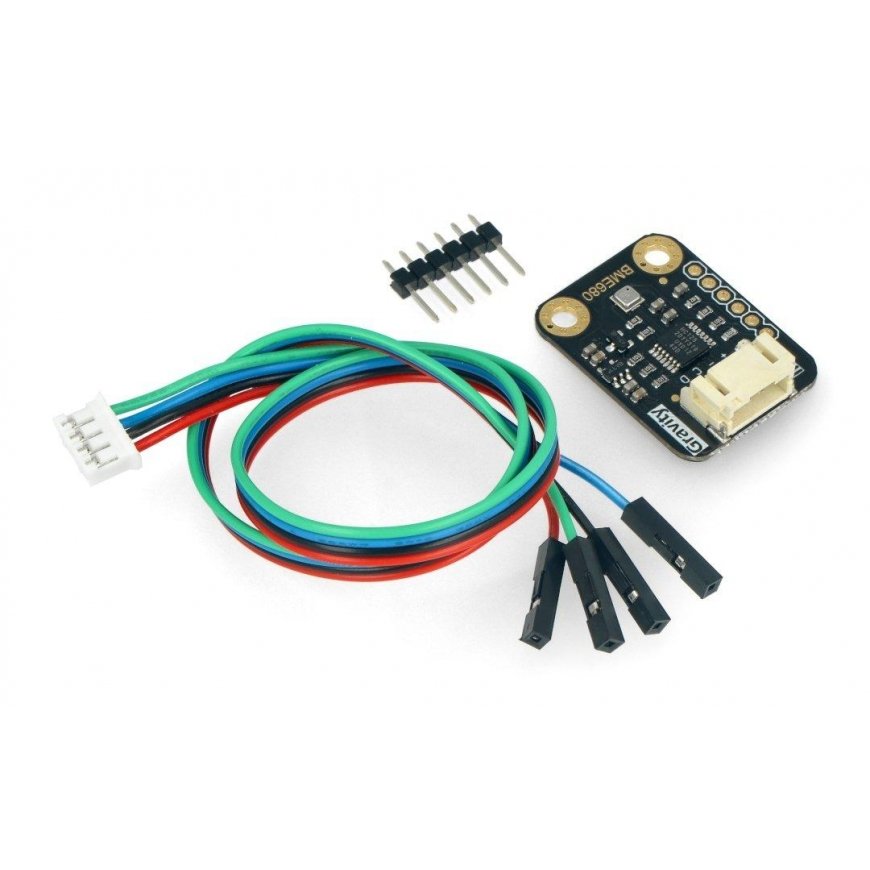

- Environmental sensor Gravity: BME680
- 1x6 gold pin strip - 2.54 mm
- Gravity 4-pin cable
