USB/TTL Raspberry Pi GPS module 3.3v-5.0VDC L80-39 L80-39
3806880 AN-09383
5904422313234
Shipping 11-18 b.d.
All about the product

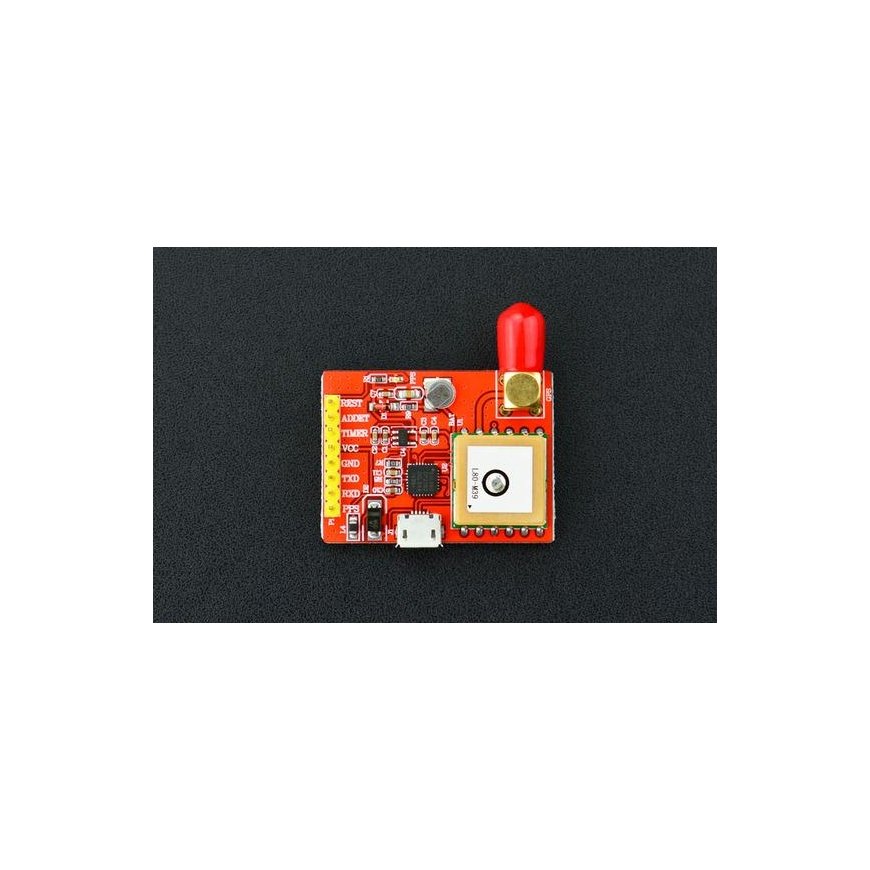

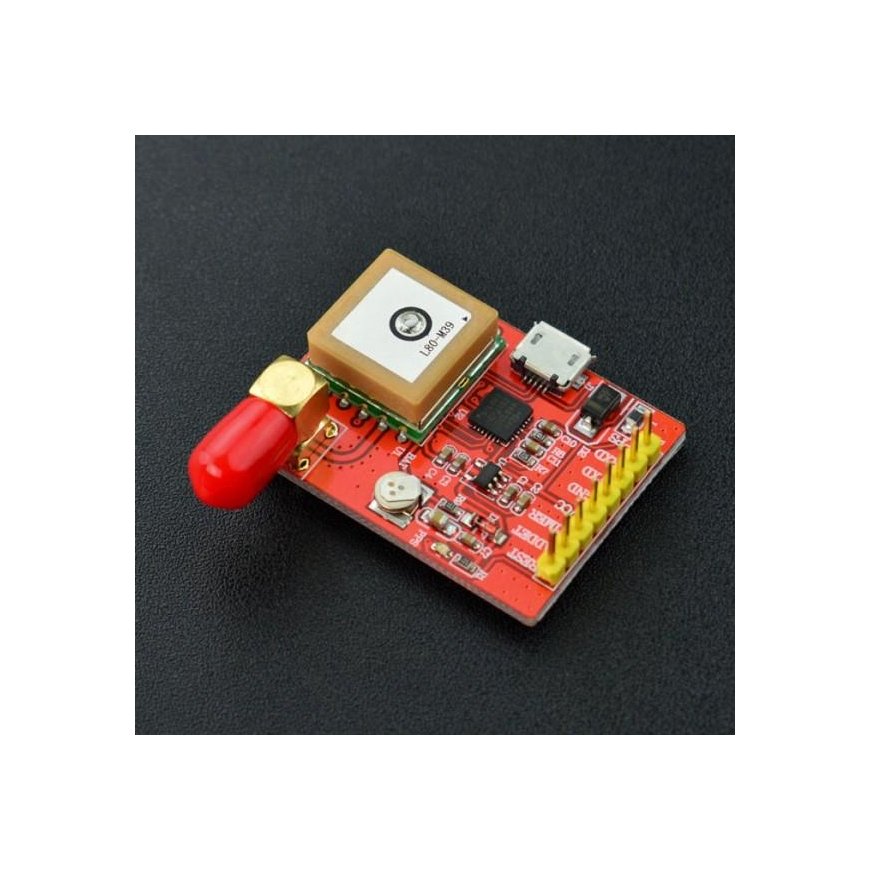

USB/TTL Raspberry Pi GPS module – this is a small GPS positioning module that uses the L80-39 GPS chip with 66 search and 22 tracking channels. This module is suitable for use with Raspberry Pi, Arduino, STM32, and other similar microcontrollers.
Technical specifications:
● Operating voltage: 3.3v-5.0VDC
● Operating current: 100mA
● GPS module: L80-39
● Channels: 22 (tracking) / 66 (fixing)
● Location accuracy: <2.5m CEP
● Speed measurement accuracy: <0.1 m / s
● Signal sensitivity: -165dm
● Measurement frequency: standard 1Hz, maximum 5Hz
● Data format: NMEA0183
● Data stream frequency: 9600 bps (standard)
● Operating temperature: -40 ~ +85 ℃
● Connection method: 8 pins 2.54mm spacing
● MicroUSB connector

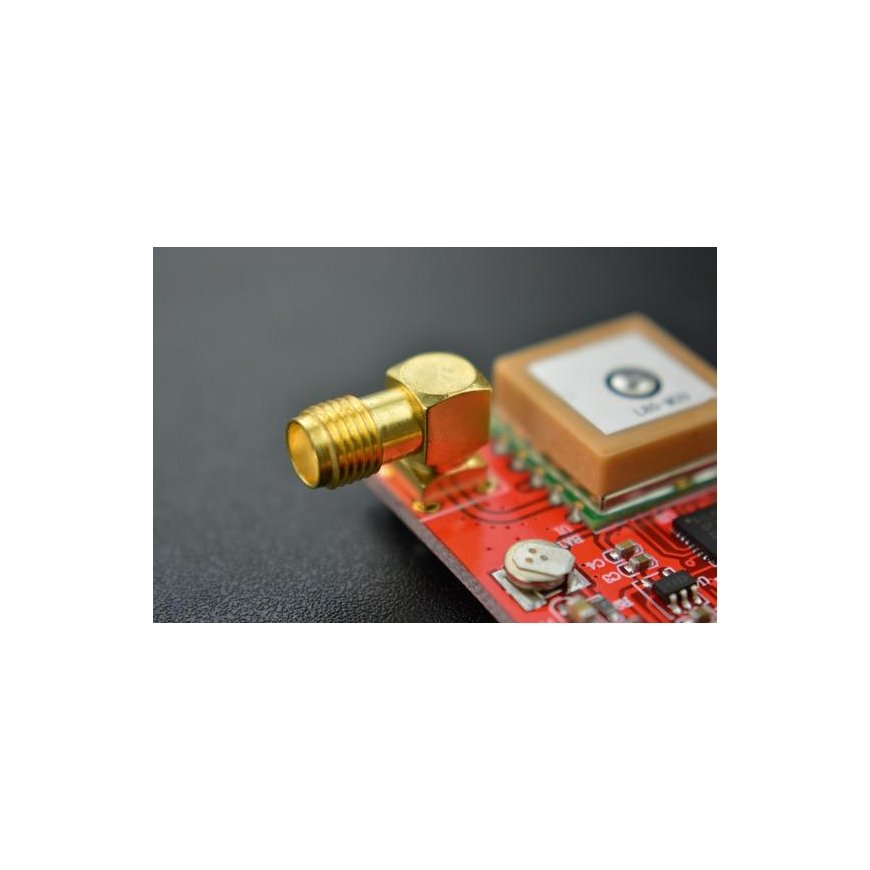

● Antenna connector: SMA
● Antenna connector dimensions: 15 * 15 * 4 (mm)
● Module dimensions: 39.1 * 29.0 (mm)
● Weight: 4.35g
● suitable for use with Raspberry Pi, like Raspberry Pi 3 Model B, Raspberry Pi 2 Model B, A+, B+, Zero, Arduino, STM32, and other similar microcontrollers
● Can operate using an RTC battery
● Built-in LED indicator to indicate module status
References and applications:
● Using GPS positioning systems in projects
