6 contact socket-socket JST SH style cable 25cm, Pololu 4767

20.61 €
3805024

AN-19489

5904422367497

Shipping 11-18 b.d.

You are interested in this product?
(Read terms of service)

All about the product

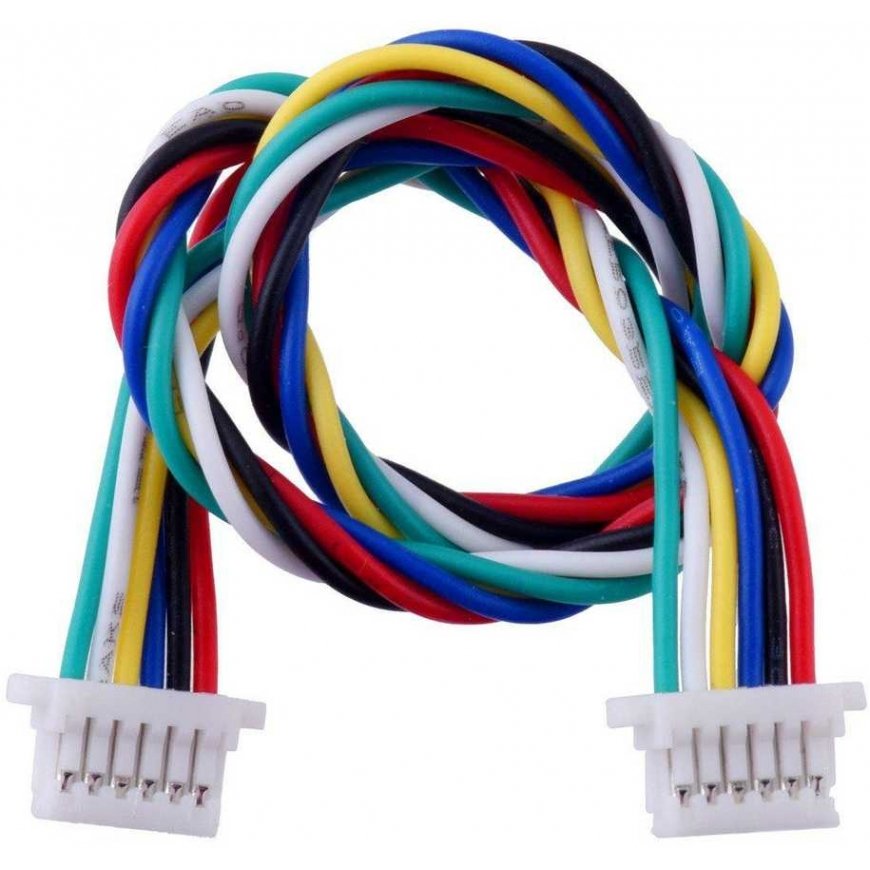

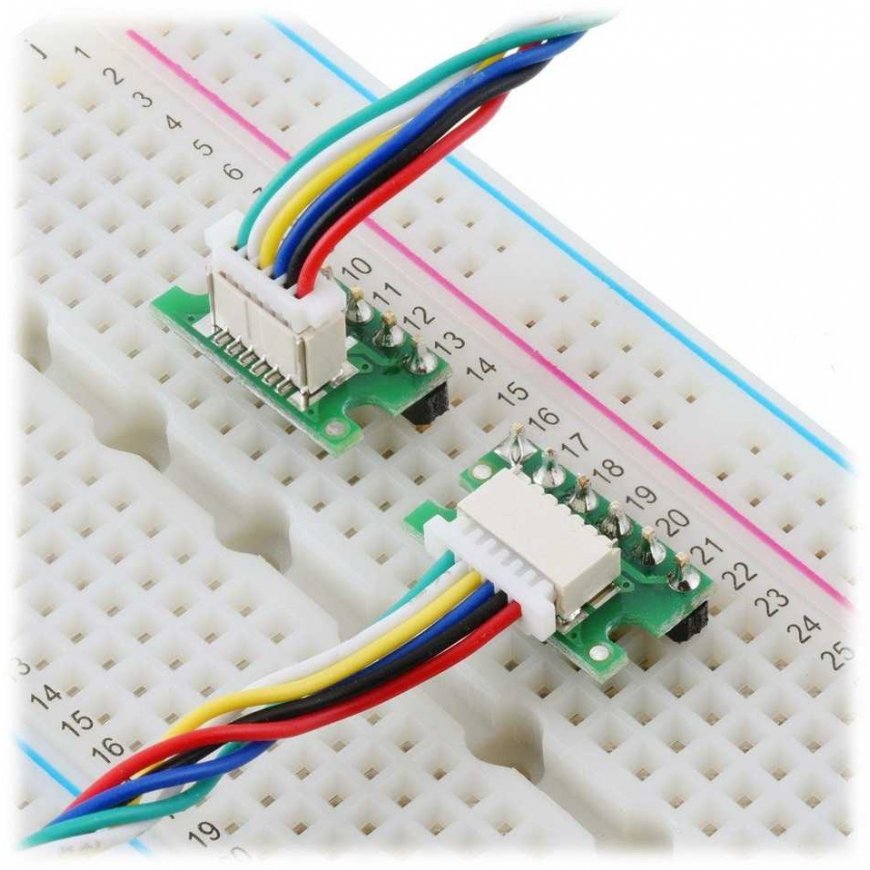

JST SH 6-pin connector with wire made by Pololu. It is 16 cm long, its conductor diameter is 28 AWG, and the pin pitch is 1 mm. Wires of this type are used in Pololu magnetic encoders. It can also be used to connect a module with a JST SH 6-pin socket, which can be directly connected to a header, facilitating the creation of circuit prototypes.

Specifications:

  • Number of pins: 6
  • Pinout

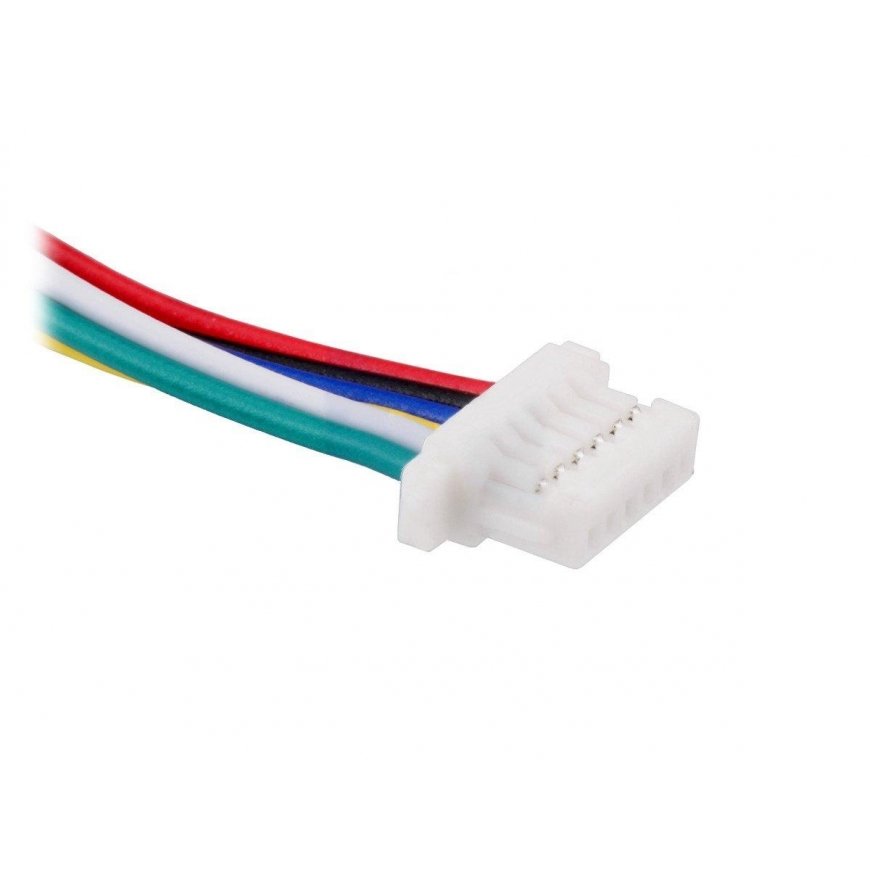

    • JST SH connector: 1 mm
  • Wire length: 25 cm
  • Diameter: 28 AWG
  • Wire description:
    • Red: motor power (voltage)
    • Black: motor power (ground)
    • Blue: encoder power (voltage)
    • Yellow: encoder A output
    • White: encoder B output
    • Green: encoder power (ground)
  • Weight: 2.5 g
