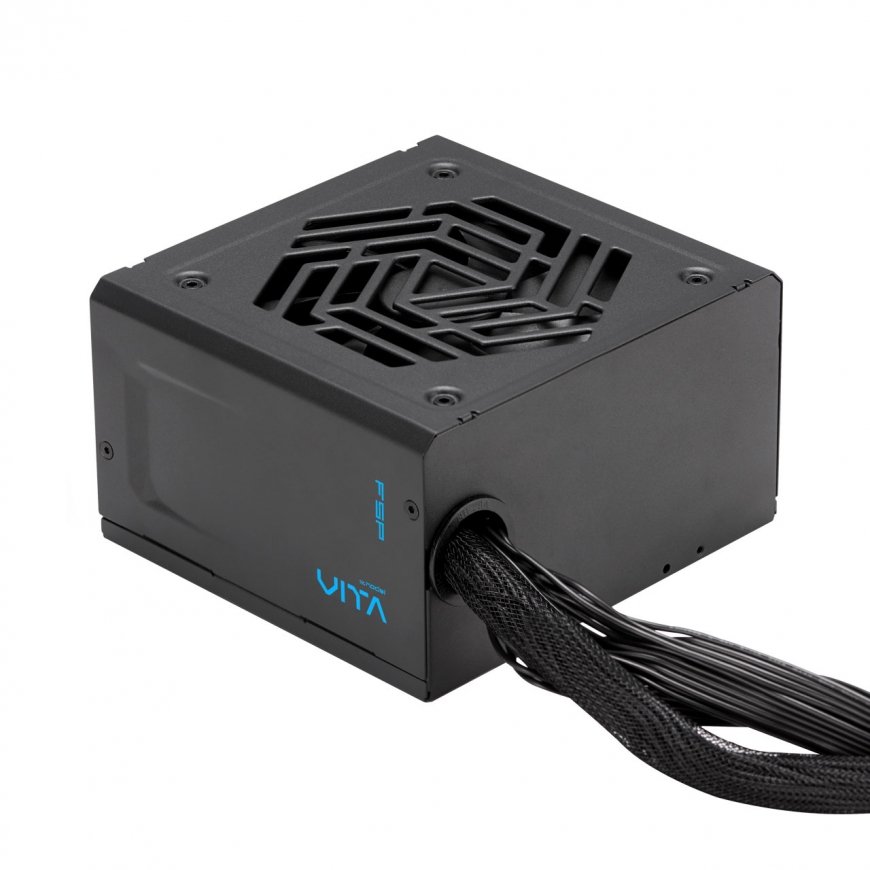

FSP Vita power supply unit 550 W 20+4 pin ATX ATX Black
79.00 €
Monthly payment from 2,93 €
3804555 PPA5506202
4711498480330
Shipping 3-7 b.d.
You are interested in this product?
All about the product
The Future is Now：ATX 3.1 ReadyFollowing the latest ATX 3.1 regulation, this series supports 200% power excursion and ensure peak performance with future hardware upgrades.
+5V & 3.3V DC to DC Circuit Design
Increase the efficiency and stabilize the output voltage to ensure system stability.
Powerful Single +12V Rail
Modern CPUs and graphics cards can draw significant amounts of power, especially during peak loads., a single +12V rail PSU offers a good balance of simplicity, power delivery capability, and stability.
Premium, Black Flat Cables
Featuring improved black, flat cables that are soft and easy to bend, users can manage them more easily, saving time and creating more space for optimal cooling performance in your PC build.
105˚C Japanese Bulk Capacitor
The bulk capacitor inside serves to support working under an extremely harsh environment, such as with high temperatures, peak voltage fluctuations. It stabilizes the performance for high reliability that your system can count on.
Compact PSU size：140 x 150 x 86mm
140mm in length which is relatively shorter than industry standard, it’s ideal for compact PC or space-constraint environment without compromising on performance.
Power | |
| Efficiency | 90% |
| Input current | 8-4 A |
| Power protection features | Over current, Overload, Over voltage, Overheating, Short circuit, Under voltage |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 100 W |
| Combined power (+12V) | 550 W |
| Combined power (+5V) | 100 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 45.8 A |
| Max output current (+5V) | 20 A |
| Max output current (+5Vsb) | 2.5 A |
| Max output current (-12V) | 0.3 A |
| AC input voltage | 110 - 240 V |
| AC input frequency | 50/60 Hz |
| Total power | 550 W |
Performance | |
| ATX version | 3.1 |
| EPS version | 2.92 |
| Purpose | PC |
| 80 PLUS certification | 80 PLUS Gold |
| Bearing technology | HYB |
| Power supply unit (PSU) form factor | ATX |
Design | |
| Product colour | Black |
| Number of fans | 1 fan(s) |
| Fan diameter | 12 cm |
| Fan location | Top |
| Cooling type | Active |
Ports & interfaces | |
| Number of SATA power connectors | 8 |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| CPU power connector (4+4 pin) | Yes |
| PCI Express power connectors (6+2 pin) | 4 |
| Motherboard power connector | 20+4 pin ATX |
| Cabling type | Non-Modular |
| Motherboard power cable length | 60 cm |
| SATA power cable length | 500 mm |
| CPU power cable length | 70 cm |
Weight & dimensions | |
| Width | 150 mm |
| Depth | 140 mm |
| Height | 86 mm |
Packaging content | |
| Cables included | SATA, CPU, Peripheral (Molex) |
