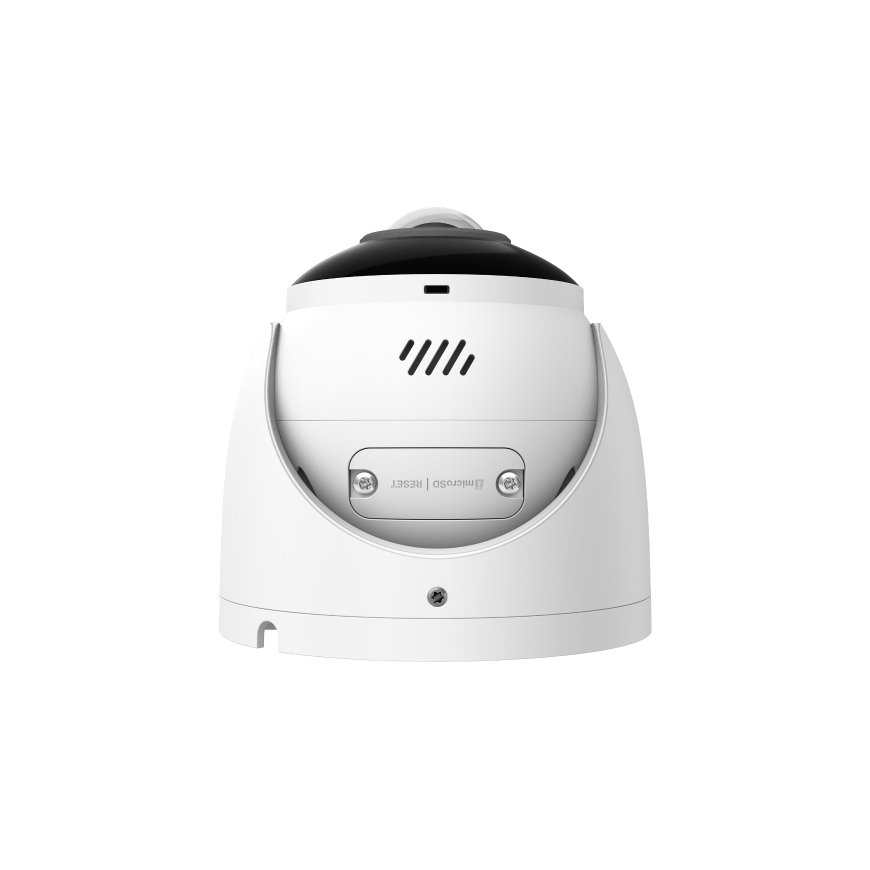

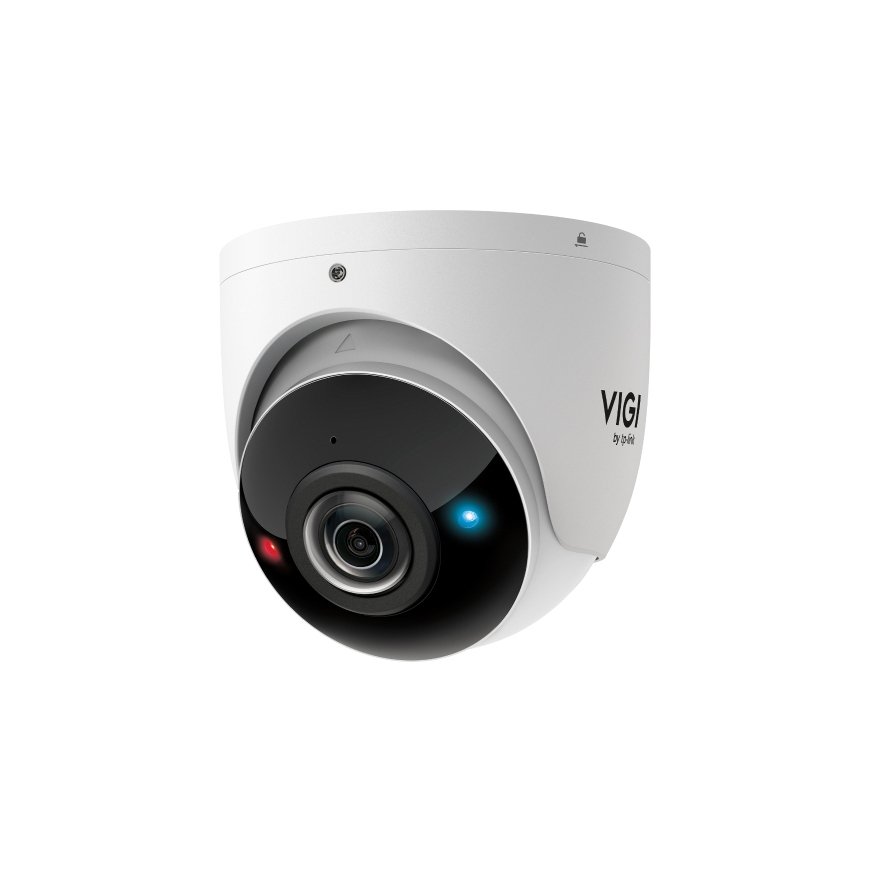

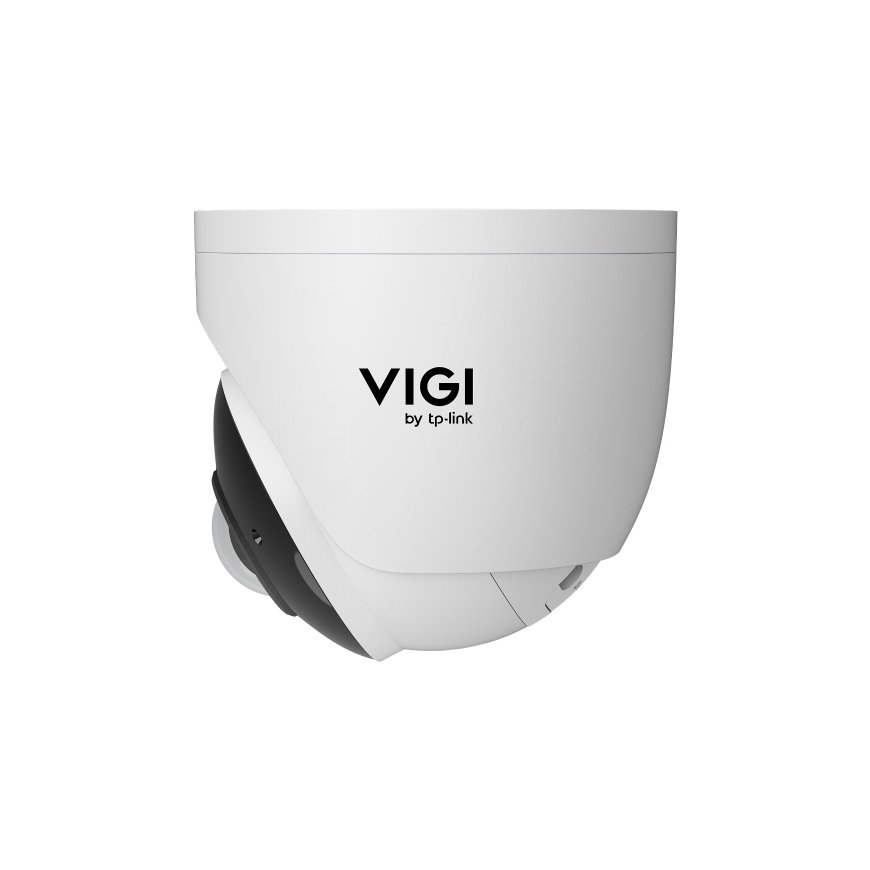

TP-Link InSight S485PI Turret IP security camera Outdoor 3840 x 2160 pixels Wall
389.00 €
Monthly payment from 10,92 €
3801411 INSIGHT S485PI
8885020627886, 0810142823821, 1210002612753
Shipping 5-7 days
You are interested in this product?
All about the product
One Shot, Huge Vision8MP IR Panoramic Turret Network Camera
Cut Project Costs with 180° View and 4K (8MP) Clarity
General cameras require multiple units to cover blind spots in large spaces like hotel lobbies, playgrounds, intersections, and warehouses, raising costs. A single panoramic camera with 180° view and 4K resolution reduces installation, deployment, and maintenance costs while covering more area.
Powerful, Efficient Monitoring with Active Defense
Active Defense is a monitoring feature that uses deep learning algorithms or external alarm devices to trigger flashing lights and loud sounds in real time, deterring intruders. It also supports user-created custom voice audio.
Red-Blue Warning Lights with
Stronger Deterrence
Red-blue flashing lights are more effective than white lights and create a strong deterrent effect when paired with audio alarms.
Flexible Audio & Alarm Integration
The Audio In/Out and Alarm In/Out ports enable easy integration with external alarm or access control devices.
Instant Event Notifications
When the AI function detects an event or an external alarm device senses an event and sends a signal to the IPC, the alarm will trigger with alerts instantly sent to your phone.
VIGI AI Detection Technology
People & Vehicle Analytics: Search and filter to people or vehicle of interest based on many different attributes, like hair length, upper body color, vehicle type, making post-event search faster and easier.*2
Human & Vehicle Classification: Distinguish humans and vehicles from other objects, such as moving animals, falling leaves, changing lights, and receive more accurate event notifications.
Smart Video Enhancement Technology
True WDR: By analyzing and blending different exposures, True WDR ensures both bright and dark areas remain properly exposed, delivering a well-balanced and natural-looking image even in environments with high-contrast lighting.
Smart IR: Smart IR dynamically adjusts infrared lighting to prevent overexposure and glare, improve visibility at different distances, and ensure clearer footage.
3D DNR: 3D DNR is a noise reduction technology that analyzes image data across frames to selectively reduce noise while preserving important details.
White Balance: White Balance ensures that white appears neutral in an image, regardless of the lighting conditions.
Efficient H.265+ Compression Technology
H.265+ reduces the required bandwidth and storage space for videos while maintaining excellent image quality. It saves 57.5% and 15% more storage space compared to H.264 and H.265, respectively.
Features
| Wi-Fi | No |
| Bluetooth | No |
| Product colour | White |
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 512 GB |
| SIM card type | MicroSIM |
| Form factor | Turret |
| International Protection (IP) code | IP67 |
| Audio formats supported | G.711 A-law |
| Weight | 760 g |
| Width | 112.3 mm |
| Depth | 112.3 mm |
| Height | 110.2 mm |
| Type | IP security camera |
| Maximum resolution | 3840 x 2160 pixels |
| Connectivity technology | Wired |
| Manual | Yes |
| Supported graphics resolutions | 1280 x 720 (HD 720); 1920 x 1080 (HD 1080); 2560 x 1440; 3840 x 2160; 2048 x 1280; 2688 x 1520; 2304 x 1296; 2880 x 1620 |
| Operating temperature (T-T) | -30 - 60 °C |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| DC-in jack | Yes |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Networking standards | IEEE 802.3at |
| Housing material | Metal |
| Built-in speaker(s) | Yes |
| Protection features | Weatherproof |
| Audio output channels | 1.0 channels |
| Mounting type | Wall |
| Power source type | DC; PoE |
| Power consumption (max) | 18 W |
| Placement supported | Outdoor |
| Tilt angle range | 0 - 90° |
| Web browser | Yes |
| Storage relative humidity (H-H) | 0 - 95% |
| Built-in microphone | Yes |
| Audio system | 2-way |
| Supported network protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP |
| Mounting kit | Yes |
| Screws included | Yes |
| Maximum operating distance | 44 m |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Camera shutter speed | 1/3 to 1/10000 |
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 2.7 mm (1 / 2.7") |
| Video compression formats | H.264; H.265; H.264+; H.265+ |
| Audio input channels | 1.0 channels |
| Password protection | Yes |
| Video motion detection | Yes |
| IP address filtering | Yes |
| HTTPS encryption | Yes |
| Detection distance | 120 m |
| Alert notification type | Push notification |
| Human and vehicle targets classification | Yes |
| DC output voltage | 12 |
| Number of cameras | 1 |
| Number of microphones | 1 |
| Mirror | Yes |
| Reset button | Yes |
| Web-based management | Yes |
| SIM card slot | Yes |
| Sample rate | 8 kHz |
| Minimum illumination | 0 lx |
| Motion sensor | Yes |
| Video recording | Yes |
| Total megapixels | 8 MP |
| Live view | Yes |
| Remote viewing | Yes |
| Weatherproof | Yes |
| Night vision | Yes |
| LED type | IR/White |
| Maximum aperture number | 2 |
| Dynamic range | 120 dB |
| Cloud-managed | Yes |
| Infrared (IR) cut-off filter | Yes |
| Progressive scan | Yes |
| Power consumption (Power over Ethernet (PoE)) | 21 W |
| Detect distance | 44 m |
| Observe distance | 18.33 m |
| Recognize distance | 8.8 m |
| Identify distance | 4.4 m |
| Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Bit rate | Main Stream: 256 Kbps to 8 Mbps, Sub-Stream: 64 Kbps to 1024 Kbps |
| Back Light Compensation (BLC) | Yes |
| Highlight Compensation (HLC) | Yes |
| Fixed focal length | 1.65 mm |
| Image quality adjustment | Brightness; Contrast; Saturation; Sharpness; Mirror |
| Digital Wide Dynamic Range (DWDR) | Yes |
| Built-in siren | Yes |
| Fixed focus | Yes |
| Bit rate range | 0 - 64 Kbit/s |
| Digest authentication | Yes |
| Lens viewing angle, diagonal | 180° |
| Lens viewing angle, horizontal | 180° |
| Lens viewing angle, vertical | 86° |
| Drilling template included | Yes |
| Sensor type (panoramic camera) | CMOS |
