HYM8563 real-time clock RTC module - M5Stack development module expansion block

19.28 €
3797805

AN-20036

5904422351335

Shipping 8-15 b.d.

You are interested in this product?
(Read terms of service)

All about the product

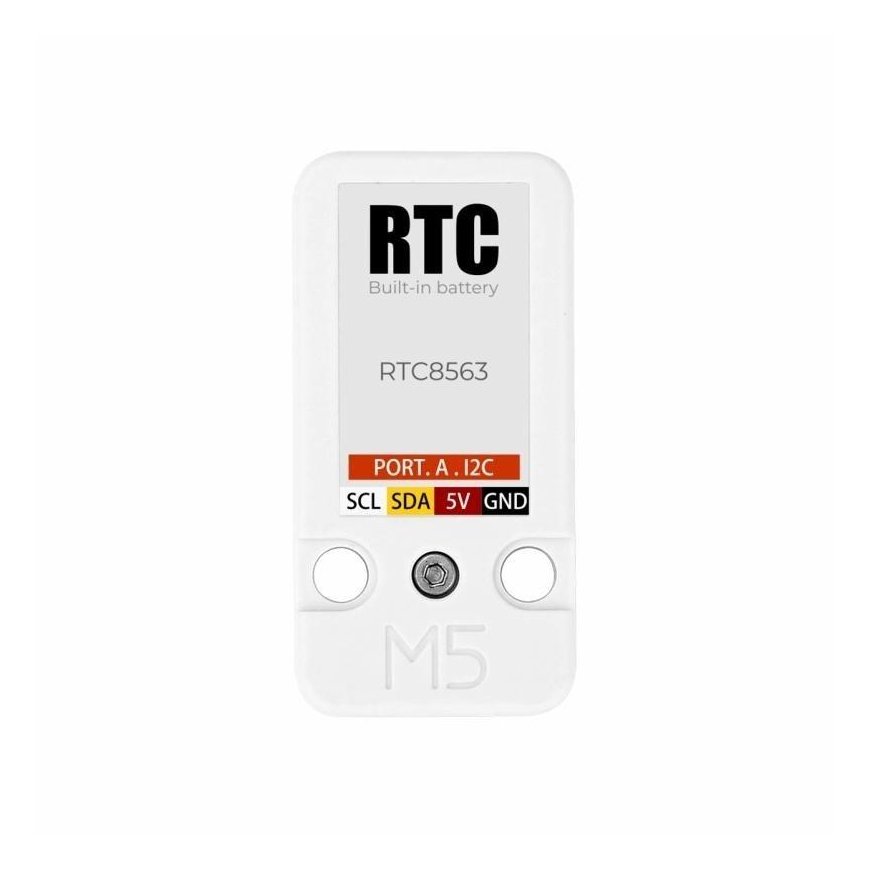

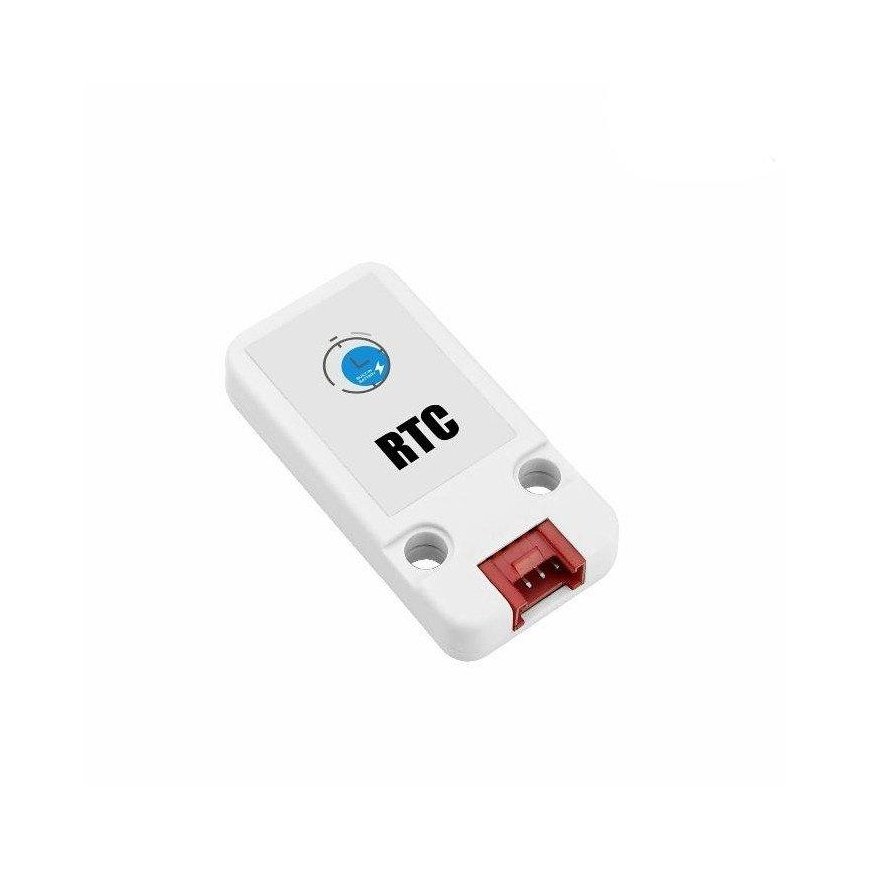

Programmable real-time RTC clock module in the form of a Unit type expansion module. The module has an integrated HYM8563 time/calendar chip, which features low power consumption CMOS and uses the I2C bus for communication. The entire chip is enclosed in a sealed case, which protects the chip from damage and ensures stable operation. It works continuously - even when powered off. The real-time clock module RTC is used in applications such as clocks or alarms based on power-off/power-on time synchronization.

Main features:

  • Allows reading and writing data: time in seconds, minutes, hours and date in days, months, years
  • Crystal frequency is 32.768 kHz, significantly reducing time reading error
  • Low power consumption due to the coin cell battery, which can operate continuously for years
  • I2C interface
Specifications:
  • Application: M5Stack Core, M5Atom and M5Stick development modules
  • Displays: seconds, minutes, hours, days, months, and years
  • Power supply voltage: 5 V DC
  • Interface: I2C
  • Interface address: 0x51
  • Maximum bus speed: 400 Kbps
  • Frequency: 32.768 kHz
  • Integrated clock chip: HYM8563
  • Supported programming platforms: Arduino, UIFlow
  • LEGO compatible module

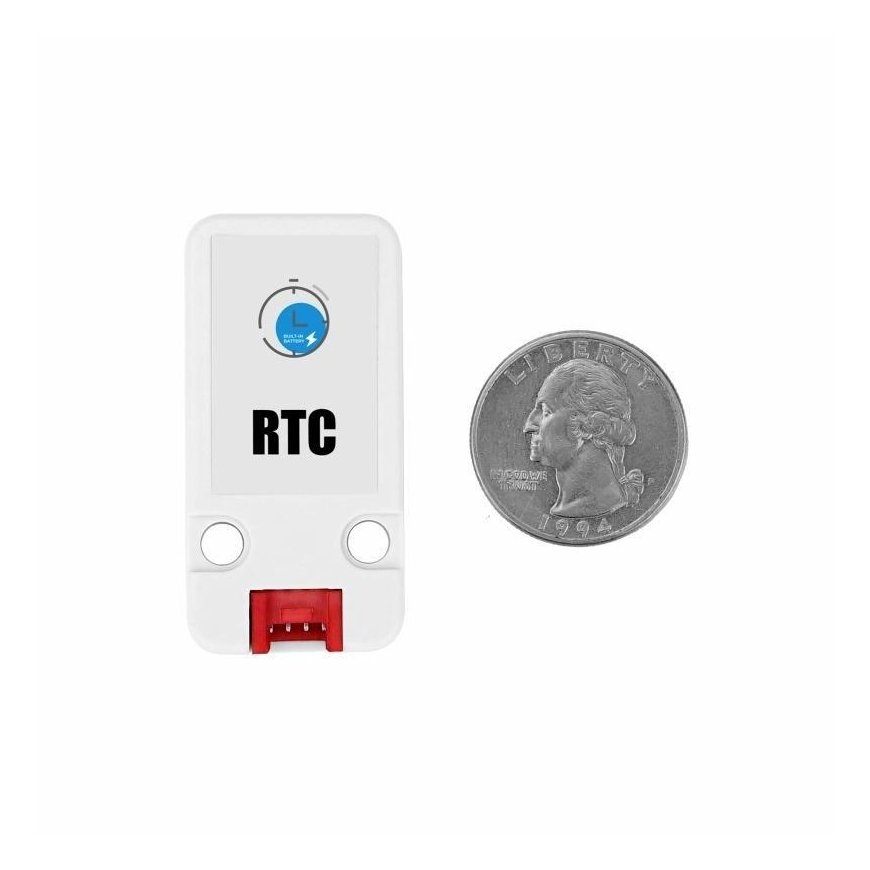

  • Dimensions: 48 x 24 x 8 mm
  • Weight: 4.1 g
Package includes:
  • RTC HYM8563 real-time clock module - device expansion module for M5Stack development modules - 1 pc
  • Coin cell battery 38 mAh - 1 pc

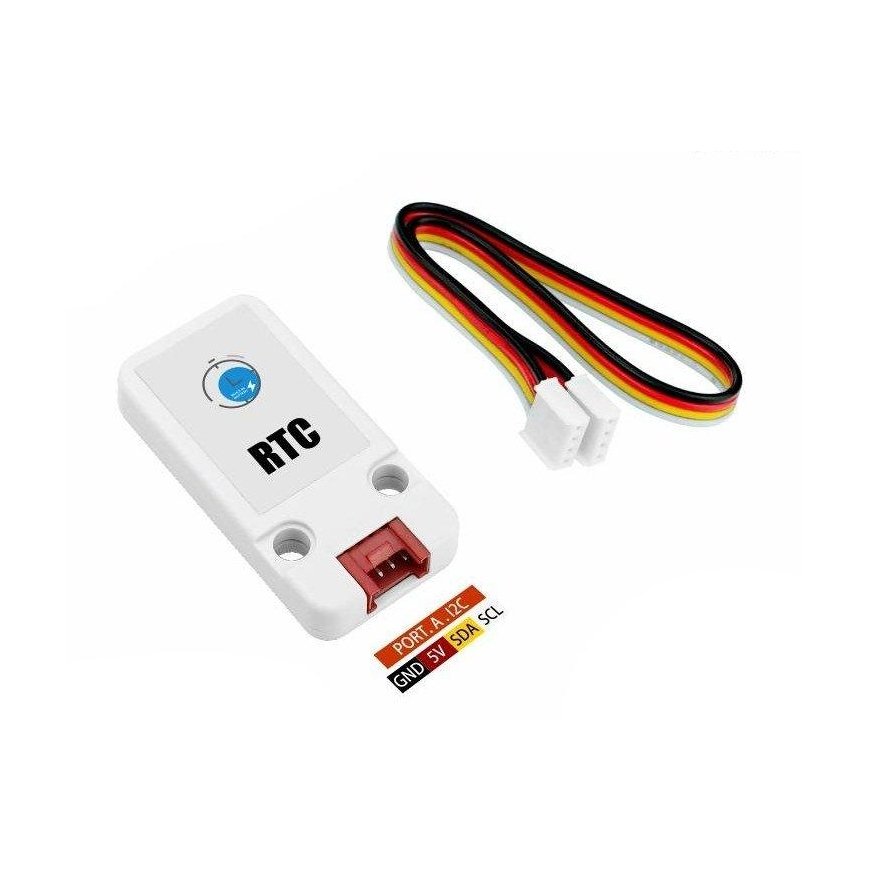

  • Connecting cable with Grove connector - 1 pc
