Seeed Studio Grove RGB LED strip LED RGB 10x WS2813 Mini 3535
19.00 €
3794629 AN-13662
5903351247269
Shipping 11-18 b.d.
You are interested in this product?
All about the product

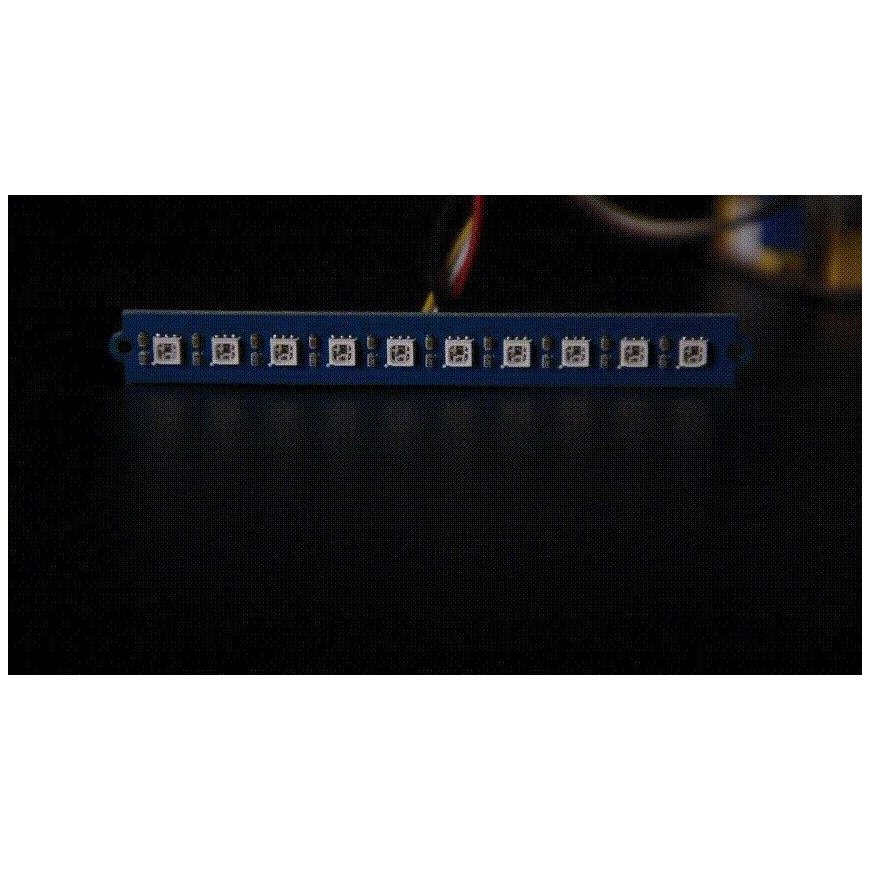

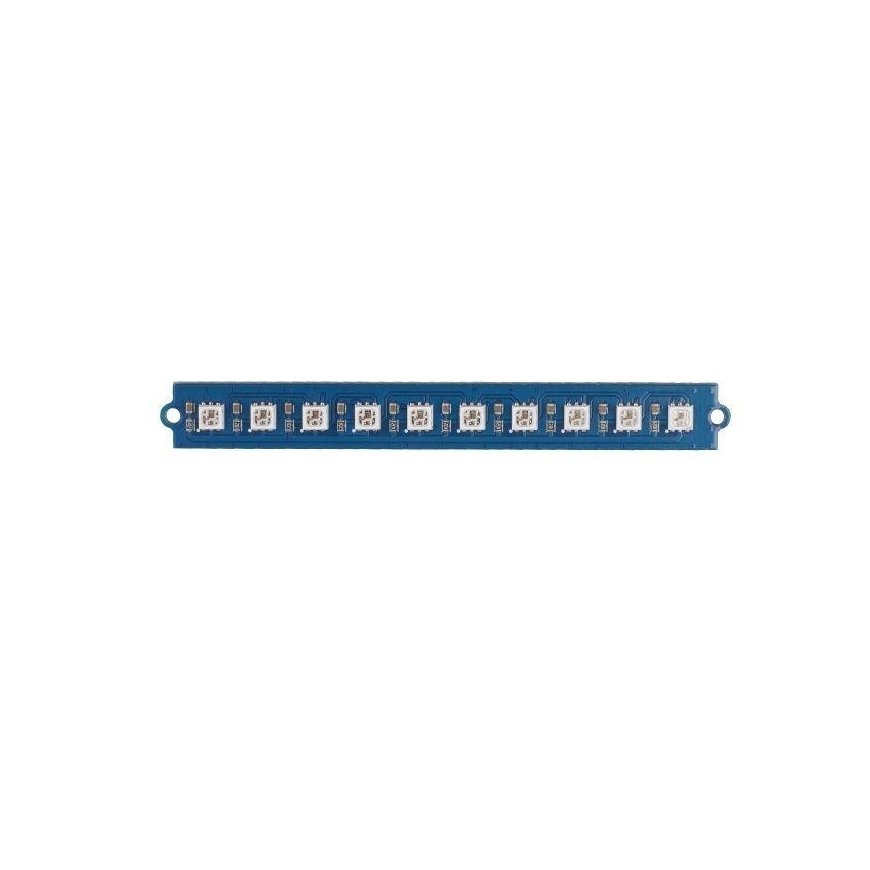

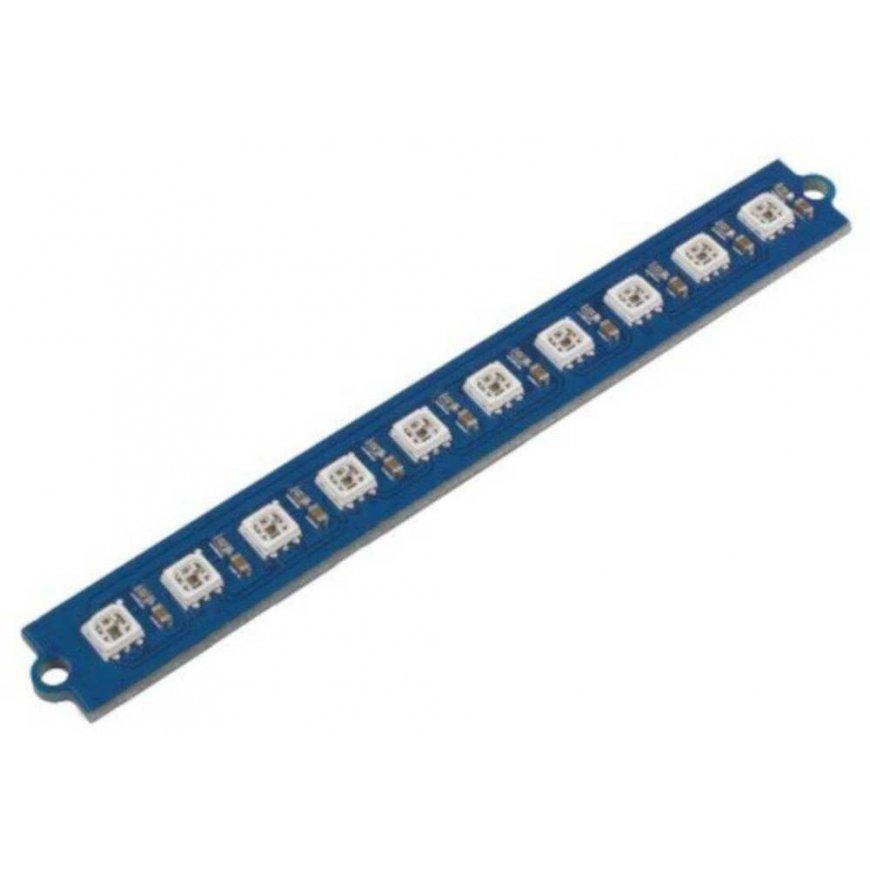

The strip consists of 10 individually addressed RGB WS2813 Mini - 3535 LEDs with an integrated control block. The LEDs on the strip are controlled by a single signal pin. The LEDs are spaced evenly along a 83 mm long strip. Each consumes up to 16mA of current, which gives a total approximate value of 160mA in this case. The circuit can be powered by any voltage from 3.3V to 5V.
Main features:
- WS2813B IC, 3535 LED
- Smart feedback protection
- The gray level of each pixel is 256, allowing for color combinations of 256x256x256 = 16777216
- The refresh rate is 2 kHz
- Cascaded serial interface reception and data decoding depend solely on one signal line
- Operating voltage: 3.3V / 5V
- Operating temperature: -25℃ ~ + 85℃
- Storage temperature: -40℃ ~ + 105℃
- RGB channel constant current: 16mA
- Interface: digital
