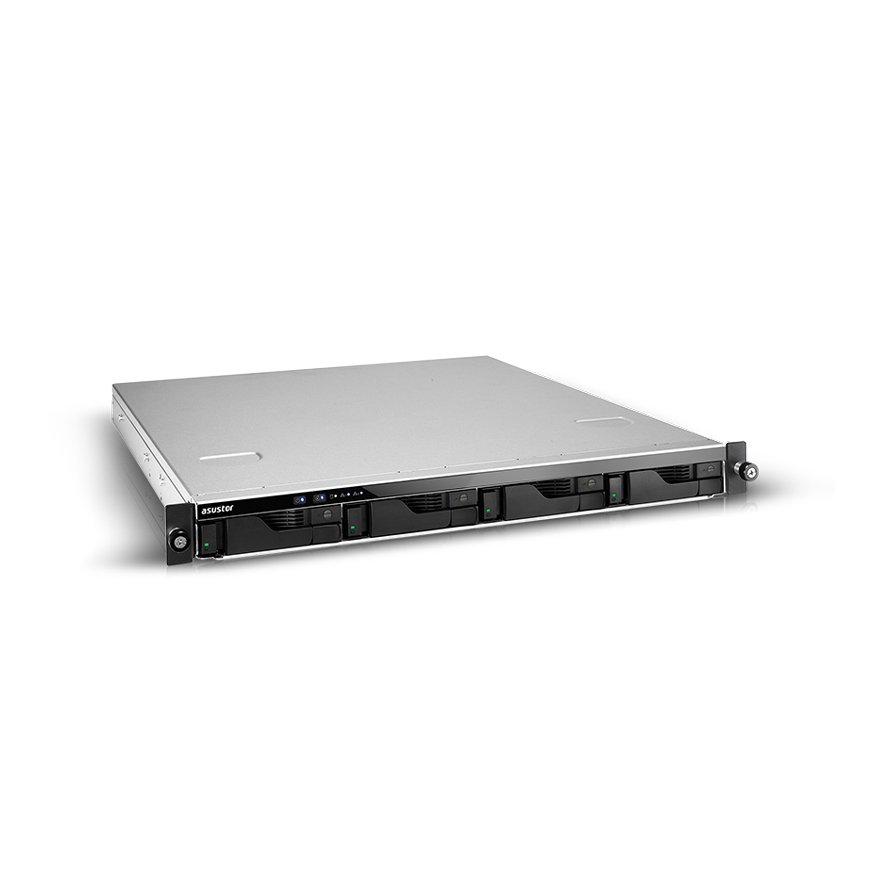

Asustor Lockerstor 4RD NAS Rack (1U) Intel Atom® C3538 8 GB DDR4 Grey
1 769,00 €
1 729.00 €
Monthly payment from 45,42 €
3794516 90IX01H0-BW3S00
4710474831357, 0887372138360, 5715063179581
Shipping 12-13 b.d.
You are interested in this product?
All about the product
Cost-effective 2.5GbE 1U Rackmount ServerA thin 1U rack 2.5GbE server providing stable performance and four bays for expandable and easy SATA storage. The Lockerstor 4RS and 4RD bring expandability by bringing PCI Express capabilities, creating one of the most flexible and lightweight solutions for small businesses.
Enterprise Grade Quad-Core Intel Atom CPU and DDR4 RAM
Equipped with the new Quad-Core Intel Atom C3538 that is clocked at 2.1GHz and combined with more than 8GB of DDR4 RAM makes for an ultra-fast, ultra-smooth file sharing experience for your office.
Enterprise Backup
The Lockerstor RD has complete backup and safety mechanisms by including dual backup power supplies for safety while including four Ethernet ports for additional performance and redundancy. Two Gigabit and two 2.5-Gigabit Ethernet ports adorn the rear of the NAS, ensuring that everyone can access their files quickly and efficiently. The Lockerstor RD makes no sacrifices by ensuring zero downtime if a port or power supply is offline.
“Find Me” Function and Service Light for Server Rooms
In enterprise environments, storage devices are commonly placed together in a server room. In order to allow administrators to quickly find the NAS from among many servers the Lockerstor 4RS/RD(1U) provides a dedicated button on front panel. When this button is pressed, the LED service light on the rear panel of the NAS will light up. ASUSTOR also offers the mobile NAS management app, AiMaster which provides the exclusive Find Me function. When Find Me is activated, the system status light on the front of the NAS will flash and the system buzzer will sound, helping users to quickly find the NAS.
Agile Expandability
The ASUSTOR Lockerstor 4RD rackmount series prepares you for the needs of tomorrow. PCIe expansion enables 10-Gigabit Ethernet can be installed to increase performance and expandability. Combine the Ethernet ports and connect to a 2.5-Gigabit Ethernet switch to take advantage of extreme speeds. Break free from restrictions with the Lockerstor 4RD.
Efficient, Redundant and Powerful
The Lockerstor 4RD contains four Ethernet ports. Two are Gigabit and two are 2.5-Gigabit Ethernet. Combine the two 2.5-Gigabit Ethernet ports to increase performance and redundancy. Link aggregation increases performance to up to 5 gbps while also ensuring zero downtime in the event of one port going offline.
Expand your storage space
A professional grade NAS needs to be equipped with a diverse array of expansion functionality. In addition to the 4 drive bays, we have also included 4 USB 3.2 ports, allowing you to create a tailored storage space for both your work and entertainment needs.
24/7 Reliability and Durability
All ASUSTOR NAS are designed for and are suitable for 24/7 use. ASUSTOR NAS devices have also undergone rigorous tests, such as drop tests and burn tests to test durability in extreme conditions. Heatsinks were added to sensitive components to dissipate heat, helping to maintain the longevity of the device.
Protected From Ransomware
The Lockerstor comes with the most up-to-date version of ADM to help protect against ransomware attacks. Snapshot Center and Btrfs provide the ability to efficiently create snapshots to protect and easily restore lost data. Other security features found on the Lockerstor are the ability to create one or more replacement administrator accounts, a firewall by ADM Defender that features blacklists and whitelists, the ability to change default ports, disable SSH and Terminal to prevent remote attacks. MyArchive cold storage hard drive security can also be increased by implementing AES 256bit encryption.
Features
| Product colour | Grey |
| Processor frequency | 2.1 GHz |
| Processor family | Intel Atom® |
| Processor model | C3538 |
| Processor cores | 4 |
| USB port | Yes |
| Weight | 9.3 kg |
| Width | 439 mm |
| Depth | 515 mm |
| Height | 44 mm |
| Type | NAS |
| Internal memory | 8 GB |
| Internal memory type | DDR4 |
| Memory form factor | SO-DIMM |
| Cooling type | Active |
| Windows operating systems supported | Windows 7; Windows 8; Windows XP; Windows 10 |
| Mac operating systems supported | Yes |
| Certification | FCC, CE, VCCI, BSMI, C-TICK, KCC, BIS |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 4 |
| Ethernet LAN data rates | 10; 100; 1000; 2500 |
| AC input voltage | 100 - 240 V |
| On/off switch | Yes |
| Fan diameter | 4 cm |
| Number of fans | 2 fan(s) |
| Storage drive size | 2.5/3.5" |
| Supported storage drive interfaces | Serial ATA III |
| Number of storage drives supported | 4 |
| Security algorithms | SSH; SSL/TLS; AES |
| Supported network protocols | CIFS / SMB, SMB 2.0 / 3.0, AFP, NFS, FTP (Unicode Supported), TFTP, WebDAV, Rsync, SSH, SFTP, iSCSI/IP-SAN, HTTP, HTTPS, Proxy, SNMP, Syslog |
| Linux operating systems supported | Yes |
| Processor manufacturer | Intel |
| Chassis type | Rack (1U) |
| Embedded options available | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Execute Disable Bit | Yes |
| CPU configuration (max) | 1 |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Harmonized System (HS) code | 84714100 |
| Storage drive sizes supported | 2.5; 3.5 |
| Supported storage drive types | HDD & SSD |
| Number of SATA III connectors | 4 |
| Web-based management | Yes |
| Jumbo frames support | Yes |
| Number of power supply units | 2 |
| RAID levels | 0; 1; 5; 6; 10 |
| S.M.A.R.T. support | Yes |
| Wake-on-LAN ready | Yes |
| Number of users | 4096 user(s) |
| Intel Secure Key Technology version | 1.00 |
| Conflict-Free processor | Yes |
| RAID support | Yes |
| Intel Secure Boot | Yes |
| Intel Secure Boot Technology version | 1.00 |
| Intel QuickAssist Technology | Yes |
| Storage drive interface | Serial ATA III |
| Storage drives installed | No |
| Installed storage drive type | No |
| Device class | Small & Medium Business |
| Backup function | Yes |
| Snapshot | Yes |
| System log | Yes |
| Power supply unit (PSU) capacity | 250 W |
| Password authentication | Yes |
| Maximum supported storage capacity | 72 TB |
| Fan diameter 2 | 4 cm |
