iiyama LH6575UHS-B2AG Signage Display
3794215 LH6575UHS-B2AG
4948570125265
Shipping 3-5 b.d.
All about the product
Android OS
Thanks to Android OS, you can easily customize the display to your needs by installing applications directly to it.
iiSignage²
iiSignage² is our digital signage content management platform to easily show and control your content and to manage your displays in a secure way. The Content Management System (CMS) gives you total control of your messaging and advertising remotely and safely.
Signal FailOver
FailOver is a feature which automatically detects input sources. When there is no signal on the default input it will automatically switch to the next available input. FailOver allows customers to prioritize a number of inputs (incl. Browser, Media Player and Custom) and ensures your content is always actively displayed, assuring active content at all times.
Smart Display Module
A Smart Display Module (Small/Large) is a plug-in module which can easily be inserted into the most stylish and ultra-slim displays. This small sized module delivers great performance with minimum implementation and management. Available as optional.

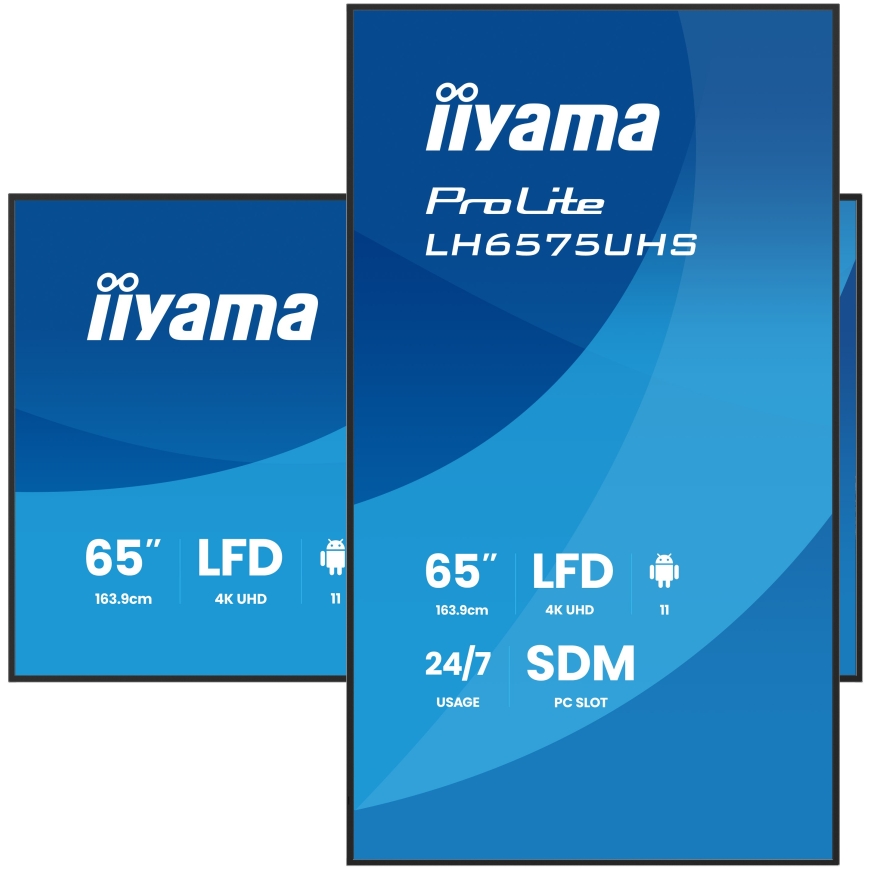

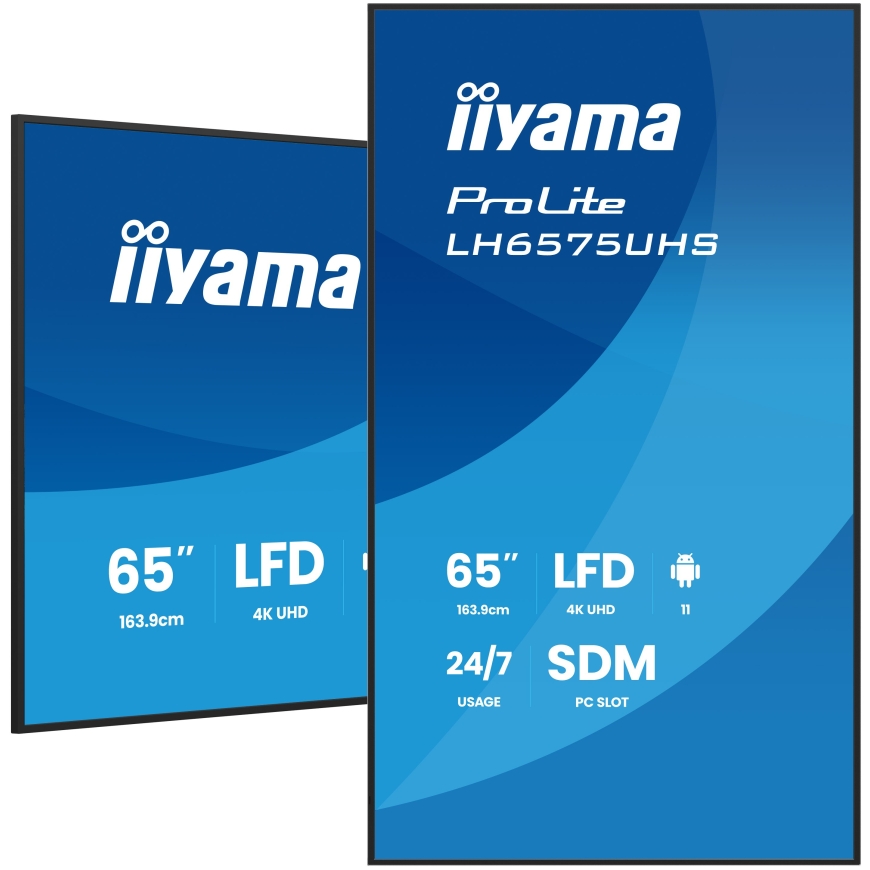

Flexible Orientation
With the option to switch between landscape and portrait mode, these displays let you get creative with any space. Whether it’s messaging, ads, videos, or safety info, you can tailor your content to grab attention exactly how you want.
Speakers
The built-in speakers offer high-quality sound, ensuring crystal-clear audio during multimedia playback.
Cable Management
Cables can be neatly tied and routed with the special cable clips, so they cannot come loose or move around.
Display | |
| Display diagonal | 163.8 cm (64.5") |
| Display resolution | 3840 x 2160 pixels |
| Contrast ratio (typical) | 1200:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display brightness | 500 cd/m² |
| Response time | 8 ms |
| Display diagonal (metric) | 164 cm |
| HD type | 4K Ultra HD |
| Display number of colours | 1.07 billion colours |
| Display technology | LCD |
| Native refresh rate | 60 Hz |
| Touchscreen | No |
| Anti-glare screen | Yes |
| Native aspect ratio | 16:9 |
| Pixel pitch | 0.372 x 0.372 mm |
| Colour gamut | 72% |
| Panel type | IPS |
Video | |
| Colour depth | 8 bit |
Features | |
| Operating system installed | Android 11 |
| Product colour | Black |
| Panel mounting interface | 400 x 400 mm |
| Housing material | Metal |
| VESA mounting | Yes |
Audio | |
| RMS rated power | 20 W |
| Built-in speaker(s) | Yes |
Network | |
| Wi-Fi | Yes |
| Ethernet LAN | Yes |
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
| Ethernet LAN (RJ-45) ports | 1 |
Technical details | |
| Plug and Play | Yes |
| Compliance certificates | CE, RoHS, REACH, WEEE, EAC, TÜV mark, CB |
Ports & interfaces | |
| HDMI ports quantity | 3 |
| PC Audio in | Yes |
| Headphone outputs | 1 |
| HDMI version | 2.0 |
| Remote (IR) output | 1 |
| Audio Return Channel (ARC) | Yes |
| VGA (D-Sub) input ports | 0 |
| RS-232C | Yes |
| HDCP version | 2.2 |
| Headphone connectivity | 3.5 mm |
| USB ports quantity | 2 |
| DisplayPorts quantity | 1 |
| USB port | Yes |
| USB version | 2.0 |
Other features | |
| HDCP | Yes |
| Mean time between failures (MTBF) | 50000 h |
| Placement supported | Indoor |
| User controls | picture (brightness, contrast, sharpness, black level, tint, colour, noise reduction, gamma selection, colour temp., colour control, picture reset), screen (zoom mode, custom zoom, screen reset), audio (balance, treble, bass, volume, audio out, max. volume, min. volume, mute, audio reset, audio out sync, speaker setting), configuration 1 (Android launcher, switch on state, panel saving, RS232-routing, boot on source, WOL, configuration 1 reset, factory reset), configuration 2 (OSD timeout, OSD H-Position, OSD V-position, system rotation, info OSD, logo and animation, logo setting, animation setting, monitor ID, group ID, monitor info, DP version, DP monitors, HDMI version, configuration 2 reset), advanced options (no signal image, motorized stand, IR control, power LED light, tiling, off timer, schedule, HDMI with One Wire, HDMI with One Wire power off, Signal FailOver, language, OSD transparency, power saving, auto power off, SDM settings, advanced options reset), Android settings (network & internet, apps & notifications, display, signage display, security, language & input, date & time, about device) |
| Audio output | 3.5mm |
| Processor architecture | ARM Cortex-A53+Cortex-A73 |
| Horizontal scan range | 28 - 160 kHz |
Storage | |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Internal storage capacity | 32 GB |
| Internal memory | 4 GB |
Power | |
| Power consumption (typical) | 172 W |
| Power consumption (standby) | 0.5 W |
| AC input voltage | 100 - 240 V |
| Power consumption (off) | 0.3 W |
| AC input frequency | 50/60 Hz |
| Power supply type | Internal |
| Energy efficiency scale | A to G |
| Energy efficiency class (SDR) | G |
| Energy efficiency class (HDR) | Not available |
| Energy consumption (SDR) per 1000 hours | 172 kWh |
Weight & dimensions | |
| Bezel width (side) | 1.4 cm |
| Bezel width (top) | 1.45 cm |
| Bezel width (bottom) | 1.45 cm |
| Weight | 21.2 kg |
| Depth | 56 mm |
| Height | 832.5 mm |
| Width | 1456.5 mm |
Management features | |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | Traditional Chinese, Danish, German, Dutch, English, Spanish, Finnish, French, Italian, Norwegian, Polish, Russian, Swedish, Japanese, Czech |
Performance | |
| Number of OSD languages | 15 |
Packaging data | |
| Package weight | 29.2 kg |
| Package depth | 162 mm |
| Package height | 1016 mm |
| Package width | 1645 mm |
Packaging content | |
| Quick start guide | Yes |
| Batteries included | Yes |
| Remote control included | Yes |
| Cables included | AC, HDMI, RS-232 |
Operational conditions | |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating temperature (T-T) | 0 - 40 °C |
Processor | |
| Built-in processor | Yes |
Certificates | |
| Certification | CB, CE, TÜV-Bauart, EAC, ErP, WEEE, REACH |
Logistics data | |
| Harmonized System (HS) code | 85285210 |
Multimedia | |
| Number of built-in speakers | 2 |
Sustainability | |
| Sustainability certificates | ErP |
