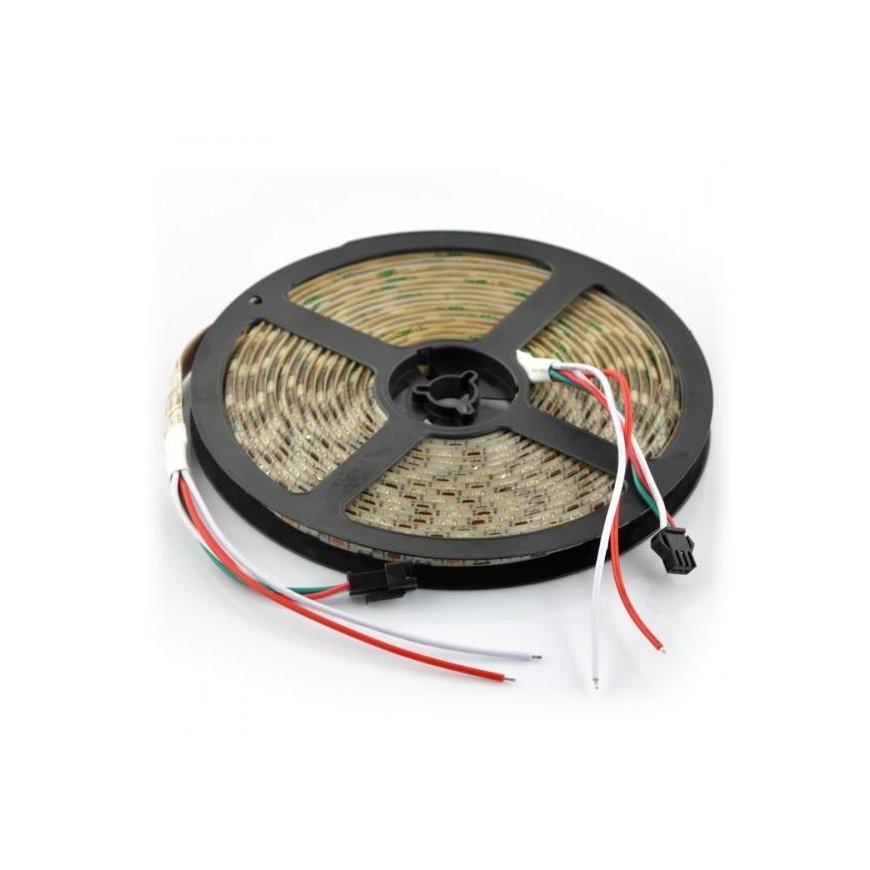

OEM RGBW LED strip SK6812 - 60 LEDs/m 5V - 5m
3793778 AN-12488
5904422341091
Shipping 11-18 b.d.
All about the product

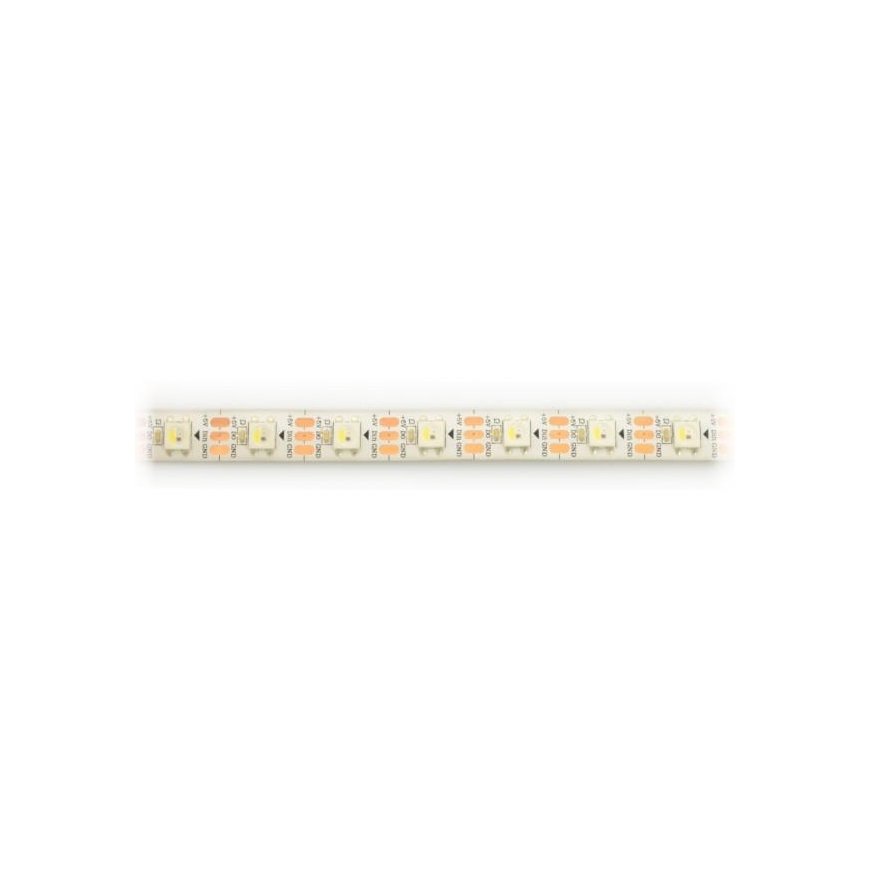

Individually addressable RGB LEDs, arranged in a strip with a density of 60 LEDs per meter. In addition to RGB colors, the pixels can also emit white colors, with each pixel capable of displaying colors from a 32-bit palette. Only one microcontroller pin is needed to control the module. (e.g., Arduino). The LEDs are densely arranged at approximately 12mm apart, resulting in high brightness. The system is powered by 5V, with each meter (9W) requiring about 4A. The strip can be cut after each LED.
Specification:
- Supply voltage: 5V
- Power: 18 W/m
- Energy consumption: approximately 4A per 1 meter strip
- Used LEDs: LED RGBW SMD5050 SK6812 (similar to WS2812B)
- Addressable point: 1 RGBW LED
- IP class: IP65 (silicone cover)
- Strip length: 5m
