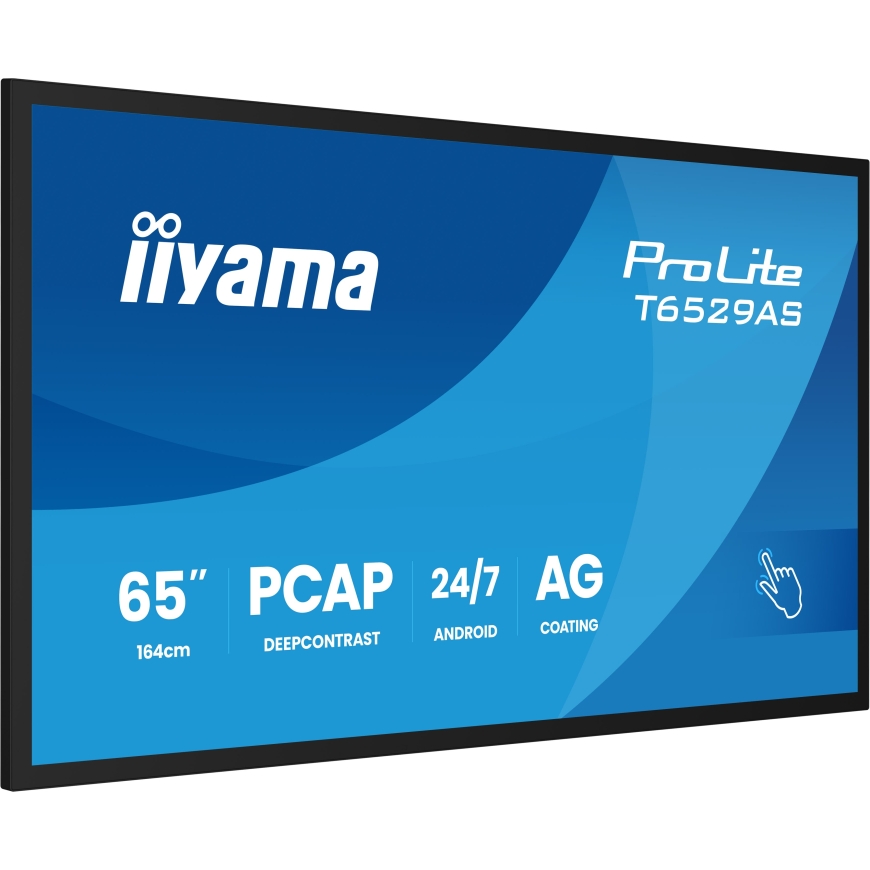

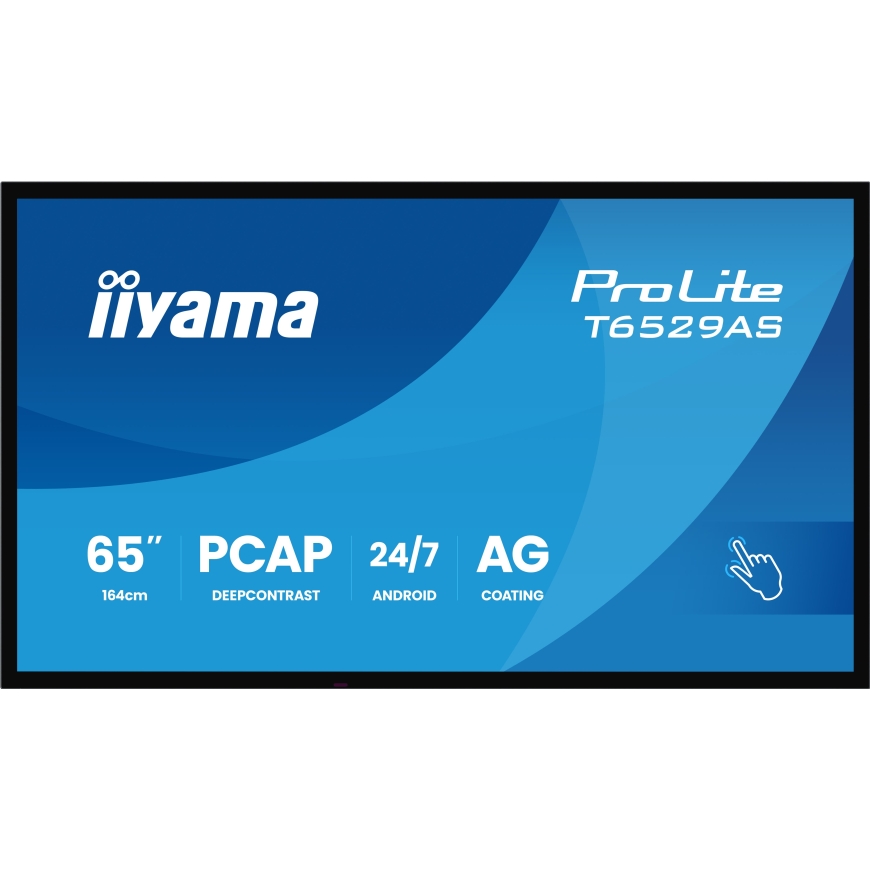

iiyama T6529AS-B1AG Signage Display
3793686 T6529AS-B1AG
4948570125593
Shipping 8-13 b.d.
All about the product
Android OS
Thanks to Android OS, you can easily customize the display to your needs by installing applications directly to it.
iiSignage²
iiSignage² is our digital signage content management platform to easily show and control your content and to manage your displays in a secure way. The Content Management System (CMS) gives you total control of your messaging and advertising remotely and safely.
Huddle Spaces
Turn these small meeting rooms into neat Collaboration spaces by employing the embedded applications like Android OS, EShare and Whiteboard, a selection of intuitive and practical tools installed on our PCAP interactive Touchscreens. With Android OS you can easily customize the display by installing applications directly to it. With the EShare app you can share, stream and edit content from any device directly on screen and transform your team meetings into an easy, fast and seamless interactive session.
USB-C Loop Through
One cable, zero clutter. USB-C Loop Through lets you connect and daisy-chain devices with ease—video, data, and power all in one go. It’s plug, play, and pass it on. Smart connectivity that keeps your setup clean and simple.
Signal FailOver
FailOver is a feature which automatically detects input sources. When there is no signal on the default input it will automatically switch to the next available input. FailOver allows customers to prioritize a number of inputs (incl. Browser, Media Player and Custom) and ensures your content is always actively displayed, assuring active content at all times.
Touch Pens

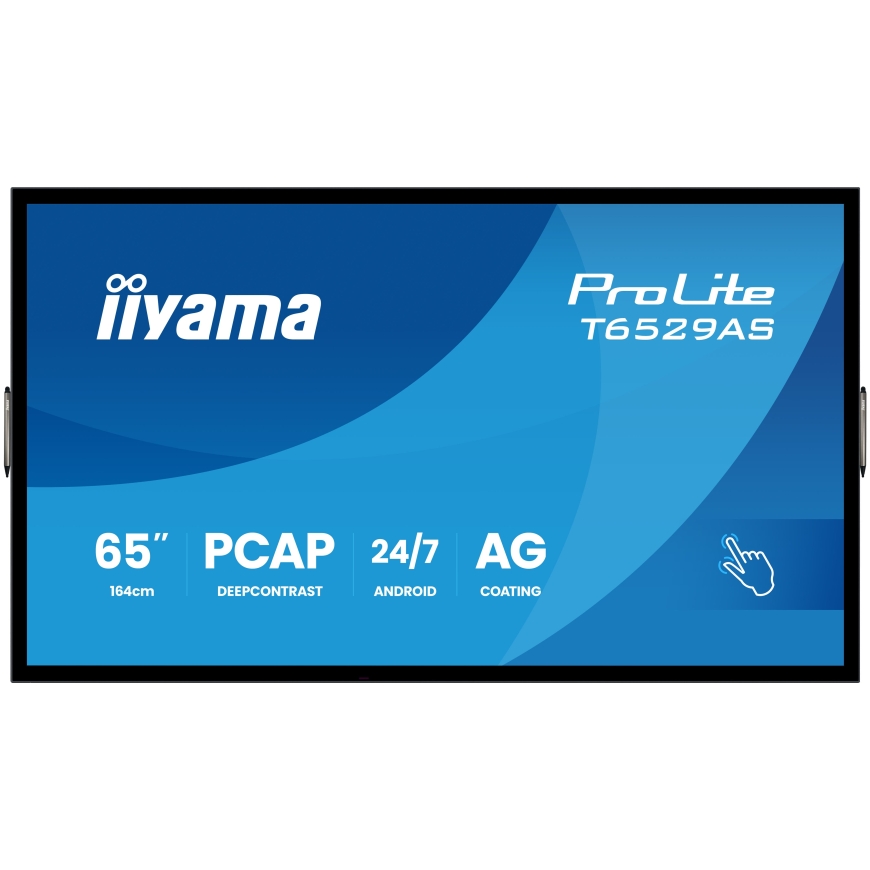

Two stylish dual tip Touch pens are included and they can be placed at both sides of the display at the magnetic holding spots.
Retail Instalations
The interactive 4K Touchscreens are the key for immersive interactive experiences for spatial retail design. Allow customers to explore your website right there and then or engage with a range of creative or experiential applications you want to host. The flexibility of either landscape or portrait modes with 24/7 Operation, built-in Android and MediaPlayer make this SERIES displays one of the most adaptable Touchscreens solutions around.
Features
| Display diagonal | 163.8 cm (64.5") |
| HD type | 4K Ultra HD |
| Display resolution | 3840 x 2160 pixels |
| Screen shape | Flat |
| Native aspect ratio | 16:9 |
| Operating system installed | Android |
| RMS rated power | 20 W |
| Wi-Fi | Yes |
| Product colour | Black |
| VESA mounting | Yes |
| Panel mounting interface | 400 x 400 mm |
| HDMI ports quantity | 2 |
| Energy efficiency class (SDR) | G |
| Energy efficiency class (HDR) | Not available |
| Width (with stand) | 1447.3 mm |
| Depth (with stand) | 42.8 mm |
| Height (with stand) | 852.3 mm |
| Weight (with stand) | 38.5 kg |
| Touchscreen | Yes |
| Display number of colours | 1.07 billion colours |
| Processor cores | 4 |
| Internal storage capacity | 32 GB |
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
| USB port | Yes |
| USB version | 2.0 |
| Weight | 38.5 kg |
| Width | 1447.3 mm |
| Depth | 42.8 mm |
| Height | 852.3 mm |
| Cables included | AC; HDMI; RS-232 |
| Internal memory | 4 GB |
| Package width | 1645 mm |
| Package depth | 192 mm |
| Package height | 1050 mm |
| Compatible operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| Package weight | 47.3 kg |
| Sustainability certificates | ErP |
| Power consumption (off) | 0.3 W |
| Quick start guide | Yes |
| Purpose | Universal |
| Certification | CB, CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH, UKCA, cTUVus |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | -20 - 60% |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| AC input voltage | 100 - 240 V |
| Power consumption (typical) | 118 W |
| Built-in speaker(s) | Yes |
| Energy efficiency scale | A to G |
| AC input frequency | 50/60 Hz |
| Remote control included | Yes |
| USB ports quantity | 2 |
| Mean time between failures (MTBF) | 50000 h |

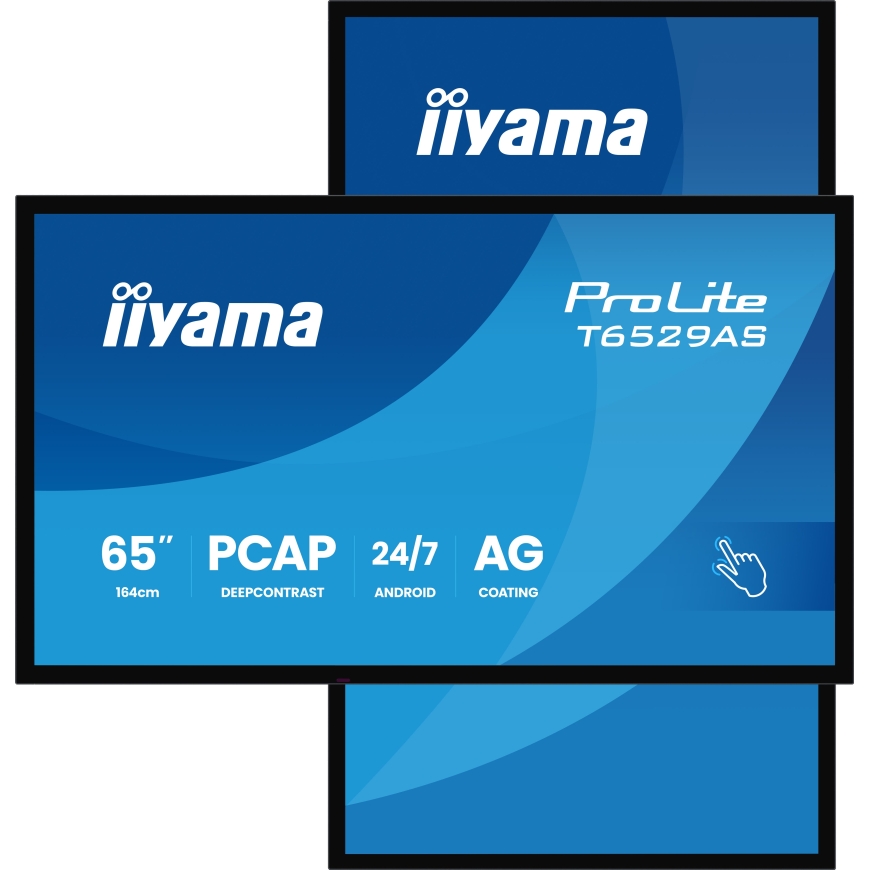

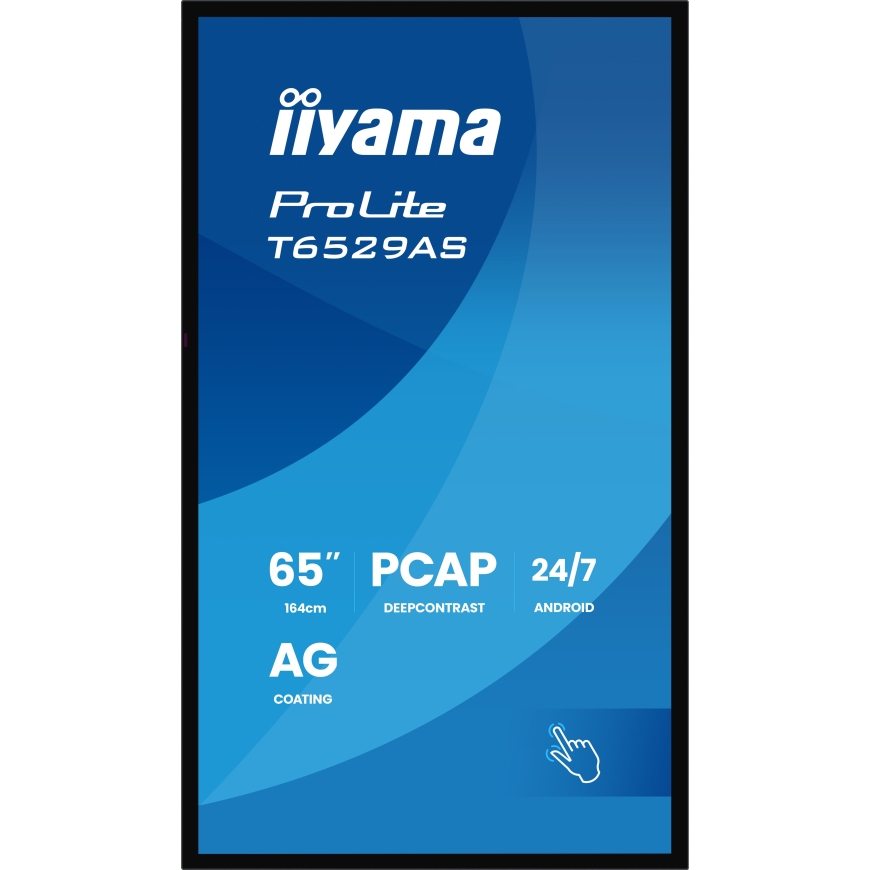

| Orientation | Horizontal/Vertical |
| Batteries included | Yes |
| Placement supported | Indoor |
| Display technology | LED |
| Contrast ratio (typical) | 4000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display diagonal (metric) | 164 cm |
| Operating system version | 14 |
| On Screen Display (OSD) | Yes |
| Number of OSD languages | 8 |
| On Screen Display (OSD) languages | Danish; German; Dutch; English; Spanish; Finnish; French; Italian; Norwegian; Polish; Russian; Swedish; Czech |
| Number of built-in speakers | 2 |
| LED backlight | Yes |
| HDMI version | 1.4/2.0 |
| HDCP | Yes |
| Power consumption (standby) | 0.5 W |
| Display brightness | 420 cd/m² |
| Power supply type | Internal |
| Product design | Kiosk design |
| LED backlighting type | Edge-LED |
| DVI port | No |
| RS-232C | Yes |
| Anti-glare screen | Yes |
| Built-in processor | Yes |
| Display width | 1447.3 mm |
| Display depth | 42.8 mm |
| Display height | 852.3 mm |
| Display weight | 38.5 kg |
| Processor manufacturer | ARM |
| On-board graphics card model | ARM Mali-G51 |
| Panel type | VA |
| Pixel pitch | 0.372 x 0.372 mm |
| Response time | 6.5 ms |
| USB Type-C DisplayPort Alternate Mode | Yes |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 15 W |
| HDCP version | 1.4/2.2 |
| Touchscreen technology | Projected capacitive system |
| Remote (IR) input | 1 |
| Horizontal scan range | 28 - 160 kHz |
| Glass thickness | 3.7 mm |
| Number of simultaneous touchpoints | 20 |
| Active display area (W x H) | 1428.5 x 803.5 mm |
| Viewable size, horizontal | 142.8 cm |
| Viewable size, vertical | 80.3 cm |
| Remote (IR) output | 1 |
| Stylus pen | Yes |
| Operating hours (hours/days) | 24/7 |
| Processor architecture | ARM Cortex-A73 |
| Brightness | 420 cd/m² |
| Surface hardness | 8 |
| Number of stylus pens | 2 |
| Multi-touch | Yes |
| User controls | picture (brightness, contrast, sharpness, black level, tint, colour, noice reduction, gamma selection, low blue light, color temp., color control, picture reset), audio (balance, treble, bass,volume, audio out, max. volume, min. volume, mute, speakers setting audio reset), OSD setting (OSD timeout, OSD H position, OSD V position, OSD transparency, information OSD, side bar), general (logo and animation, wallpaper, no signal image, schedule, off timer), screen (zoom mode, custom zoom, system rotation, scree reset), device (power on status, RS232 routing, IR control, Physical button, motorized stand, power saving, panel saving, monitor info, Touch lock, other), system (language, system update, settng reset, factory reset, Android setting), admin (menu lock, meeting lock, HDMI CEC, kiosk mode, screen share, Miracast standby, log export) |
| Bezel colour | Black |
| Compliance certificates | CE; RoHS; REACH; WEEE; UKCA; EAC; TÜV mark; CB; cTUVus |
