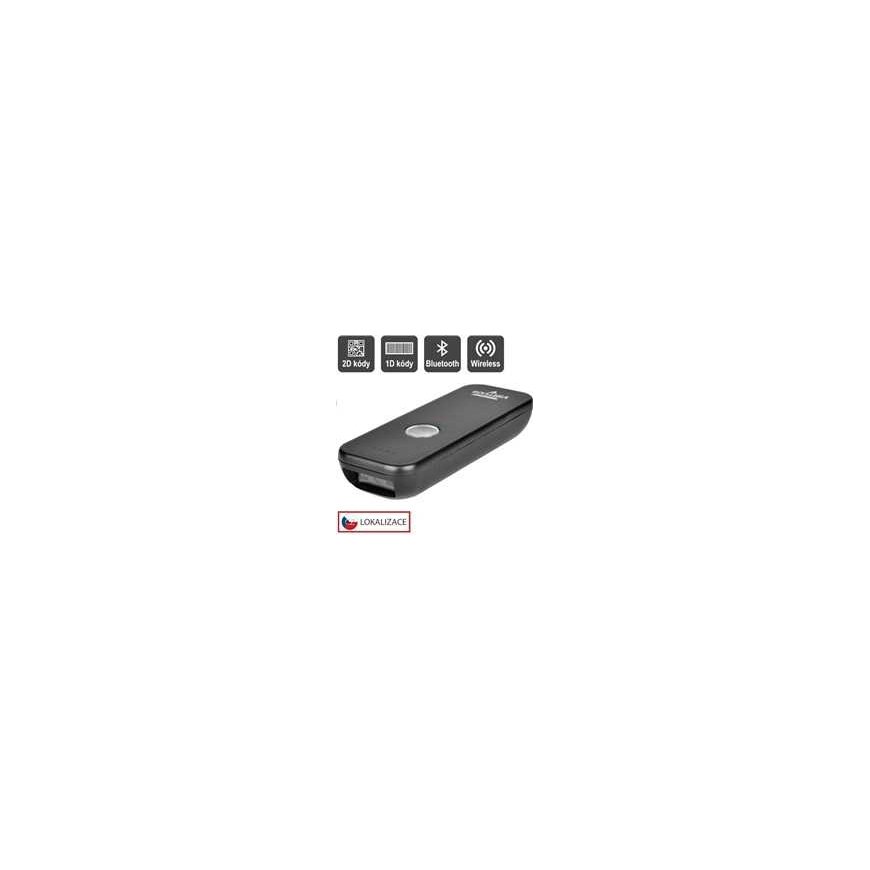

Virtuos CCD 2D scanner Virtuos HW-856A mini, wireless, pocket-sized, black
3793522 EHE0011
8594182292749
Shipping 12-16 b.d.
All about the product
Wireless CCD 2D handheld mini 1D and 2D barcode scanner. This pocket QR code and electronic prescription scanner can be widely used in warehouses, logistics, retail, libraries, pharmacies, and more. The reader can scan barcodes from various surfaces, such as transparent packaging or screens, quickly decodes even complex items - scanned, blurry, and crumpled codes. The connection between the wireless scanner and the connected device can be easily ensured by the USB wireless key, which is simply inserted into the USB port. The scanner allows emulating both keyboard and serial port.
- Pocket mini size, unique appearance, stylish form, modern design
- Easy to use and carry, comes with a practical strap
- With 16 MB of memory, can store up to 140,000 EAN 13 codes
- 3 in one connection modes:
- Wireless 2.4 GHz – includes USB wireless key
- Bluetooth - connection with tablets and phones
- Wired USB - data/power cable
- High-capacity 1500 mAh battery – 4 h charging, long durability – up to 15 h of continuous scanning on a single charge
- Ready for mobile payments – 2D code scanning from mobile phones and small screens
- Sensitive camera sensor, works even in extreme lighting (sun...)
- Reading Czech characters UTF-8 from texts 2D codes
- Automatic pairing of USB wireless key and scanner without requiring settings in the connected device's operating system
- Ability to connect and charge via USB cable through USB-C port
- When connected to a computer via cable, scanning is automatically activated through the USB port
- Emulation of keyboard and RS232 serial port via USB, BT, and 2.4 GB key
- Memory mode, allowing the scanner to be used for data collection offline or to work even outside the scanner's range and later upload the data to a computer
- Ability to scan 1D and 2D codes in one device from paper and screen
- Sound and light reading indication
- Reading all major types of barcodes and 2D codes
- Easy programming with barcodes
- Due to directional code targeting using a red indicator stripe, multiple codes can be uploaded one after another without issues
- Drop tested from 1.5 m height
- Ability to update the scanner's firmware online to expand functionality or for after-sales service
- Compatible with Windows XP/7/8/10/11, iOS, Android, Linux
MAIN PARAMETERS | |
Reading field width [mm] | 65–270 (13 million PCS90 %) |
Light source | White LED light + red LED light for targeting |
Resolution / contrast | ? 4 mils / ? 25% print contrast |
Operating mode | Normal (real-time reading), automatic detection, memory mode |
Reading angle | 65° (horizontal) x 60° (vertical) |
Reading speed | 30 frames per second |
Sensor / Processor | CMOS camera sensor 640 x 480 px / ARM |
Max. ambient light | 0–100,000 lux |
Automatic detection | YES |
Internal memory | 16 MB – up to 140,000 EAN 13 codes |
Battery life / standby mode | up to 15 hours of continuous operation, |
Charging time | 4 hours |
Battery | Rechargeable lithium battery 1500 mAh |
Charging options | Through USB-C port |
Interface | Wireless 2.4 GHz – range up to 100 m (open space), |
Emulation mode | Keyboard, SPP serial port, BT BLE |
Decoded 1D codes | Codabar (NW-7), Code11, Code32, Code39, Code128, UPC-A, UPC-E, EAN 8, EAN 13, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, Standard 2 of 5 (IATA), MSI Plessey... |
Decoded 2D codes | QR code, micro QR code, data matrix, PDF417 ... |
Housing material / IP | ABS + PC / protection IP30 |
Current in idle state | < 85 mA |
Operating current | 185 mA |
Power supply voltage | 5 V DC |
Drop test | 1.5 m |
Dimensions/weight | Scanner: 40 (W) x 18.6 (H) x 110 (D) mm / 66 g |
Operating temperature | -10 to 50 °C |
Storage temperature | -20 to 60 °C |
Ambient humidity | 5–95 % (non-condensing) |
| Compatibility | Windows XP / 7 / 8 / 8.1 / 10 / 11 / Embedded 2009 / 10 IoT, iOS, Android, Linux |
