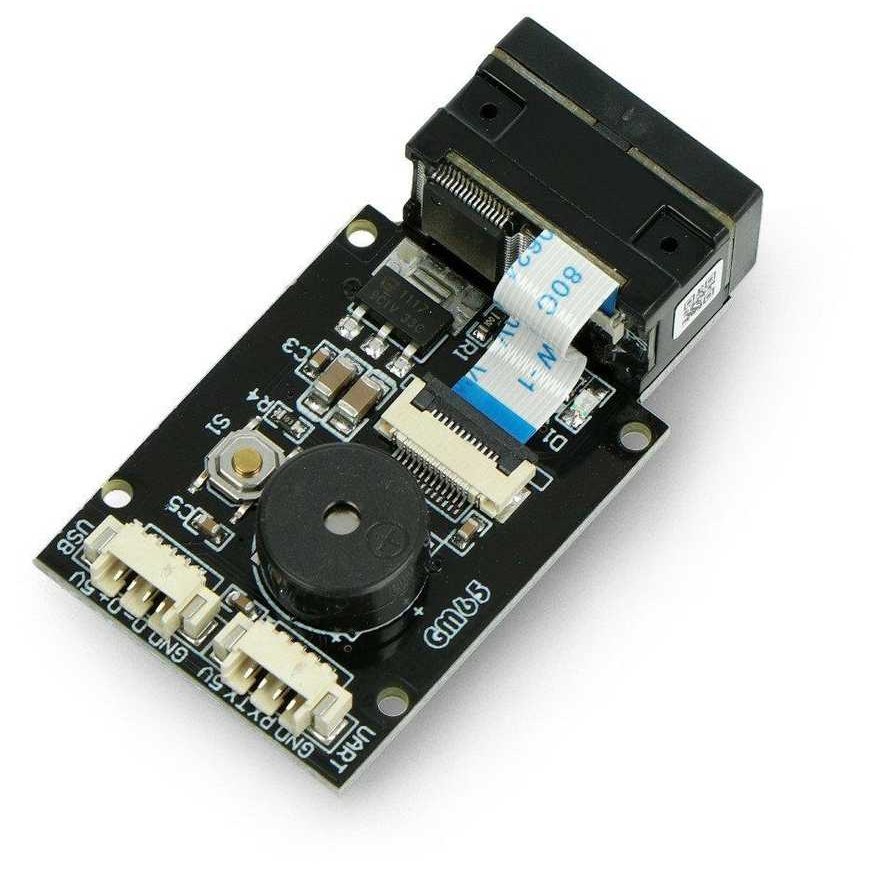

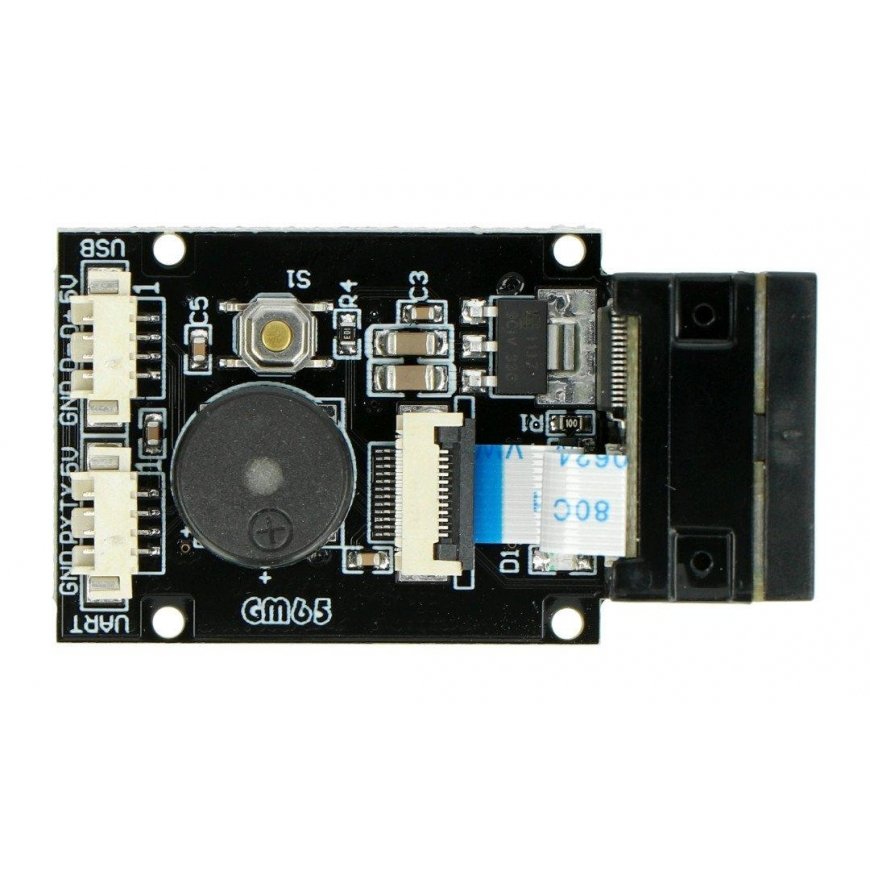

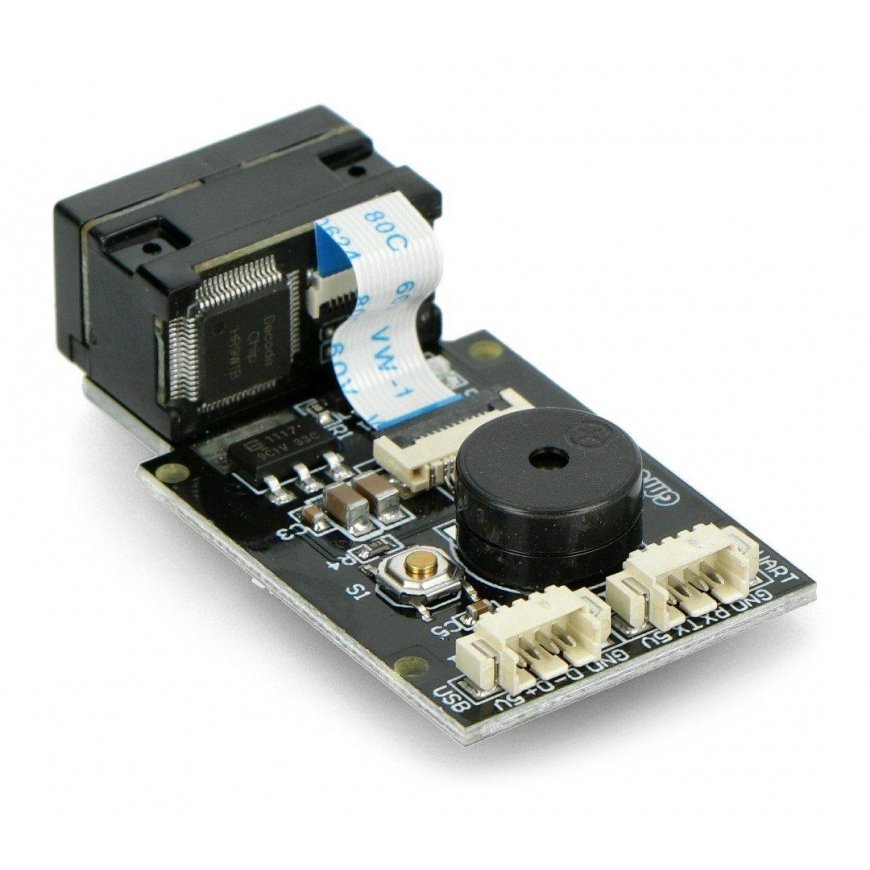

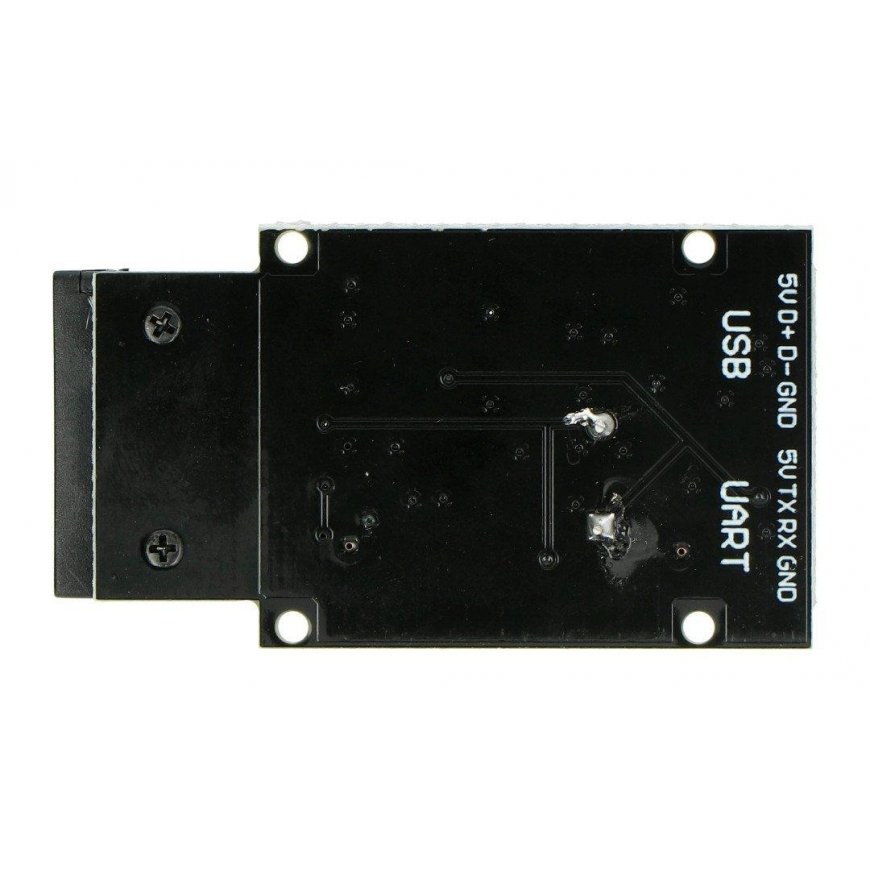

DFRobot Barcode and QR Code Scanner GM65, DFR0660
3792481 AN-17551
5904422360719
Shipping 11-18 b.d.
All about the product
The CM65 module is designed to accurately read barcodes or QR codes. It operates at high speed (about 1s) in low light conditions. It uses an advanced image recognition algorithm to easily decode popular 1D and 2D codes. It features a built-in microUSB and UART interface, allowing direct connection to a computer or integration with various devices. The module can be configured using the scanning "configuration mode" to meet strict scanning requirements. It includes a built-in light source for operation in the dark. The scanner ensures consistent scanning performance under extreme temperatures. The module is easy to adapt for multimedia barcode scanning equipment, including self-service kiosks, metro gates, access control, vending machines, and more.
Specifications:
- Supply voltage: 5 V DC
- Nominal current: 160 mA
- CMOS optical system
- Light source fixation: 617 nm LED
- Resolution: 648x488px
- Ambient light: from 0 to 86000 lx
- Scanning angle: 34° (horizontal), 26° (vertical)
- Minimum contrast: 30%
- Light source: white
- LED light source: 6500 K
- Interfaces: UART and USB
- Barcode support: code 11, code 39 / code 93, UPC / EAN, code 128 / EAN128, interleaved 2 of 5, 2D matrix of 5, MSI code, 2 industrial code of 5, GS1 database (RSS) code support 1D
- QR code support, data matrix, PDF417 2D
- Operating temperature range: from 0 °C to 50 °C
- Storage temperature range: from -40 °C to 70 °C
- Operating humidity: from 10% to 80%
- Weight: 34.75 g
