Tower Pro MG-90S servo – 13g – 1.8kg/cm – metal gear – micro

19.00 €
3791531

ABC-1227

5904384705054

Shipping 12-19 b.d.

You are interested in this product?
(Read terms of service)

All about the product

TowerPro MG-90S servo - 13g - 1.8kg/cm TowerPro MG-90S servo replacement

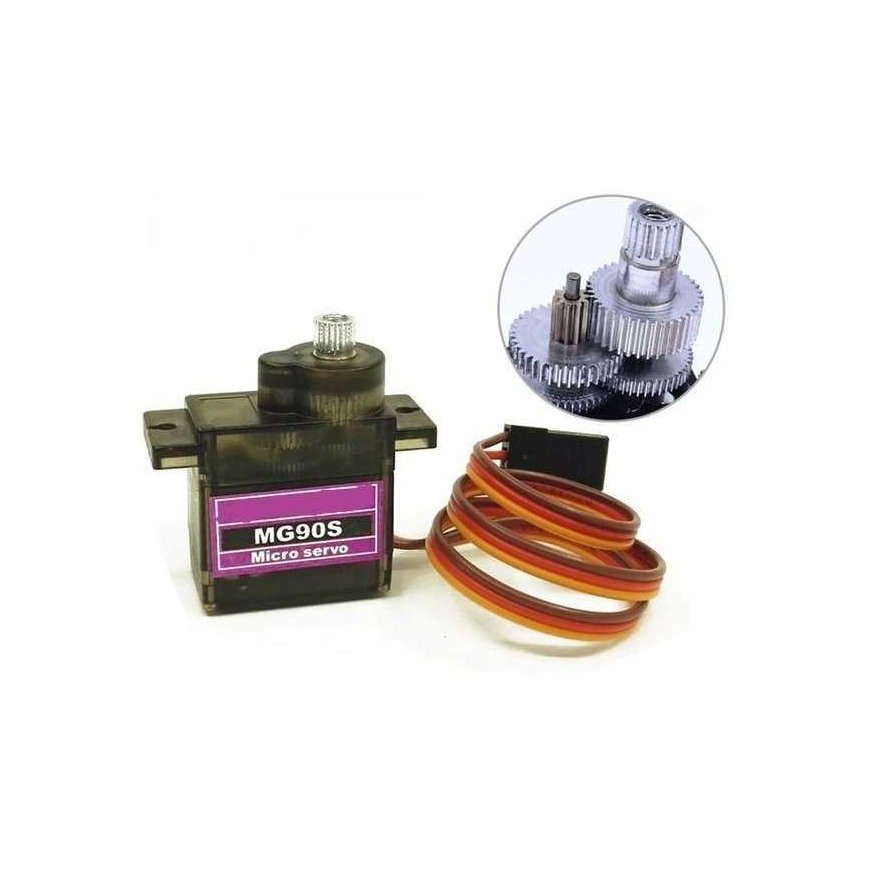

  • The “TowerPro MG-90S” servo motor is equivalent to the SG-90S servo from the micro family.
  • Can replace servos such as Hitec HS-82 MG or HS-81.
  • The precise SG90S Tower Pro servo with metal gear, lightweight and good specifications is ideal for modeling and robotics applications.
  • It features precise operation, higher torque than traditional servo devices, and a low weight of 13 g.
  • Equipped with a precise bearing that increases the servo speed by 20%.
  • Fast and powerful, ideal for standard applications.
  • Perfect for acrobatic dives, glider controls, as a throttle valve servo drive in combustion models, and small cars in 1:16 and 1:18 scale.
Servo MG-90S specifications
  • Weight: 13.4 g
  • Torque: 1.8 kg (4.8 V), 2.2 kg (6 V)
  • Rotation angle: up to 180º
  • Speed: 0.1 sec. / 60° (4.8 V), 0.08 sec. / 60° (6 V)
  • Operating voltage: 4.8V - 6.0V
  • Operating temperature: 0 - 55ºC
  • Connector wire length: 250 mm

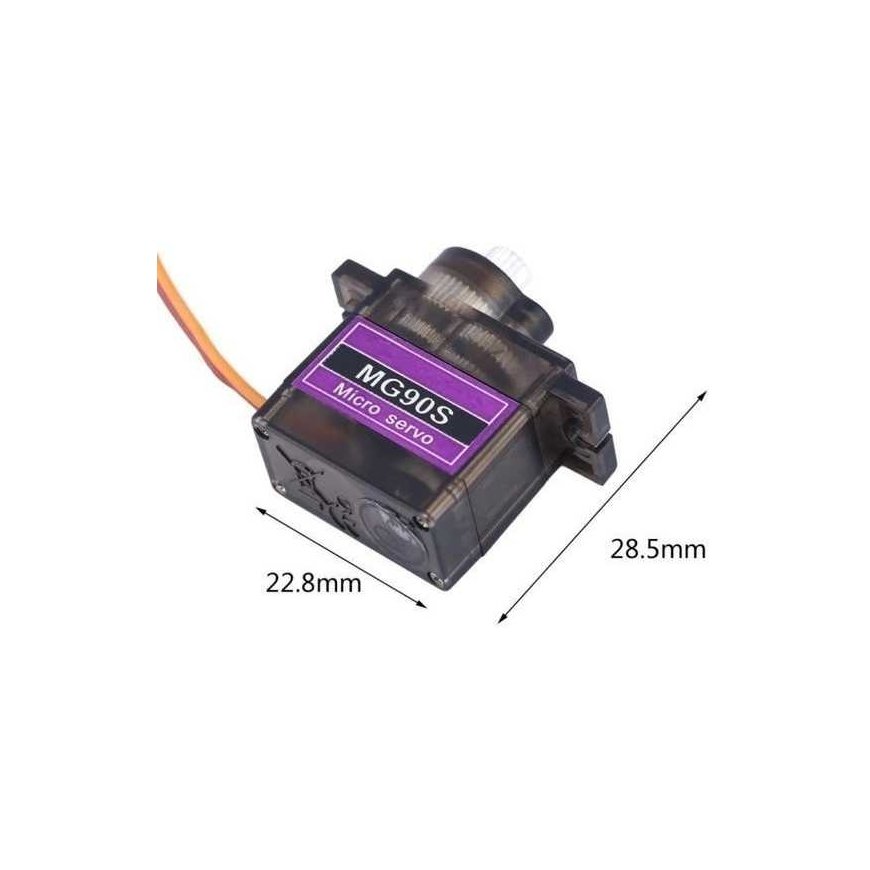

  • SG-90S servo dimensions

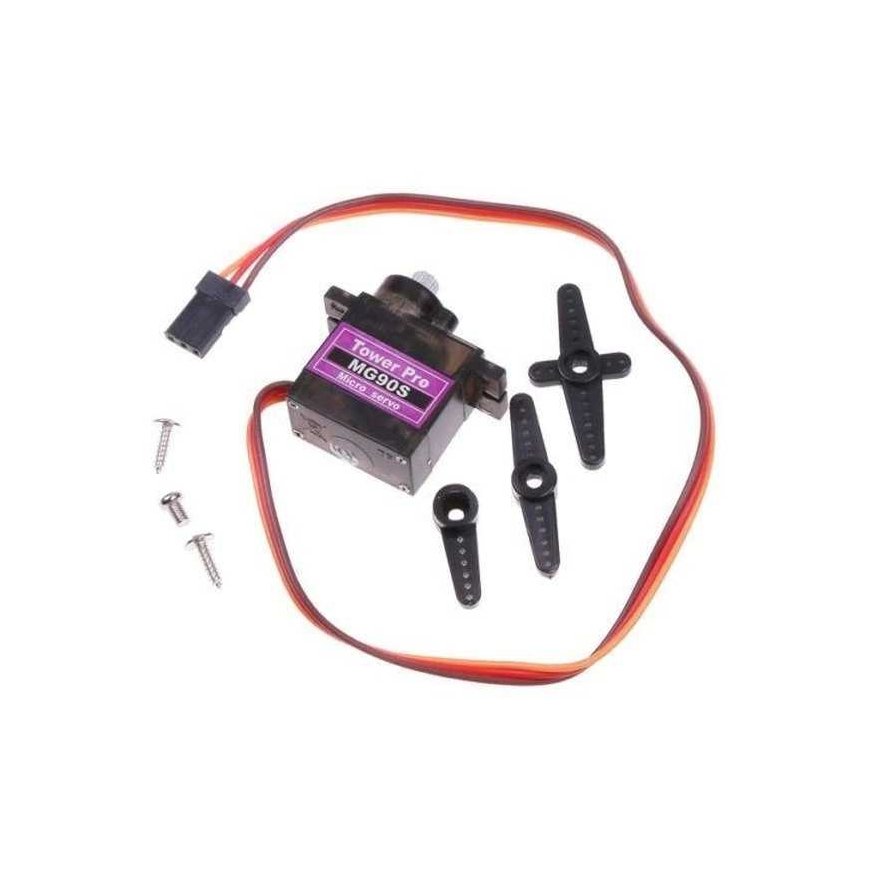

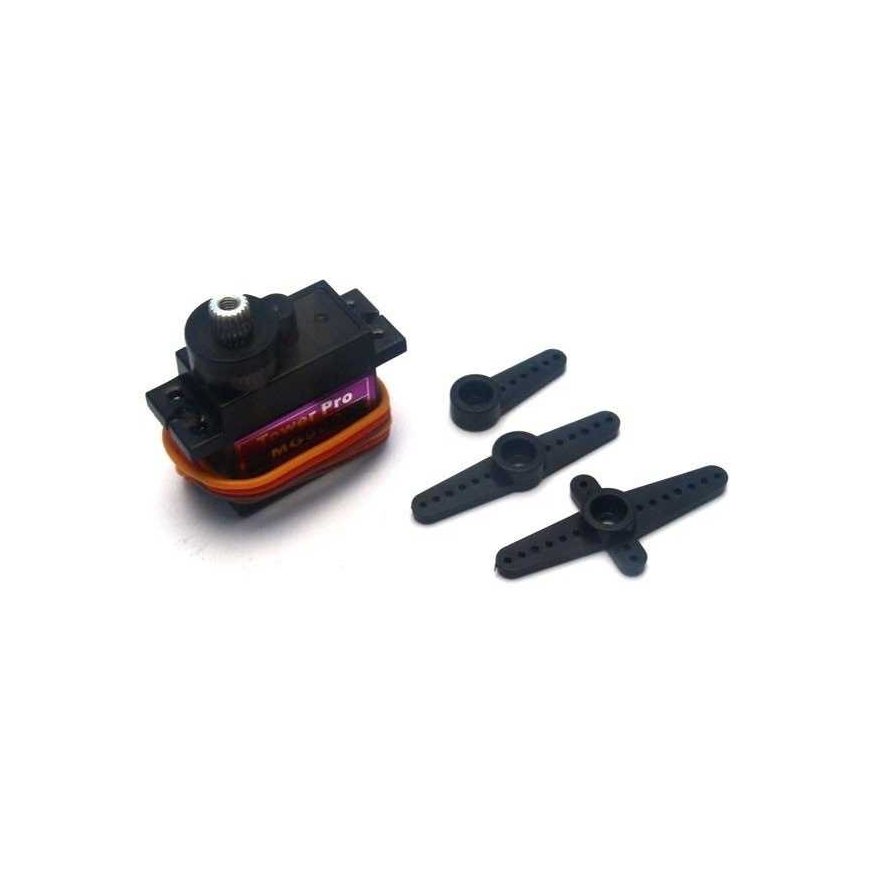

Including
  • Servo
  • T-shaped rods
  • T-shaped screw
  • Mounting screws
