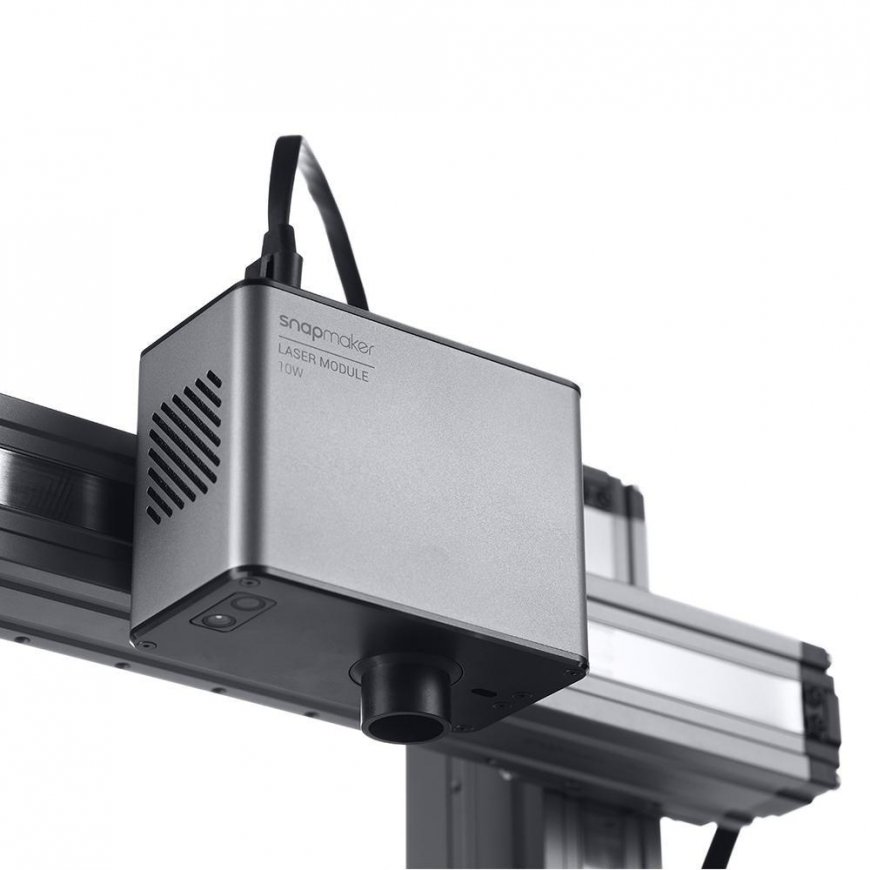

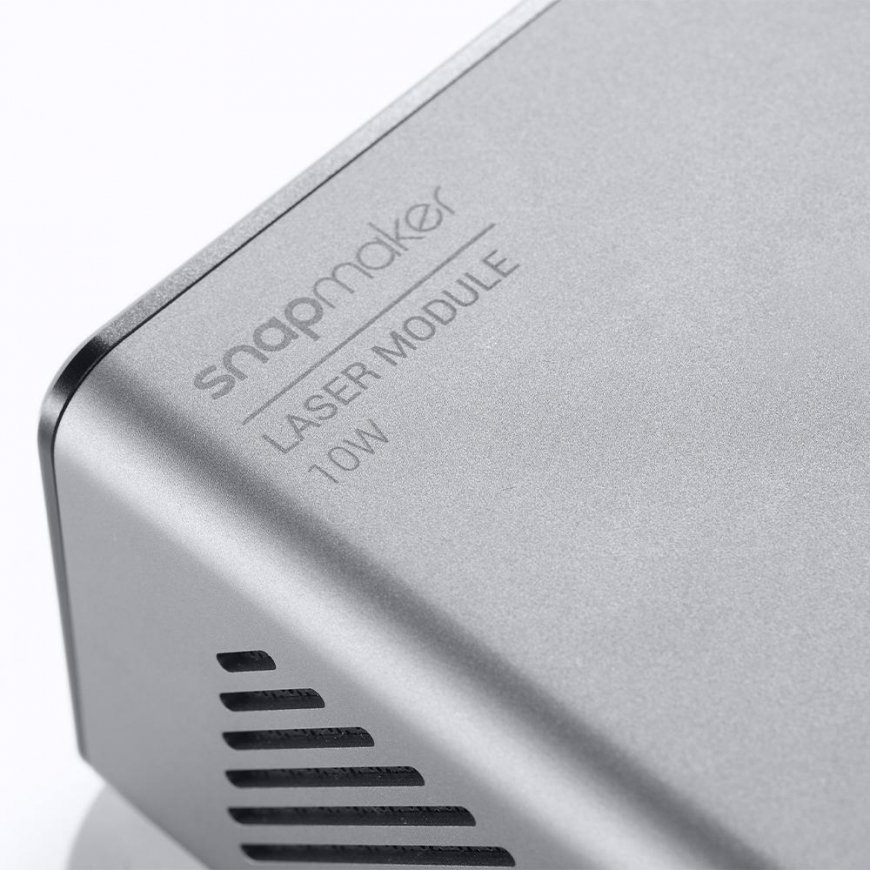

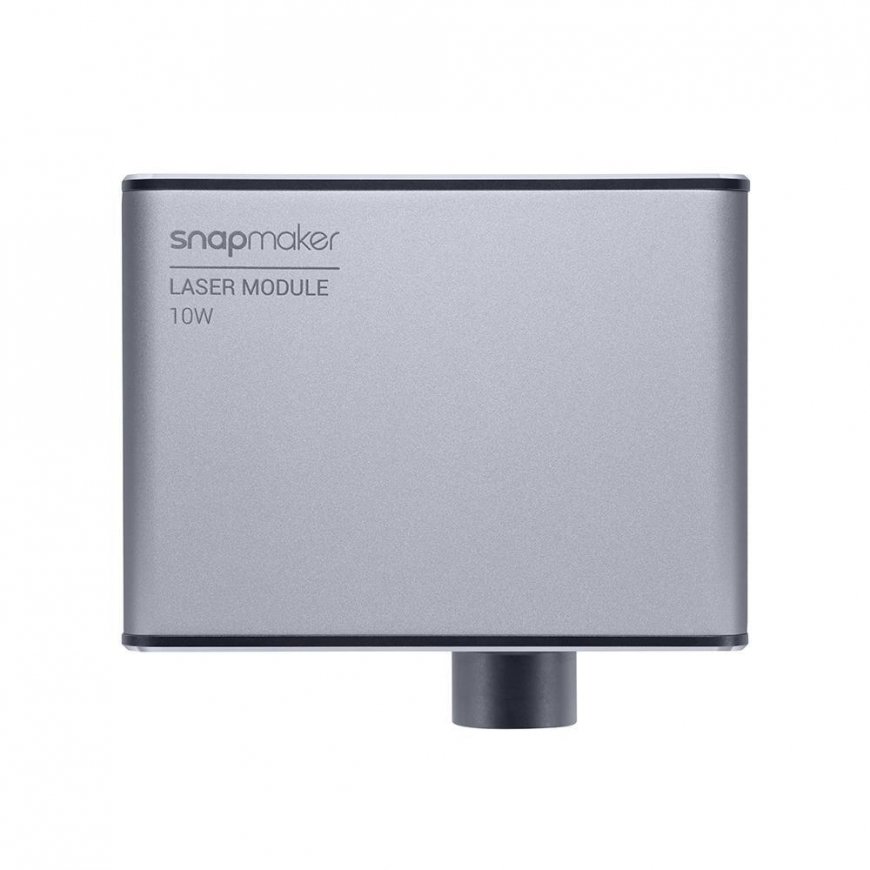

Snapmaker 10W high power laser module

All about the product

The 10 W laser module is equipped with the most advanced fiber laser splitters, whose power is increased from 5 W to 10 W. This means you can now work with a wider variety of materials and undertake more projects.
The working speed of the 10 W laser module can reach 6000 mm/min when cutting 8 mm thick wood. In perspective, the cutting speed is up to 8 times faster than that of the 1.6 W laser module. It can literally perform laser work in the blink of an eye.
With fast-axis collimation (FAC) lenses installed in two laser diodes, the module first compresses the point of each laser diode. It then combines the beams of the two laser diodes using beam combining technology, resulting in higher output power and extremely fine laser focusing (0.05 mm × 0.2 mm), allowing for a greater energy density. Smaller laser focusing and higher power ensure high-quality laser work with impeccable details.
A unique wind channel inside the 10 W laser module ensures excellent wind pressure, removing vapors as the laser beam penetrates the material, with the vapors directed straight to the laser engraving and cutting platform grids, which are then redirected to minimize the impact of vapors while working with the laser.
To protect the user and any bystanders, we have included a gyroscopic sensor in the module that ensures that if the module is incorrectly installed or deviates from its intended position, the laser beam stays in place.
Prolonged exposure to high temperatures will shorten the lifespan of the laser diode. The 10 W laser module has two separate cooling systems for the PCBA and the laser diode to ensure that the diode is properly cooled every time you use it. With proper use, the lifespan can reach 8000–10000 hours.

Key Features:

• 10 W high power
• Automatic focusing
• Upgraded Camera Capture
• Customized software
• Supports over 20 types of materials for engraving and more than 10 for cutting
• 8 times faster than the 1.6 W laser module
• Maximum cutting depth: 8 mm wood

• Power: 10 W
• Laser type: 450 - 460 nm, semiconductor
• Laser class: Class 4
• Maximum working speed: 6000 mm/min
• Operating temperature: 0 ℃ - 35 ℃
• Laser spot dimensions: 0.05 mm × 0.2 mm
• Working area: 320 mm × 350 mm (A350/A350T/F350); 230 mm × 250 mm (A250/A250T/F250)
• Weight: 0.63 kg
• Frame material: aluminum alloy
• Data transmission: USB, Wi-Fi
• Supported engraving materials: pine, plywood, beech wood, walnut, bamboo, MDF, painted metal, copper-plated laminate, SPTE, stainless steel, anodized aluminum, acrylic, dark glass, slate, brick, ceramics, jade, marble, slate, leather, fabric, canvas, corrugated wood fiberboard, cardboard
• Supported cutting materials: pine, plywood, beech wood, walnut, bamboo, MDF, black and red acrylic, leather, fabric, canvas, corrugated wood fiberboard, cardboard
• Supported formats: .stl, .svg, .png, .jpg, .jpeg, .bmp, .dxf
• Wavelength range and optical density (OD): 190-540 nm OD6+; 800-1700 nm OD4+
• Visible light transmittance: 8.8%
• Usage: Violet / UV light, green, blue, and infrared laser
• Dimensions: 155 mm × 140 mm × 60 mm
• Lens material: polycarbonate
