The product's shade and actual color may differ from what is shown in the picture, as the images are for illustrative purposes. The product description is general and may not include all the product's features.

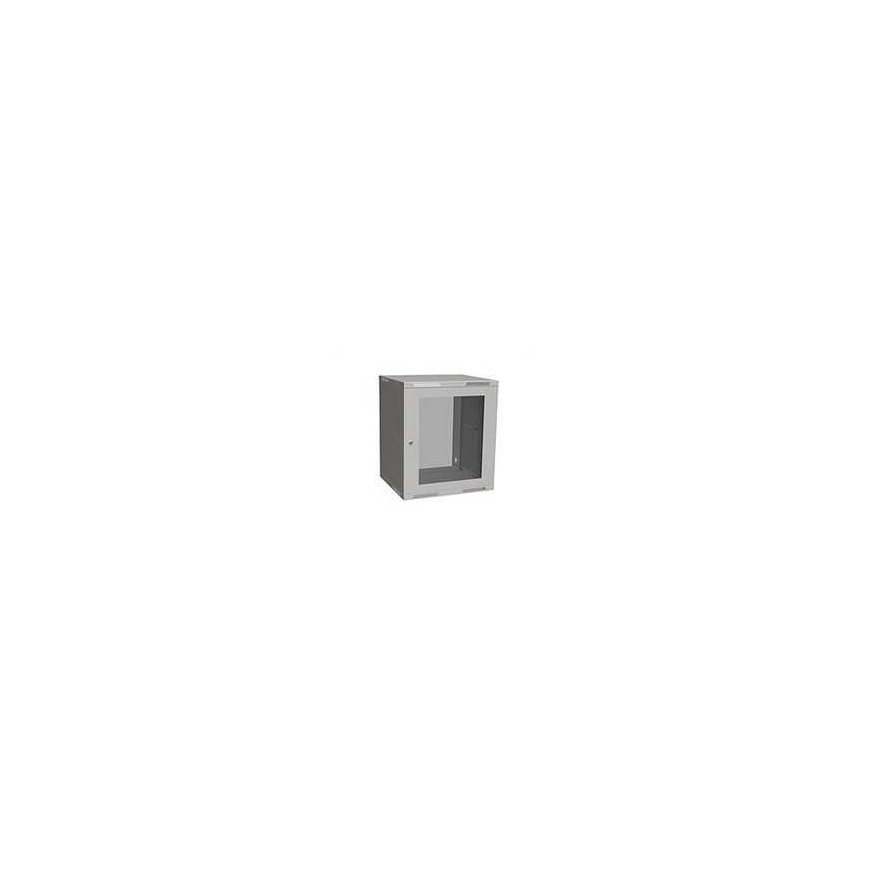

Solarix collapsible wall cabinet SENSA LITE 12U 450mm, door glass, RAL 7035, SENSA-L-12U-545-11-G
3788733 83000105
8595684713909
Shipping 9-13 b.d.
All about the product
Solarix SENSA-L-12U-545-11-G
Wall cabinet SENSA LITE 12U 450mm, glass doors, RAL 70355
Wall-mounted SENSA 12U folding cabinet with glass doors, depth 450 mm.
SENSA LITE distribution cabinets are foldable wall-mounted distribution cabinets, delivered disassembled. They are designed for the installation of data and telecommunications equipment, especially with a 19" rack mount. We have reduced the number of screw components to a minimum, making the assembly of the cabinet easy and quick. The cabinet consists of an assembled frame made up of a perforated top, bottom, and two side panels. The doors have a lock with two keys and concealed hinges. There are perforations in the top and bottom covers of the cabinet for better ventilation of internal equipment and for the possible installation of a separate fan. Cable entry points, covered with knock-out plugs, are located on the top and bottom of the cabinet. The cabinet frame and all separate parts are connected using the included grounding cables.
Technical specifications:
| Height: | 12U |
| Height: | 621 mm |
| Width: | 520 mm |
| Depth: | 450 mm |
| Weight: | 12 kg |
| Color: | RAL 7035 |
Available variants:
- Height: 6, 9, 12U
- Width: 520 mm
- Depth: 450 mm
Construction:
- folded frame with perforation
- doors made of sheet metal or with safety tempered glass (EN 12150-1)
- doors open at a 180° angle, concealed hinges, can choose right or left hinging
- cable openings in the lower and upper parts of the distribution panel
- 19-inch vertical rails with the option to set the position to one of four depth levels in 30 mm increments
- 4 holes prepared in the back for mounting the distribution panel to the wall
- grounding kit with grounding point
- load capacity 35 kg (with uniform static load)
- protection class IP20
Color design:
- powder-coated in light gray shade RAL 7035
Standard configuration:
- one pair of sliding 19-inch vertical rails
- doors with lock and concealed curtains
- perforations in the upper and lower parts of the housing for easy ventilation
- prepared cable entries in the ceiling, bottom, and sides of the cabinet in the form of knock-out openings
- the delivery includes a set of connecting and grounding materials and assembly instructions
Accessories:
A wide range of accessories for the cabinet can be ordered, such as blanking panels, patch panels, and many others, including special accessories according to customer requirements.
