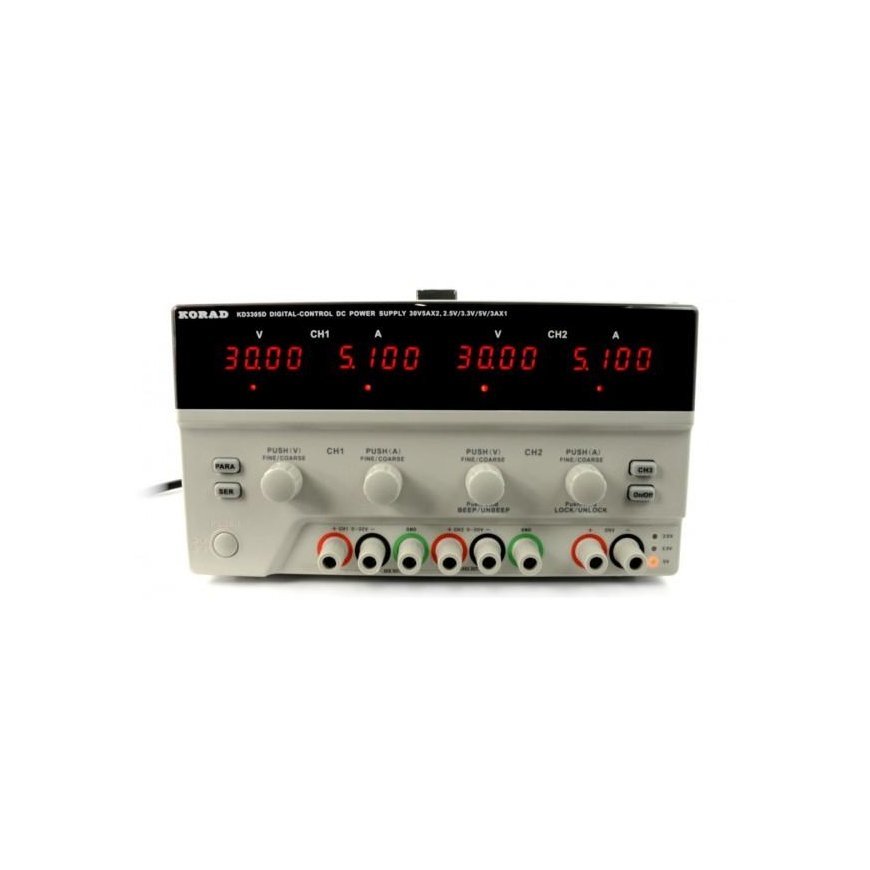

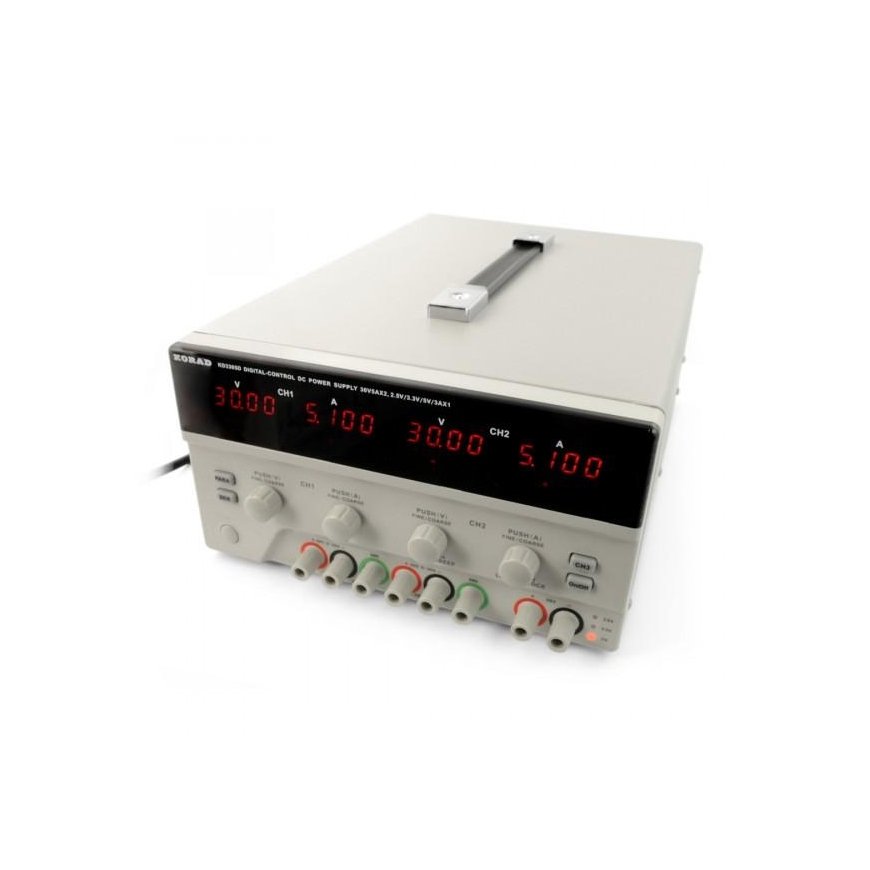

Laboratory Power Supply Korad KD3305D 2x 30V / 5A + 5V / 3A
239.00 €
Monthly payment from 7,05 €
3776236 AN-13704
5907558240733
Shipping 11-18 b.d.
You are interested in this product?
All about the product
The KD3305D is a triple stabilized laboratory power supply with programmable memory and adjustable voltage regulation in the range from 2 to 0 V and current regulation in the range from 0 to 5 A.
Features:
- 2 channels with 0-30 V and 0-5 A parameters
- 1 channel with 5 V / 3.3 V / 2.5 V and 3 A parameters
- The device can operate in the following modes:
- C.V. - constant output voltage
- C.C. - constant load current
- The system has short circuit and overload protection
- Series connection (60 V / 5 A)
- Parallel connection (30 V / 10 A)
- Accuracy is 10 mV / 1 mA
- OVP protection (overvoltage protection)
Specifications:
- Voltage range: 2 x 0 - 30 V
- Current range: 2 x 0 - 5 A
- Additional channel: 5 V, 3.3 V, 2.5 V / 3 A
- Parameter adjustment
- Voltage: = <0.01% +5 mV
- Current: = <0.1% +10 mA
- Power supply linearity:
- Voltage: = <0.1% +3 mV
- Current: = <0.1% +3 mA
- Parameter setting accuracy:
- Voltage: 10 mV
- Current: 1 mA
- Ripple voltage
- Voltage: = <2 mVrms
- Current: = <3 mArms
- Temperature coefficient:
- Voltage: 100 ppm + 10 mV
- Current: = <100 ppm + 5 mA
- Response time
- Voltage rise: = <100 ms (rated load 10%)
- Voltage drop: = <100 ms (rated load 10%)
- Parallel load adjustment:
- Voltage: = <0.1% + 0.2 V
- Series load adjustment:
- Voltage: = <0.1% + 0.2 V
- 3rd channel:
- Voltage: 5 V / 3.3 V / 2.5 V
- Current: 3 A
- Voltage accuracy: +/- 50 mV
- Load adjustment: +/- 50 mV
- Size: 380 x 250 x 140 mm
- Weight: 9.1 kg
Included:
Laboratory Power Supply Korad KD3305D

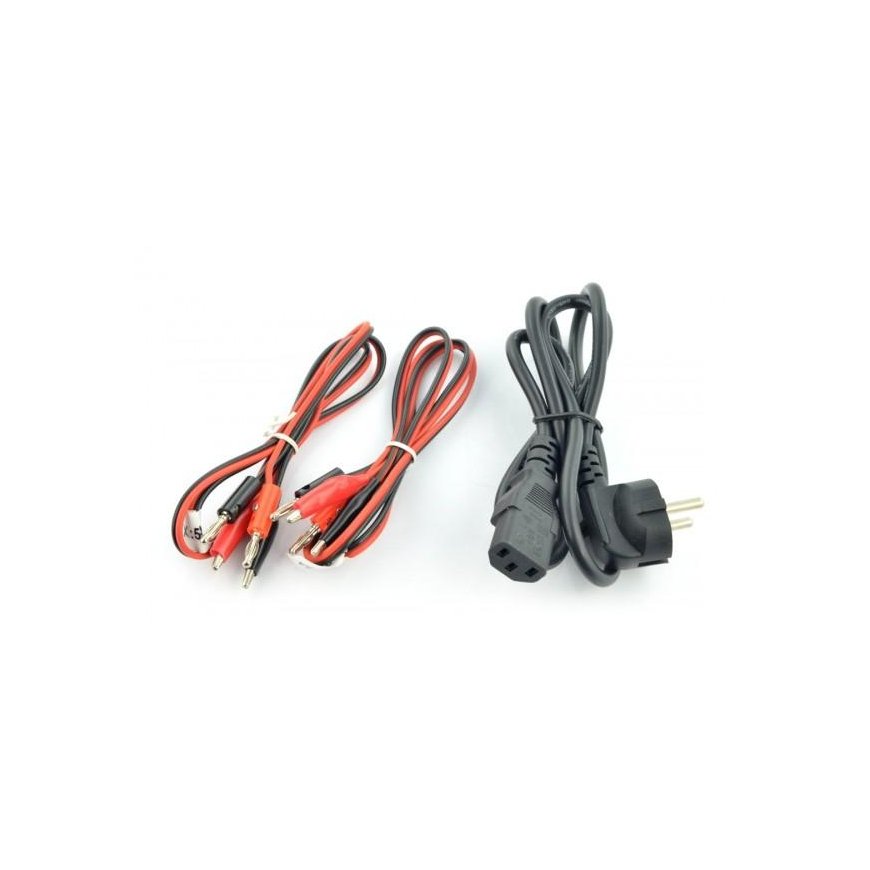

Power cable
2 sets of cables
User manual
