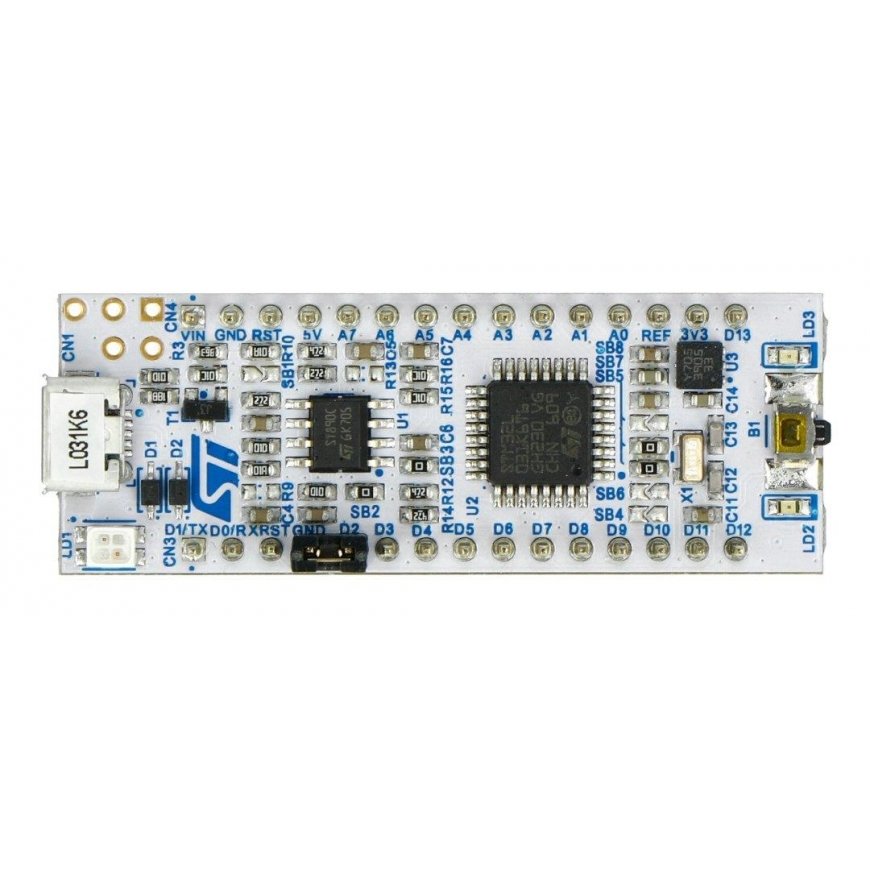

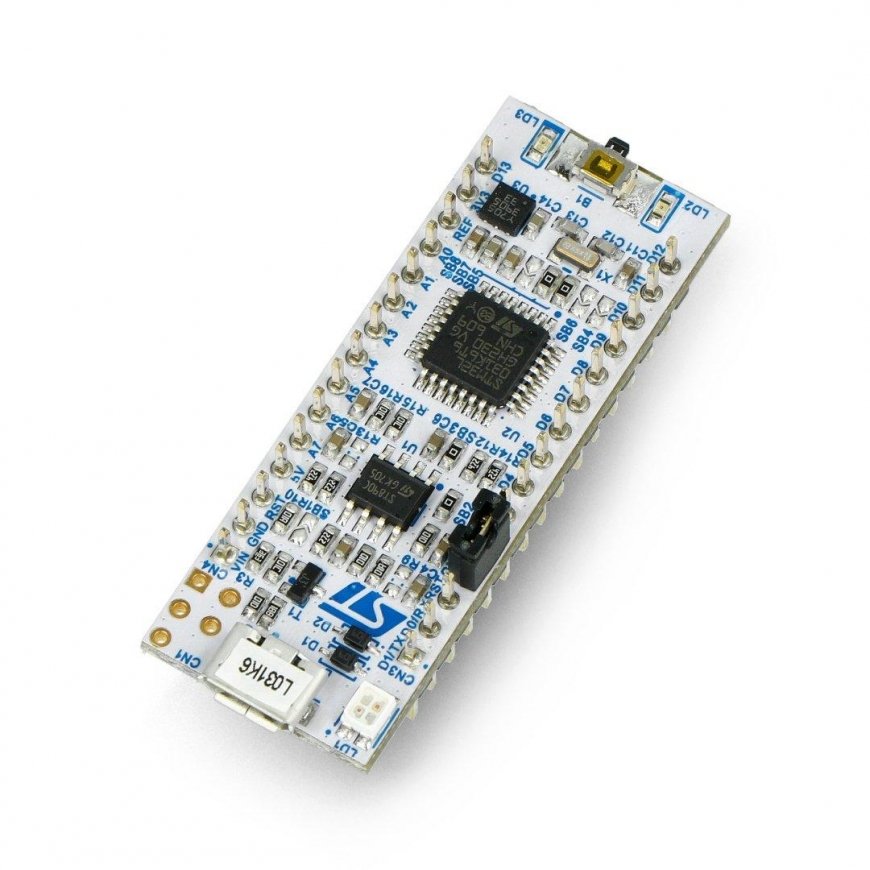

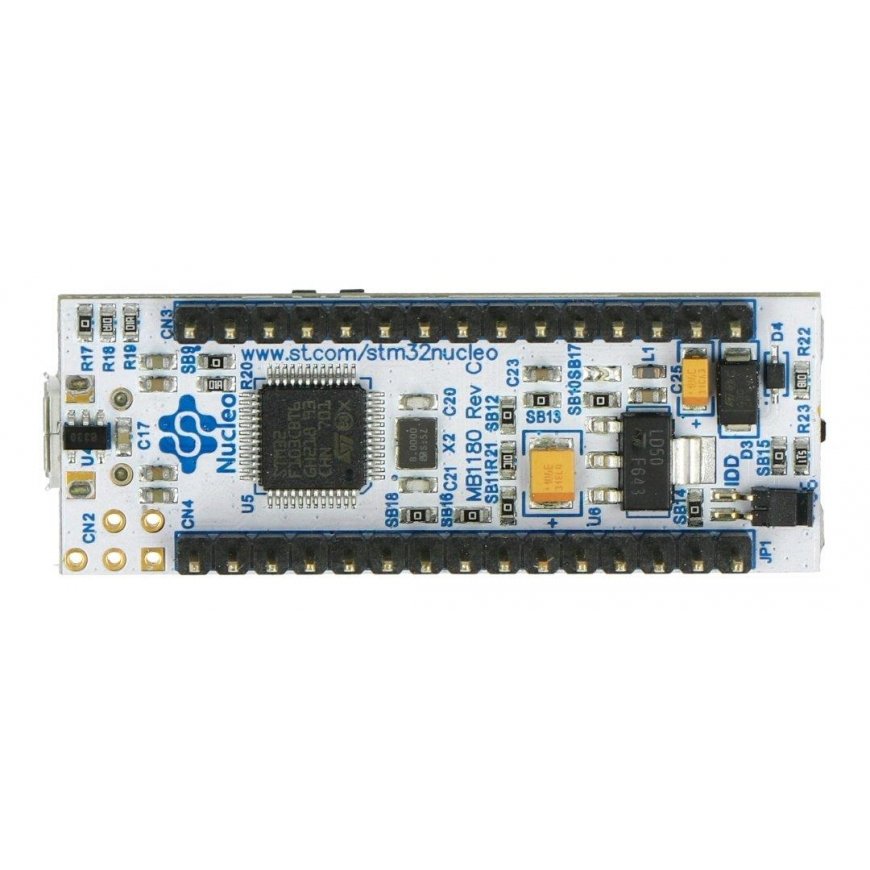

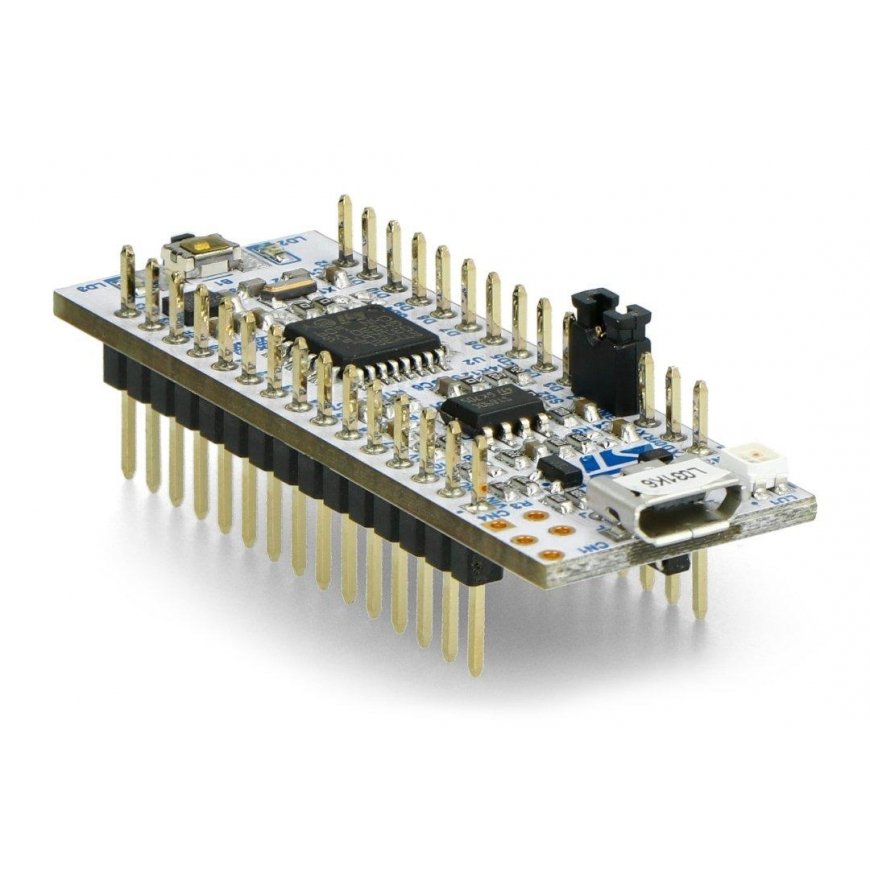

Stmicroelectronics STM32 NUCLEO-32 L031K6 - with STM32L031K6 MCU - compatible with Arduino Nano
39.00 €
Monthly payment from 1,90 €
3775622 AN-18799
5904422364878
Shipping 11-18 b.d.
You are interested in this product?
All about the product
Nucleo board with a 32-bit ARM Cortex M0+ core, with a clock frequency of 32 MHz. Nucleo works with popular development platforms, including Keil, IAR, and environments based on the GCC compiler. The pin layout is compatible with Arduino Nano, thus expanding the platform's functionality. Nucleo-32 does not require any separate probe, as it has an integrated ST-LINK debugger/programmer.
Specifications:
- STM32L031K6 microcontroller
- Core: ARM Cortex M0+
- Clock frequency: 32 MHz
- RAM: 8 kB
- Flash memory: 32 kB
- Supply voltage: from 1.65 V to 3.6 V
- Interface: I2C, SPI, UART, USART
- Number of inputs/outputs: 25
- Number of ADC channels: 10
- Connector compatible with Arduino Nano
- Integrated ST-LINK/V2 debugger with SWD connector
- Equipped with three LEDs
- LD1 - USB interface
- LD2 - power source
- LD3 - user LED
- Reset button
- Compatible environments: ARM mbed, IAR, Keil, GCC
