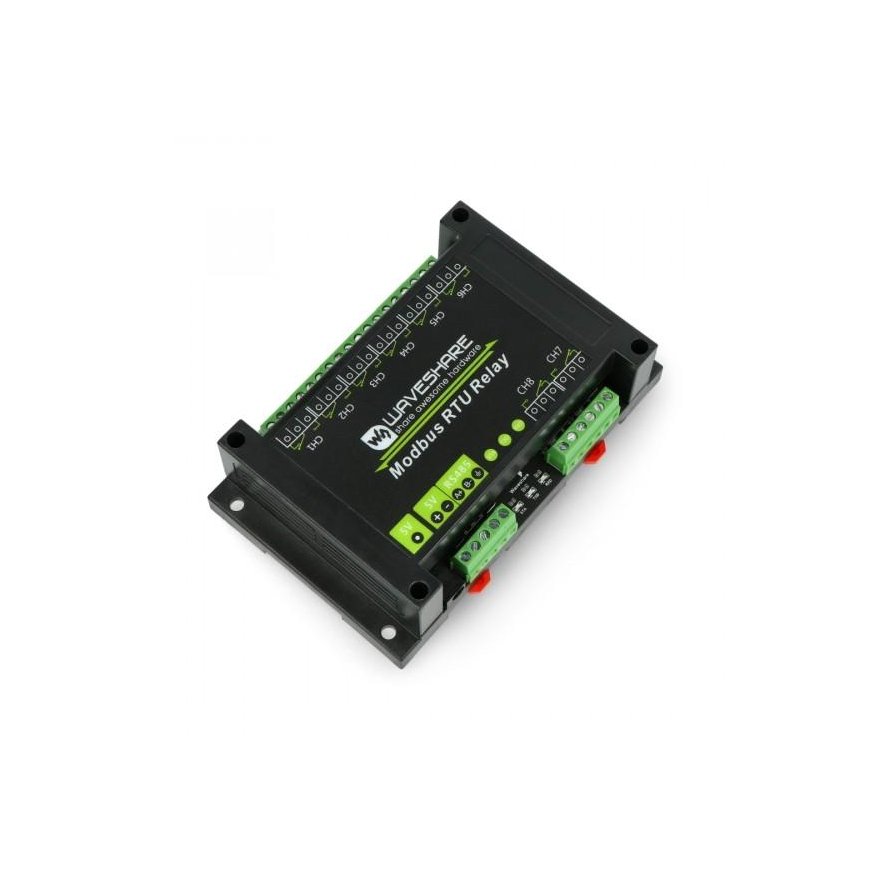

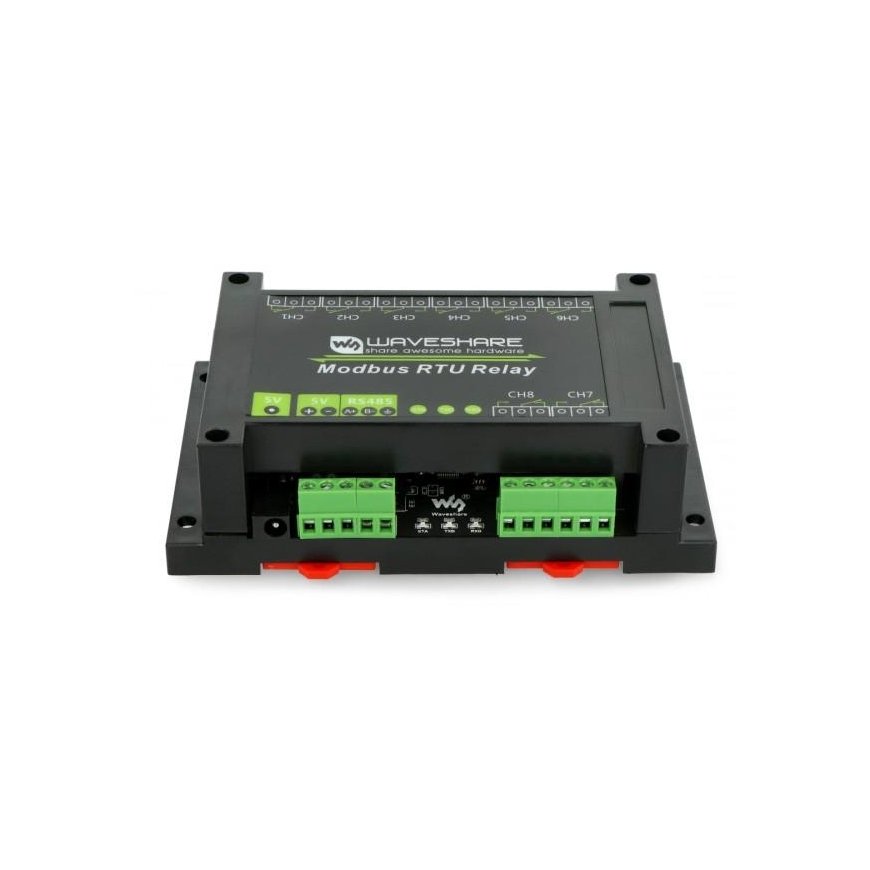

Modbus RS485 Waveshare relay module 17658 10A / 250VAC - 8 channels
49.00 €
Monthly payment from 2,16 €
3775289 AN-16406
5904422325992
Shipping 11-18 b.d.
You are interested in this product?
All about the product
Modbus RS485 Waveshare relay module 17658 10A / 250VAC - 8 channels. The voltage is 230VAC or 30VDC, and the maximum current is 10A. The relay coil is supplied at 5 V voltage. The module supports communication via the Modbus RS485 protocol. The module is enclosed in an ABS case with the option to mount on a DIN rail.
Technical specifications:
- Power supply voltage: 5 V
- Communication interface: RS485
- Transmission speed: 4800, 9600, 19200, 3840, 57600, 128000, 256000
- Default communication format: 9600, N, 8, 1
- Number of channels: 8
- Connections: 1NO 1NC
- Communication protocol: Standard “Modbus RTU” protocol
- RS485 address: from 1 to 255
- RS485 connection protection: 600 W lightning and surge protection, 15 kV ESD protection
- LED indicator:
- STA: MCU indicator blinks when MCU is operating normally
- TXD: TX indicator blinks while data is being sent
- RXD: RX indicator blinks when data is being received
- Dimensions: 145 x 90 mm
In the package
- Modbus relay module

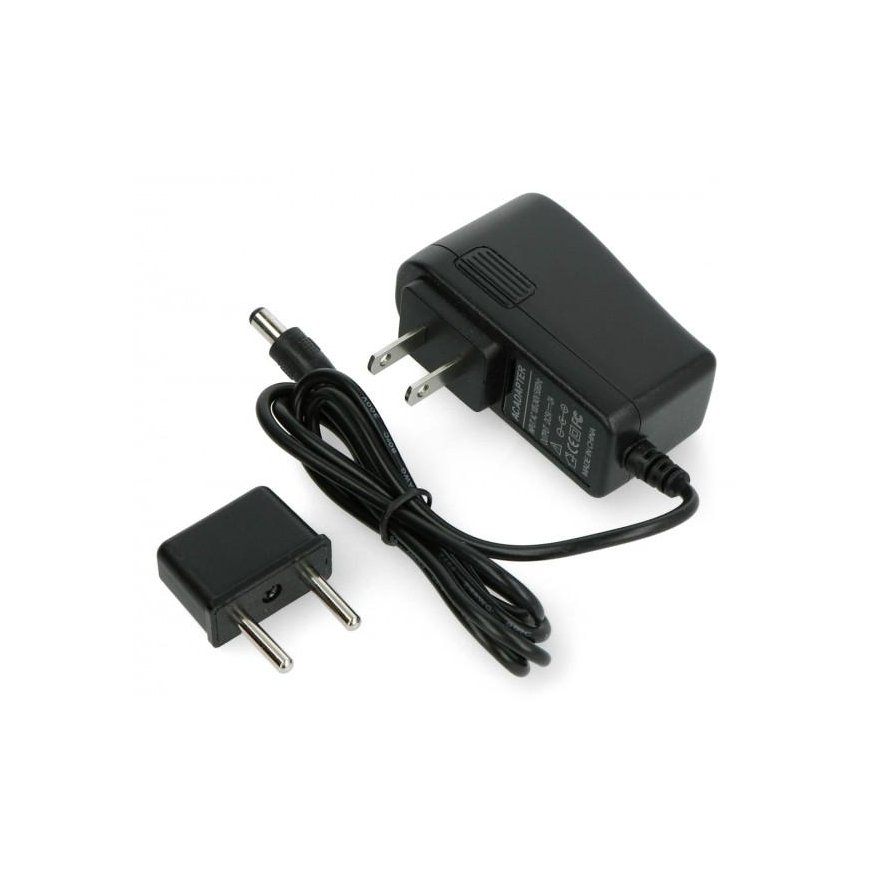

- 5V / 2A power supply with DS 5.5 / 2.1 mm plug
