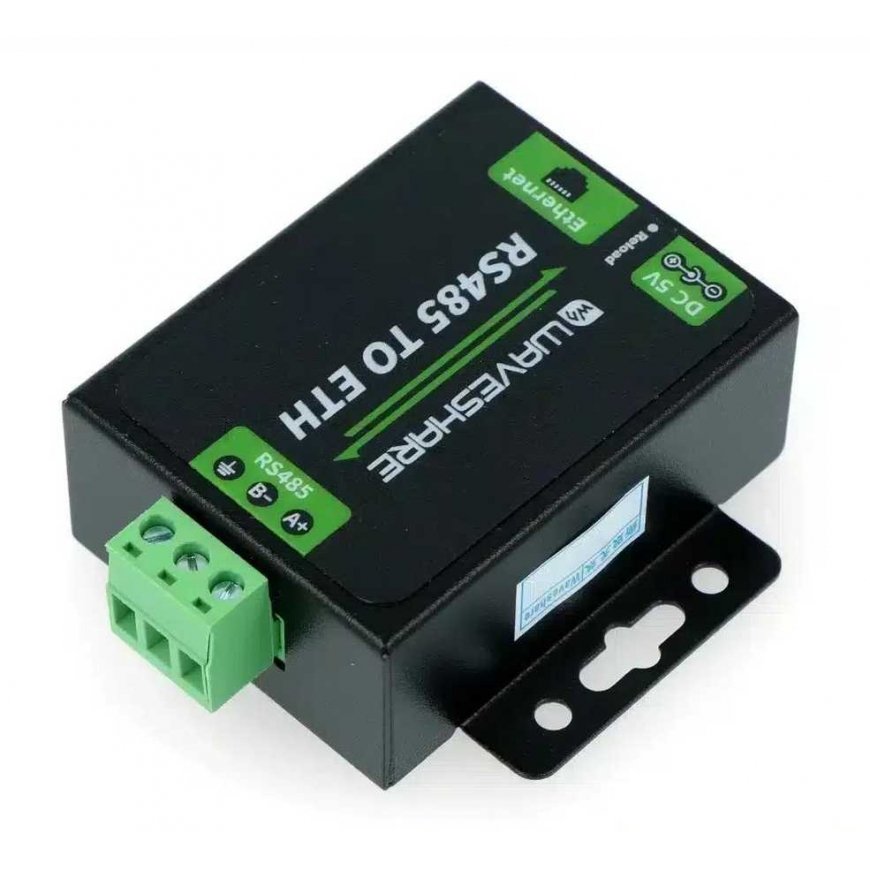

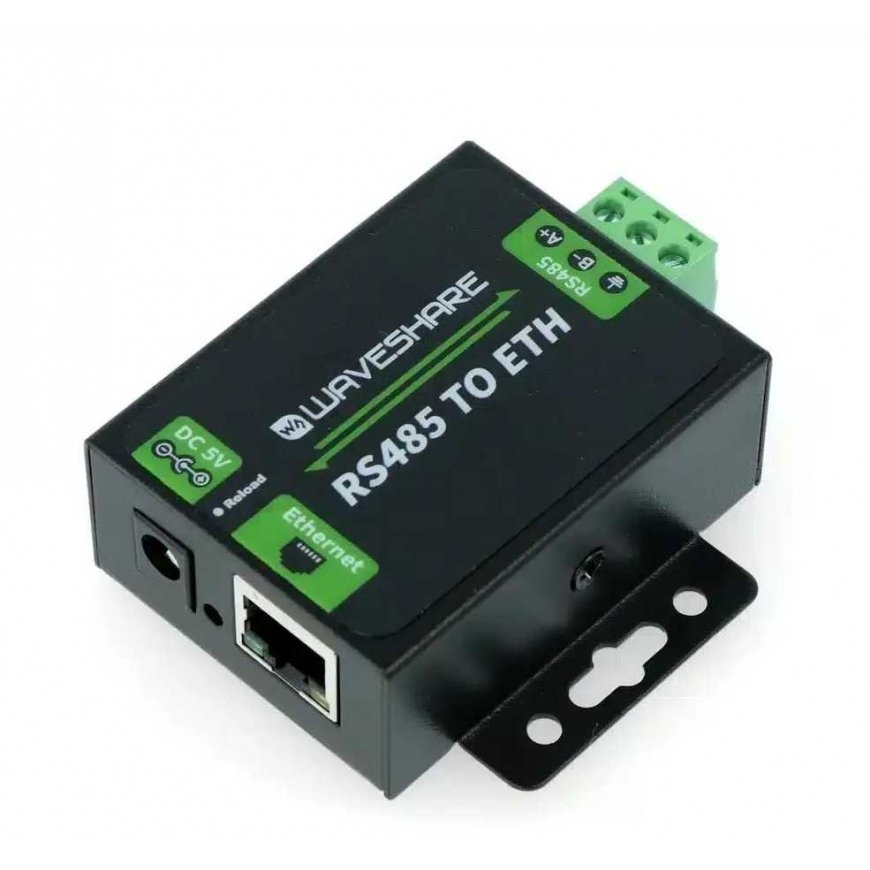

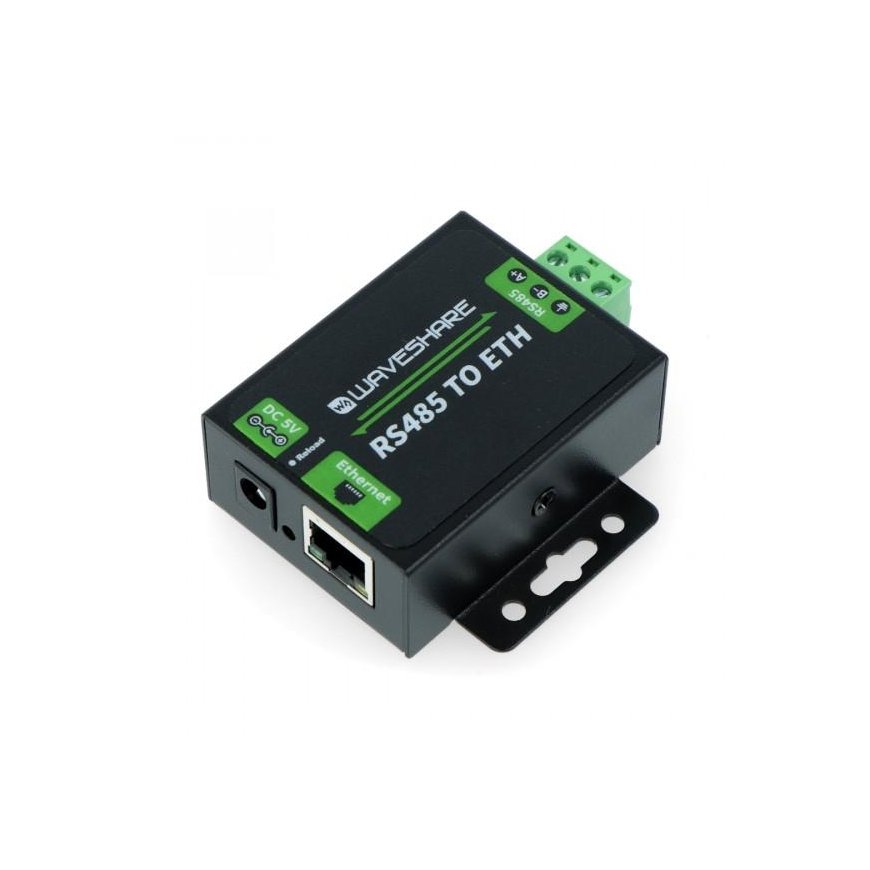

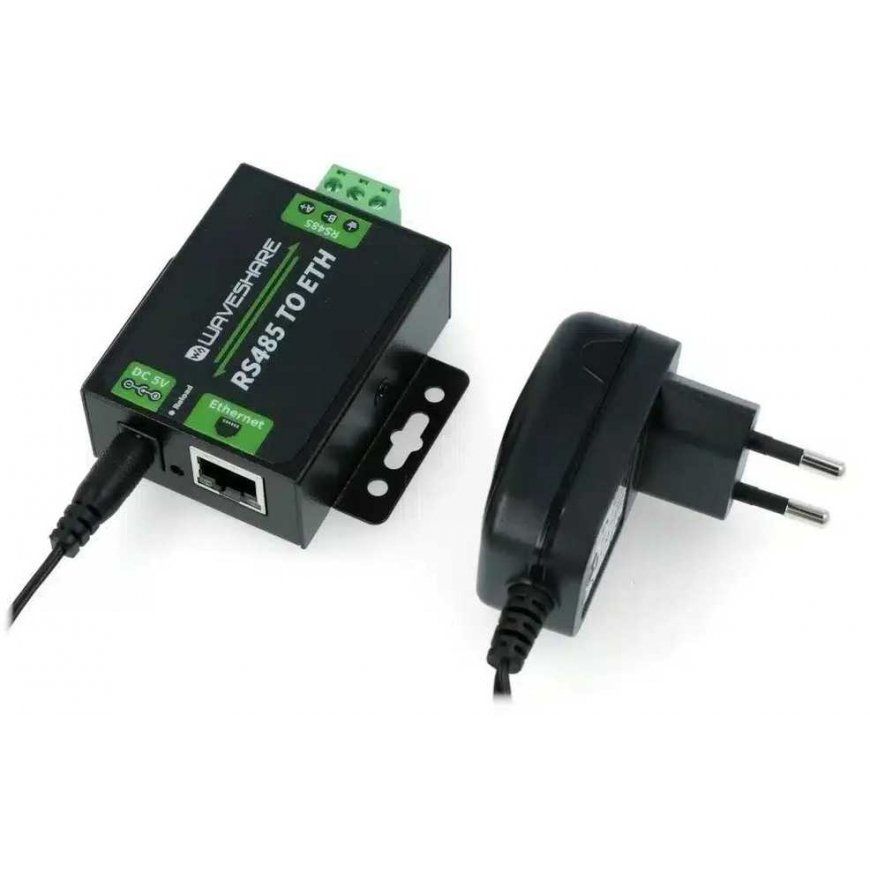

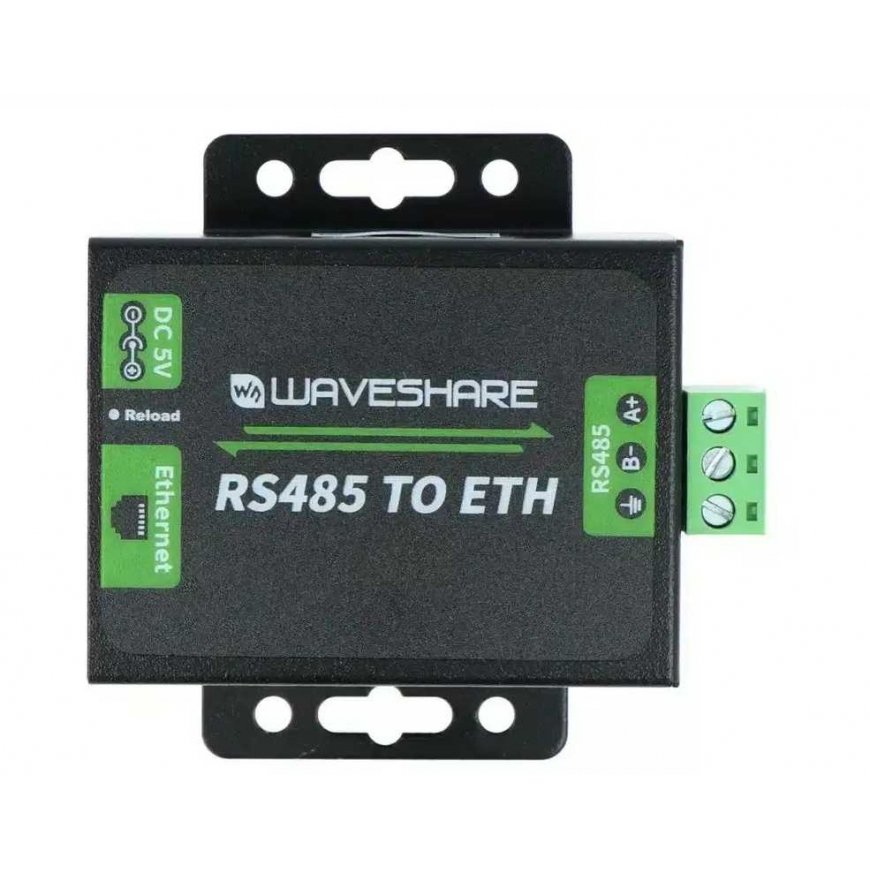

RS485 to Ethernet Converter - Cortex M0 Waveshare 16529
59.00 €
Monthly payment from 2,42 €
3774901 Konverteris
5904422377816
Shipping 11-18 b.d.
You are interested in this product?
All about the product
A device that allows establishing a connection between the RS485 interface and Ethernet RJ45. The module is configured via the website, AT commands, serial protocol, and network protocol. Based on an ARM Cortex M0 32-bit processor. Supports operating modes such as: TCP server, TCP client, UDP server, UDP client, HTTPD client.
Technical specifications:
- Ethernet
- connector: 4-pin RJ45
- speed: 10/100 Mb/s
- interface protection: 1.5 KV electromagnetic isolation
- protocols: IP, TCP, UDP, ARP, ICMP, DHCP, DNS, HTTPD client
- TX buffer: 6 Kb
- RX buffer: 4 Kb
- RS485:
- connector: screw (A +, B-, GND)
- data bits: 5 bits, 7 bits, 8 bits
- stop bits: 1, 2
- Parity bits: none, odd, even, mark, space
- data transmission speed: from 600 b/s to 230.4 kb/s
- RX buffer: 800 B
- interface protection:
- 2KV ESD
- 2.2 KΩ resistor
- Power:
- supply voltage: from 5 V to 7 V (recommended 5 V)
- rated current: 150 mA at 5V
- power consumption: <1 W
- interface protection: anti-surge, ESD,
- operating temperature: from -25 °C to 75 °C
- storage temperature: from -40 °C to 105 °C
