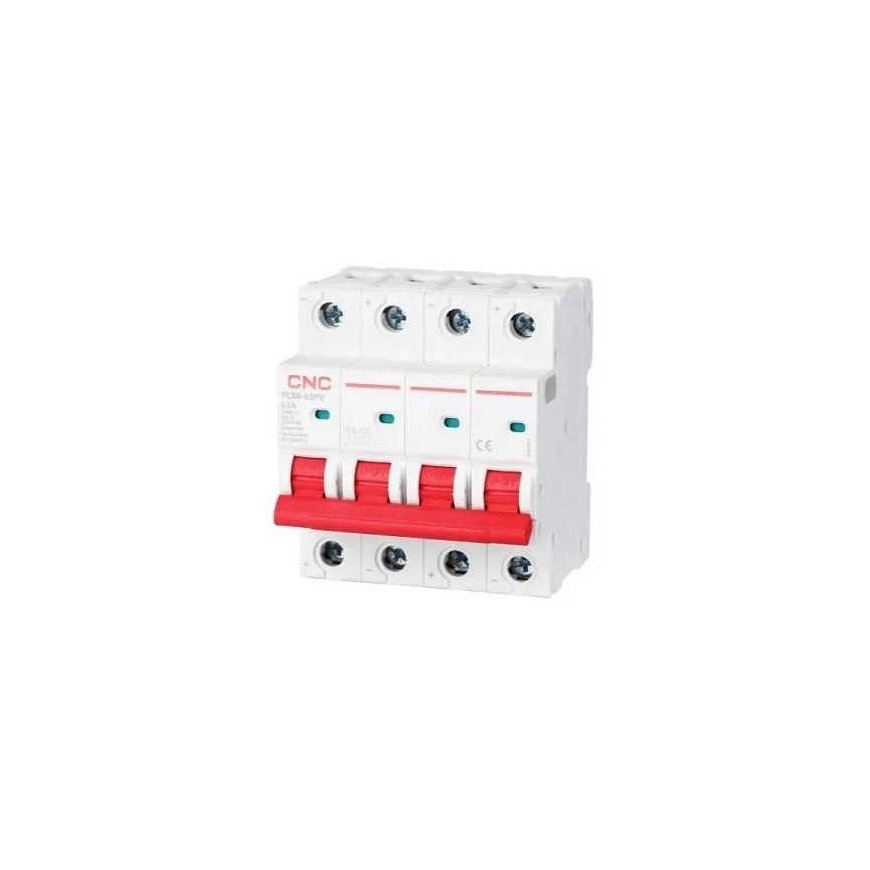

CNC DC automatic switch, 4P, 63A, 1000VDC, 6kA
39.00 €
Monthly payment from 1,90 €
3774732 NV821679
6942367503333
Shipping 1-2 days
You are interested in this product?
All about the product
DC automatic circuit breaker, 4 contacts, 63A, 1000V DC, 6kAFeatures:
The rated voltage of the DC automatic circuit breaker can reach 1000V, and the rated operating current is 63A.
Ensures reliable operation of DC systems.
Used for insulation, short circuit protection, and overload protection.
Modular design. Convenient mounting on a DIN rail.
Contact position indication (red color indicates that the contact is closed, green - that it is open).
Meets IEC/EN 60947-2 standards and EU ROHS environmental protection requirements.
Suitable for solar energy systems, industrial, civil, communication, and other systems.
Technical specifications:
Number of contacts: 4.
Rated current (In): 63 A.
Category: A.
Rated voltage (Ue): DC 1000 V.
Insulation voltage (Ui): 1200 V.
Maximum breaking capacity (Icu): 6000 A.
Rated impulse withstand voltage (Uimp): 4000 V.
Operating principle: thermomagnetic.
Mechanical lifespan: 20000 cycles.
Electrical lifespan: 1500 cycles.
Protection class: IP20.
Wire cross-sectional area: 2.5 - 25mm².
Installation: on DIN rail (35mm).
Operating temperature: -35°C~+70°C.
Storage temperature: -40°C~+85°C.
Dimensions: 71.2 x 82 x 78 mm.
Standards: IEC 60947-2 / EN 60947-2.
Warranty:24 months.
