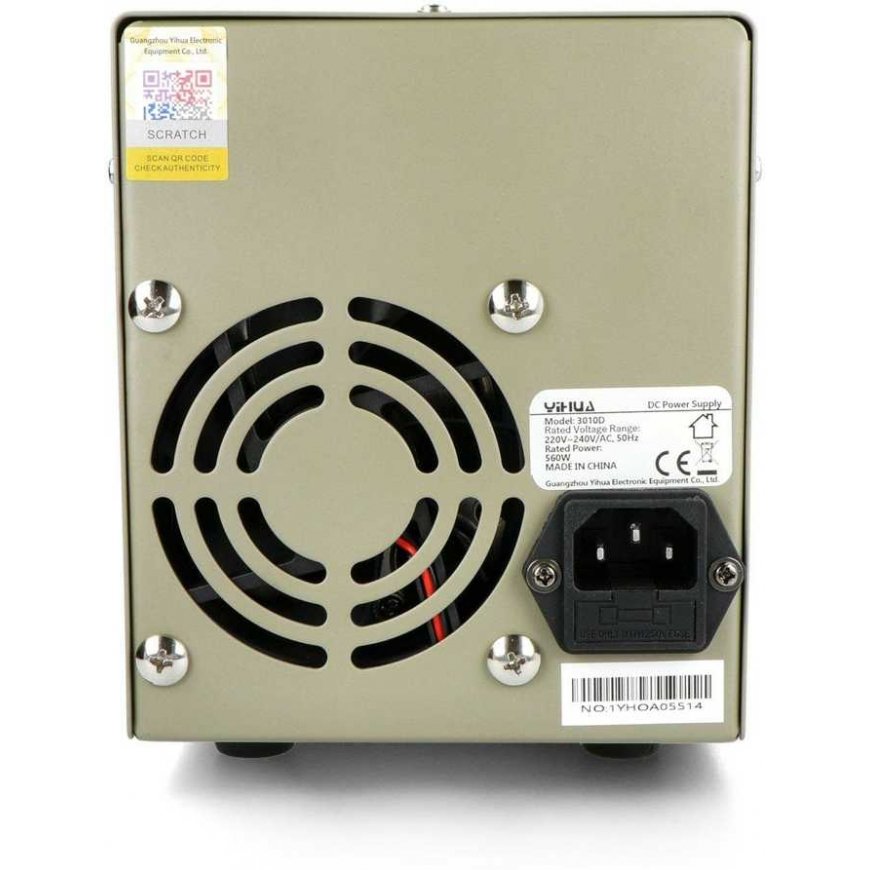

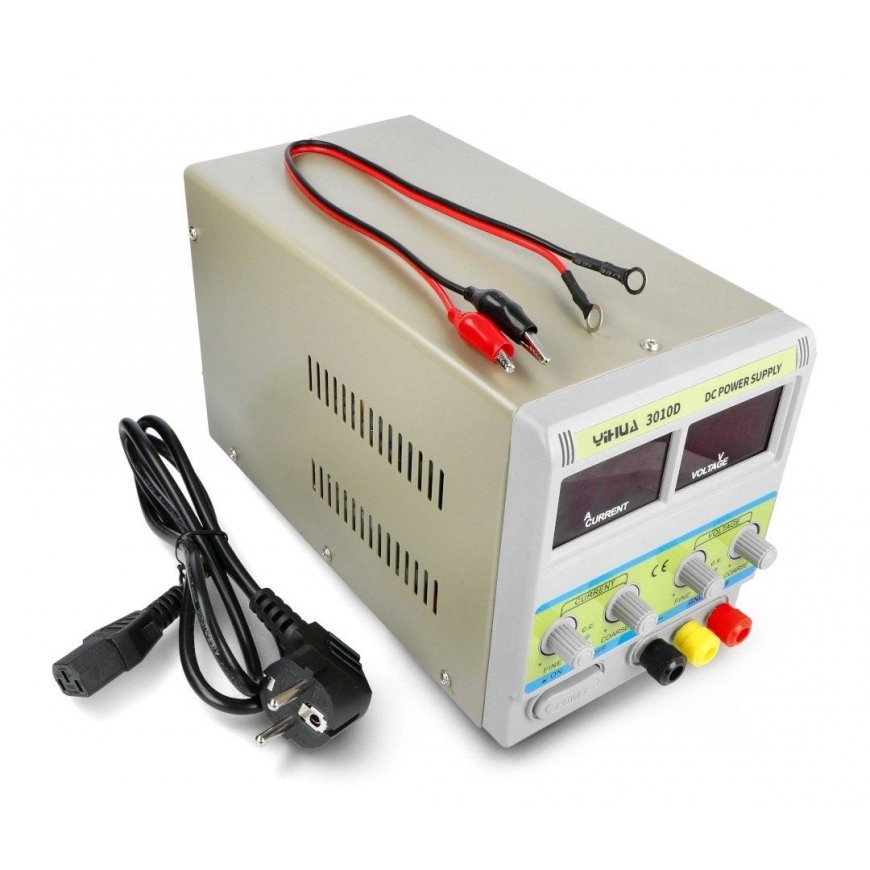

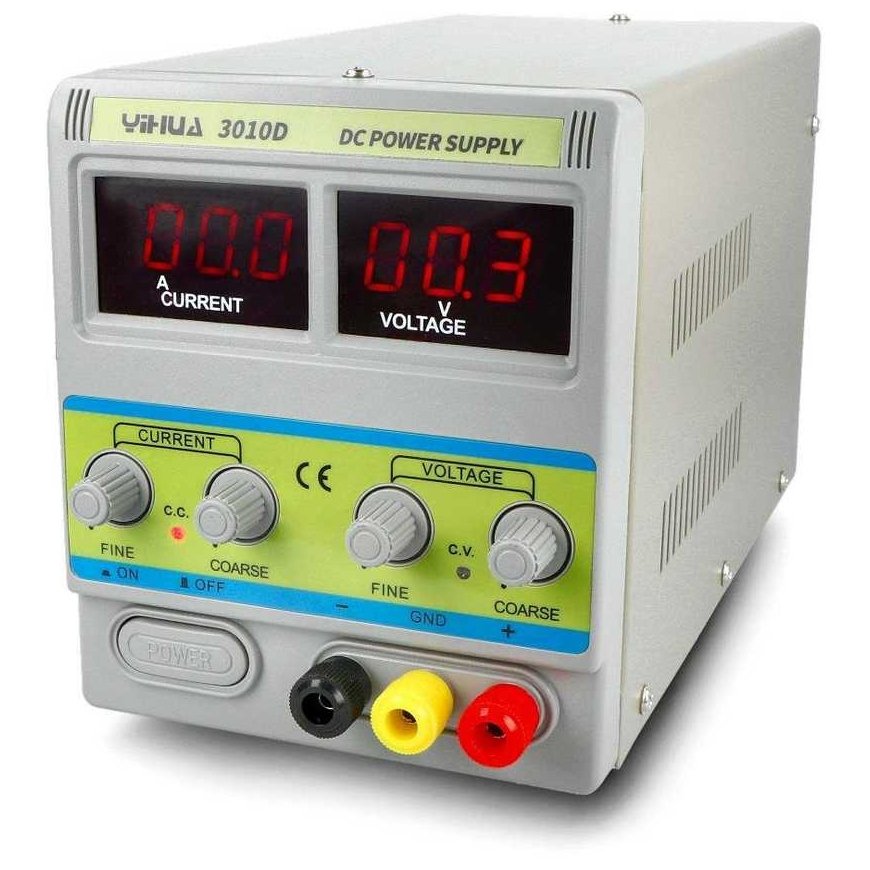

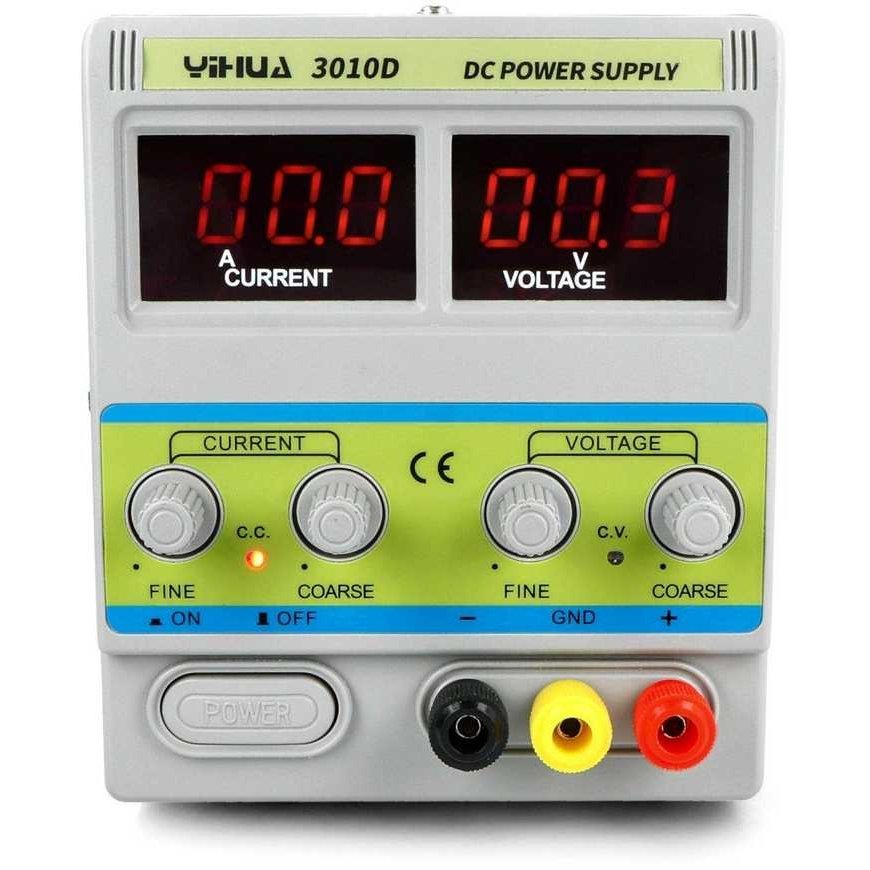

Yihua 3010D Laboratory Power Supply 30V 10A
178.99 €
Monthly payment from 5,51 €
3773727 AN-21504
5908272000085
Shipping 9-14 b.d.
You are interested in this product?
All about the product
Yihua 3010D is a laboratory power supply with smooth voltage regulation in the range of 0 V to 30 V and a current range of 0 A to 10 A. It features knobs for coarse and precise parameter adjustments and two displays.
Main features:
- Overload and short circuit protection
- Two operating modes:
- CV (Constant Voltage) - output voltage stabilization
- CC (Constant Current) - output current stabilization
- Two displays for easy reading of indications
- Built-in fan
- Power supply voltage: 220 V AC ± 10%, 50 / 60 Hz
- Operating environment - temperature: -10 °C to 40 °C
- Operating environment – humidity: RH <90%
- Storage – temperature: -10 °C to 40 °C
- Storage – humidity: RH <80%
- Voltage stabilization:
- Output voltage adjustable from 0 V to 30 V (linear stabilization system)
- Voltage stabilization coefficient: 0.01% + 2 mV
- Load stabilization coefficient: 0.01% + 2 mV
- Recovery time: 100 μs
- Ripple and noise: 0.5 mVrms (effective value)
- Current stabilization:
- Output current adjustable from 0 A to 10 A (linear stabilization system)
- Current stabilization coefficient: 0.1% + 3 mA
- Load stabilization coefficient: 0.2% + 3 mA
- Ripple and noise: 2 mArms (effective value)
- Dimensions: 250 x 130 x 155 mm
- Weight: 7 kg
- Laboratory power supply Yihua 3010D 30 V 10 A: 1 pcs
- Test leads: 2 pcs
- Power cord: 1 pcs
