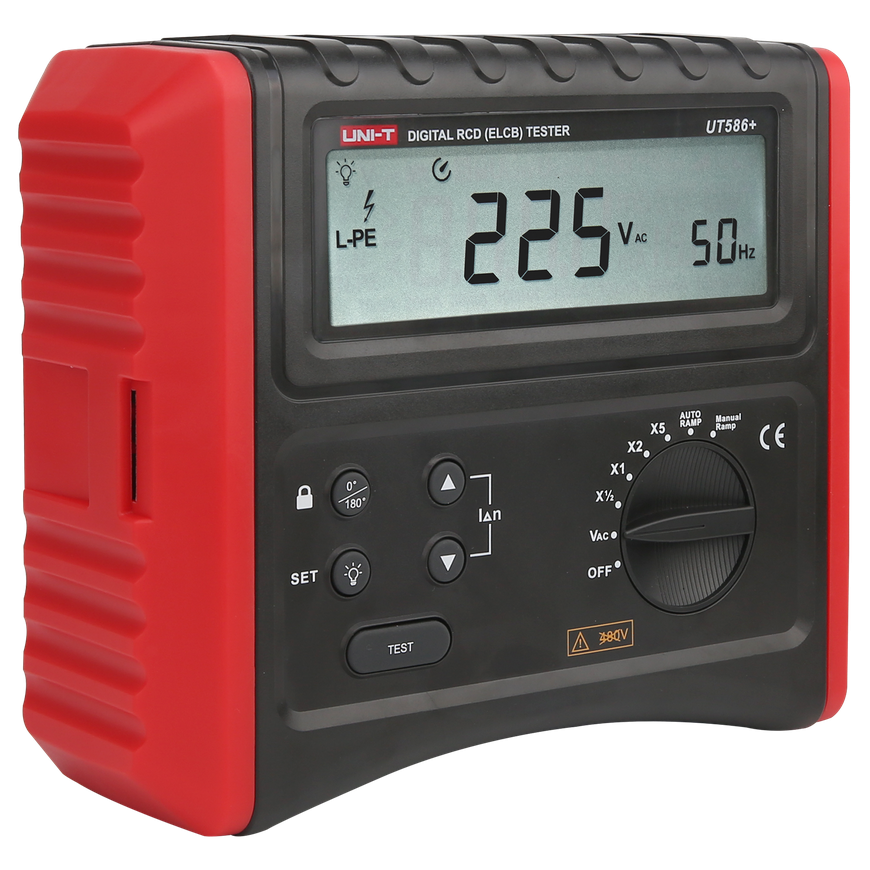

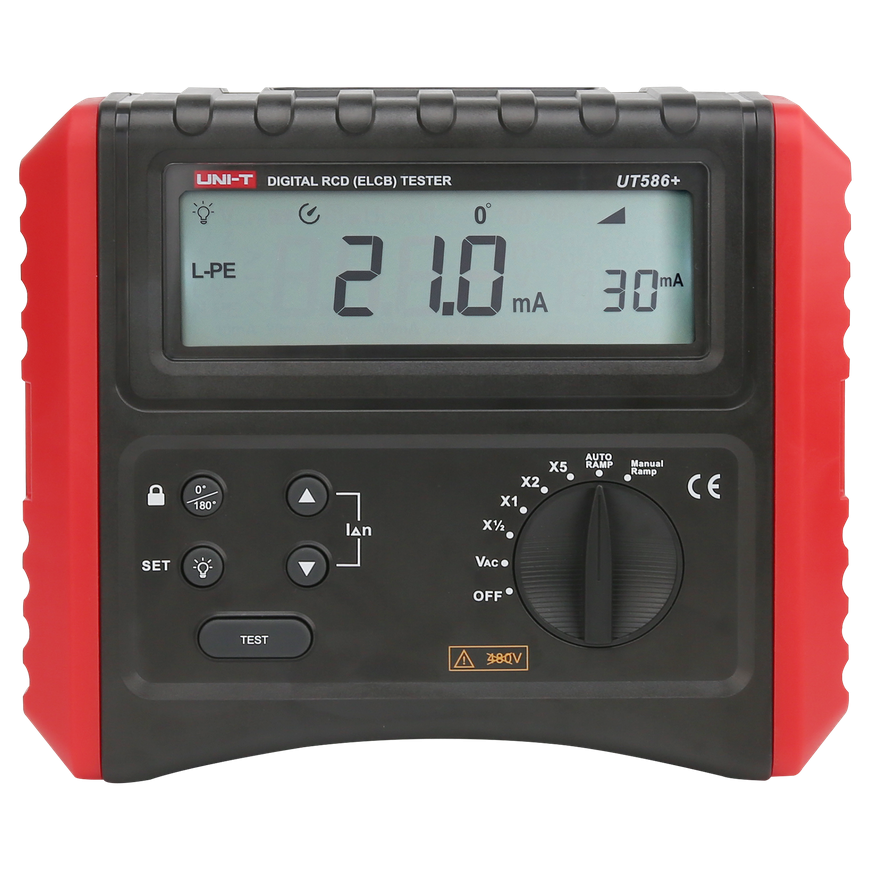

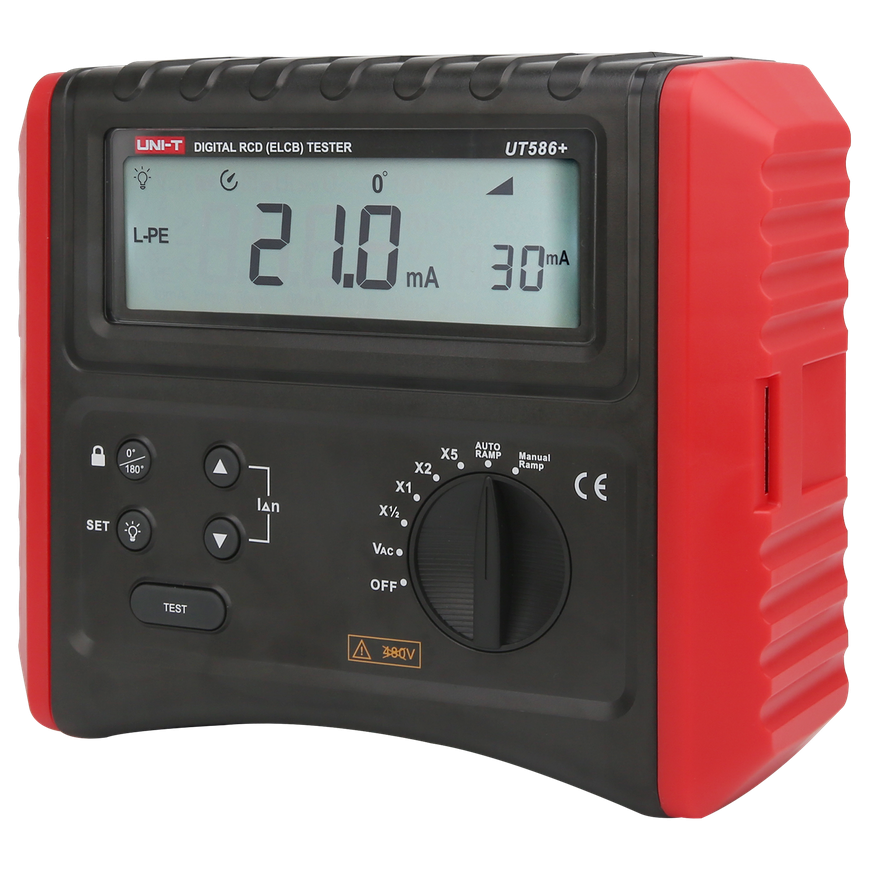

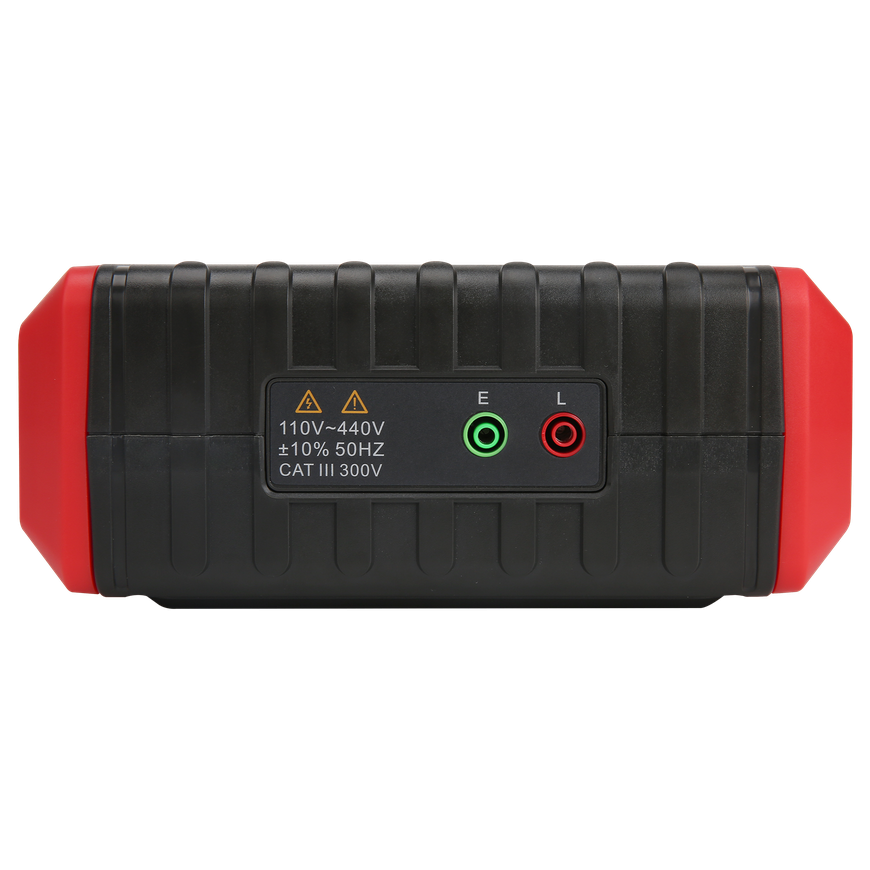

Uni-T UT586+ meter
3772556 MIE0508
5901890121460
Shipping 9-13 b.d.
All about the product
------------
MEASUREMENT RANGES
------------
RCD residual current circuit breaker testing
Test currents (In): 10 mA / 30 mA / 100 mA / 300 mA / 500 mA / 1000 mA
Supply voltage: 100 ~ 440 V ±15 %; 45 ~ 65 Hz
Disconnection time intervals:
• 1 In: 0 ~ 2000 ms ±(5 % + 5)
• 1 In: 0 ~ 500 ms ±(5 % + 5)
• 2 inputs: 0 ~ 200 ms ±(5 % + 5)
• 5 inputs: 0 ~ 40 ms ±(5 % + 5)
Rising current measurement (ramp)
Disconnection current accuracy: 10%
Fault loop resistance:
Network voltage (LE): 220 V ±10%; 45 ~ 65 Hz
Test current / test time: 20 A / 20 ms
Measurement ranges:
• 0.05 ohm ~ 1.99 ohm ±(5 % + 5)
• 2 ohms ~ 19.9 ohms ±(5 % + 5)
• 20 ohms ~ 2000 ohms ±(5 % + 5)
Safety current measurement range: 0 ~ 26 kA
------------
OTHER MEASUREMENT RANGES
------------
Low resistance: 0.01 ohm ~ 200 ohms ±(2 % + 5 %)
AC voltage: 0 ~ 440 V ±(2% + 3)
DC voltage: 0 ~ 440 V ±(2 % + 3 %)
Frequency: 20 Hz – 100 Hz (for comparison purposes only)
------------
ADDITIONAL FUNCTIONS
------------
Manual / automatic range switching
Phase sequence testing
Low battery indicator
High voltage warning
LCD display with backlight
Buzzer
Secondary display
Maximum reading: 9999
Zero setting function
------------
GENERAL SPECIFICATIONS
------------

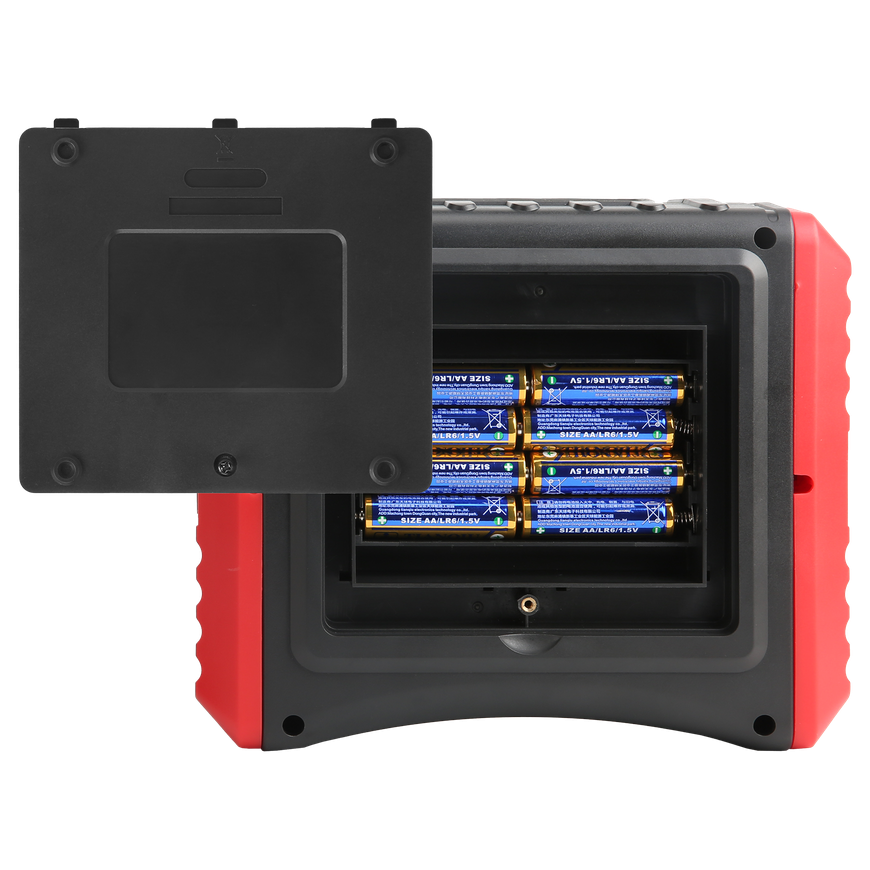

Power source: 8 x 1.5 V batteries (LR6)
Dimensions: 161 x 117 x 68 mm
Weight: 725 g
Included: batteries, test leads, special test lead, test probes, test crocodile clips, test probe, case
