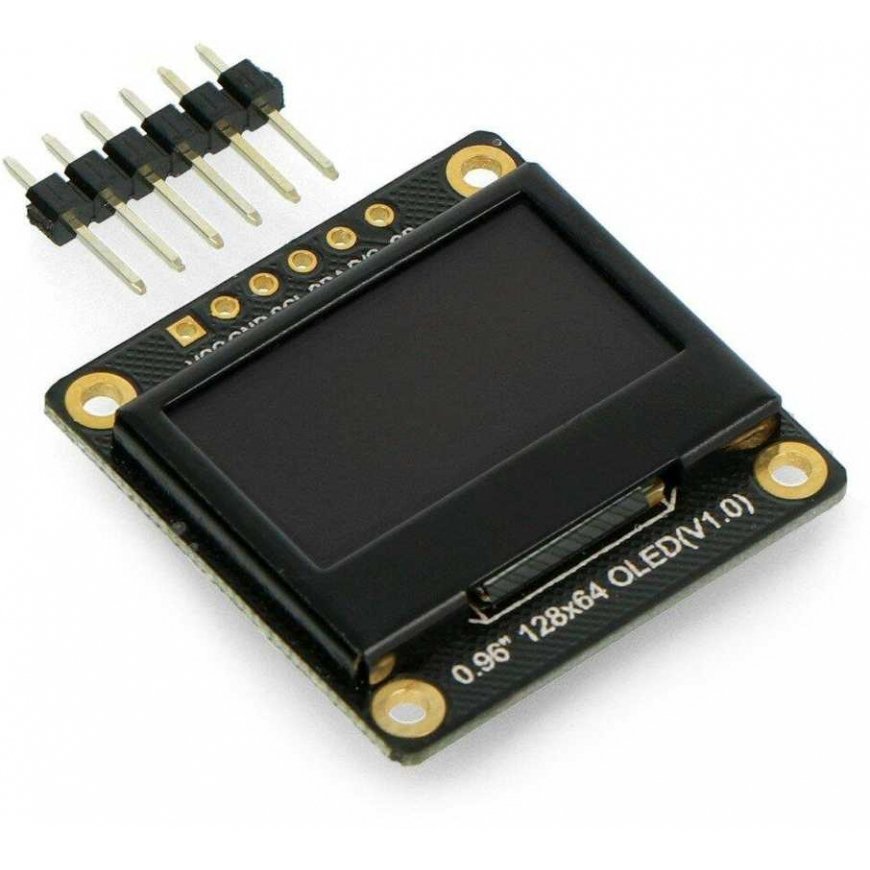

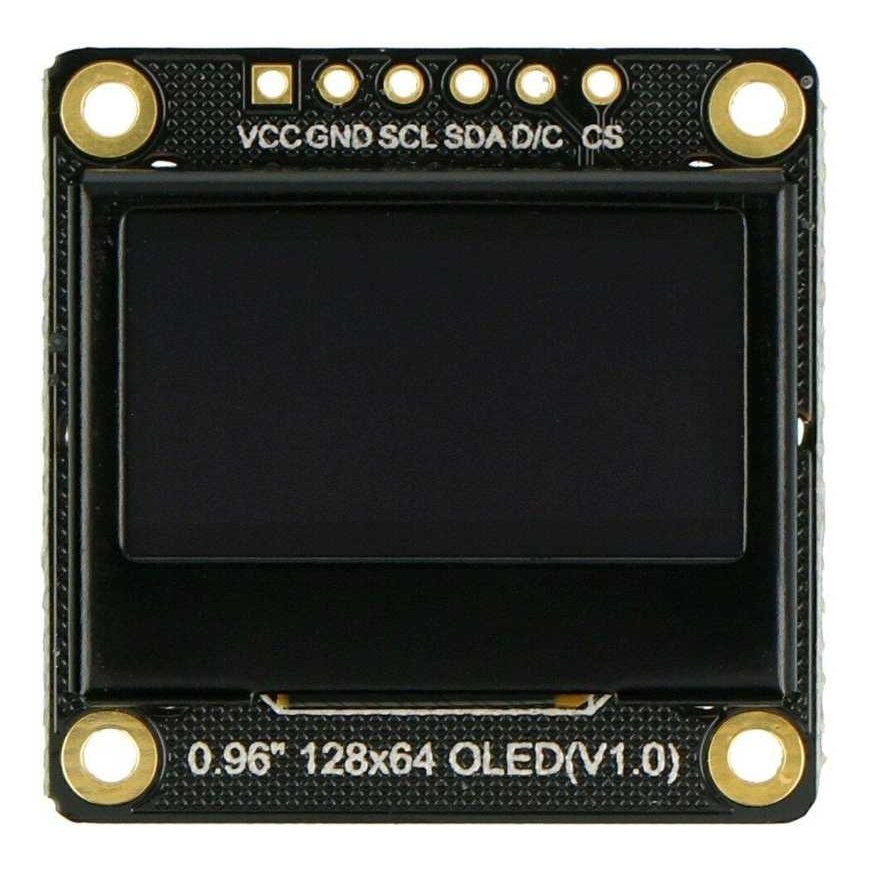

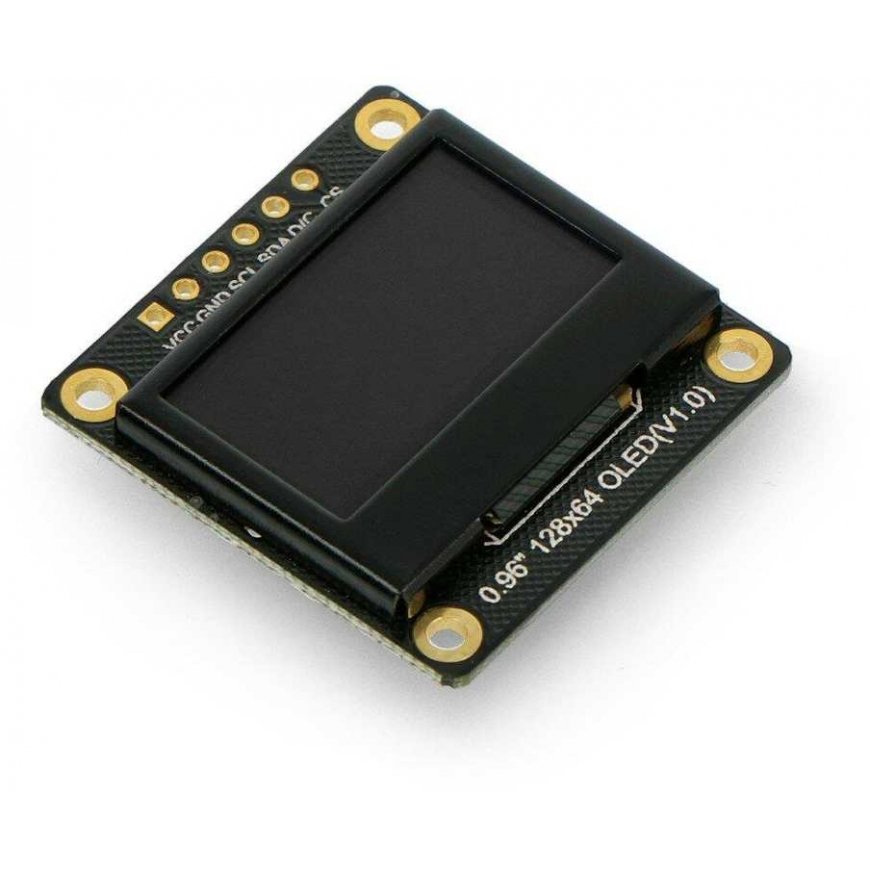

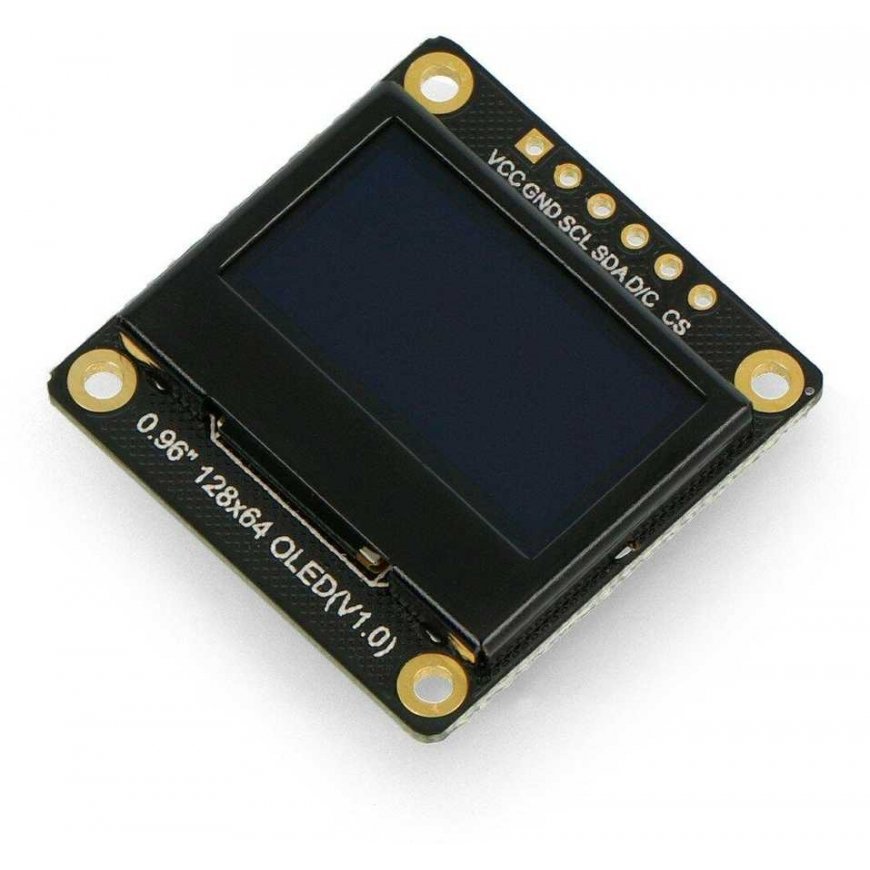

Monochrome OLED graphic display 0.96" 128 x 64 px, I2C / SPI, DFRobot DFR0650
30.95 €
3771646 AN-16710
5904422326388
Shipping 11-18 b.d.
You are interested in this product?
All about the product
Monochrome OLED graphic display with a 0.96" diagonal and 128 x 64 pixel resolution. Module based on the SSD1306 chip, designed for communication with a microcontroller, uses I2C or SPI interface, default option I2C. Features high contrast and low power consumption. The display is powered by 3.3 V or 5 V voltage. Compatible with Arduino, ESP32, FireBeetle, etc.
Specifications:
- Operating voltage: 3.3 V and 5 V
- Symbol color: white
- Pixel count: 128 x 64

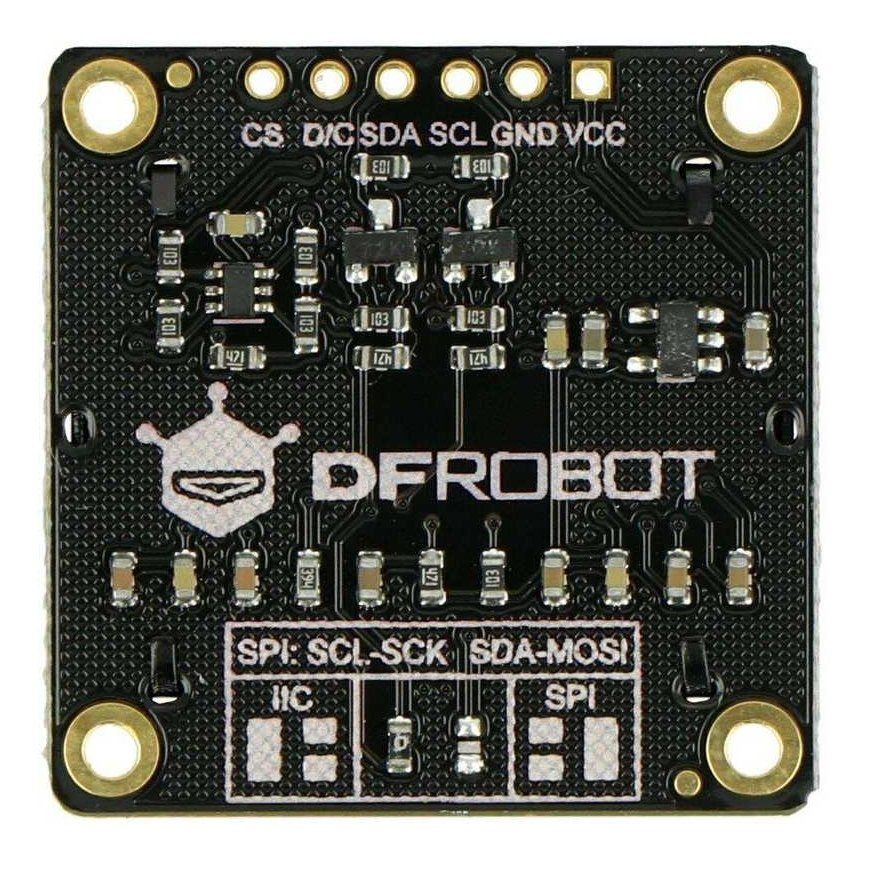

- Interface: I2C (default) / SPI
- I2C address: 0x3C
- System: SSD1306
- Brightness: 180 cd/m2
- Power consumption at full brightness:
- I2C: approximately 24 mA
- SPI: approximately 27 mA
- Power consumption with backlight off:
- I2C: approximately 2 mA
- SPI: approximately 2.87 mA
- Operating temperature: from -30 °C to 70 °C
- Display area: 21.744 x 10.864 mm
- Dimensions: 30 x 30 mm
- Weight: 4.2 g
Included:
- 2.54 pin mounting header 6P x1
