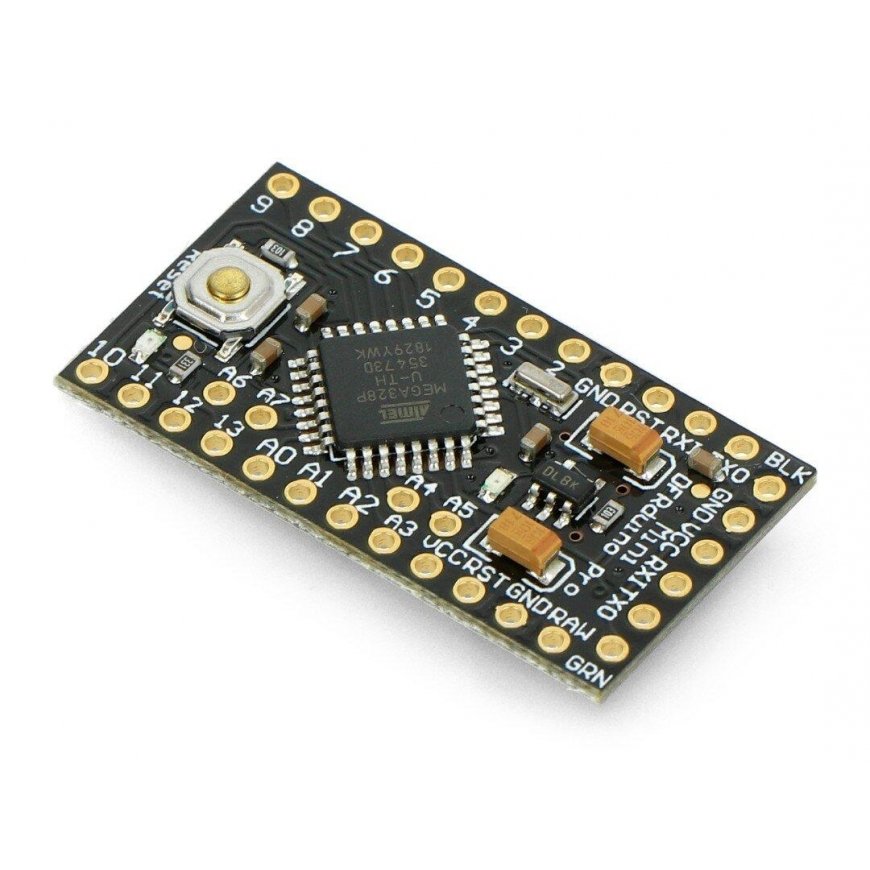

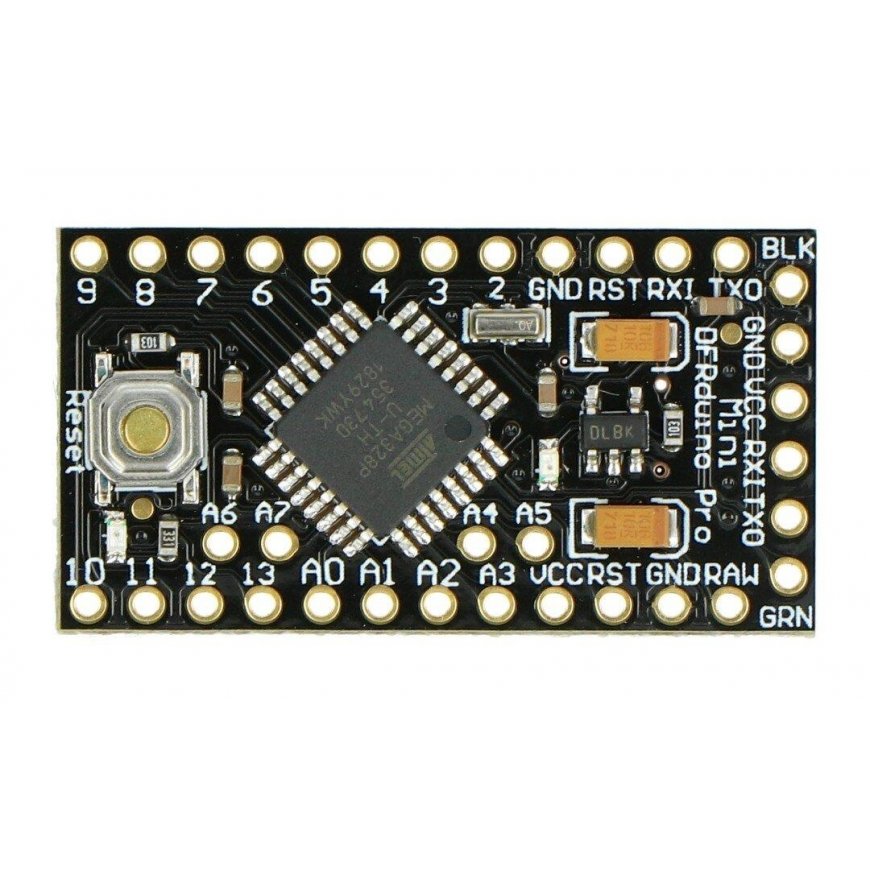

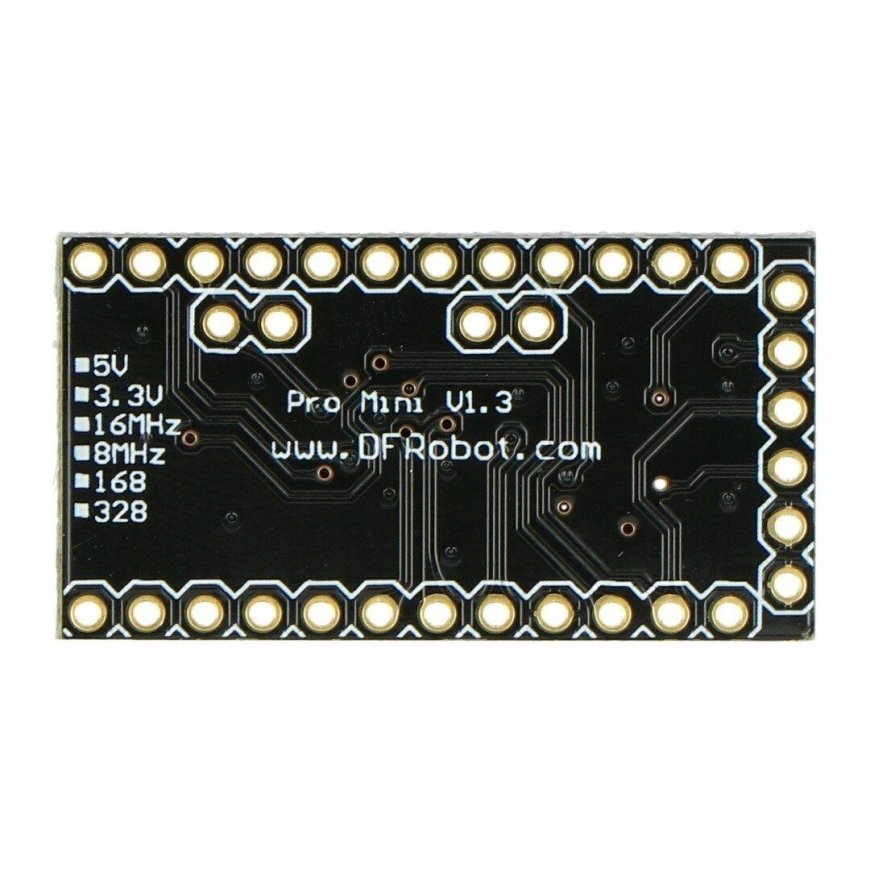

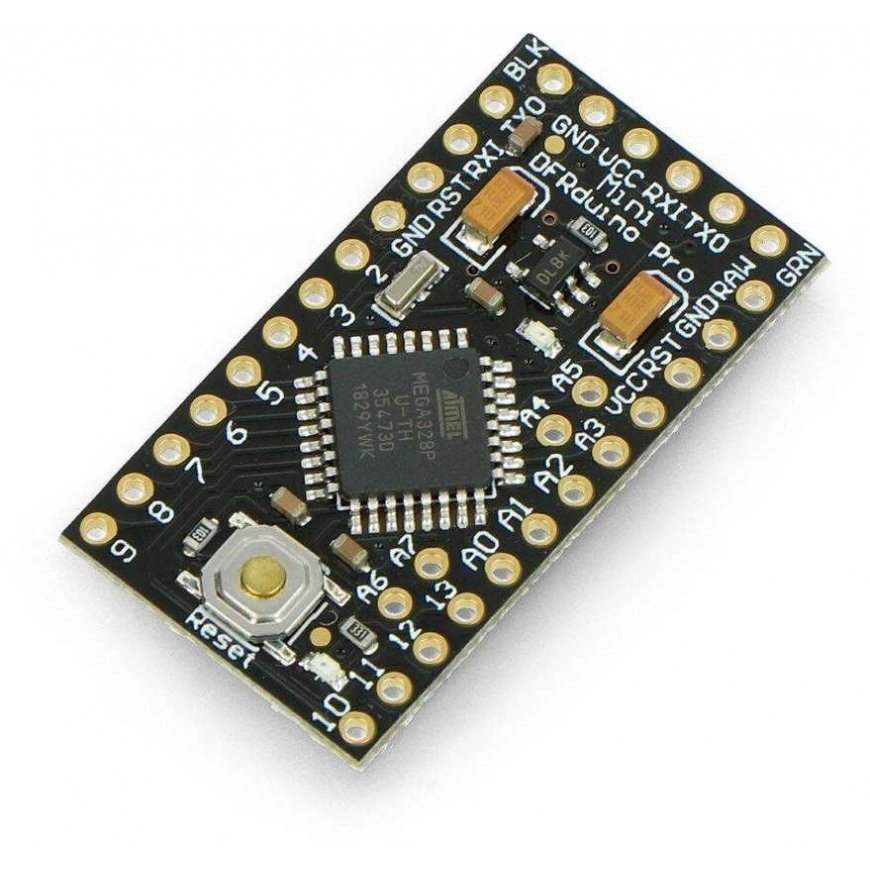

Dfrobot DFRduino Pro Mini v1.3
19.48 €
3771562 AN-09154
5904422312602
Shipping 11-18 b.d.
You are interested in this product?
All about the product
The module features a compact size and low profile. It includes an Atmega328 microcontroller, 14 digital input/output pins, of which 6 can be used as PWM channels, 8 analog inputs, and popular communication interfaces.
Specifications:
- Supply voltage: from 5 V to 8 V
- Current consumption: max. 150 mA
- Bootloader: Arduino Pro / Pro Mini (5 V, 16 MHz) / Atmega328
- Microcontroller: Atmega328
- Maximum clock frequency: 16 MHz
- Input/output pins: 14
- PWM channels: 6
- Number of analog inputs: 8
- Low voltage board does not require circuits connecting popular 3.3 V voltage devices and modules
- Reverse polarity protection on the connection
- Dimensions: 18 x 33 mm
