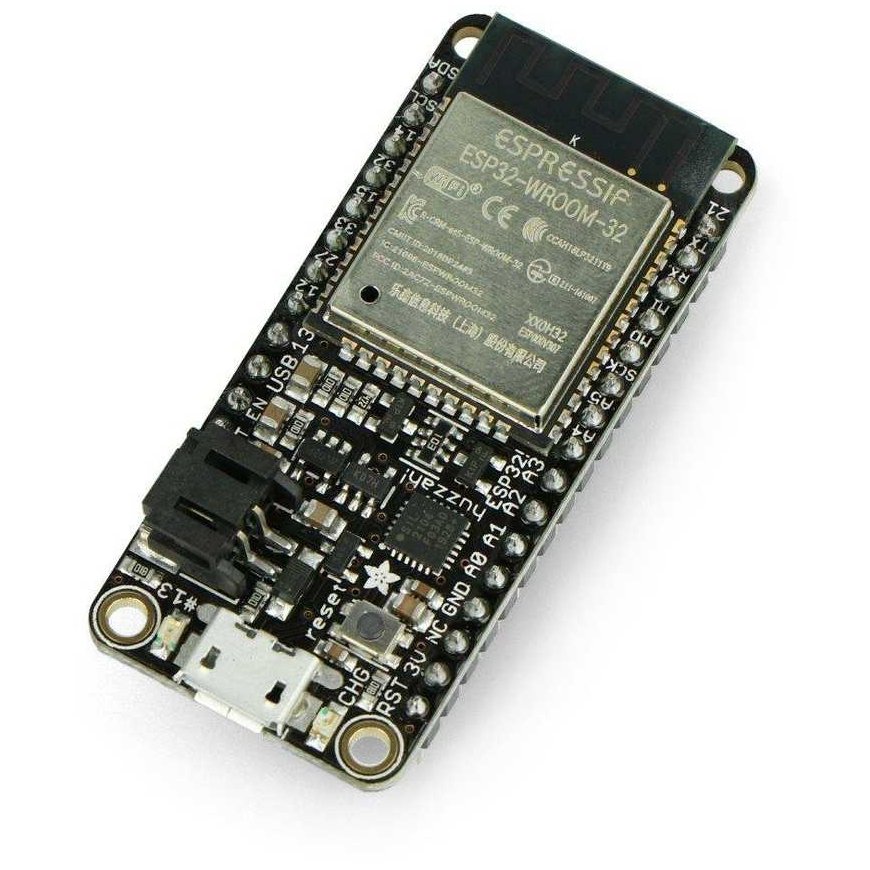

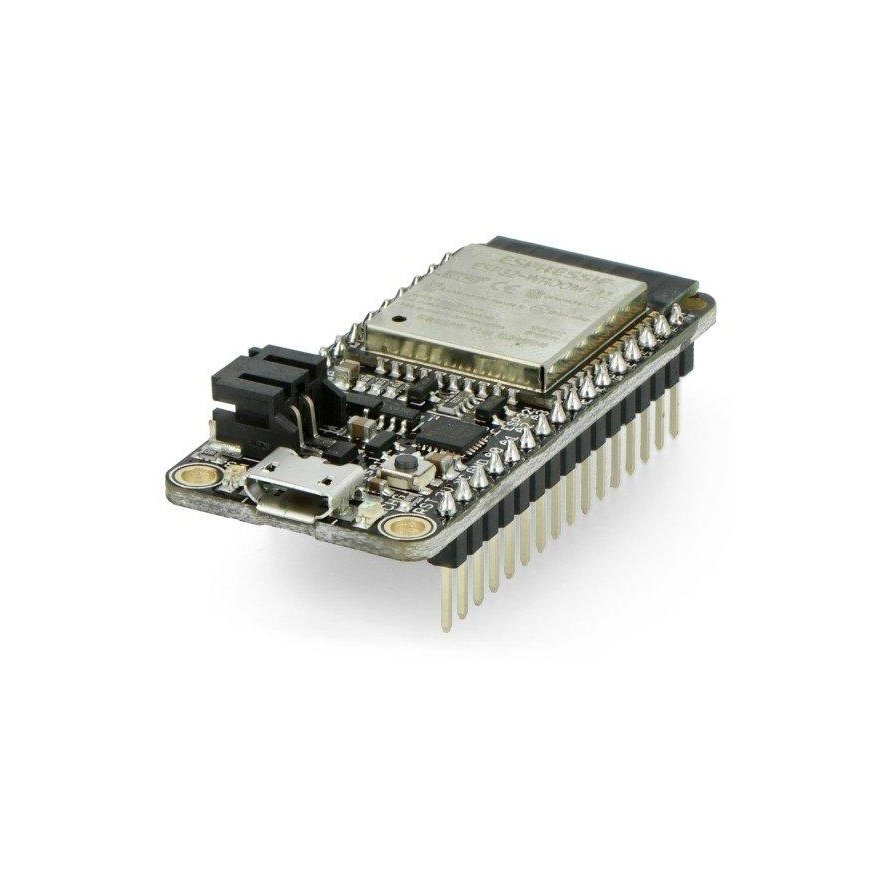

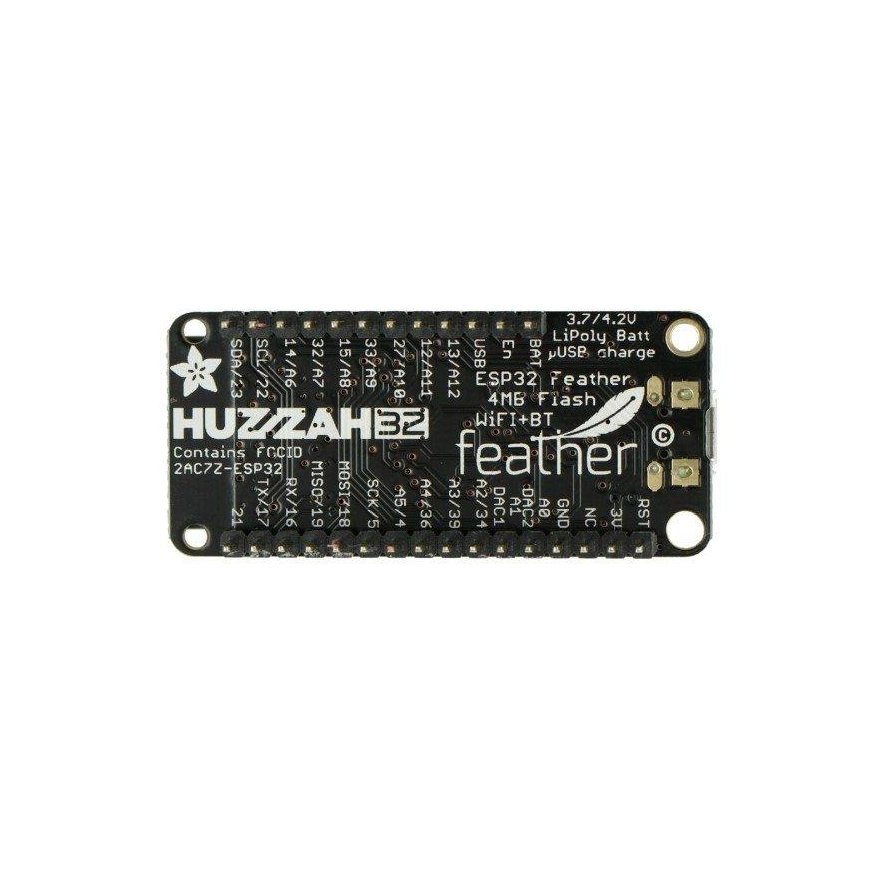

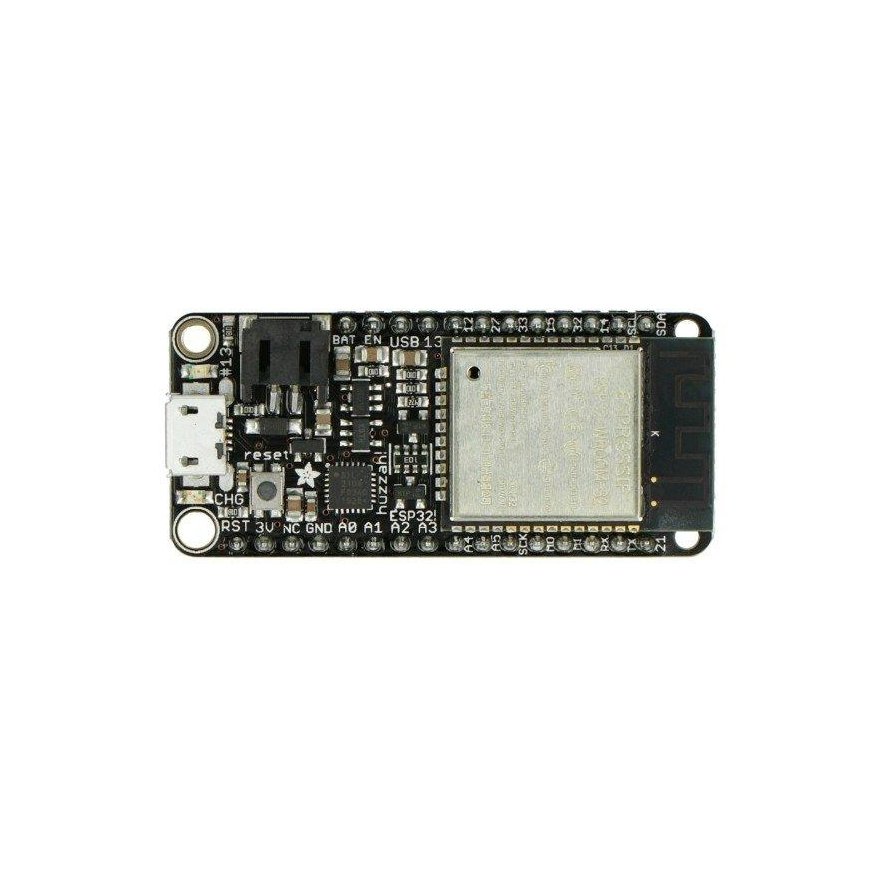

Feather Bang ESP32 module Wi-Fi, Bluetooth GPIO, built-in connections, Adafruit 3591
49.00 €
Monthly payment from 2,16 €
3771157 AN-10874
5904422316938
Shipping 11-18 b.d.
You are interested in this product?
All about the product
The Wi-Fi module and Bluetooth are based on the ESP32 system. The board has 8 GPIO ports supporting I2C and SPI, an analog input, and a connection with a 3.7 V Li-Pol battery. It has Arduino IDE software. The module has soldered connections.
Specifications:
- Power supply voltage: Li-Pol 3.7 V or USB 5 V socket
- Module based on ESP32
- Microcontroller: Tensilica LX6
- Clock frequency: 240 MHz
- Integrated Wi-Fi module: 802.11b/g/n
- Integrated Bluetooth module: classic / BLE
- The logic of leads: 3.3 V
- Flash memory: 4 MB
- SRAM: 520 KB
- Voltage regulator 3.3 V / 500 mA
- Integrated Li-Pol charging module 100 mA with LED indicating status
- Number of GPIO pins: 8/14
- Analog inputs: 6/14
- Support for I2C and SPI interfaces
- Integrated UART interface
- Capacitive touch interface
- Supported SD card interface
- SDIO main / dependent 50 MHz
- Reset button
- Hall sensor
- Built-in PCB antenna
- Terminal: 2.54 mm
- The module has soldered connections
- Module dimensions: 51 x 22.7 x 7.3 mm
- Weight: 6.8 g
