Non-contact liquid level sensor, DFRobot, SEN0370
3770534 AN-19202
5904422379360
Shipping 11-18 b.d.
All about the product

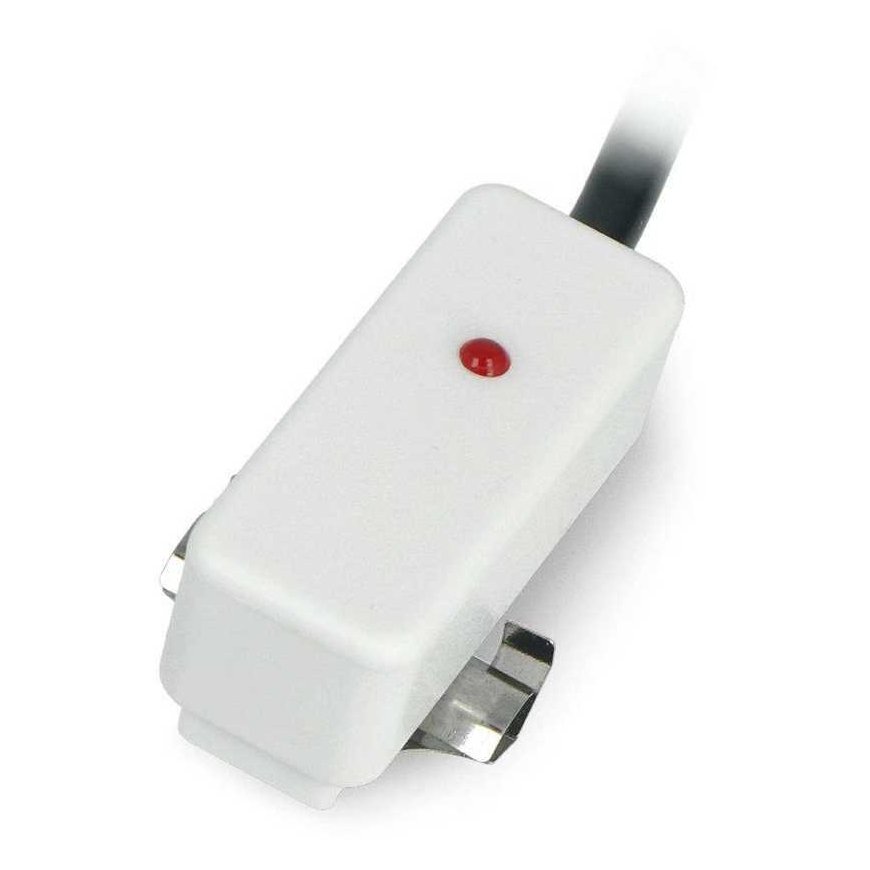

DFRobot manufactured contactless liquid level sensor with status indicator and sensitivity adjustment. Its main purpose is to detect liquid levels in all types of non-metallic pipes with an outer diameter of up to 10 mm. The device allows real-time transmission of sensor status information. It also comes with a 4-pin sensor adapter that enables direct signal transmission from the sensor to the microcontroller. Using this liquid sensor and its wide range of applications, it is possible to detect liquids in water bottles, small tubes, and perfusion tubes. The liquid level sensor is designed based on advanced signal processing technology, utilizing high-performance circuits. The measurement of the sensor is not affected by the thickness or contamination of the container walls, as well as the presence of acids and alkalis.
Specifications:
- Power supply from 5 to 24 V
- Response time 500 ms
- Operating temperature: from -5 to 105 °C
- Suitable pipe diameter: up to 10 mm
- Liquid level accuracy: ± 1.5 mm
- Material: ABS
- Water resistance: IP65

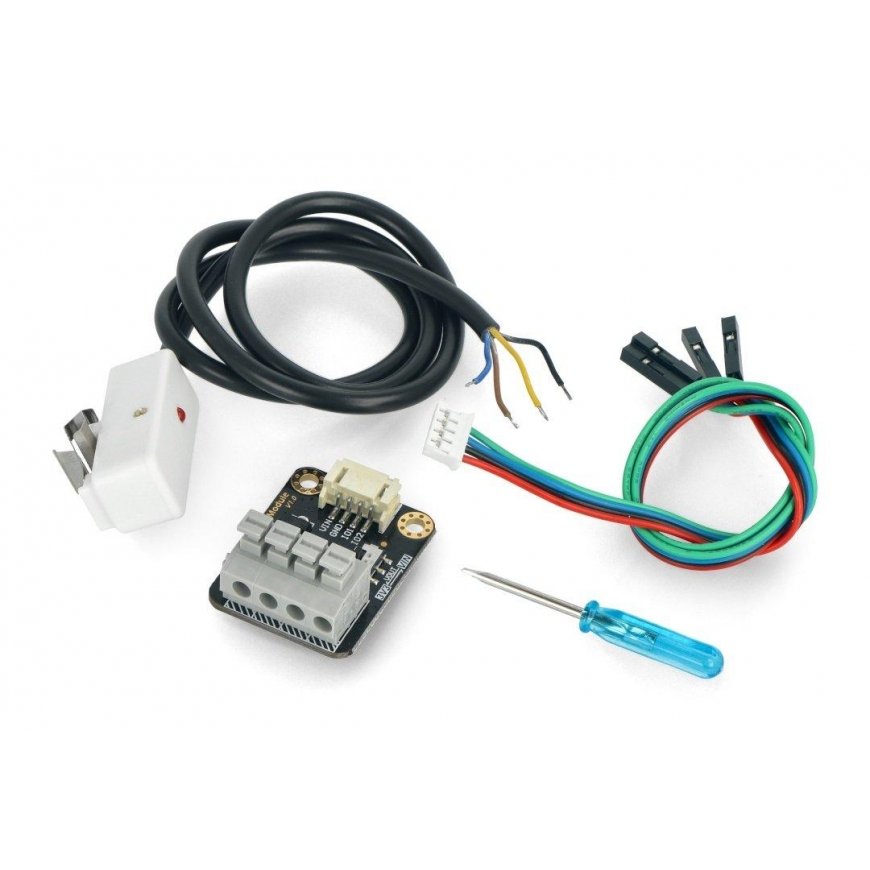

- Level sensor small diameter x1

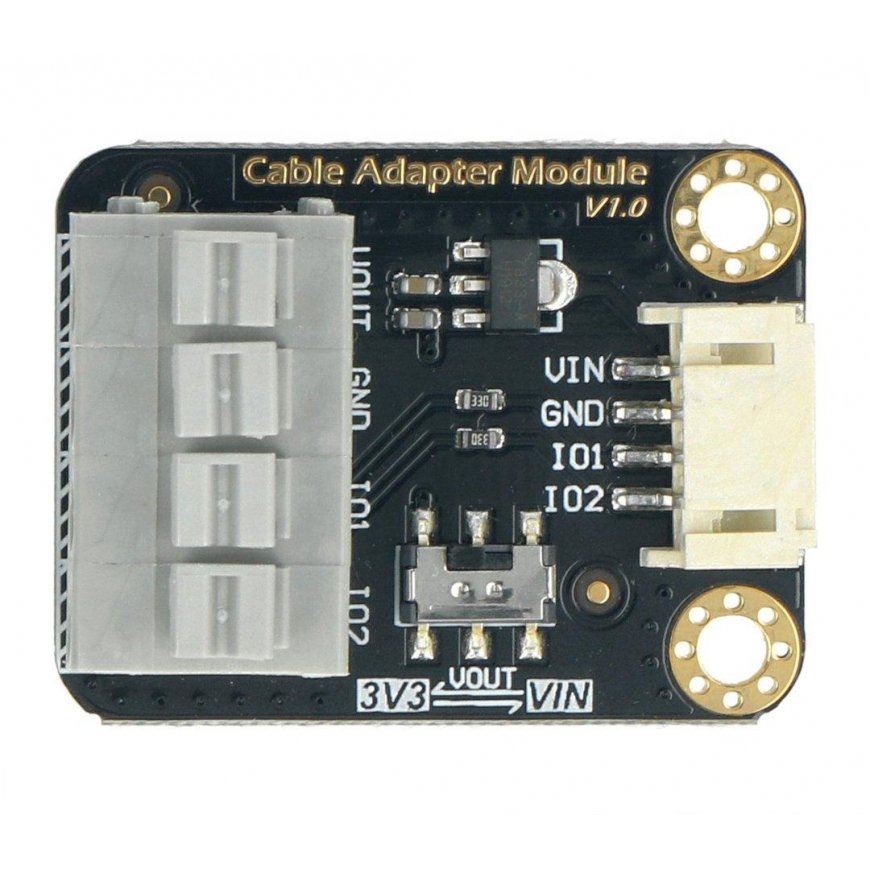

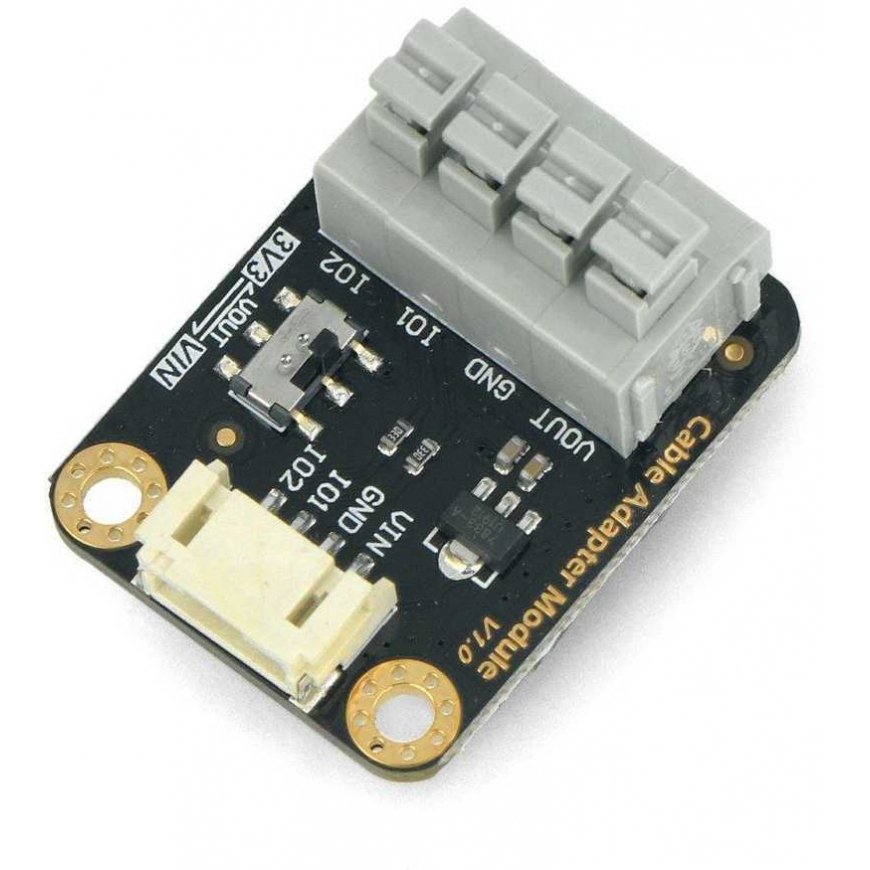

- Gravity: 4-pin sensor adapter x1
- Screwdriver x1
