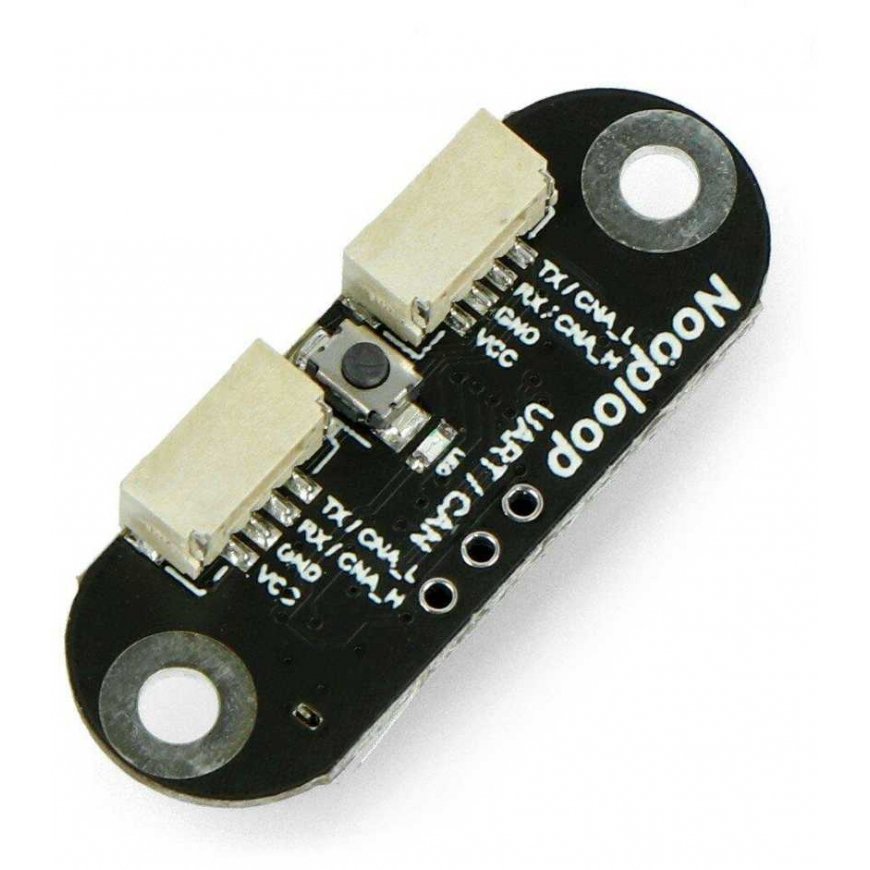

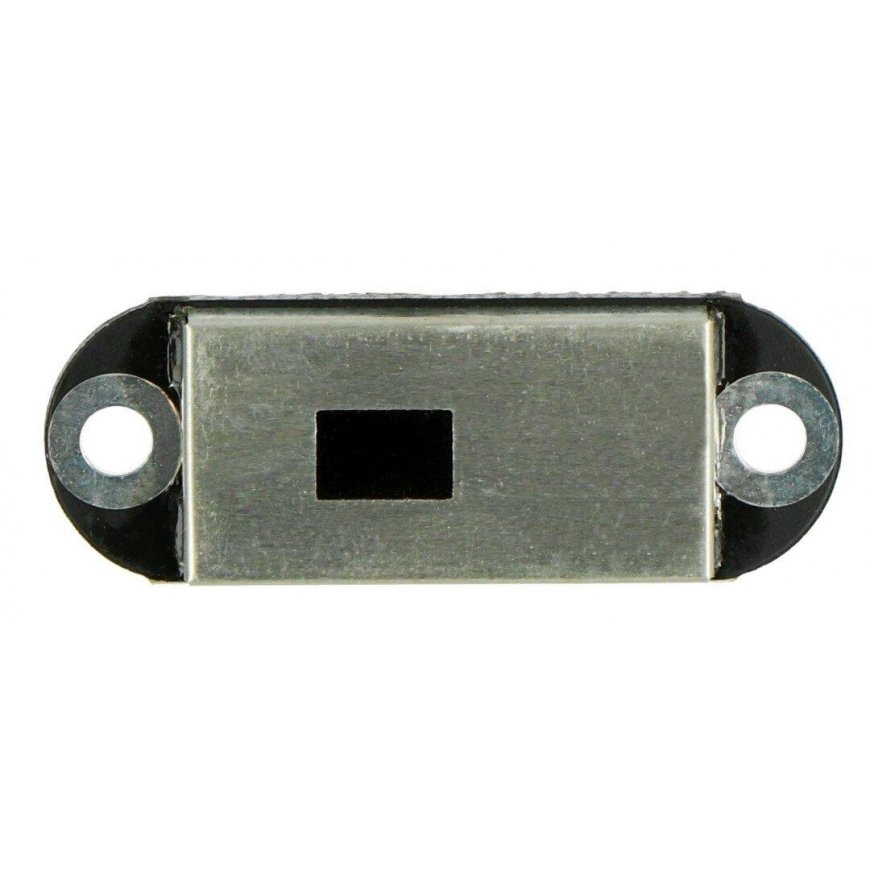

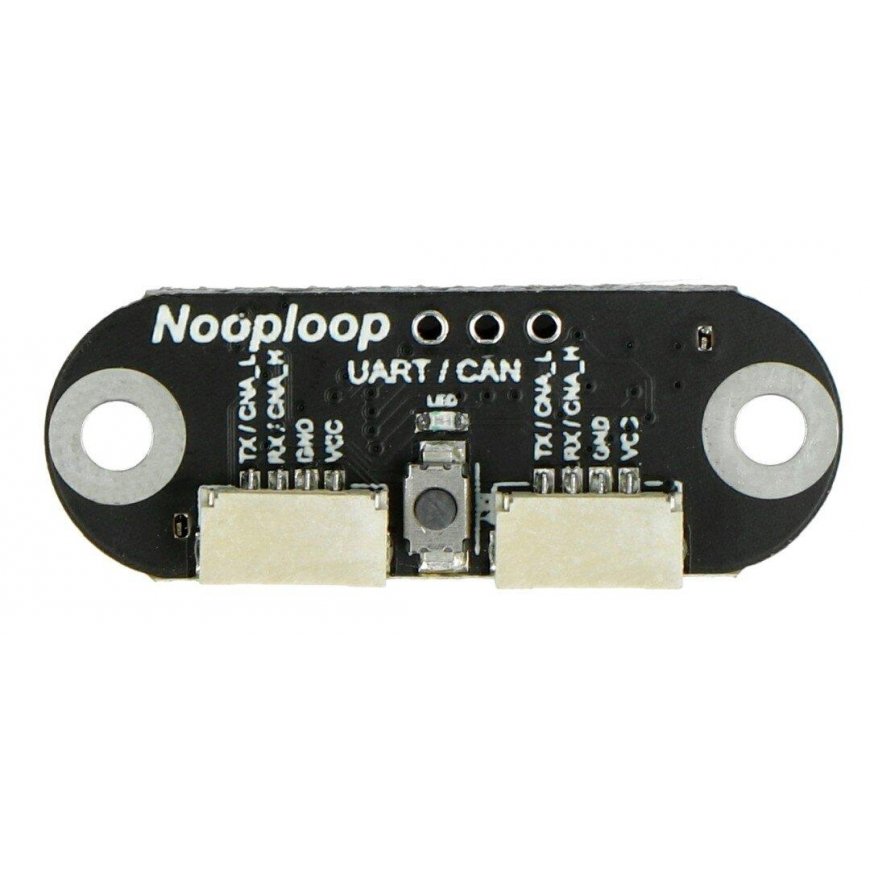

TOF laser distance sensor, 8 m, UART / CAN, DFRobot SEN0337
49.00 €
Monthly payment from 2,16 €
3770028 AN-16577
5904422378233
Shipping 11-18 b.d.
You are interested in this product?
All about the product
Laser sensor based on ToF measurement technology. Detects objects from 0.01 m to 5 m distance with an accuracy of 1.5 cm. Measurement resolution is 1 mm. The sensor uses a serial UART or CAN interface for communication. Powered by 5 V. Sensors can be cascaded.
Specifications:
- Operating voltage: 5 V
- Supply voltage: from 3.7 V to 5.2 V
- Current consumption: 0.06 A
- Power consumption: 290 mW (active UART output, long-range detection, 5 V power supply)
- Interface:
- UART (two interfaces can be used simultaneously as UART, 3.3 V TTL, default baud rate 921600 bps)
- CAN (two interfaces can be used as CAN simultaneously, default rate 1 Mbps)
- Maximum number of sensors connected in cascade:
- 8 UART
- 7 CAN
- Blind zone: 1 cm
- Measurement range:
- short: from 0.012 m to 2.16 m
- medium: from 0.012 m to 3.6 m
- long: from 0.01 m to 5 m
- Typical accuracy:
- short range: ±1 cm, standard deviation less than 0.3 cm
- medium range: ±1 cm, standard deviation less than 1.5 cm
- long range: ±1.5 cm, standard deviation less than 0.5 cm at 0.013 m, and less than 8 cm at a distance of 3.5 m
- Emitted wavelength: 940 nm
- Field of view (FoV): adjustable from 15° to 27°
- Dimensions: 35.58 x 12 x 80.5 mm
- Weight: 2.7 g

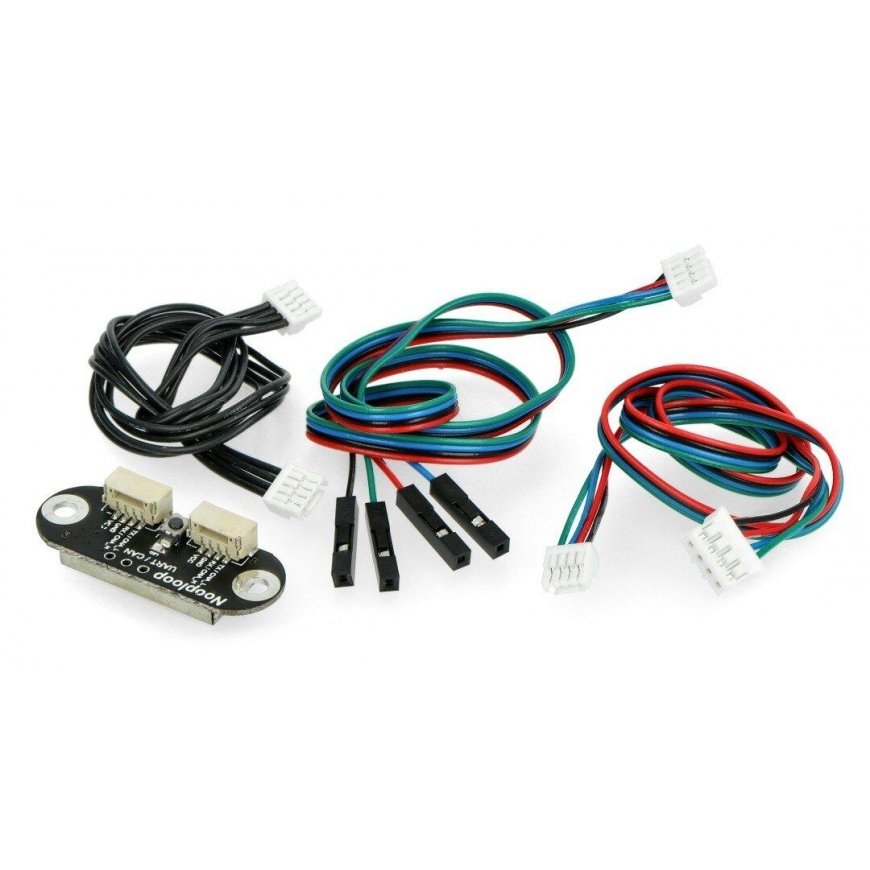

Included:
- Connector x1
Links:
Manufacturer's page
Manual
