All about the product

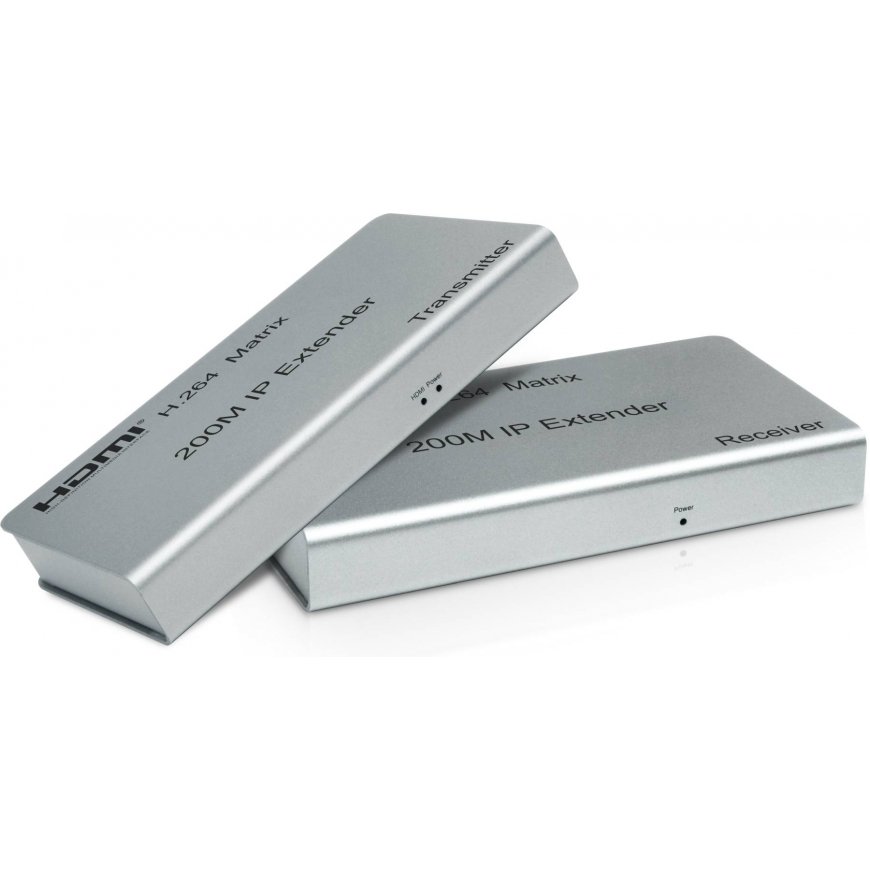

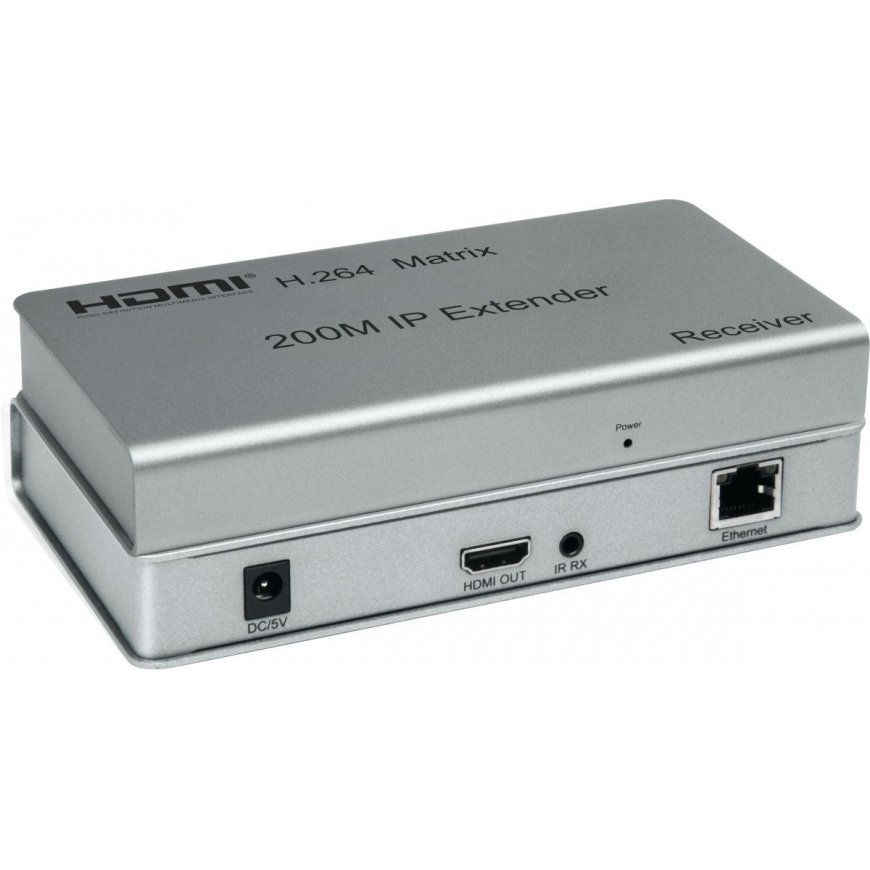

PremiumCord HDMI matrix extender up to 200 m, via IP, for computer networks. The device allows the transmission of HDMI FULL HD signal up to 200 m distance using a single network cable or over a LAN network, while simultaneously controlling IR remote control signals. - The extender is matrix-based, allowing the use of one or more transmitters and multiple receivers connected via a LAN network, switches, and routers (see attached image '1 usage example'). - Supports FULL HD 1080p up to 200 m distance. - Supports H.264 format, also known as MPEG-4 AVC. - Inputs and outputs: HDMI connection. - Network connection ports: RJ45. - The transmitter has a local HDMI output for a local monitor. - Supports HDMI 1.3 format and HDCP 1.1 and 1.2. - Supports 802.3 Ethernet standard. - Resolution: 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz. - Supports video format: 24 bit / Deep Color 30 bit / Deep Color 36 bit. - Audio format: PCM. - Supports audio: DTS-HD / Dolby-true HD / LPCM7.1 / DTS / Dolby-AC3 / DSD. - Transmission speed: 10.2 Gbps. - The extender transmits digital HDMI video and audio. - LAN cable TIA/EIA568 B. - For connection, we recommend high-quality Cat5e, Cat6, Cat7 LAN cable with copper wires, preferably AWG23. - The transmitter and receiver are powered by included 230 V / 5 V 1 A power adapters. - The transmitter and receiver have LED indicators that show when the devices are connected and signal transmission is occurring. - Recommended input and output HDMI cables shorter than 5 m. - Power consumption: 3 W transmitter, 3 W receiver. - Transmitter dimensions: length: 163 mm, width: 87 mm, height: 24 mm. - Receiver dimensions: length: 163 mm, width: 87 mm, height: 24 mm. - Weight: 474 g for the receiver, 474 g for the transmitter. Package includes: 1 x transmitter, 1 x receiver, 2 x IR cables, 1 x manual, 2 x power adapters.
