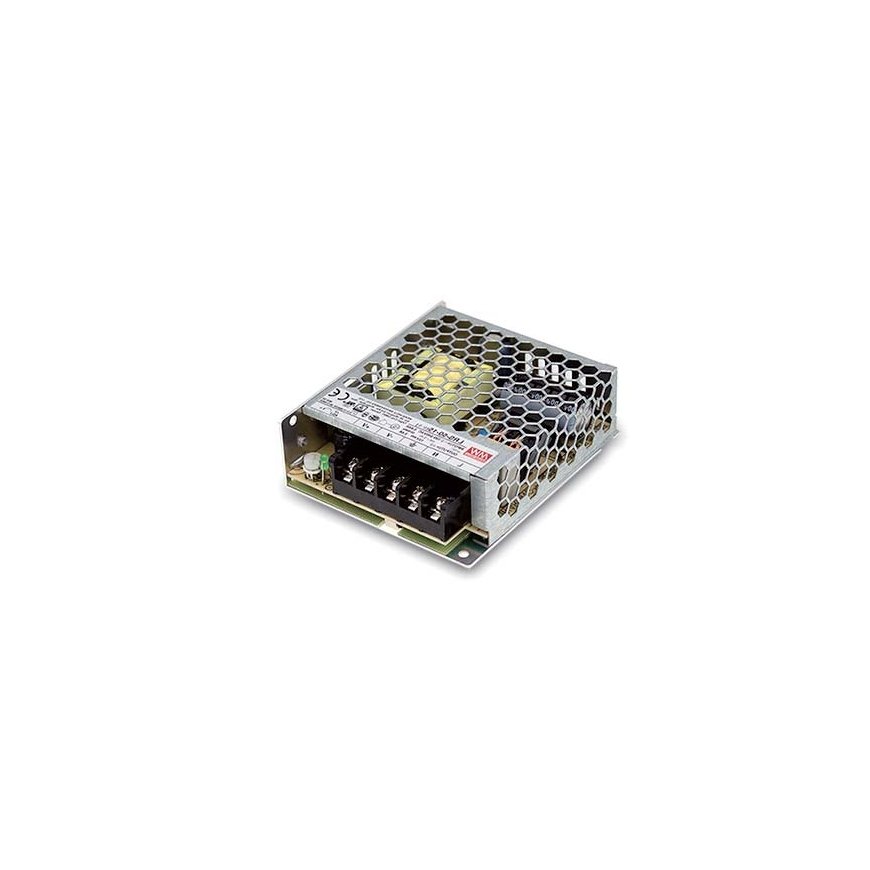

MEAN WELL LRS-50-24 power supply unit 52.8 W Metallic
23.04 €
3769714 LRS-50-24
4021087027717, 0608754595263, 1909071063824, 8058774344686
Shipping 10-16 b.d.
You are interested in this product?
All about the product
- Universal AC input / Full range- Withstand 300VAC surge input for 5 second
- No load power consumption<0.2W
- Miniature size and 1U low profile
- High operating temperature up to 70°C
- Protections: Short circuit / Overload / Over voltage
- Cooling by free air convection
- Compliance to IEC/EN 60335-1(PD3) and IEC/EN61558-1, -2-16 for household appliances
- Operating altitude up to 5000 meters (Note.8)
- Withstand 5G vibration test
- High efficiency, long life and high reliability
- LED indicator for power on
- Over voltage category III
- 100% full load burn-in tes
Power | |
| Hold time | 30 ms |
| Efficiency | 88% |
| Input current | 0.56 - 0.95 A |
| Power protection features | Overload, Over voltage |
| AC input voltage | 85 - 264 V |
| AC input frequency | 47 - 63 Hz |
| Total power | 52.8 W |
Performance | |
| Mean time between failures (MTBF) | 645000 h |
Design | |
| Product colour | Metallic |
Operational conditions | |
| Operating relative humidity (H-H) | 20 - 90% |
| Operating temperature (T-T) | -30 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Storage relative humidity (H-H) | 10 - 95% |
Weight & dimensions | |
| Weight | 230 g |
| Width | 82 mm |
| Depth | 99 mm |
| Height | 30 mm |
Other features | |
| Rise time | 1000 ms |
Safety regulation & standards | |
| Safety | UL60950-1, TUV EN60950-1, EN60335-1, EN61558-1 2 16 |
