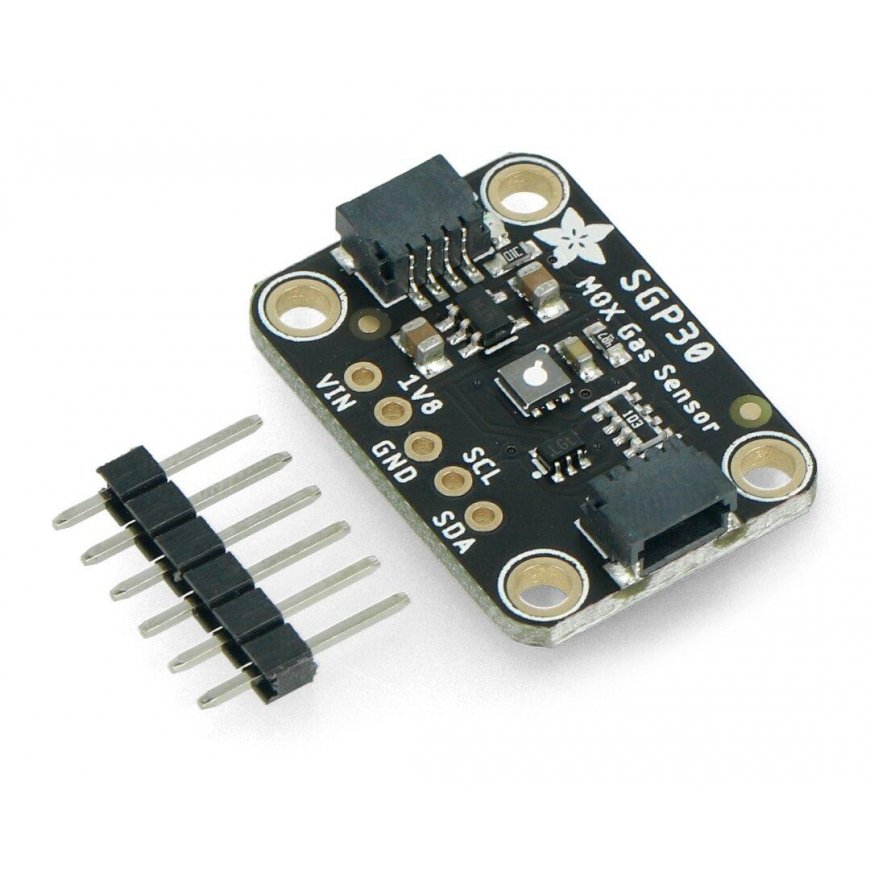

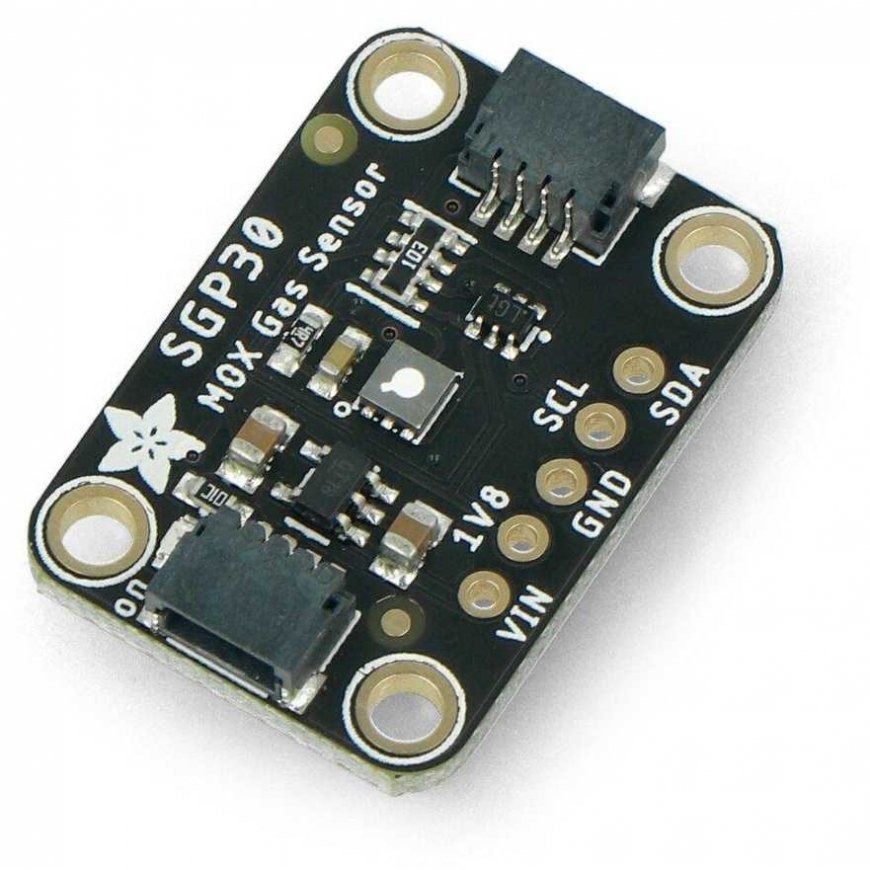

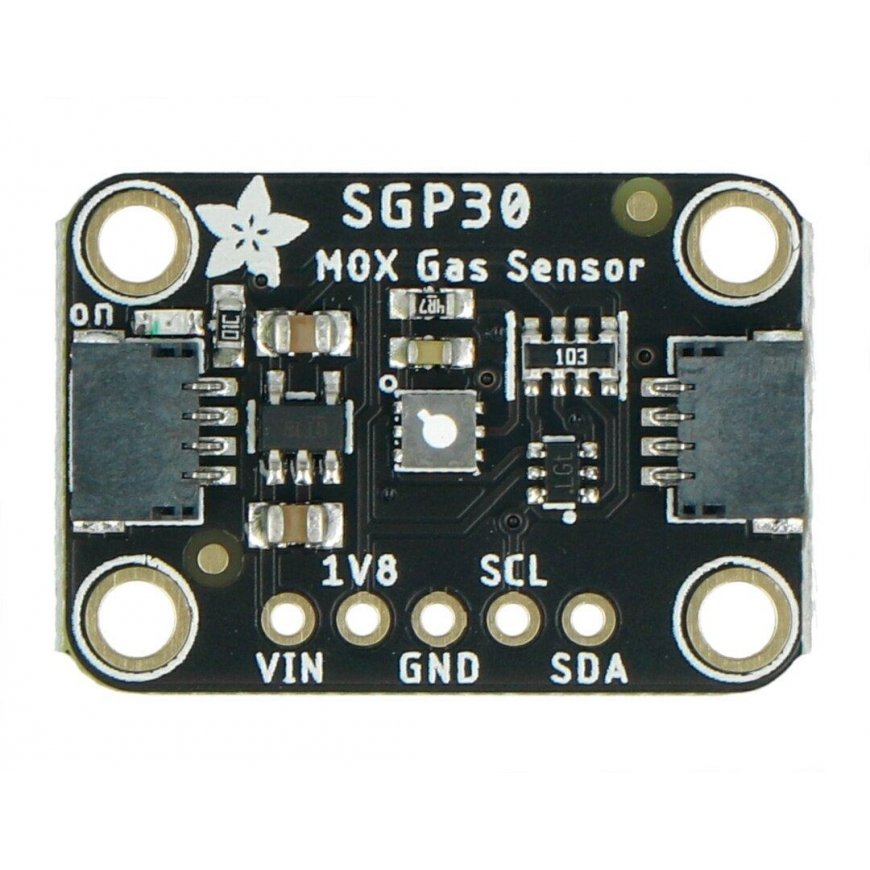

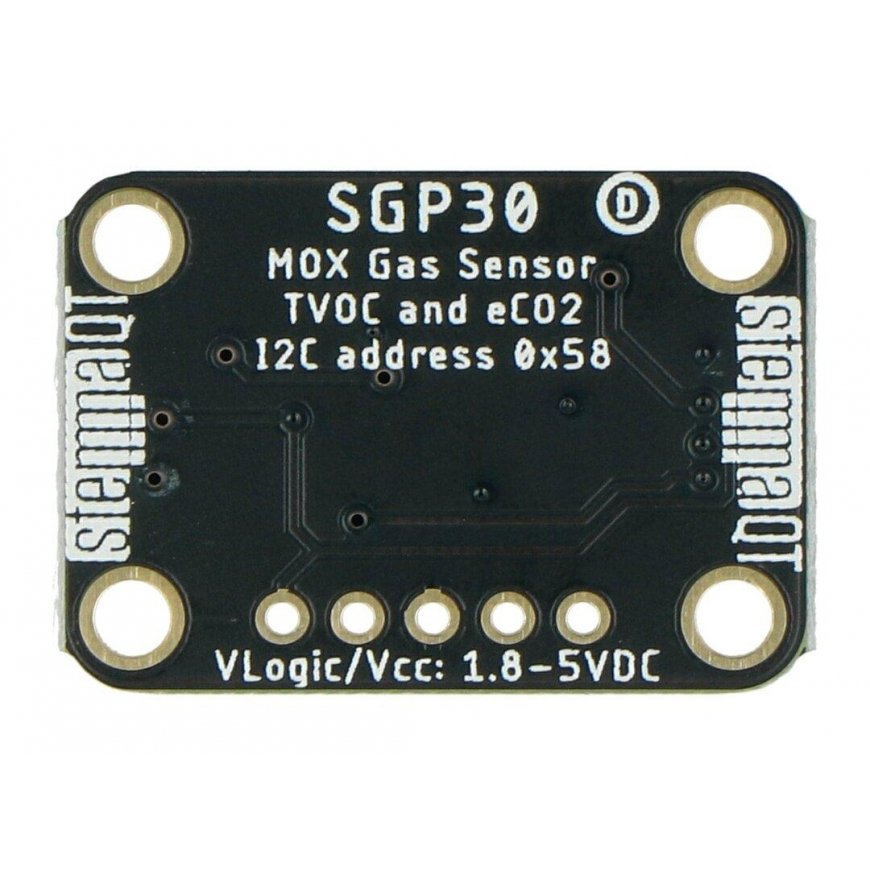

Gas sensor SGP30, VZO / eCO2, STEMMA QT / Qwiic, Adafruit 3709
3769127 AN-19000
5904422366254
Shipping 11-18 b.d.
All about the product
The SGP30 gas sensor is designed to monitor indoor air quality. It monitors the concentration of volatile organic compounds (VOCs) and H2 in the air. When measuring, it shows the TVOC and carbon dioxide equivalent eCO2 readings. The measurement range for ECO2 concentration is from 400 ppm to 60000 ppm. The measurement range for TVOC is from 0 ppb to 60000 ppb. The sensor is equipped with STEMMA QT / Qwiic compatible connectors, which allow it to be connected to a microcontroller module, such as Arduino.
Specifications:
- Circuit: SGP30
- Supply voltage: from 1.8 V to 5 V
- Communication interface: I2C
- I2C communication interface address: 0x58
- Measurement range:
- TVOC: from 0 to 60000 ppb
- eCO2: from 400 to 60000 ppm
- Sampling frequency: 1 Hz
- Connectors: STEMMA QT / Qwiic
- Dimensions: 25.5 x 17.7 x 4.6 mm
- SGP30 gas sensor
- Goldpin strip, 2.54 mm
