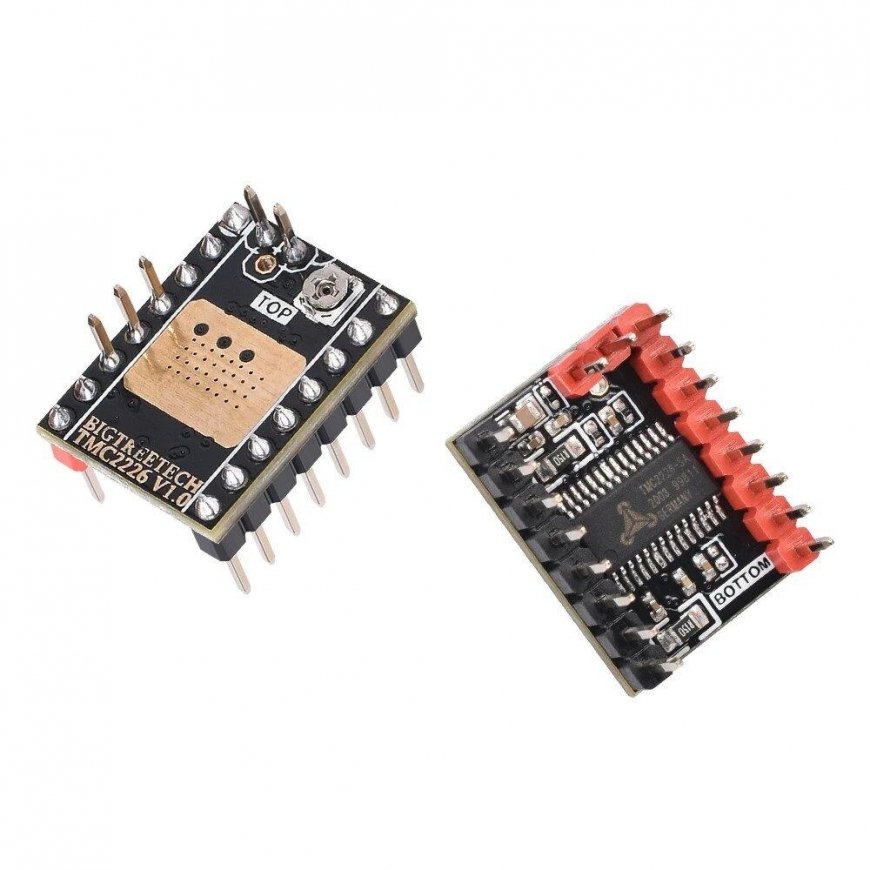

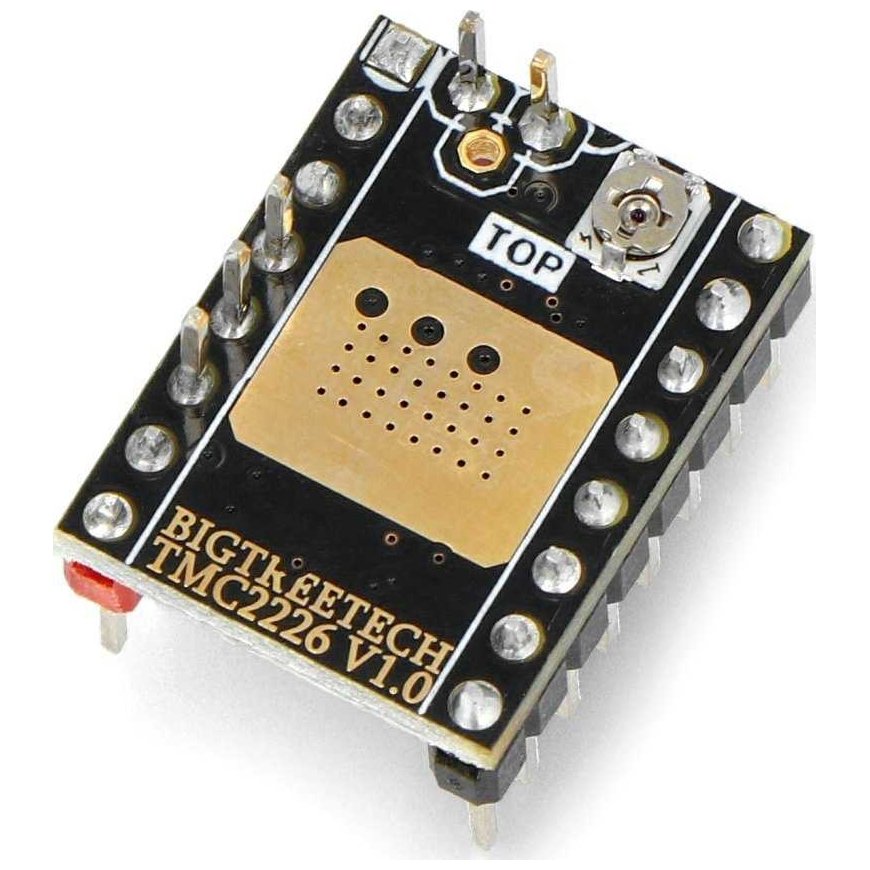

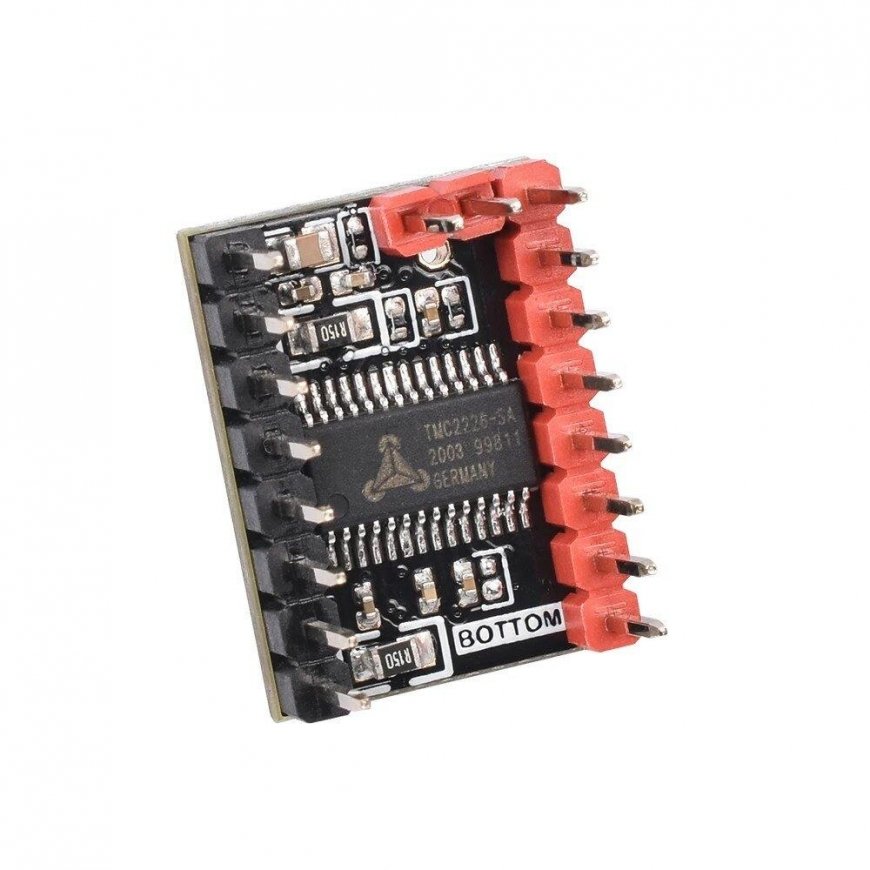

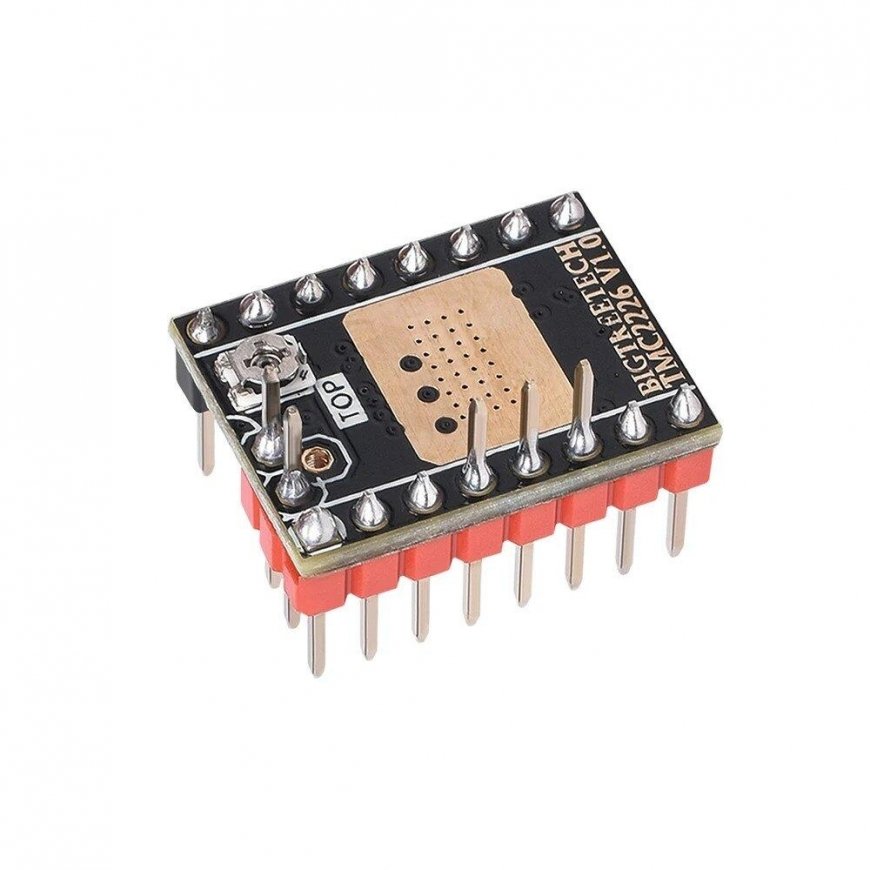

Bigtreetech TMC2226 v1.0 stepper motor driver
3768880 AN-18757
5904422358839
Shipping 11-18 b.d.
All about the product
Two-phase stepper motor driver. The maximum current consumption per coil is 2.8 A. The RMS effective value is 2 A. This ensures smooth operation with a resolution of 256 steps. The product allows configuring the STEP/DIR parameter to 1/8, 1/16, 1/32, or 1/64 steps. TMC2226 v1.0 supports MicroPlyer, StealthChop2, SpreadCycle, and StallGuard 4. Compatible with the Coolstep standard, saving up to 75% energy. The product is compatible with the Bigtreetech v1.4 Turbo 32-bit motherboard used in Biqu B1 printers. A heatsink is included with the driver.
Key features:
- Ensures precise stepper motor operation
- Protects against motor vibration, thus reducing noise during operation

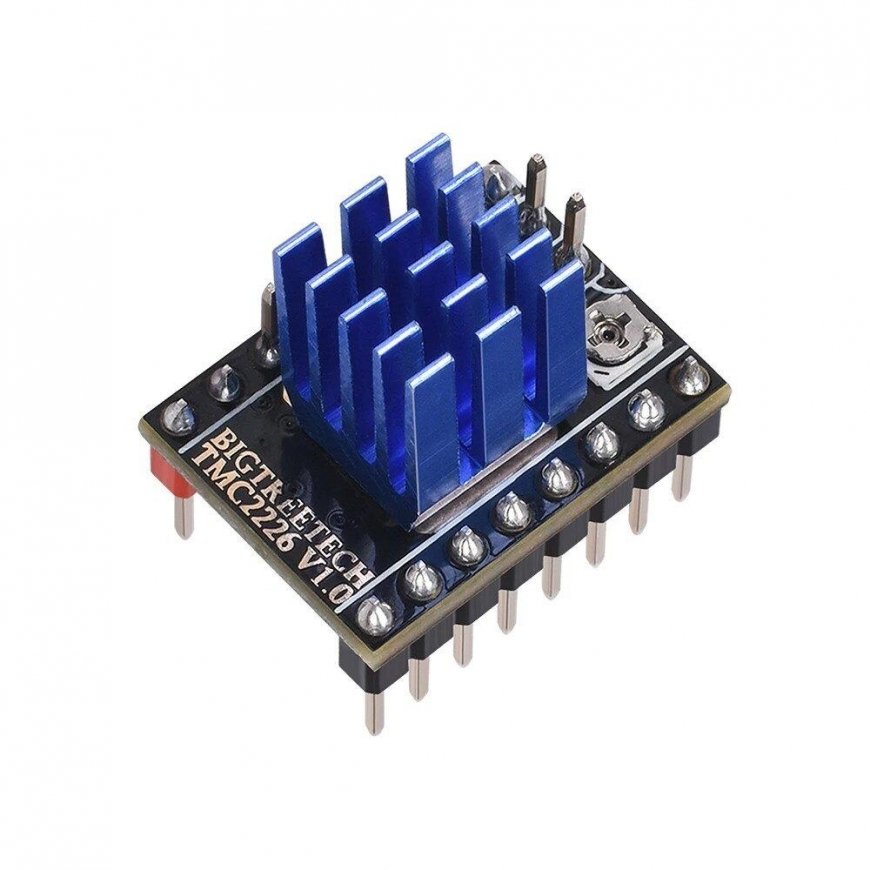

- High-capacity heatsink effectively reduces temperature generated during operation
- TMC2226 v1.0 module supports Step/Dir and UART mode
- Operating voltage: from 4.75 V to 29 V
- Maximum current consumption per coil: 2.8 A
- Average value: 2 A
- Step/dir operation options: 1/8, 1/16, 1/32, or 1/64 steps
- Overheating protection with attached heatsink
- Dimensions: 20.32 x 15.24 mm
- TMC2226 v1.0 driver
- Special heatsink
- Connection wire
