Seeed Studio Grove, 4 channel relay SPDT
3768754 AN-14418
5904422322137
Shipping 11-18 b.d.
All about the product

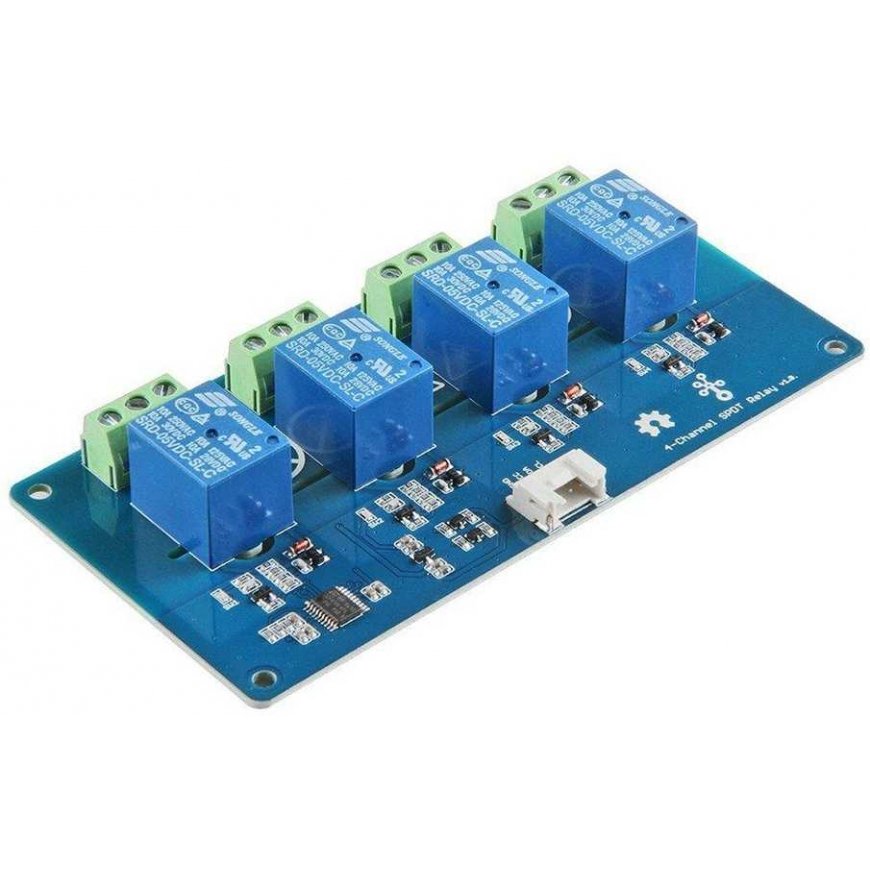

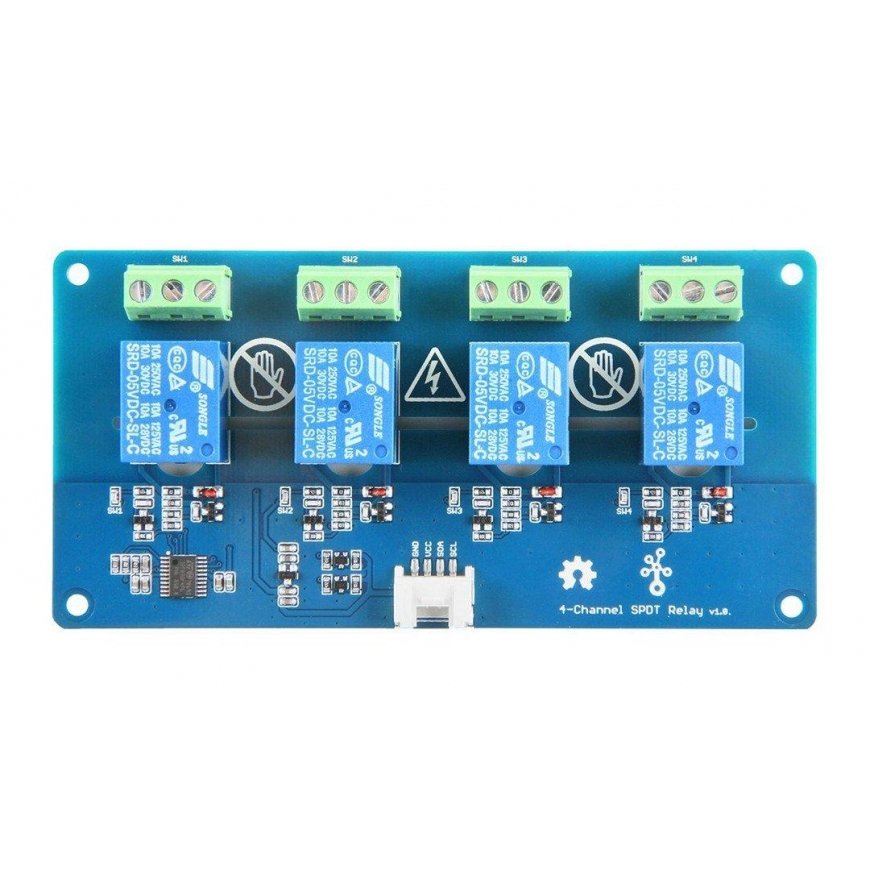

High-class 4-channel relay from Grove version 1.0. Capable of controlling a maximum of 250 V AC or 110 V DC voltage at 10 A current. Requires 5 V to operate. Has 4 independent channels, controlled via the STM32F030F4P6 microcontroller, which works with SWD or I2C interfaces, allowing each relay to be controlled separately using commands. The module also features a Grove socket, making it easy to connect to an Arduino base shield or Raspberry Pi Grove Pi+. The board is made of high-quality laminate, more resistant to temperature, and the Songle SRD relays used can perform up to 10 million switches at 30 per minute. As a result, the entire module looks excellent. Due to its high resistance combined with ease of use and high aesthetics of the board and packaging, the Grove relay becomes a high-class product.
Specifications:
- VCC power voltage: 5 V
- Power consumption: approximately 0.45 W
- Relay Songle SRD-05VDC-SL-C
- Maximum load: 250 V AC / 110 V DC
- Speed: 30 switches/min
- Operating temperature: -40 °C - 85 °C
- Board dimensions: 120 x 60 x 19 mm
- Board weight: 257 g

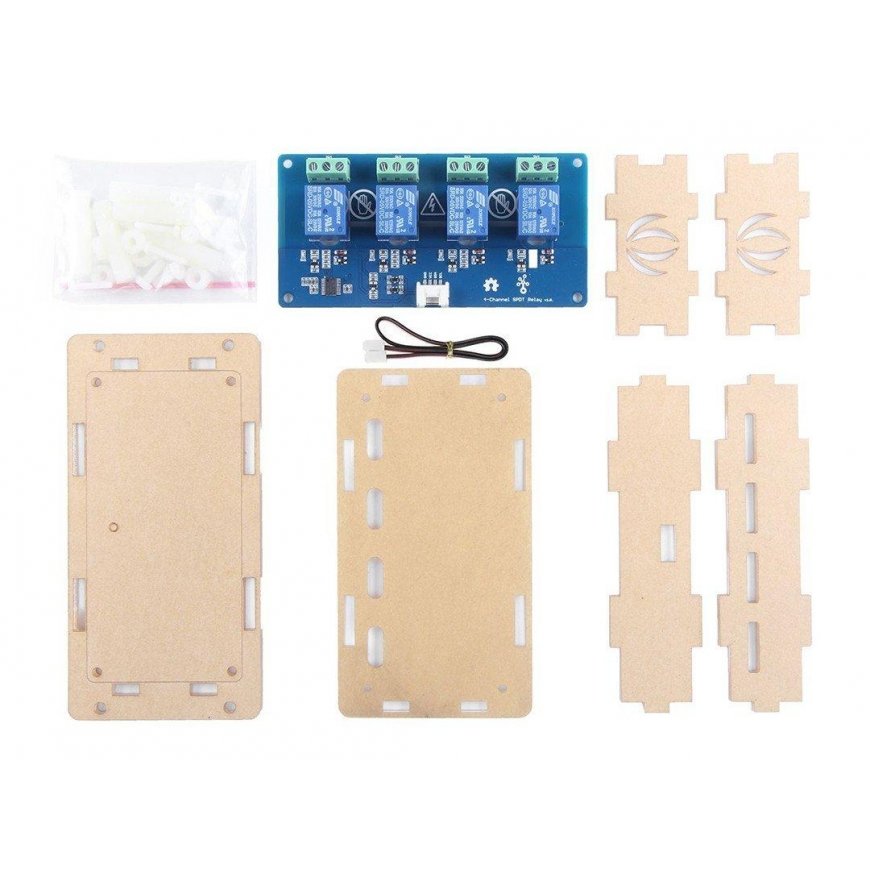

- Package includes:
- 4-channel Grove relay
- Grove cable
- acrylic case
- mounting components
