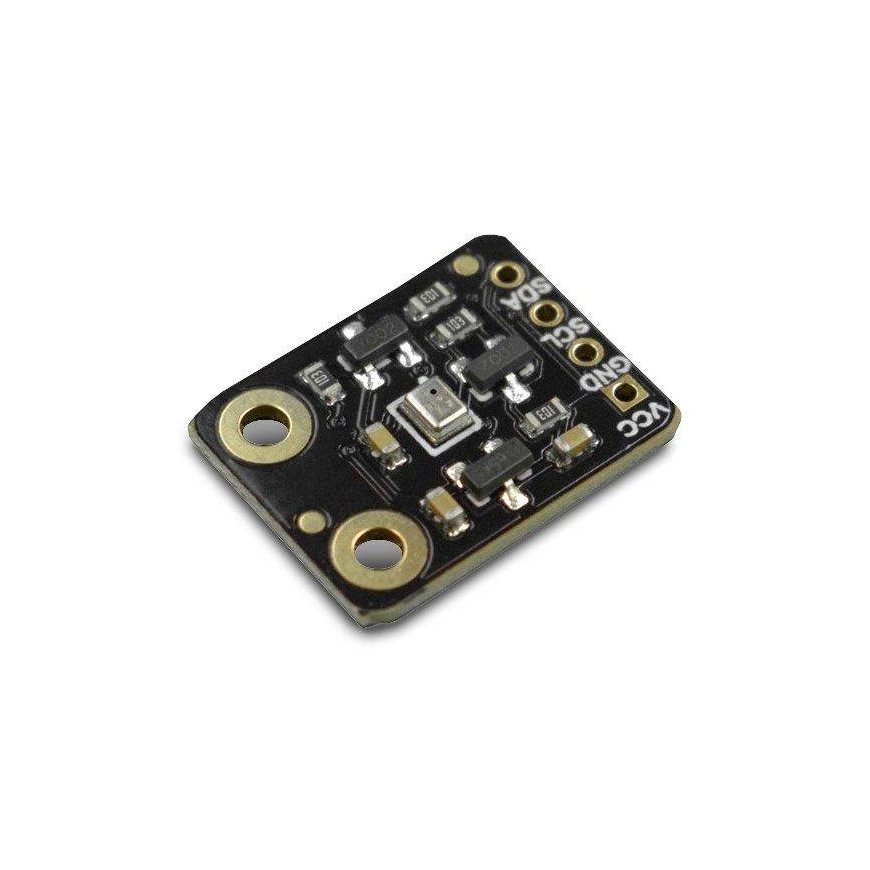

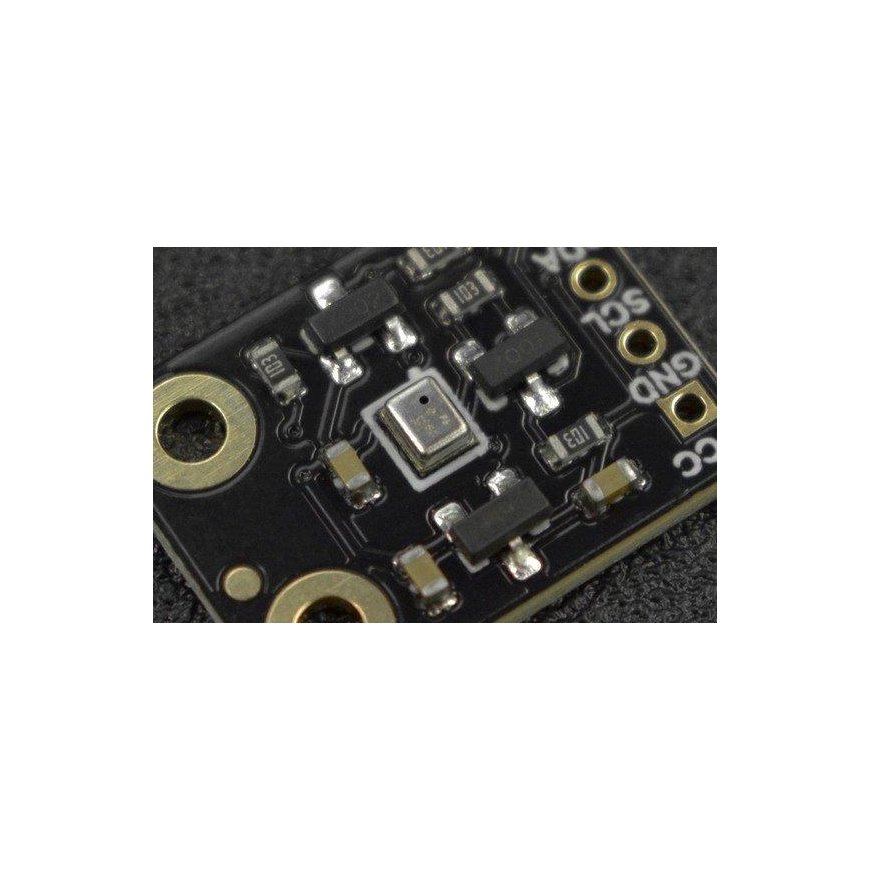

Fermion - pressure sensor ICP-10111 - DFRobot SEN0516
20.67 €
3768590 AN-20977
5904422383251
Shipping 11-18 b.d.
You are interested in this product?
All about the product
The Fermion temperature and barometric pressure sensor module from DFRobot features a built-in ICP-10111 sensor, made using MEMS technology. It operates on a voltage range of 3.3 V to 5.5 V. The sensor supports I2C interface. It consumes very little power and is highly accurate.
Key features:
- Measurement accuracy: ± 1 Pa
- Measurement distortion: 0.4 Pa
- Arduino compatible sensor
- Supply voltage: from 3.3 V to 5.5 V
- Current consumption: 2 mA
- Interface: I2C
- I2C address: 0x63
- Barometric pressure measurement range: from 30 to 110 kPa
- Relative barometric pressure measurement accuracy: ± 0.01 hPa (from 950 hPa to 1050 hPa, 25 °C)
- Absolute barometric pressure measurement accuracy: ± 1 hPa (from 950 hPa to 1050 hPa, from 0 °C to 65 °C)
- Absolute temperature measurement accuracy: ± 0.4 °C
- Operating temperature: from -40 °C to 85 °C

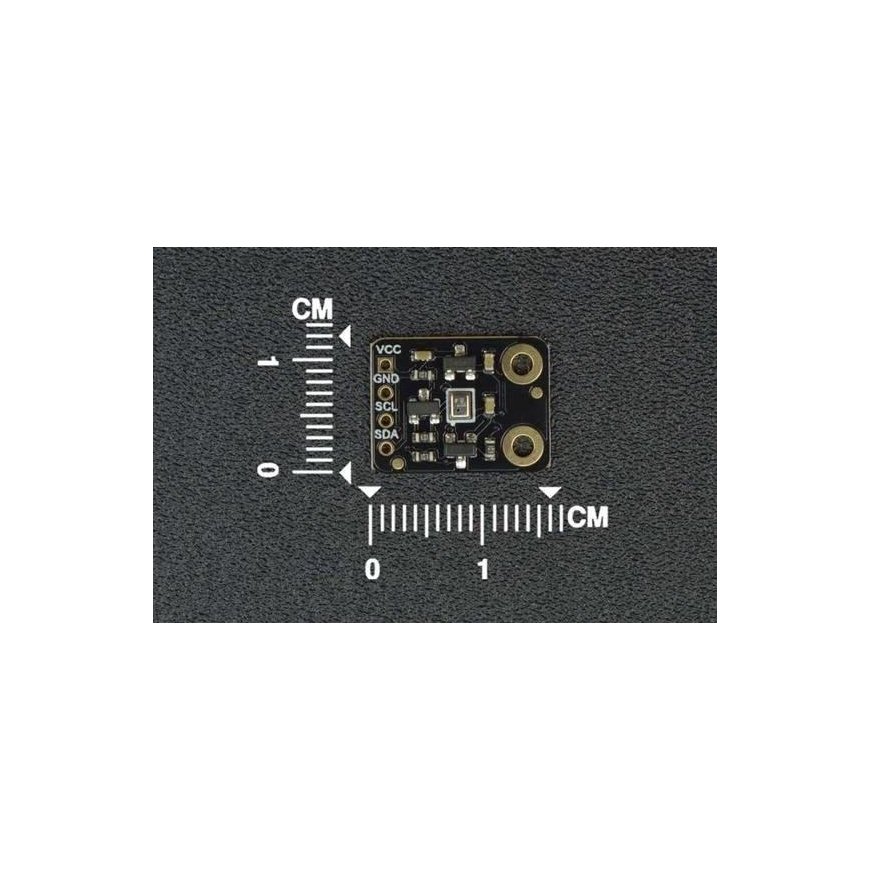

- Dimensions: 16.5 x 12.5 mm

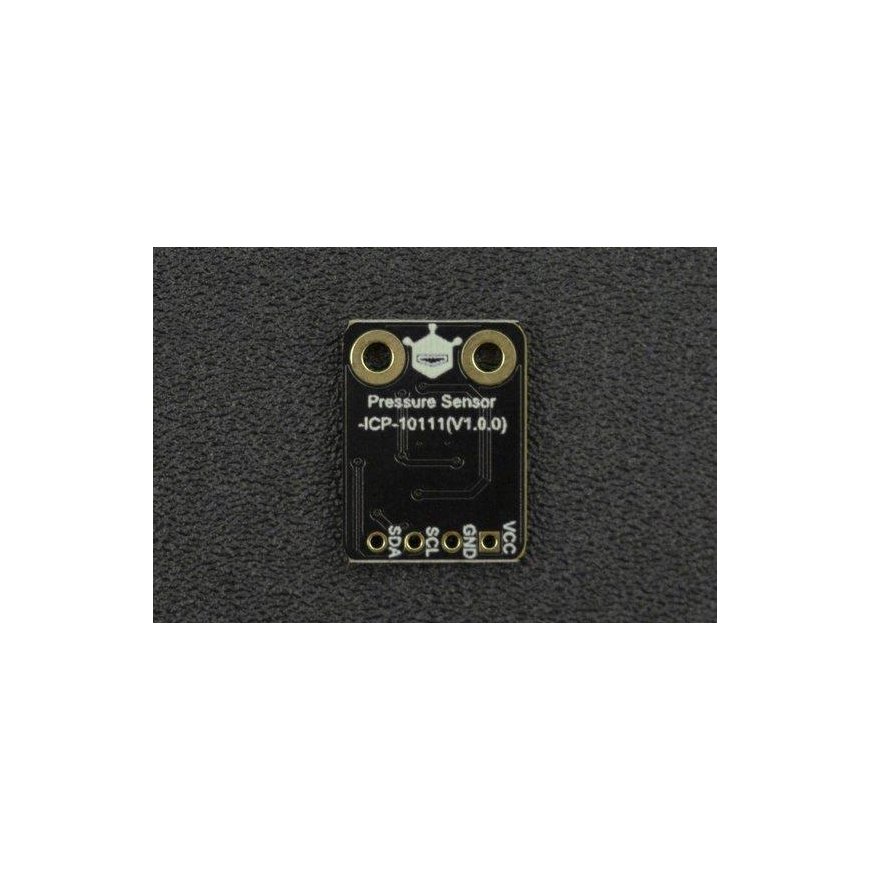

- Gravity - pressure sensor ICP-10111 V1.0.0

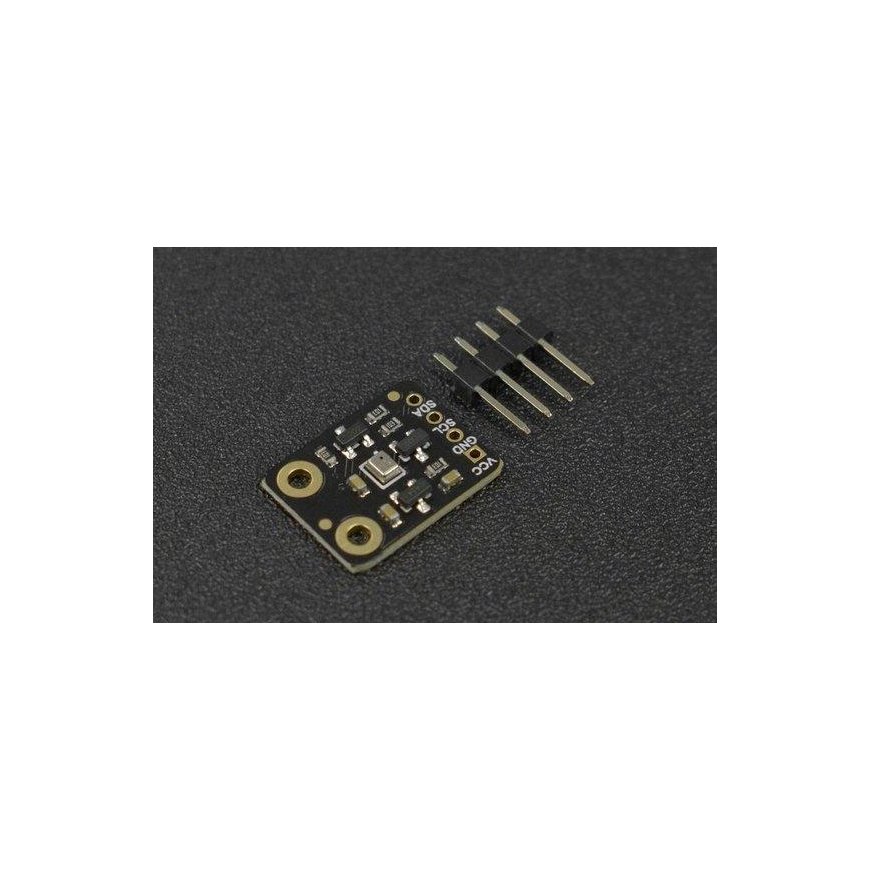

- Connector gold pin 4 contact single row with 2.54 mm pitch
