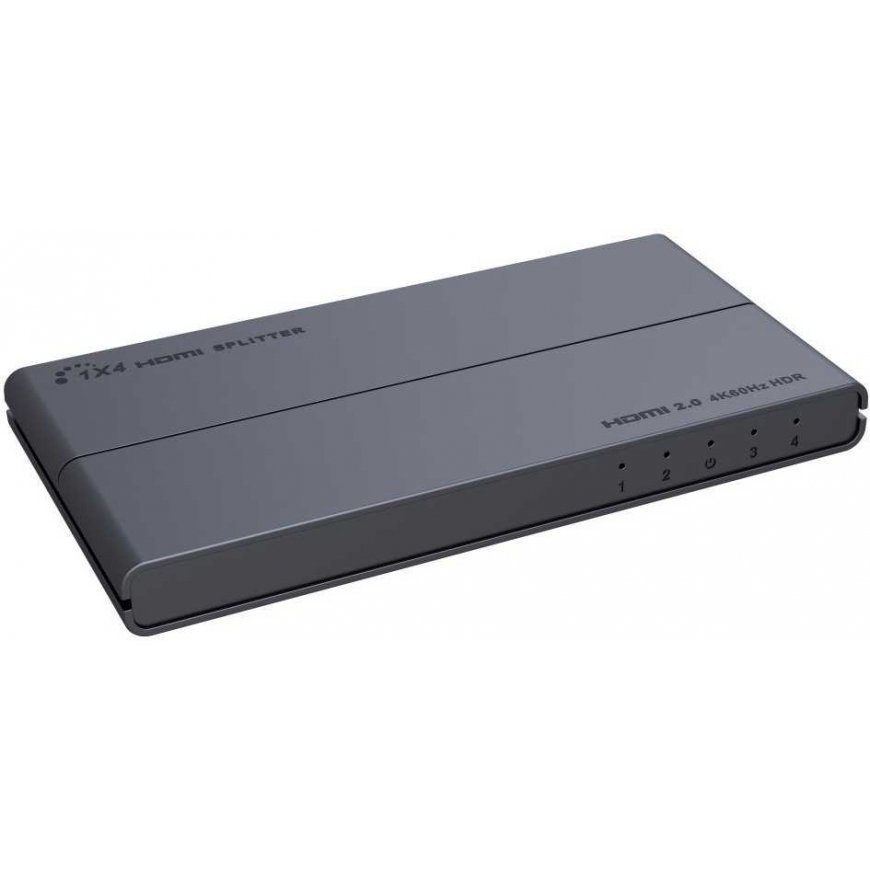

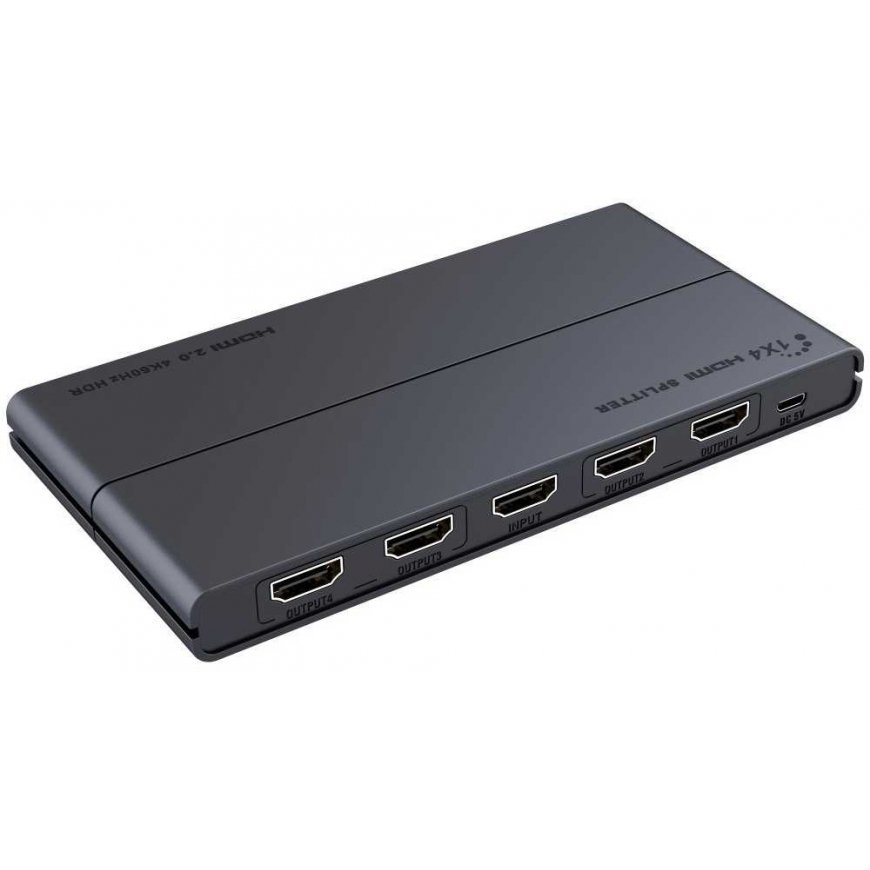

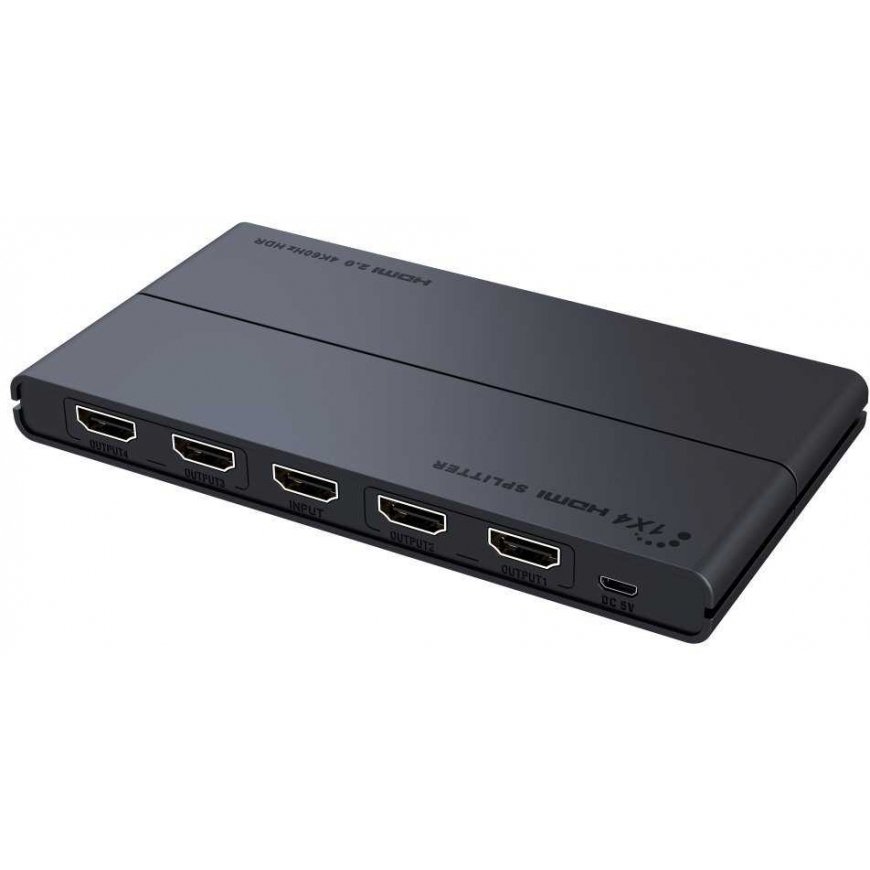

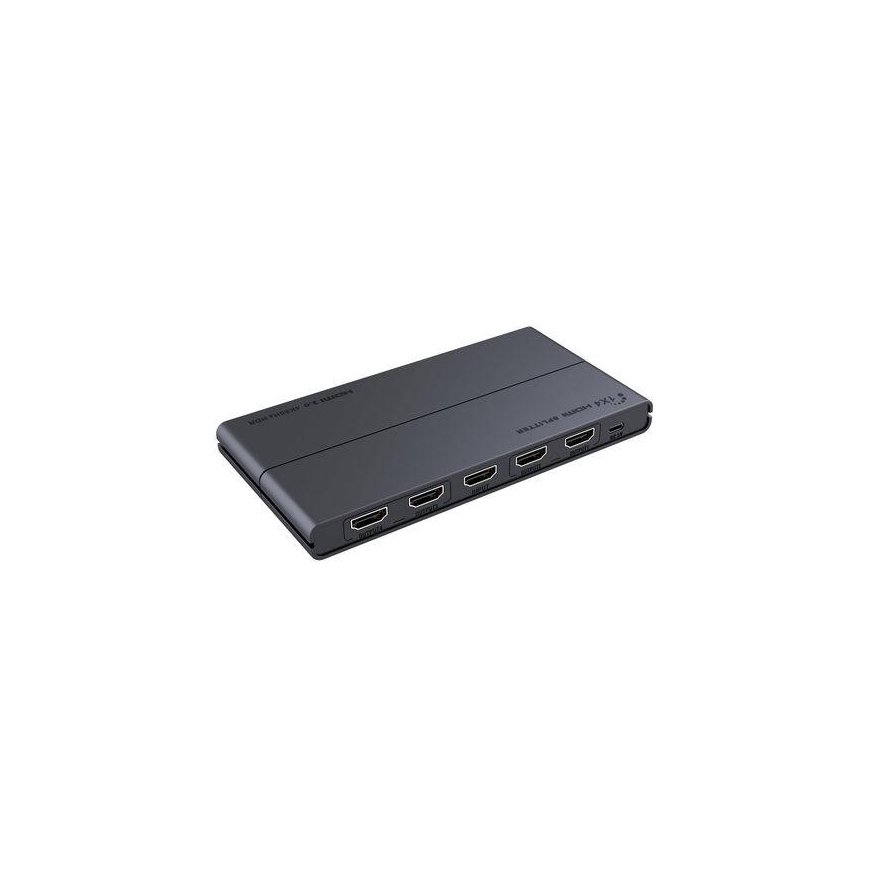

PremiumCord PREMIUMCORD HDMI 2.0 splitter 1–4 ports, 4K x 2K/60Hz, FULL HD, 3D, HDR support

All about the product

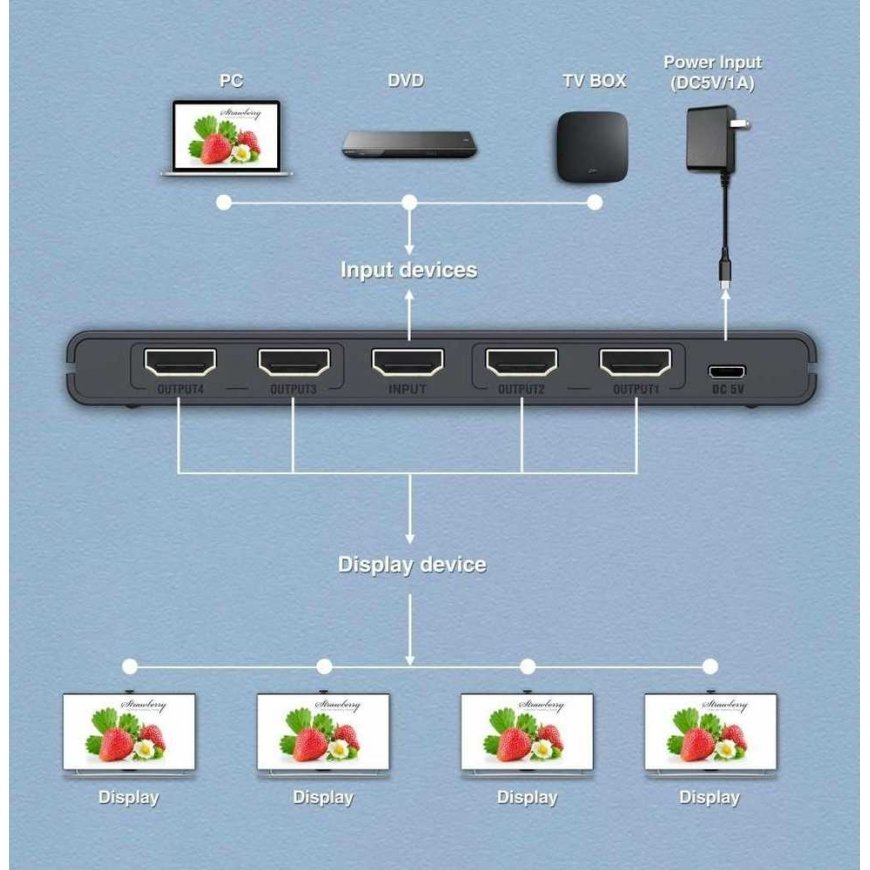

Product description: “PremiumCord HDMI 2.0” splitter, 1–4 ports, 4K x 2K / 60 Hz, FULL HD, 3D, HDR. You can connect multiple HDMI screens to one HDMI signal source, such as a personal computer, laptop, DVD player, set-top box, etc. - 1 HDMI input (Type A) - Output: 4 HDMI outputs (Type A) - Powered by a 230 V / 5 V 1 A adapter - 1 LED power indicator on the front panel, 4 LED signal indicators on the ports - Supports 3D and HDTV up to “Ultra HD 3840X2160” / 60 Hz, YUV 4:4:4 chromatic resolution - Resolution: 480i, 480p, 720i, 720p, 1080i, 1080p, 4Kx2K / 60 Hz - Supports HDR (high dynamic range imaging) - Supports HDMI 2.0, HDMI1.4 - Supports HDCP2.2 - The splitter has an Active signal amplifier, allowing connection of cables up to 10 m long from the splitter. Cables must have high-quality copper conductors and sufficient conductor cross-section (min. AWG24), considering the cable length and the video signal resolution used. - Bandwidth (MHz): 25MHz - 600 MHz - Max. data transfer rate 18 Gb/s - Max. Resolution: 4K2K/60Hz (3840X2160/60Hz) - Supports audio formats: 7.1/5.1/2.1 CH Dolby Digital, DTS-HD, and Dolby TrueHD audio - Supports 8/10/12 bit color depth - Transmits both video and audio - Nice small black plastic housing - Power consumption less than 4 W - Operating temperature: 0–60 °C - Operating humidity: 20–90 % - Dimensions: 158.5 mm x 82.8 mm x 16 mm - Weight: 136 g - Packed in a cardboard box with EAN code Wiring connection instructions: 1) Connect the HDMI splitter input with an HDMI cable to the signal source, and the output to the screen or monitor. 2) Connect the power adapter to a 230 V power outlet and the DC 5 V outlet. If the image does not appear immediately after connecting the splitter, wait about 30 seconds for the HDMI signal to be detected.
