WS2812-24 RGB LED ring - 93mm - DFRobot DFR0888-24
23.87 €
3766883 AN-21032
6959420921911
Shipping 11-18 b.d.
You are interested in this product?
All about the product

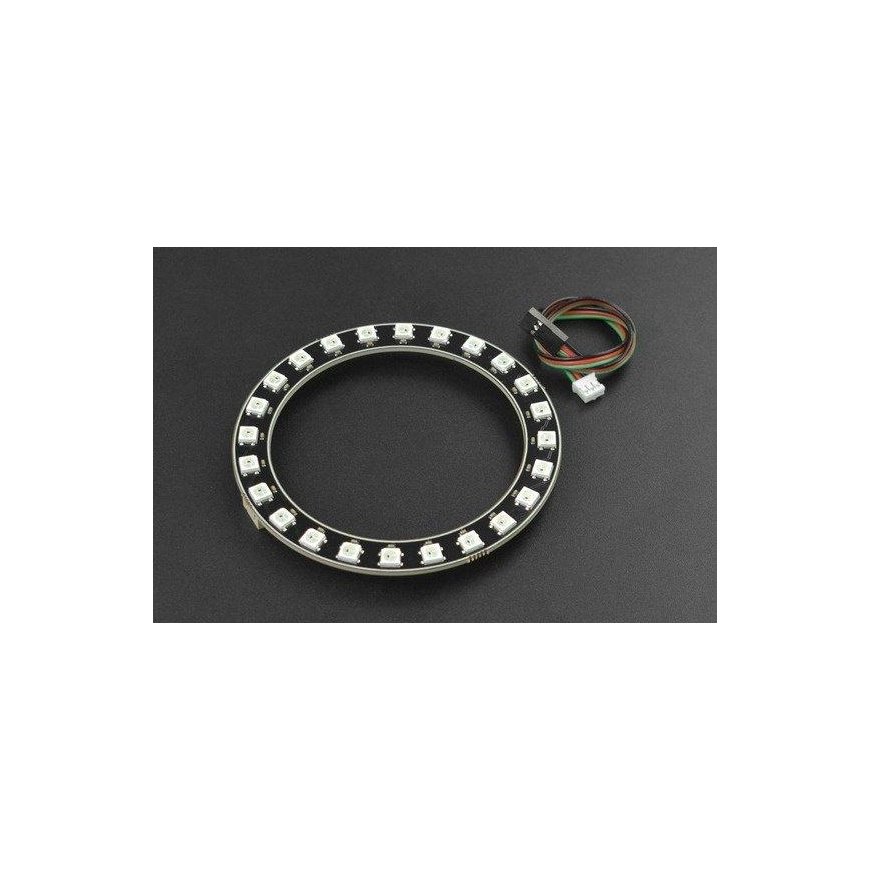

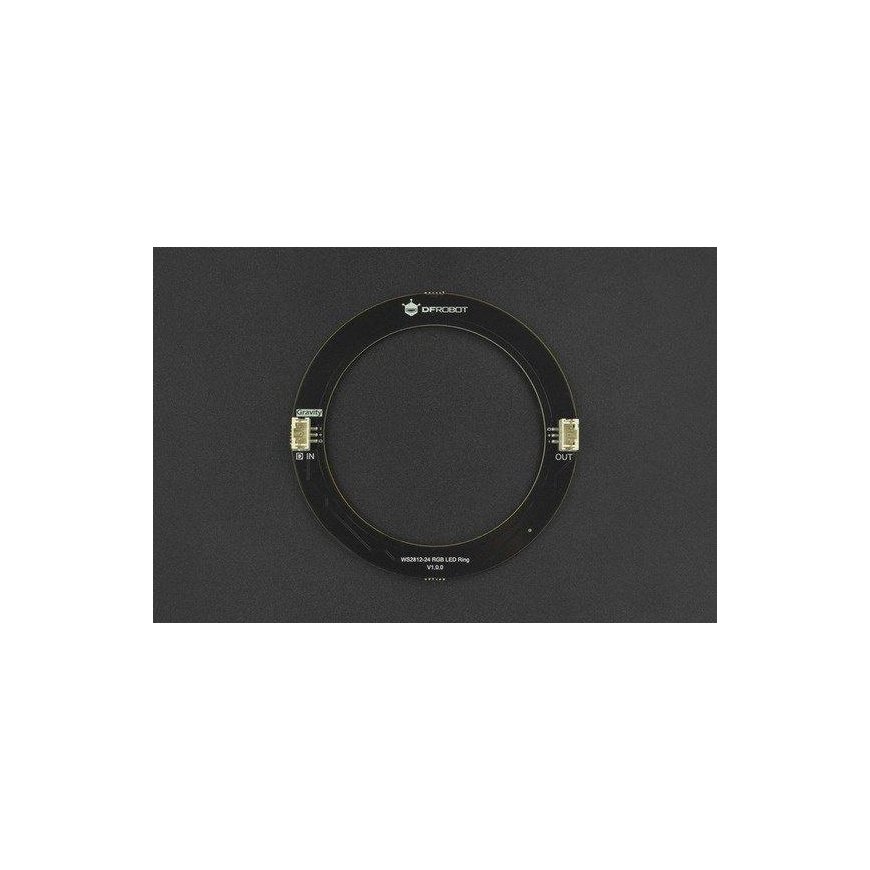

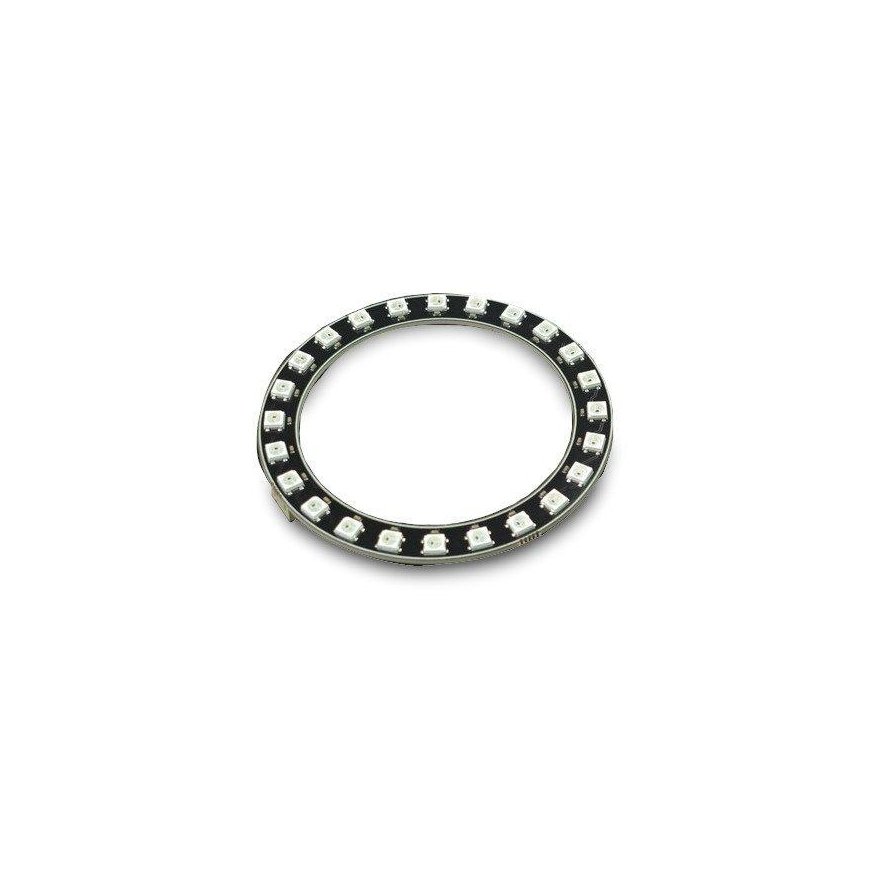

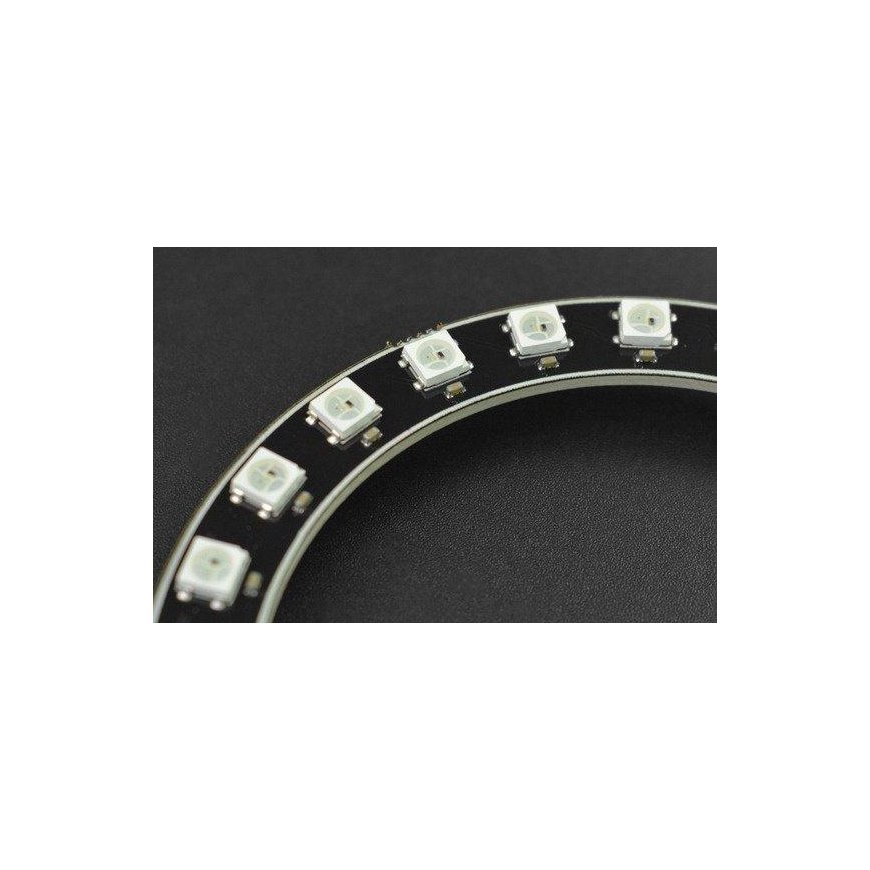

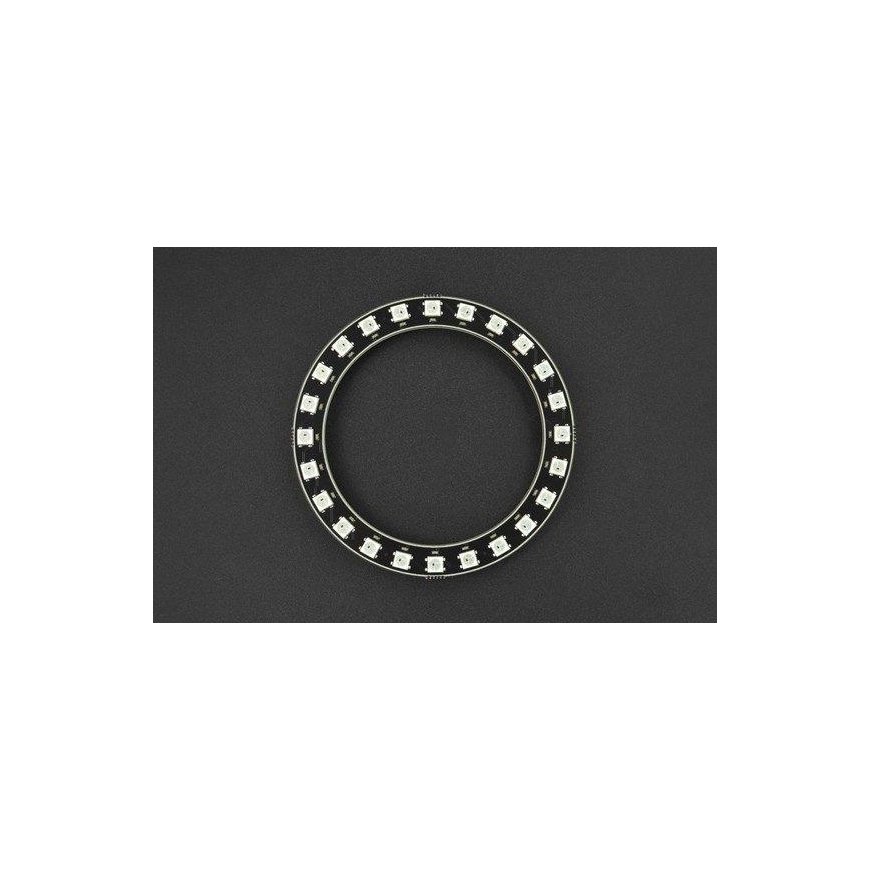

The ring consists of 24 WS2812 RGB LEDs. The LEDs are arranged at equal distances on a circle with an outer diameter of 93 mm. Together they consume up to 100 mA of current. The ring is powered from 3.3 V to 5 V. The included Gravity cable is used to connect, for example, to Arduino.
Main features:
- WS2812 LEDs of different colors
- 1 wire bus control
- Multiple LED rings can be connected in series
- Supports Mind+, MakeCode, Arduino IDE development platforms
- Power supply voltage: from 3.3 V to 5 V
- Maximum current consumption: ＜ 100 mA
- Interface type: PH2.0-3P
- LED: WS2812
- Number of LEDs: 24 pcs
- Number of colors: 16 million
- Inner ring diameter: 72 mm
- Outer ring diameter: 93 mm
- RGB LED ring WS2812-24 - DFRobot DFR0888-24
- 1 x Gravity cable 30 cm
