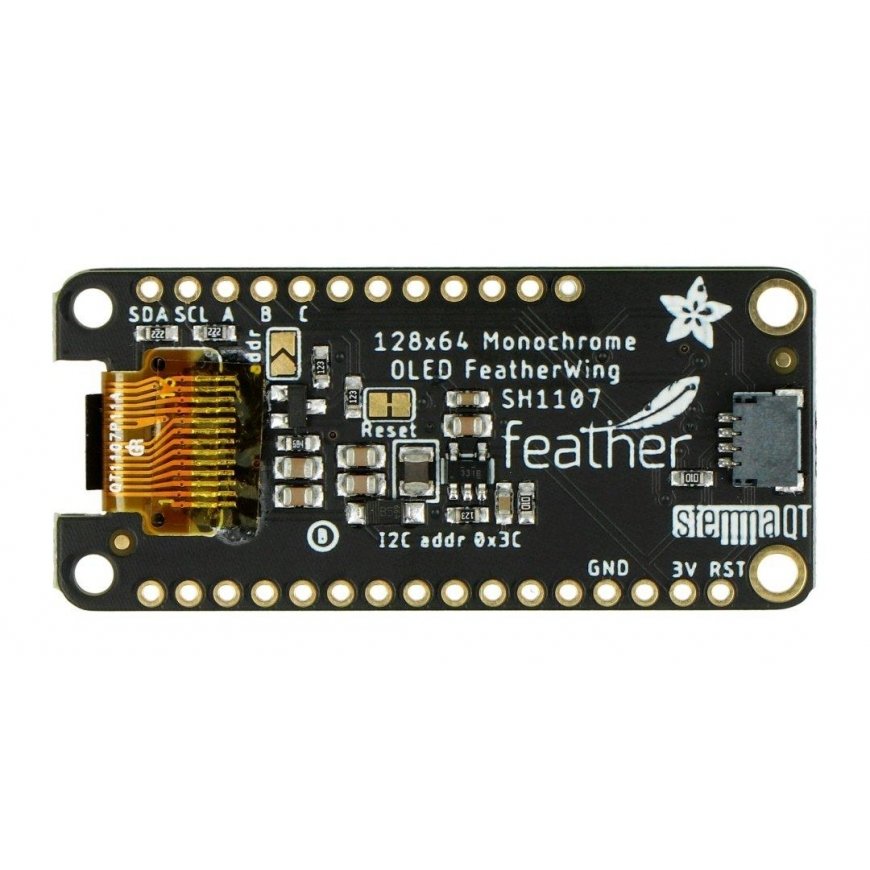

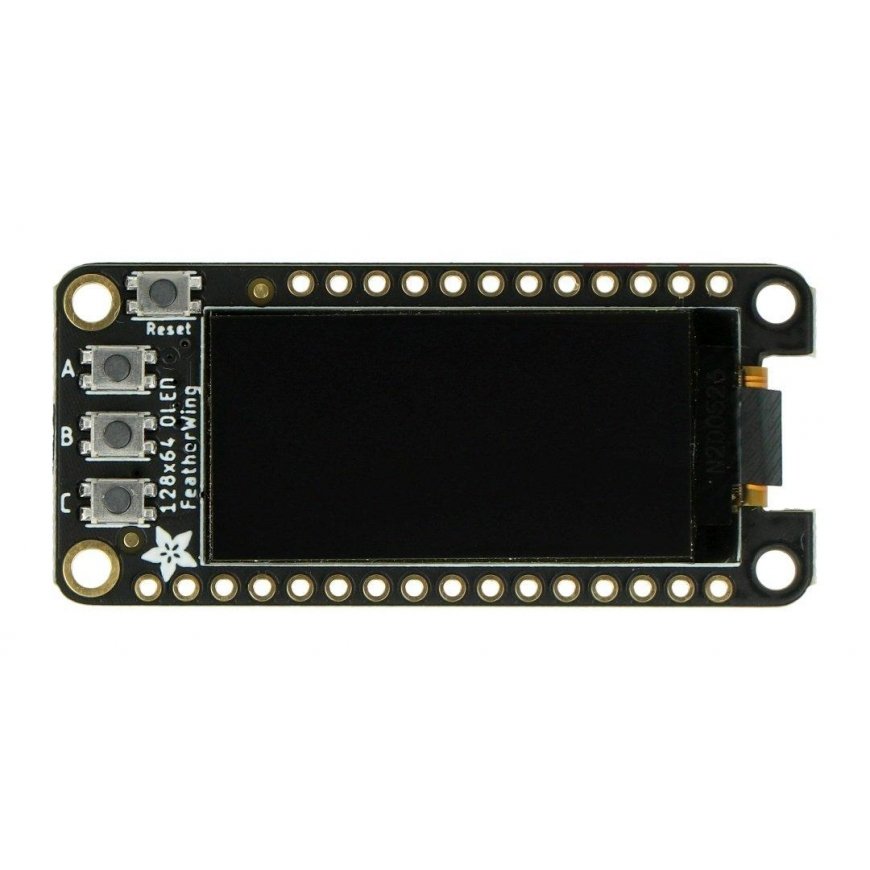

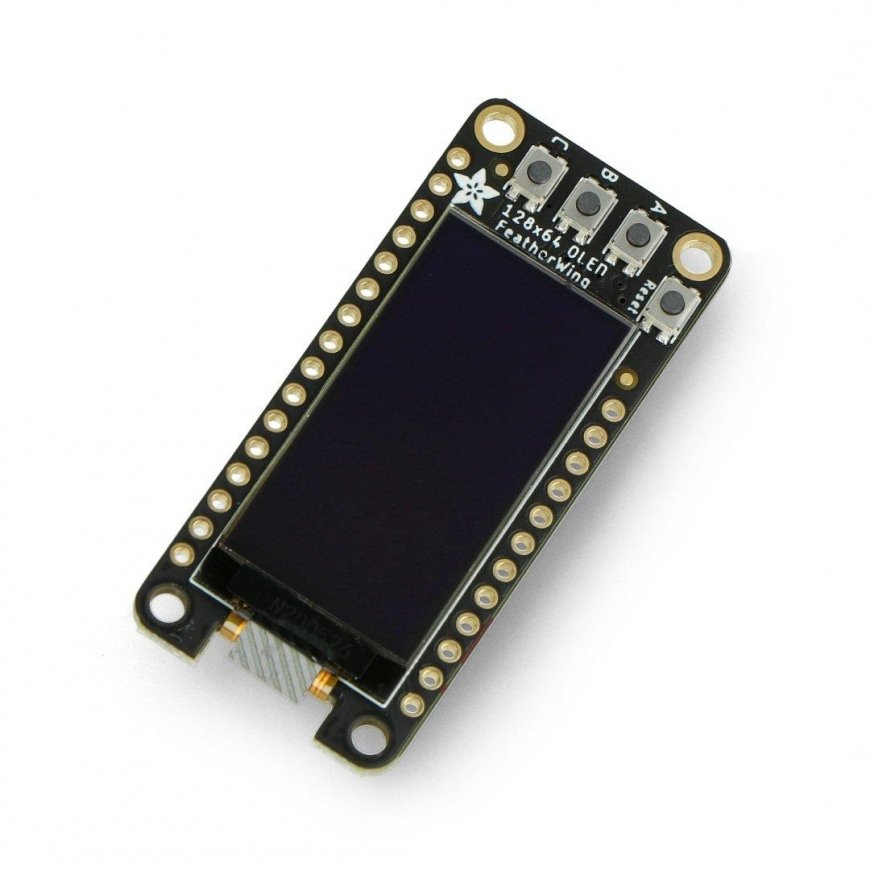

FeatherWing OLED display 128x64 px, Feather accessory, STEMMA QT / Qwiic, Adafruit 4650
39.00 €
Monthly payment from 1,90 €
3766864 AN-17699
5904422354510
Shipping 11-18 b.d.
You are interested in this product?
All about the product
Feather add-on with a monochrome OLED display, 128x32 px resolution. The screen diagonal is 1.3", and the high screen contrast makes the displayed data particularly easy to read. The display creates its own light and does not require additional lighting. Interaction occurs via the I2C interface. The Feather add-on has 4 buttons: reset and 3 general-purpose buttons that can be programmed at the user's discretion.
Specifications:
- Display model: SH1107
- Resolution: 128x64 px
- Screen diagonal: 1.3"
- Power voltage: 3 V
- Interface: I2C
- Interface address: 0x3C with the ability to change to 0x3D (by soldering the ADDR jumper)
- Reset button: yes
- Integrated three buttons: A, B, and C
- Buttons A, B, and C are connected respectively:
- For Feather modules with 32u4 and M0 controllers: pins 9, 6, and 5
- For Feather Huzzah ESP8266 module: pins 0, 16, and 2
- Dimensions: 22.9 x 50.9 mm
Included:

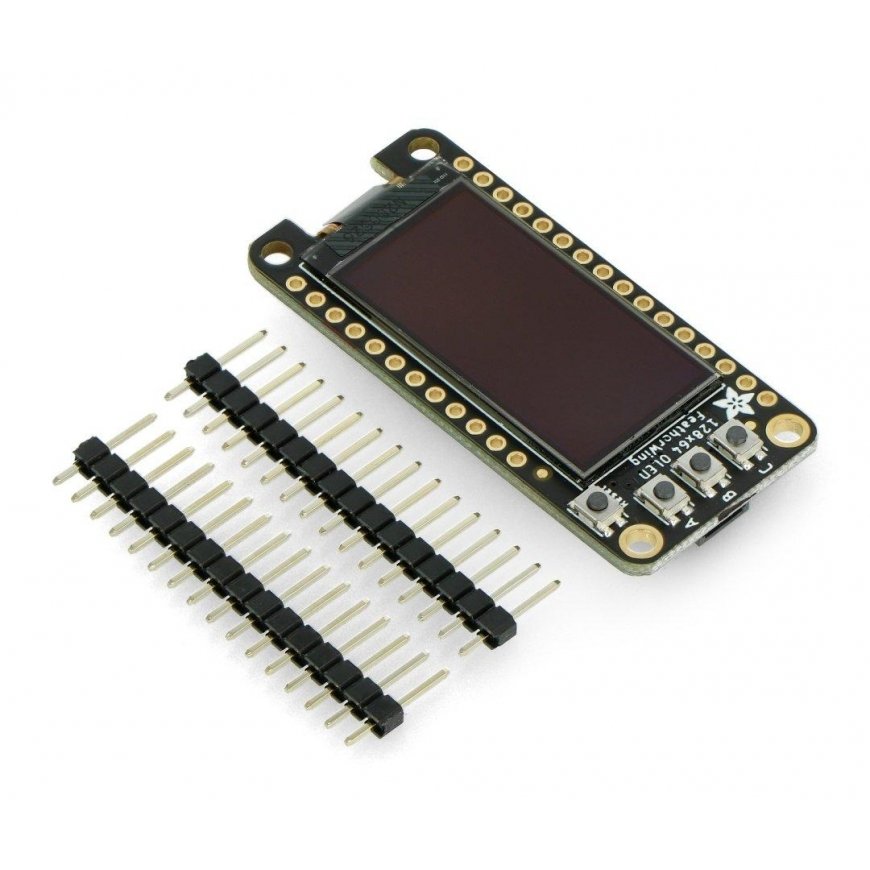

- OLED display - Feather add-on
- Goldpin connectors
Links:
Manufacturer's page
Manual
