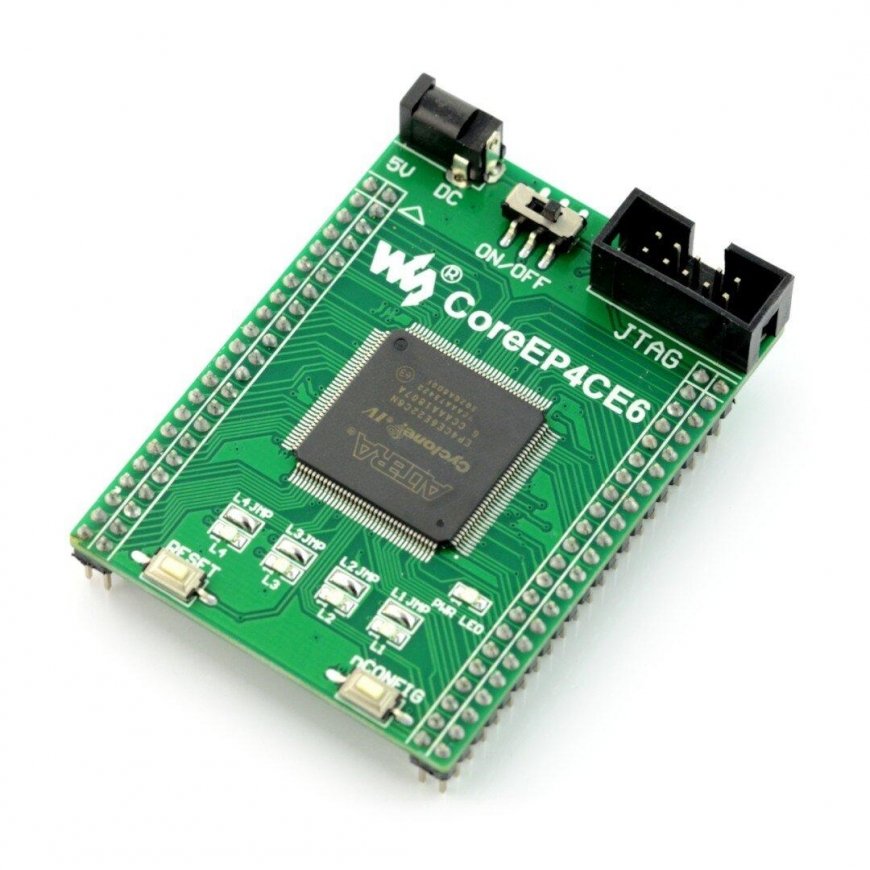

Altera Cyclone IV EP4CE6 stationary computer, FPGA development board, Waveshare 6483

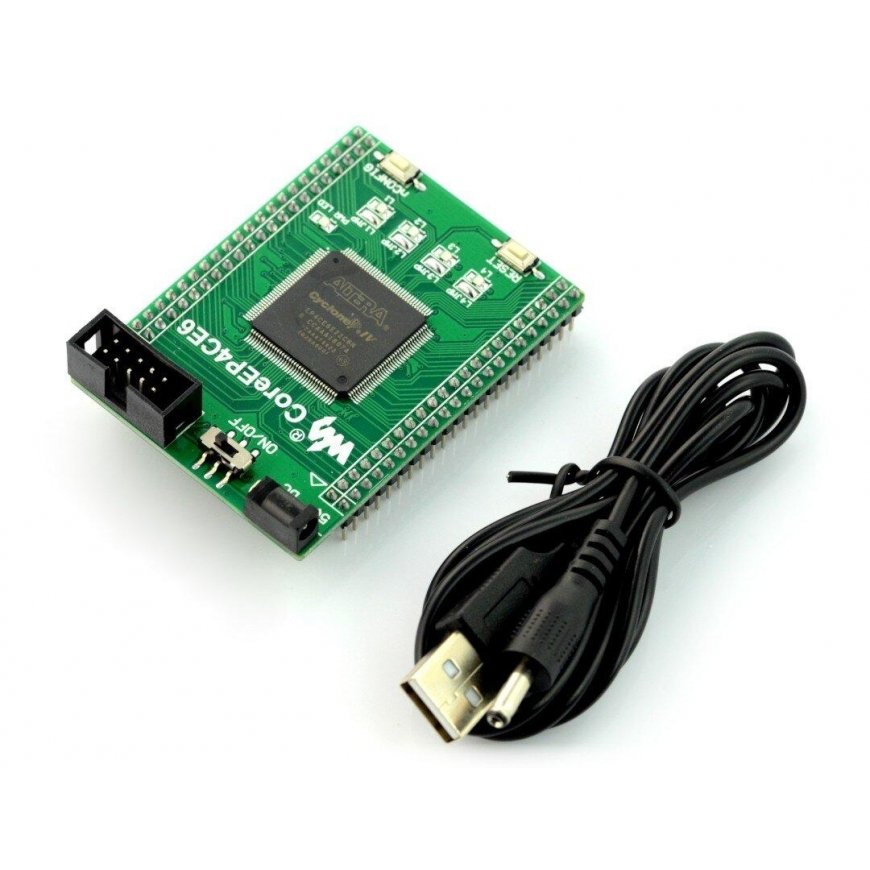

Altera Cyclone IV EP4CE6 stationary computer, FPGA development board, Waveshare 6483 – 2

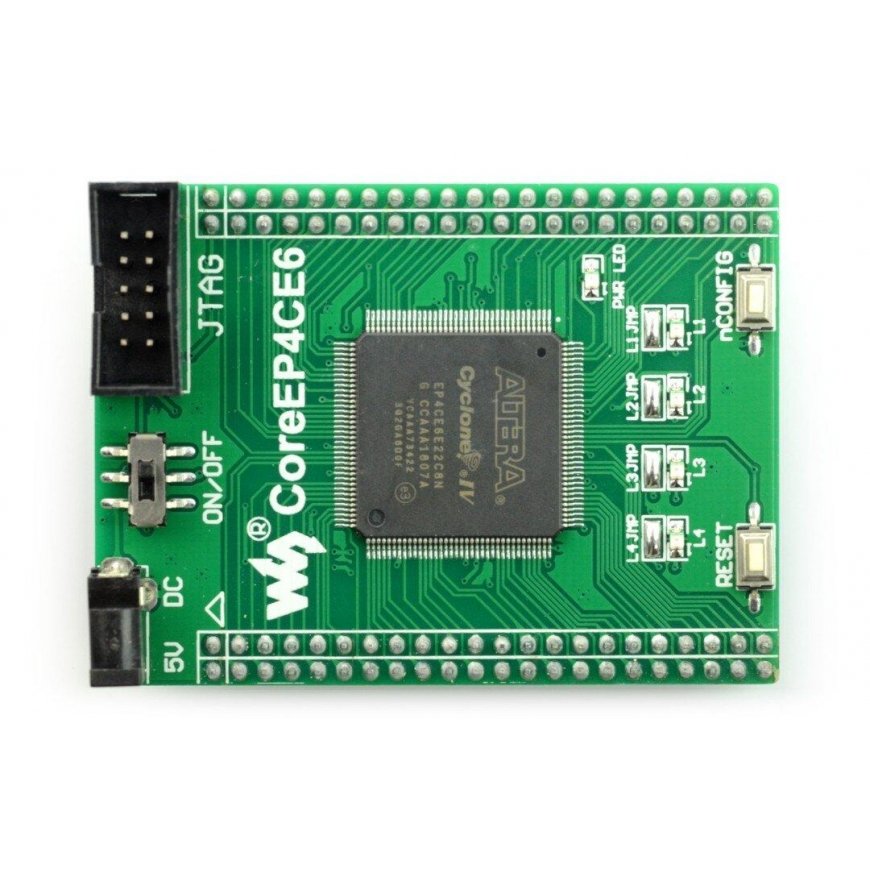

Altera Cyclone IV EP4CE6 stationary computer, FPGA development board, Waveshare 6483 – 3
Altera Cyclone IV EP4CE6 stationary computer, FPGA development board, Waveshare 6483
Altera Cyclone IV EP4CE6 stationary computer, FPGA development board, Waveshare 6483
Altera Cyclone IV EP4CE6 stationary computer, FPGA development board, Waveshare 6483
Altera Cyclone IV EP4CE6 stationary computer, FPGA development board, Waveshare 6483
Altera Cyclone IV EP4CE6 stationary computer, FPGA development board, Waveshare 6483
Altera Cyclone IV EP4CE6 stationary computer, FPGA development board, Waveshare 6483
Altera Cyclone IV EP4CE6 stationary computer, FPGA development board, Waveshare 6483
Altera Cyclone IV EP4CE6 stationary computer, FPGA development board, Waveshare 6483
Altera Cyclone IV EP4CE6 stationary computer, FPGA development board, Waveshare 6483

The product's shade and actual color may differ from what is shown in the picture, as the images are for illustrative purposes. The product description is general and may not include all the product's features.

Altera Cyclone IV EP4CE6 stationary computer, FPGA development board, Waveshare 6483

59.00 €
Monthly payment from 2,42 €
3766341

AN-13149

5904422320294

Shipping 11-18 b.d.

You are interested in this product?
(Read terms of service)

All about the product

The development board allows studying FPGA chips. The module includes EP4CE6E22C8N with 80 I/O. The board is configured via the JTAG interface. It also has buttons, LEDs, and more. It is powered by a 5 V supply using a DC connector.

Specifications:

  • FPGA model: EP4CE6E22C8N, in QFP144 package
  • Generator frequency: 50 MHz
  • Operating voltage: from 1.15 V to 3.465 V
  • RAM: 270 kbps
  • PLL: 2
  • Configuration via JTAG
  • x4 LEDs
  • x2 buttons
  • 80 contact input/output for user-defined purposes
  • Terminal pitch: 2.54 mm
  • Equipped with a voltage regulator
