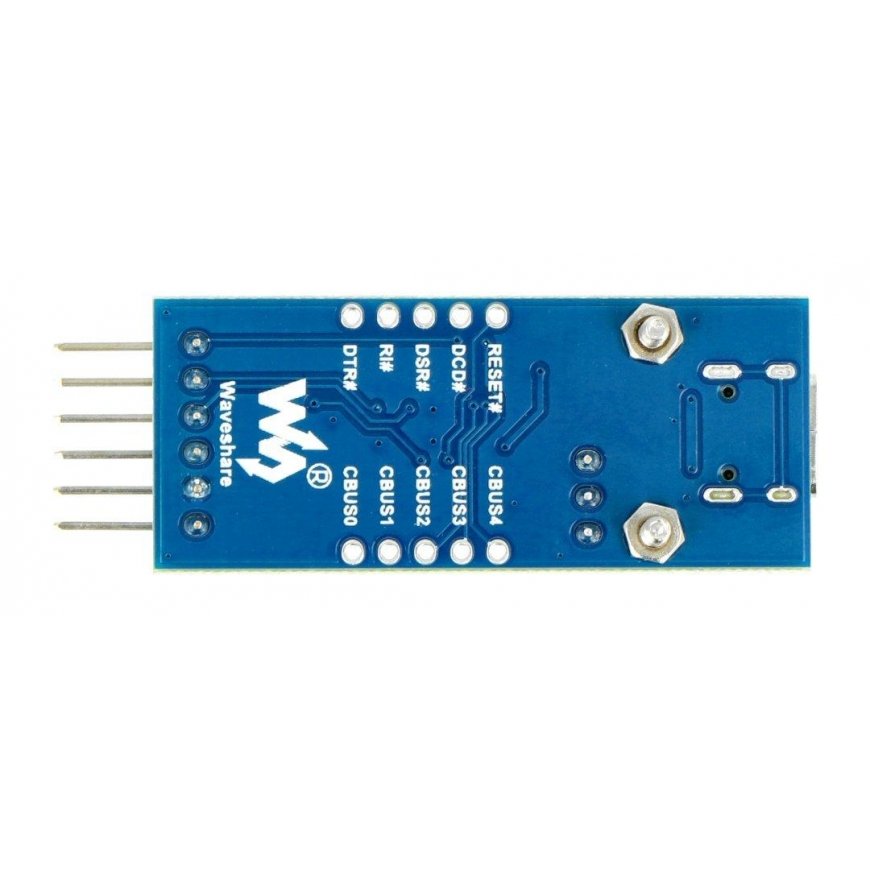

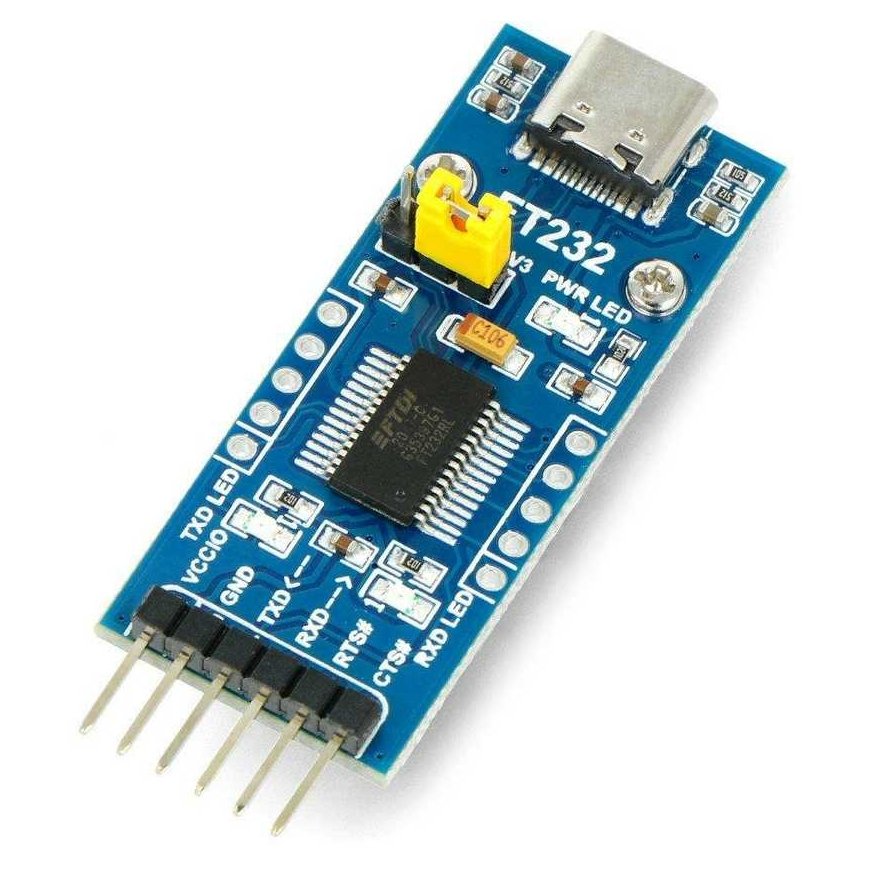

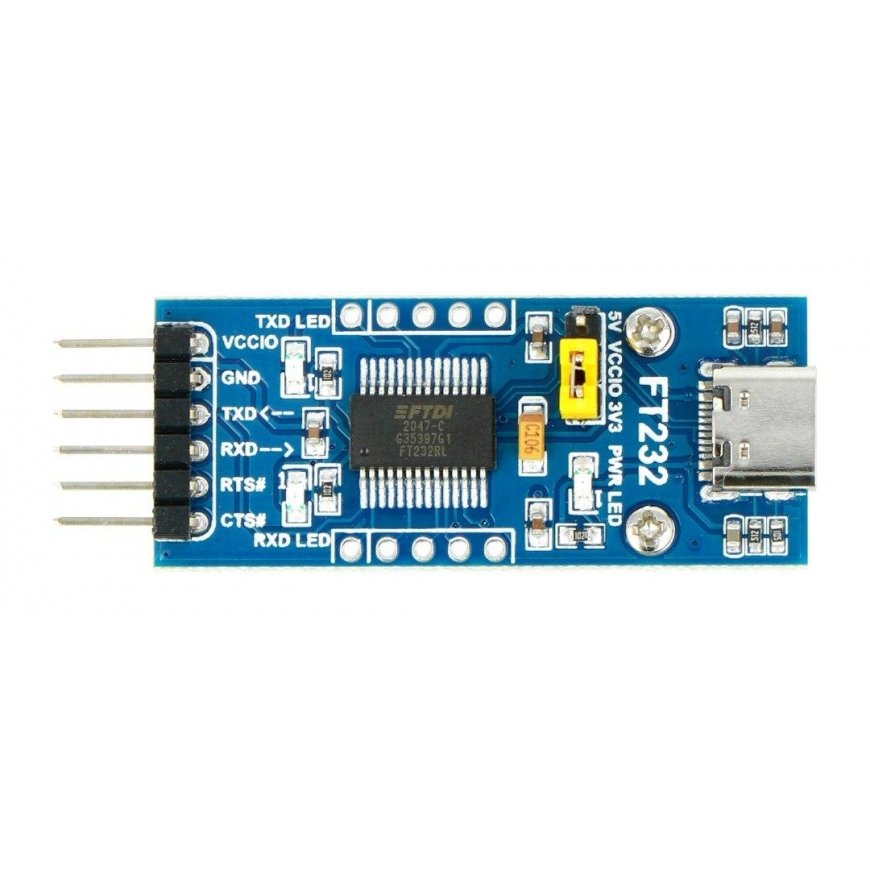

USB-UART TTL converter FT232 - USB Type C connector - Waveshare 20646
3765806 AN-20540
5904422381608
Shipping 8-15 b.d.
All about the product
This module is a converter that allows maintaining an interface between USB and UART serial interfaces at TTL level. It has a built-in FT232 chip and operates in the voltage range of 3.3 V to 5 V, which is selected by a jumper. The device operates at the full 12 Mbps USB speed. The module can be used to exchange data between a computer and microcontroller systems or to program electronic kits with serial interfaces, such as Arduino or STM32Discovery. To connect the chip to the computer, a cable with a USB Type C connector is required.
Key features:
- Data transfer from one chip USB to UART
- No external resistors required
- USB function controller complies with USB 2.0 specification; full speed 12 Mbps
- Supports Mac OS, Linux, Android, WinCE, Windows 7/8/8.1/10/11
- Module type: converter
- Conversion type: USB C – UART TTL
- Integrated chip: FT232RL
- Input voltage: 3.3 V / 5 V
- Virtual COM port device drivers
- 3x LEDs: TXD LED, RXD LED, POWER LED
- Operating temperature range: from -40 °C to 85 °C
- Module dimensions: 46.17 x 19.11 mm

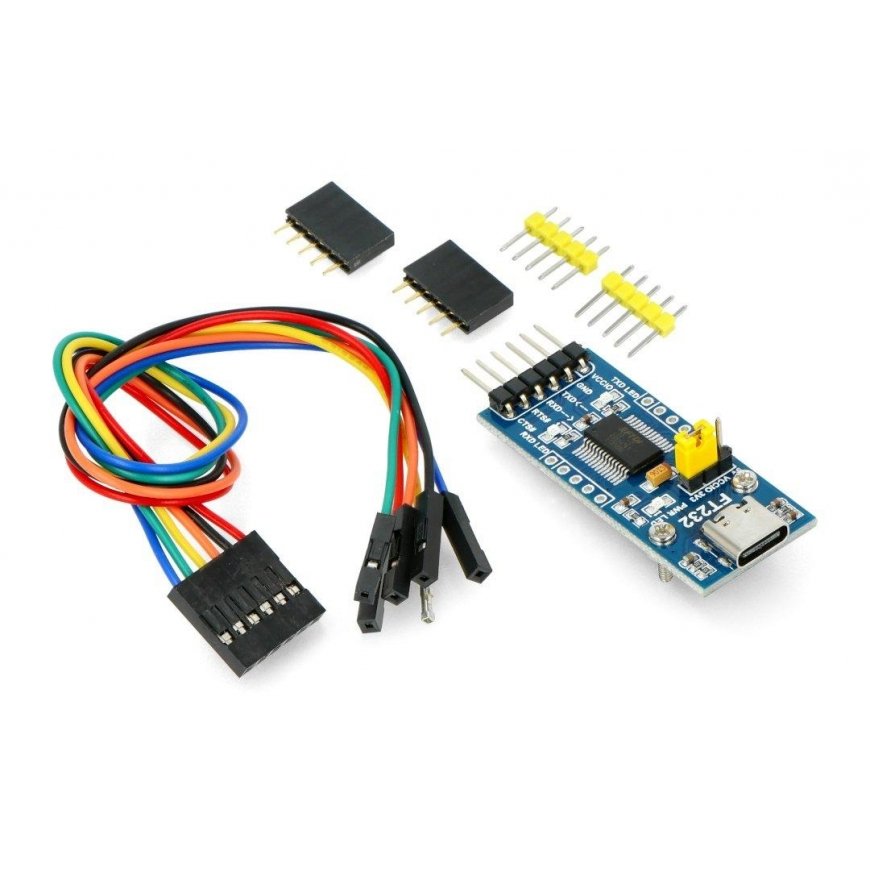

- USB-UART TTL converter FT232 - USB Type C socket - Waveshare 20646
- 6-pin connecting cable
- Gold pin strip - two types - 4 pcs
