M12 1.56-25mm lens set for Raspberry camera + CS and C-CS adapter, x6, ArduCam LK003
169.00 €
Monthly payment from 5,25 €
3765753 AN-16904
5904422326647
Shipping 8-15 b.d.
You are interested in this product?
All about the product

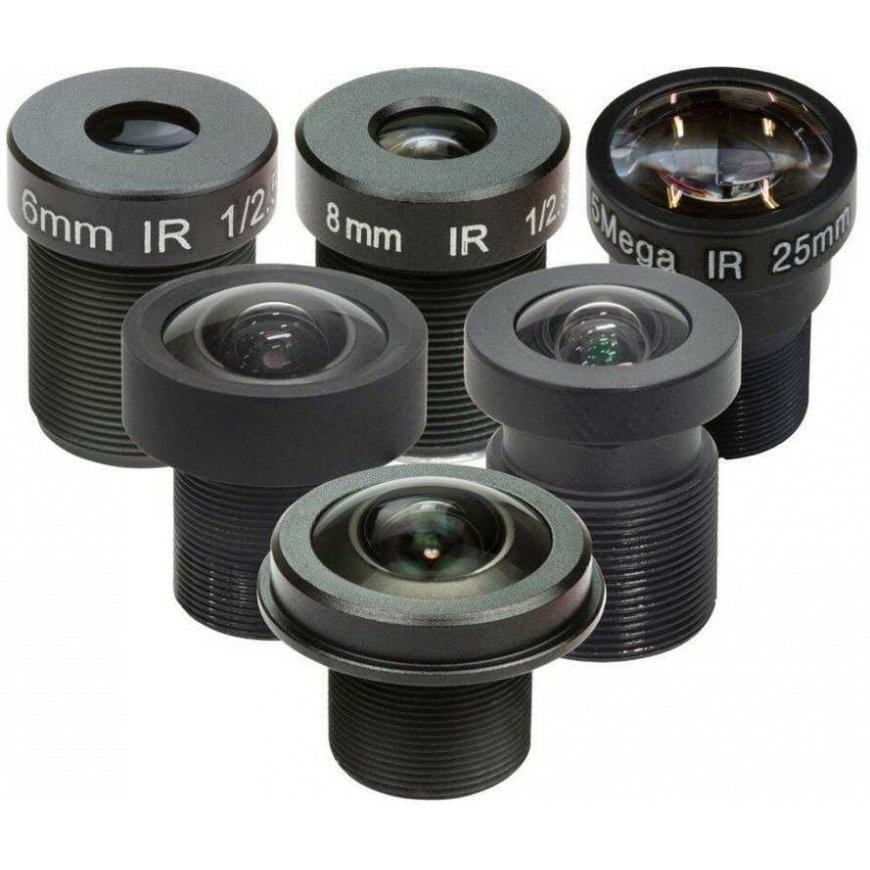

6 M12 lens kit with fields of view ranging from 20° to 180°, and focal lengths from 1.56 mm to 25 mm. The kit also includes an adapter that allows the use of CS and C-CS mounts, enabling the lens to be used as a microscope with Raspberry Pi V1 and V2 cameras with an inverse camera mount. The lenses are compatible with the Raspberry Pi HQ camera.
Specifications:
- Model M25156H18:
- Format: 1/2.3"
- Focal length: 1.56 mm
- Aperture: F2
- Field of view: 180° (H)
- Mounting: M12 mount
- Back focal length: 4.3 mm
- M.O.D (minimum object distance): 0.2 m
- Dimensions: 20 x 17.3 mm
- Weight: 7 g
- Model M23280H13:
- Format: 1/2.3"
- Focal length: 2.8 mm
- Aperture: F2.4
- Field of view: 130° (H)
- Mounting: M12 mount
- Back focal length: 5.65 mm
- M.O.D (minimum object distance): 0.2 m
- Dimensions: 18 x 17.9 mm
- Weight: 8 g
- Model M23356H09:
- Format: 1/2.3"
- Focal length: 3.56 mm
- Aperture: F2.5
- Field of view: 90° (H)
- Mounting: M12 mount
- Back focal length: 5.92 mm
- M.O.D (minimum object distance): 0.2 m
- Dimensions: 14 x 16.3 mm
- Weight: 7 g
- Model M23430M14:
- Format: 1/2.3"
- Focal length: 6 mm
- Aperture: F2
- Field of view: 70° (H)
- Mounting: M12 mount
- Back focal length: 3.62 mm
- M.O.D. (minimum object distance): 0.3 m
- Dimensions: 14 x 19.58 mm
- Weight: 8 g
- Model M2306ZM13:
- Format: 1/2.3"
- Focal length: 8 mm
- Aperture: F2
- Field of view: 50° (H)
- Mounting: M12 mount
- Back focal length: 7.56 mm
- M.O.D. (minimum object distance): 0.3 m
- Dimensions: 16 x 16.41 mm
- Weight: 6 g
- Model M2025ZM02:
- Format: 1/2.3"
- Focal length: 25 mm
- Aperture: F2
- Field of view: 20° (H)
- Mounting: M12 mount
- Back focal length: 5.2 mm
- M.O.D (minimum object distance): 0.2 m
- Dimensions: 17 x 21 mm
- Weight: 8 g

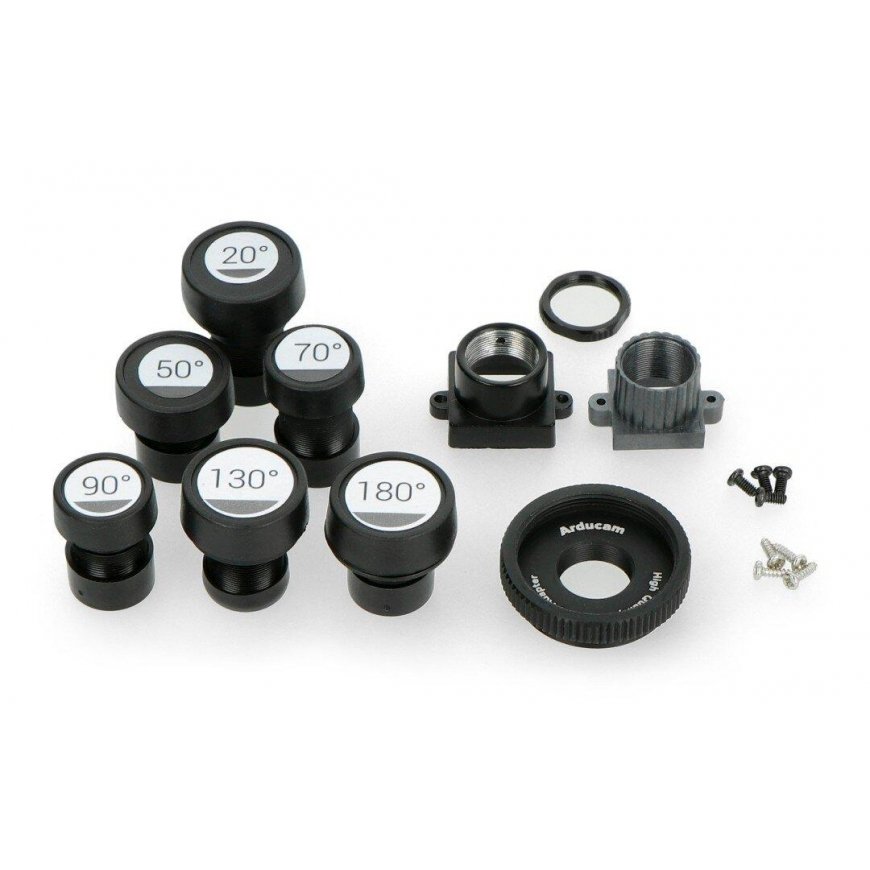

Included:
- 1/2.3" M12 mount 180° lens
- 1/2.3" M12 mount 130° lens
- 1/2.3" M12 mount 90° lens
- 1/2.3" M12 mount 70° lens
- 1/2.3" M12 mount 50° lens
- 1/2.3" M12 mount 20° lens
References:
Manufacturer's page
