DFRobot HR8833 two-channel driver for DC 10V / 1.5A motors
19.00 €
3765724 AN-06934
5904422361402
Shipping 11-18 b.d.
You are interested in this product?
All about the product

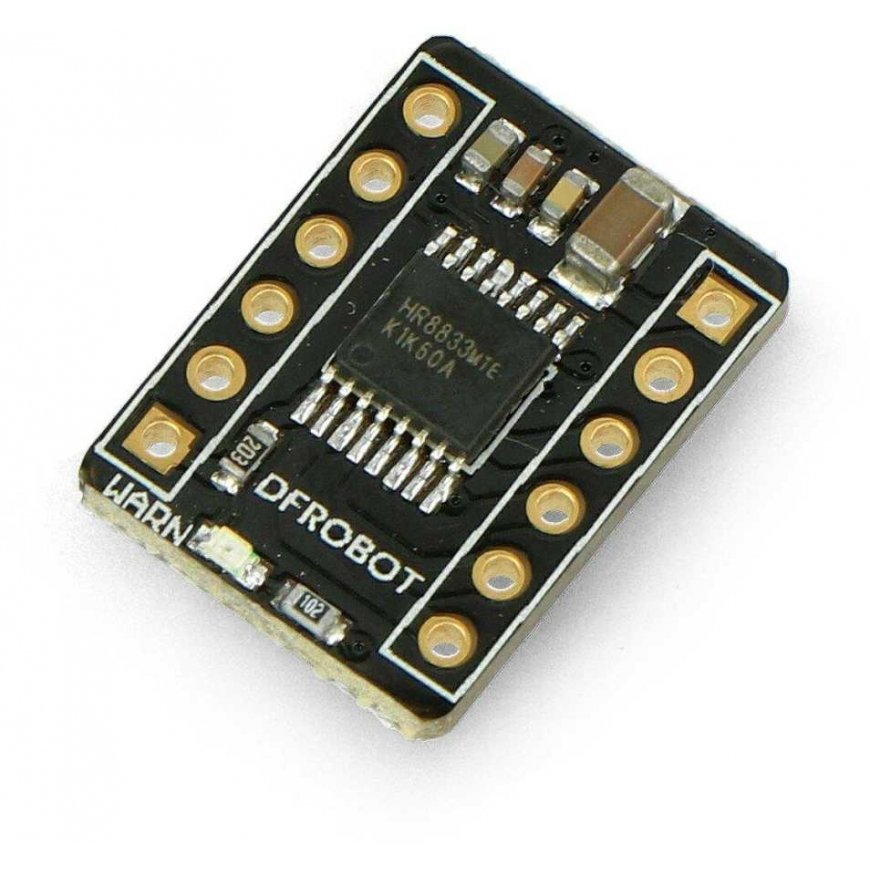

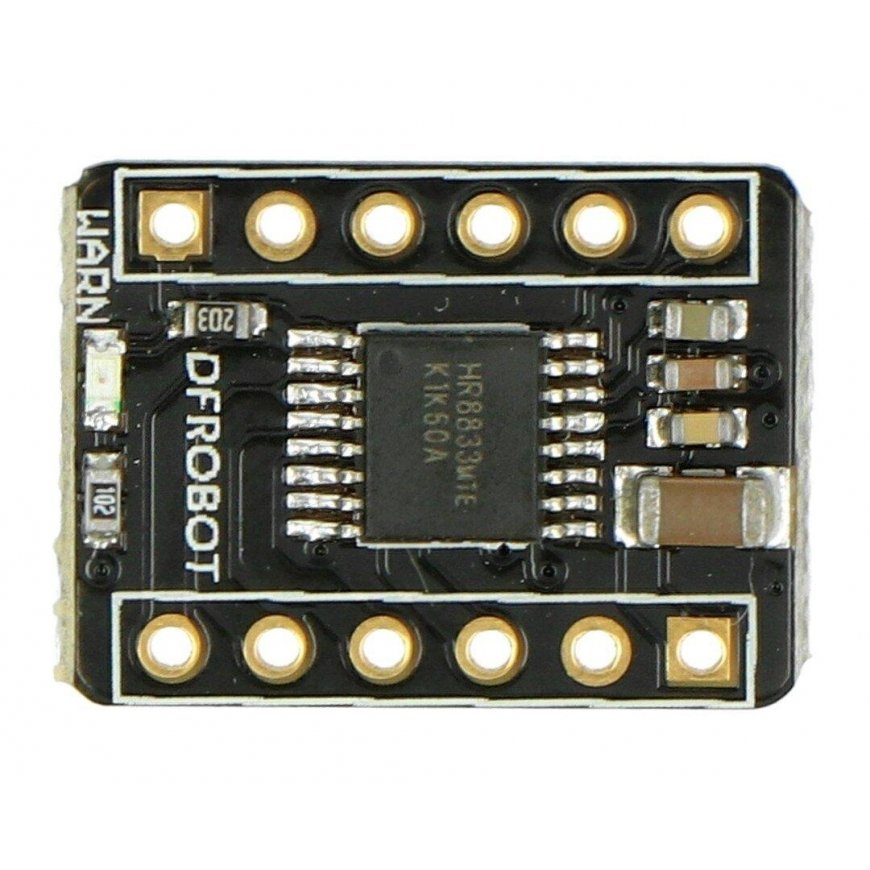

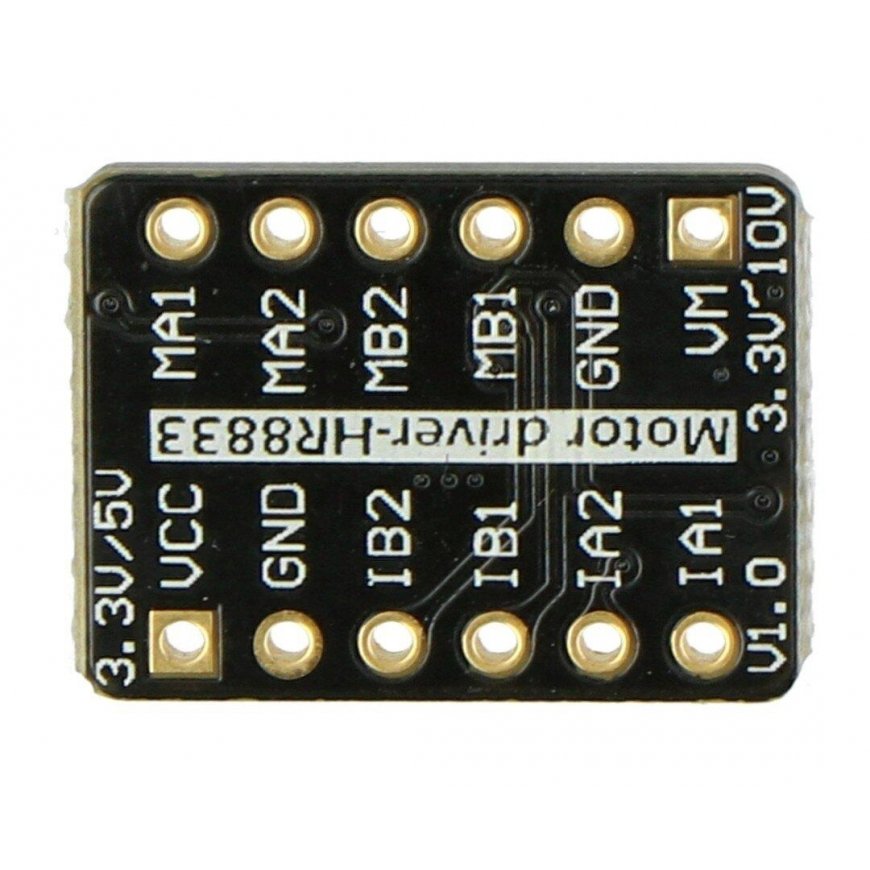

Compact-sized Dual-H-Bridge DC motor driver (based on HR8833), capable of controlling bidirectional 1.5 A DC brushed motors up to 10 V. Suitable for projects with limited space.
Specifications:
- Number of channels: 2
- Chip: HR8833
- Motor supply voltage: from 3.3 V to 10 V
- Logic part supply voltage: from 3.3 V to 5 V
- Current: up to 1.5 A per channel
- Control via PWM signal
- Operating temperature: from -20 °C to 85 °C
- Output pitch: 2.54 mm
- Dimensions: 18 x 13 mm

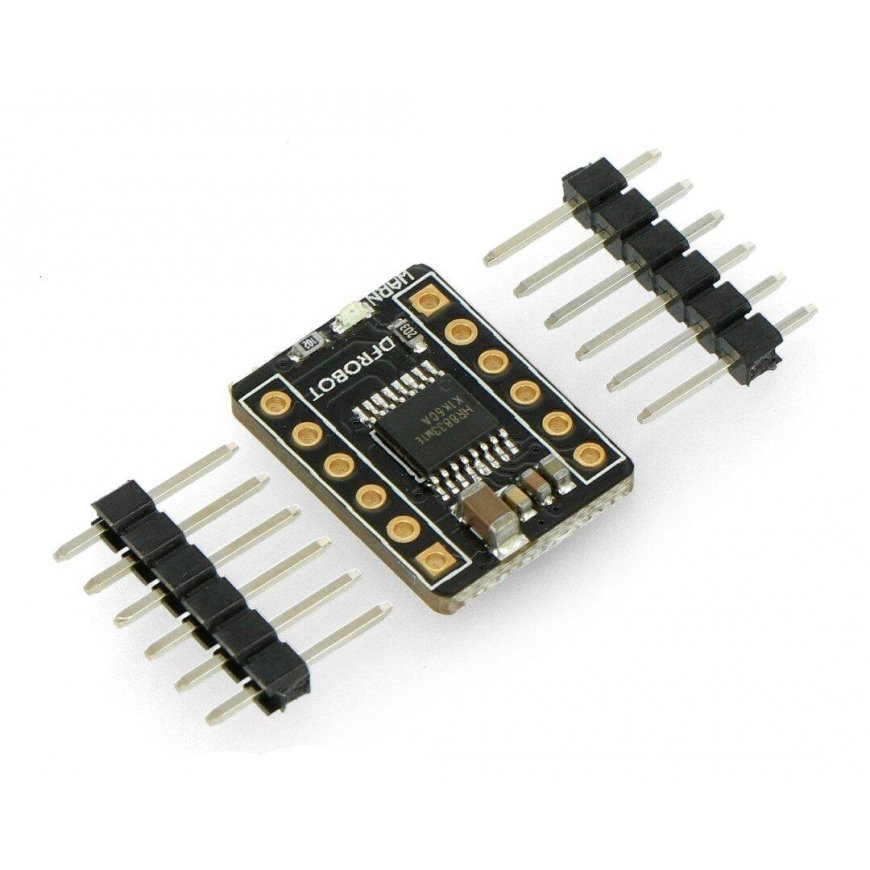

In the package:
- Gold pins for soldering x2
