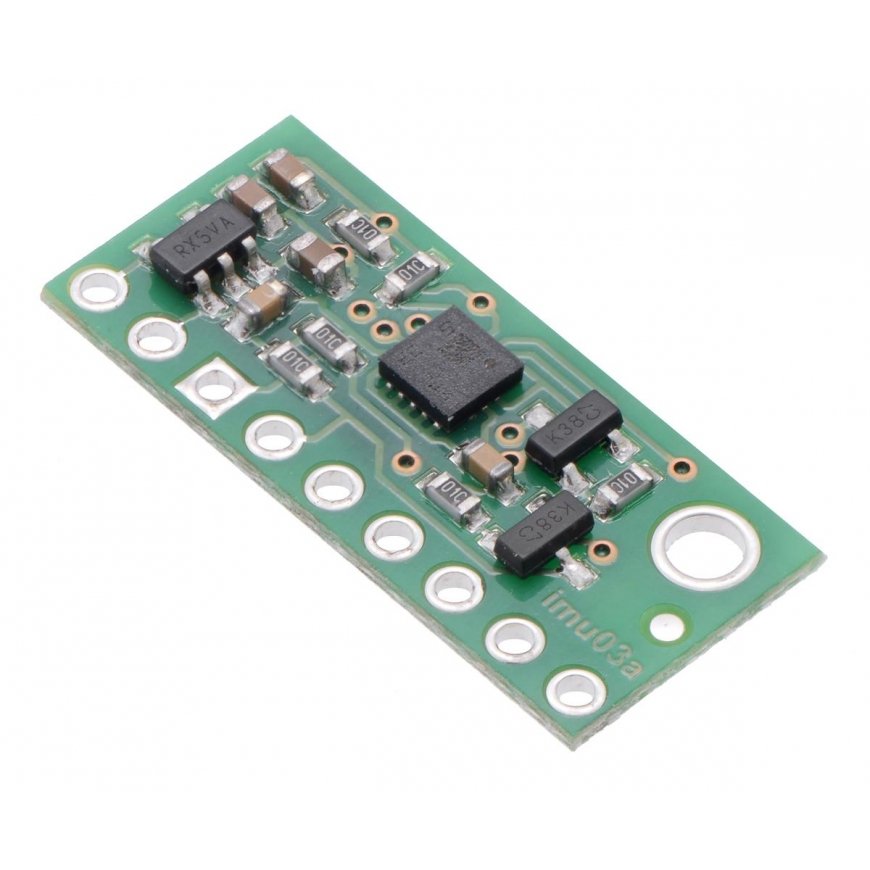

Pololu LSM6DS33 3D gyroscope accelerometer with voltage regulator 2.5V – 5.5V I²C /SPI 2mA
3765340 AN-05331
5904422374402
Shipping 8-15 b.d.
All about the product

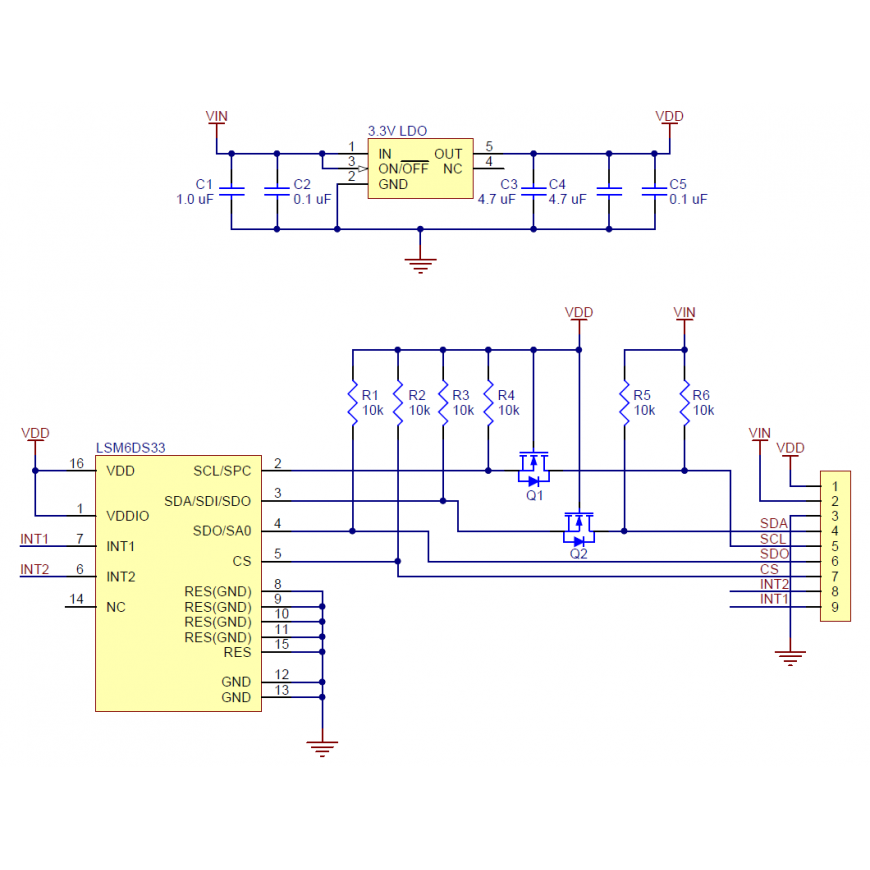

Pololu LSM6DS33 3D – 3-axis gyroscope and 3-axis accelerometer. The sensor allows measuring 6 independent acceleration and angular position parameters. The module has a 3.3 V linear voltage regulator and integrated level shifters, which allow operation at voltages from 2.5 V to 5.5 V. 0.1″ spacing between contacts allows this module to be used with prototyping boards.
Specifications:

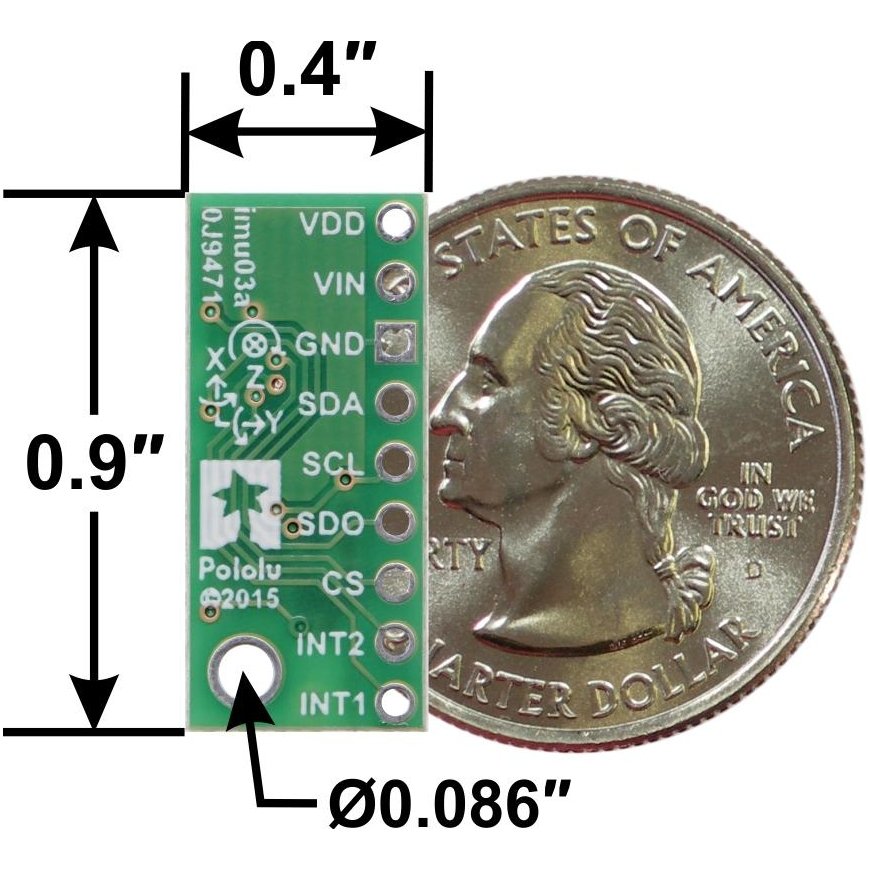

Dimensions: 0.4″ × 0.9″ × 0.1″ (10 × 23 × 3 mm)
Weight: 0.6 g
Supply voltage: 2.5V - 5.5V
Supply current: 2 mA
Interface: I²C /SPI
Gyroscope measurement accuracy: ±125, ±245, ±500, ±1000, or ±2000°/s
Accelerometer measurement accuracy: ±2, ±4, ±6, ±8, and ±16 g
Additional information:
LSM6DS33 Datasheet

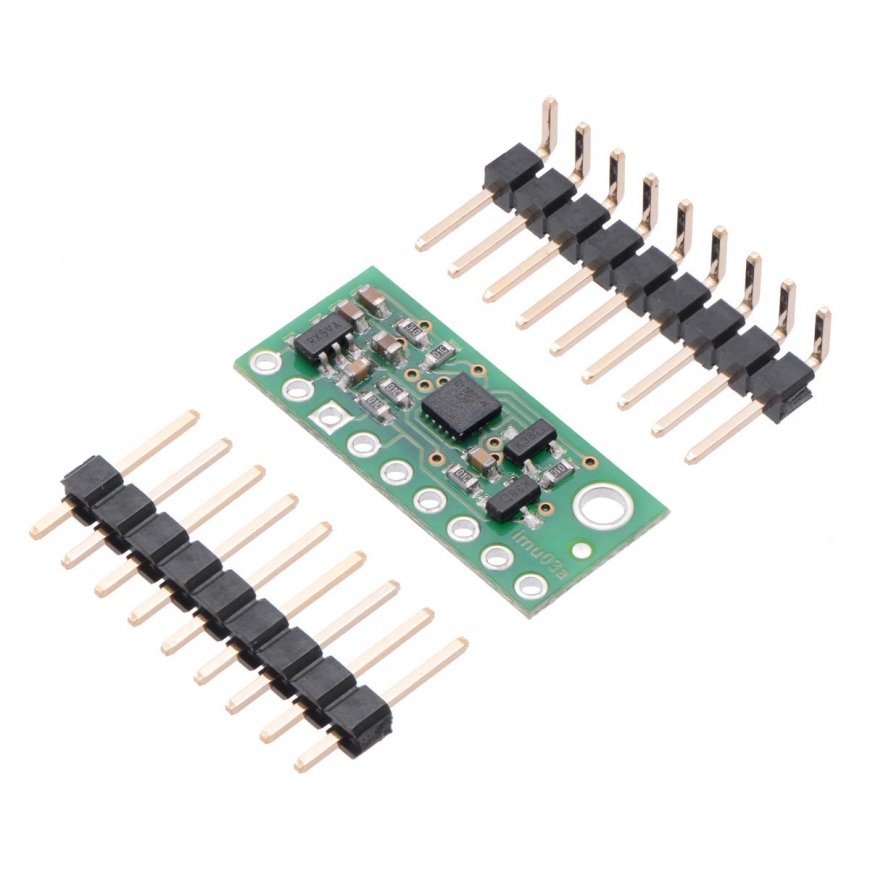

Package includes:
1×9 pin header 0.1″
1×9 angled pin header 0.1″
