The product's shade and actual color may differ from what is shown in the picture, as the images are for illustrative purposes. The product description is general and may not include all the product's features.
Garni Technology GARNI 2040 Arcus 2GEN – weather station with 24-hour / 10-day forecast
3764164 GARNI2040Arcus2GEN
8592733021329
Shipping 12-16 b.d.
All about the product

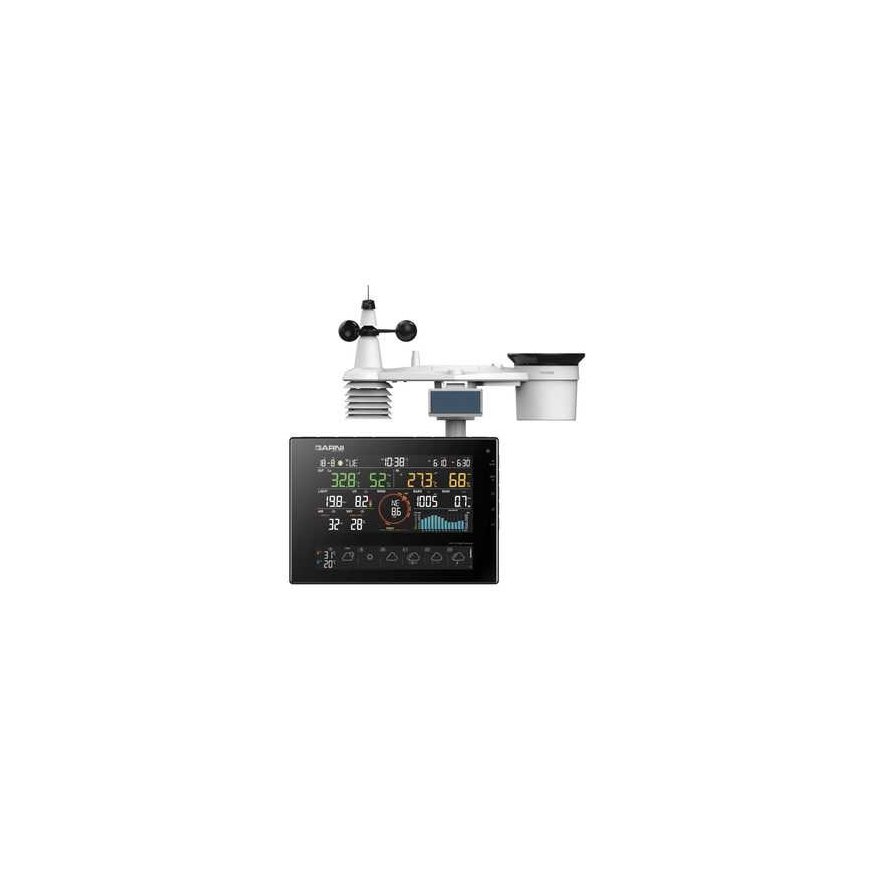

GARNI 2040 Arcus 2GEN
Weather station with Wi-Fi, 24-hour (hourly forecast) / 10-day forecast and a professional integrated 7-in-1 wireless sensor with solar collector and built-in capacitor, model GARNI 2040 Arcus 2GEN, collects accurate and detailed weather data, which is uploaded in real-time using the integrated Wi-Fi module and local Wi-Fi network to the weather server ProWeatherLive. This enables automatic data upload from the weather station and free access to all data from anywhere with internet access, using a web browser or mobile app. At the same time, the PWL server sends information about visibility, cloud cover, and 24-hour / 10-day weather forecast to the main device. Due to the numerous settings and sensors, the product is perfect for all professional observers and enthusiasts. The station provides local forecasts, maximum and minimum values of all meteorological variables, and overall values without the need for a desktop computer.
The integrated GARNI 1NG sensor is powered by a built-in capacitor, which is charged using the integrated solar panel. The battery serves as a backup source.
ProWeatherLive server allows sending data from the weather station to 2 other weather servers, such as Weather Underground, Weathercloud, PWSWeather, or AWEKAS.
The integrated 7-in-1 GARNI 1NG wireless sensor measures outdoor temperature and relative humidity, wind speed and direction, precipitation amount, UV index, and solar radiation, and the data is sent to the main device up to 150 m away (in open space). Power is supplied from the built-in capacitor, which is charged using the integrated solar panel. The battery serves as a backup source. The sensors are fully assembled and calibrated for easy installation. The main unit features an easy-to-read VA display with an extremely black background and automatic brightness control capability, which, in addition to all connected sensor data (e.g., temperature and relative humidity measuring sensors, pool sensor, moisture and soil temperature sensor, lightning detection sensor, air quality sensor) shows the weather forecast, barometric pressure, air indices along with advanced features and information, such as warning signals for high/low readings and loss of connection with sensors via notifications in the mobile app, etc. The high-speed processor of the main device analyzes the measured values of meteorological variables, maximum/minimum values for a specific day or since the start of measurement are stored in internal memory, and time and date are automatically adjusted from the internet. Due to simple operation, easy maintenance, calibration options, display of sunrise and sunset times, moon phases, automatic screen brightness control, numerous measured quantities, and long-term forecasts, this is an exceptional professional weather station for your home.
Display
Dual 163 x 80 mm and 163 x 24 mm inverted VA color display
- The display lighting is constant, has two brightness levels, and the ability to automatically adjust brightness depending on ambient
light. - Number size: date, day name abbreviation 7 mm, time 9 mm, sunrise/moonrise time 7 mm, wind direction
6.5 mm, wind speed/wind gusts/Beaufort 8 mm, risk impact time/solar radiation intensity, UV index,
precipitation, air quality/visibility, cloud cover/lightning detection, barometric pressure 11.5 mm, outdoor temperature/ dew
point/temperature sensing/temperature index/Wind Chill, outdoor relative humidity, indoor temperature and rel. humidity 14 mm,
weather forecast - temperature, precipitation probability 7.5 mm
Time, date
Time setting from the internet or manually
- Time display in 12 or 24-hour format
- Date with day name abbreviation (EN, DE, FR, ES, IT, NL, RU)
- Time zone adjustable on the ProWeatherLive server
Description
- Indoor temperature and relative humidity measurement
- Outdoor temperature and relative humidity measurement
- Temperature and relative humidity trend indicator
- Temperature display °C or °F
- Average wind speed and gust measurement over the last 12 s
- Current wind direction display in degrees or abbreviated direction, graphical display of current wind direction,
graphical wind direction display for the last 5 minutes (up to 6 different directions), 16 wind direction resolution or
degrees (360°) - Wind strength level description (LIGHT – light, MODERATE – gentle, STRONG – strong, STORM – storm)
- Average wind speed and wind gust display in m/s, km/h, knots, or miles per hour
- Wind strength display on the Beaufort scale
- Measurement of precipitation for the past hour, day, week, month, total, and current intensity
precipitation amount (based on the last 10 minutes of measurements) - Precipitation display in mm or inches
- Weather forecast for the day (current and hourly for the next 23 hours) and the next 10 days, dates
weather forecasts are downloaded from a highly accurate weather server Openweathermap.org - Display of highest/lowest or average temperature and rain probability forecast (daily mode
forecasts) - 19 weather forecast icons (sunny, clear sky (night hours), partly cloudy, partly clear (night hours),
cloudy/foggy, overcast, windy, light rain, heavy rain, partly clear with light rain, partly clear with light rain (in
night hours), overcast with heavy rain, partly cloudy with heavy rain (at night), thunderstorm, storm
rain, thunderstorm, snow, rain with snow, heavy snow with rain) - Barometric pressure measurement, absolute barometric pressure display in the range of 540 hPa to 1100 hPa or
ability to set relative barometric pressure from 540 hPa to 1100 hPa - Barometric pressure values displayed in hPa/inHg/mmHg
- UV index display from 0 to 16
- Solar radiation intensity display Klux/Kfc/W/m2
- Display of dangerous solar exposure time and recommended protection indication
- Visibility display (value downloaded from the internet) km or miles (miles)
- Cloud cover values display (shown %, value downloaded from the internet), number of lightning strikes and its display
distance (if using optional GARNI 72L lightning detection sensor) - Display outdoor temperature, dew point, heat index, and wind chill value based on values
measured by the integrated 7-in-1 sensor - Ability to calibrate temperature and relative humidity (indoor, outdoor, and from additional sensors), barometric pressure, precipitation,
wind speed and direction, UV index, solar radiation, particulate PM2.5 and PM10 values in the air (if they are
using optional sensors for indoor air quality measurement model GARNI 104Q, will affect all connected sensors
air quality measurement) and CO2 (if using optional indoor CO2 measurement model GARNI 102Q sensors) - Bar chart
- barometric pressure development over the last 24 hours
- total precipitation amount over the last 12 days
- indoor temperature over the last 24 hours
- outdoor temperature over the last 24 hours
- indoor relative humidity over the last 24 hours
- outdoor relative humidity over the last 24 hours
Memories
- Memory for maximum and minimum values: indoor and outdoor temperature and relative humidity, felt temperature, wind chill,
dew point, temperature index, relative and absolute barometric pressure, sky condition, air quality - Memory for maximum values: average wind speed and wind gust value, UV index, solar intensity
radiation, precipitation intensity, and total hourly precipitation amount - Recording of maximum and minimum measured values since the last reset at midnight and since the start of measurement
Alarms
Various measured values, including connected sensors, signals via notifications in the mobile app
ProWeatherLive, with the ability to send notifications via direct messages or email
Additional features
- Backup battery discharge of the main device, integrated wireless sensor battery discharge, and optionally
wireless sensors - Alarm with snooze function after 5 minutes
- Pre-alarm function (if outdoor temperature is below -3°C, pre-alarm function is activated, set alarm
will sound 30 minutes earlier and flash ice warning icon) - Moon phase icons
- Sunrise and sunset time adjusted according to time zone input and current latitude and longitude
location entered in the ProWeatherLive server - Backup battery used to save time and date, maximum and minimum readings and readings
collisions in the main device memory in case of power loss - Integrated memory stores Wi-Fi connection settings, hemisphere selection, calibration settings, and sensor pairing
- Wireless data transmission at 868 MHz frequency
- Integrated 7-in-1 sensor data transmission interval – wind speed and direction, UV index, solar radiation intensity 12
seconds, temperature, relative humidity, and precipitation 24 seconds - Display of signal strength of the integrated wireless sensor and optional additional sensors
- Wi-Fi connection icon
- Software update using the WSLink mobile app (for Android and iOS OS)
- Powering the main device using a power adapter and backup battery
- Main unit color black, option to stand or hang
Data transmission
- Internet connection using Wi-Fi
- Data transmission from the main device and integrated 7-in-1 sensor to the ProWeatherLive server
- Based on the entered latitude and longitude of the weather station location in your ProWeatherLive account,
the main device shows the weather forecast for a specific day (current and for the next 23 hours) and the next 10
days. Weather forecast data is downloaded from a highly accurate weather server Openweathermap.org. - Cloud cover and visibility values for a specific station location are also downloaded from the server
View data in the app
- Data sent to the ProWeatherLive server can be viewed in the ProWeatherLive app (available for mobile devices with OS
Android and iOS), the app has been translated into Czech using GARNI technology as - ProWeatherLive.net server allows sending data from the weather station to 2 other weather servers, such as
Weather Underground, Weathercloud, PWSWeather, or AWEKAS. - Data sent to the Weather Underground server can also be viewed in the GARNI technology mobile app (for Android and
iOS) or Weather Underground (Android and iOS). However, these apps do not display data from optional sensors.
The app is provided free of charge and is not part of the product.
Integrated wireless sensor 7-in-1 model GARNI 1NG
- Waterproof design, IPX4 protection (splash resistant)
- Measurement of outdoor temperature and relative humidity, precipitation, wind speed and direction, UV radiation, and solar radiation intensity
- Data transmission indication with LED
- Powered from a built-in capacitor supported by a solar panel and backup batteries (recommended to use batteries
lithium) - Solar panel with the ability to tilt vertically at angles from 0° to 15°, 30°, 45°, and 60°
- Color light gray, rain gauge funnel, weather vane, and anemometer black
- Recommended pole or rod diameter is 35–40 mm
Additional wireless sensors available
- Temperature and relative humidity measuring sensor GARNI 055H
- Temperature and relative humidity measuring sensor GARNI 056H with display
- Sensor for measuring soil moisture and temperature GARNI 071S
- Sensor for measuring water temperature in the pool GARNI 057P
- Lightning detection sensor GARNI 072L
- Indoor air quality measuring sensor GARNI 104Q
- Sensor for measuring indoor CO2 value GARNI 102Q
Firmware update
All software updates can be found here
Specifications
| TECHNICAL PARAMETERS | |
|---|---|
| Indoor temperature measurement range / tolerance | -5°C to +50°C (from -5 to 0°C ± 2°C; from 0.1 to +50°C ± 1°C) (SENSIRION sensor) |
| Indoor temperature resolution | 0.1°C |
| Outdoor temperature measurement range / tolerance | -40°C to +60°C (from -40 to -20 °C ±1 °C, from -19.9 to 0 °C ±0.7 °C, from +0.1 to +60 °C ±0.4 °C) (SENSIRION sensor) |
| Outdoor temperature resolution | 0.1°C |
| Indoor rel. measurement range. humidity / tolerance | from 1% to 99% (from 1 to 9 % ±8 % , from 10 to 90 % RH ±5 %; from 91 to 99 % ±8) (SENSIRION sensor) |
| Indoor rel. humidity | 1 % |
| Measurement range outdoor rel. humidity/tolerance | from 1% to 99% (from 1 to 9 % ± 5 % , from 10 to 90 % ± 3.5 %; from 91 to 99 % ± 5 %) (SENSIRION sensor) |
| Resolution outdoor rel. humidity | 1 % |
| Measurement range barometric pressure / tolerance | 540 ~ 1100 hPa (700–1100 hPa ±5 hPa, 540–696 hPa ±8 hPa) |
| Measurement resolution barometric pressure | 1 hPa, 0.01 inHg, 0.1 mmHg |
| Wind speed measurement range / tolerance | from 0 to 50 m/s; from 0 to 180 km/h; from 0 to 112 miles per hour; from 0 to 97 knots < 5 m/s: ±0.8 m/s; > 5 m/s: ±6 % (depending on which value is greater) |
| Wind speed resolution | 0.1 m/s, 0.1 km/h, 0.1 mph, 0.1 knot |
| Wind direction measurement | Yes |
| Wind direction measurement resolution | 16 positions or 360° |
| Precipitation measurement | Yes |
| Total precipitation measurement range | 0 ~ 19999 mm |
| Precipitation resolution | 0.1 mm, 0.01 inch |
| Precipitation amount required to tip the bucket | 0.254 mm (0.01 inch) ±7 % or 1 bucket tip |
| UV index measurement range / tolerance | from 1 to 16 |
| UV index measurement resolution | 0.1 |
| Illumination intensity (solar radiation) / tolerance measurement range | From 0 to 200 Klux |
| Illumination intensity resolution (solar radiation) | 0.01 |
| Sky condition (% cloud cover) | Yes |
| Lightning detection sensor | yes, optional accessory - model GARNI 72L (not included) |
| Visibility (km) | Yes |
| Air quality – particulate measurement (PM) | yes, optional accessory - model GARNI 104Q (not included) |
| Air quality measurement-CO2 | yes, optional accessory - model GARNI 102Q (not included) |
| Sunrise and sunset time | yes, entered time zone and latitude and longitude in the ProWeatherLive server |
| Moonrise and moonset time | yes, entered time zone and latitude and longitude in the ProWeatherLive server. |
| Chart | yes, column - barometric pressure development over the last 24 hours - total precipitation amount over the last 12 days - indoor temperature over the last 24 hours - outdoor temperature over the last 24 hours - indoor relative humidity over the last 24 hours - outdoor relative humidity over the last 24 hours |
| Moon phases | Yes |
| Weather forecasting principle | Based on the entered latitude and longitude of the weather location the station in your ProWeatherLive account shows the station's forecast daily weather (current and for the next 23 hours) and the next 10 days. Weather forecast data is downloaded from highly accurate meteorological server Openweathermap.org |
| Altitude determination | No |
| Display bar. absolute / relative pressure | Yes / Yes |
| Number of weather forecast icons | 19 (sunny, clear sky (at night), partly cloudy, partly clear (at night hours), overcast/fog, cloudy, windy, light rain, heavy rain, partly clear with light rain, partly clear with light rain (at night hours), partly cloudy with heavy rain, partly cloudy with heavy rain (at night hours), thunderstorm, thunderstorm, thunderstorm, snow, rain snow, heavy snow with rain) |
| Wireless sensor signal range | 150 m in open space |
| Data transmission interval | 12 seconds – UV index, solar radiation intensity, wind speed and direction 24 seconds – temperature and relative humidity, total precipitation amount |
| Wireless sensors transmission frequency | 868 MHz |
| Number of channels | 7 |
| Memory for maximum and minimum measured values | memory for maximum and minimum values (since the last reset at midnight and since the start of measurement): indoor and outdoor temperature and relative humidity, felt temperature, wind chill, dew point, temperature index, relative and absolute barometric pressure, sky condition, air quality memory up to maximum values (since the last reset at midnight and since the start of measurement): average wind speed and wind gust value, UV index, solar radiation intensity, precipitation intensity, and total hourly precipitation amount |
| Internal memory | yes, to save Wi-Fi connection settings, hemisphere selection, calibration settings, and sensor pairing memory with backup battery to save time and date settings, maximum and minimum readings and precipitation readings in the main device memory in case of power loss |
| Upper and lower temperature limit alarm | Yes, in the ProWeatherLive app |
| Alarm upper and lower limit rel. humidity | Yes, in the ProWeatherLive app |
| More alarms | alarms for various measured values, including connected sensors via notifications in the ProWeatherLive mobile app with the ability to send direct messages and email notifications |
| Thunderstorm probability indicated | yes, weather forecast icon |
| Thermal comfort index | yes, outdoor feels like temperature (Feels Like) -65°C to +50°C, temperature index (Heat Index) from +26°C to +50°C |
| Dew point values display | yes, outdoors, from -20 to +80°C |
| Wind chill values display | yes, range from -65 to +18°C (when wind speed >4.8 km/h) |
| Date | yes, controlled when connected to the internet or manually |
| Time | yes, controlled when connected to the internet or manually |
| Time format | 12/24 hours |
| Alarm | yes, with snooze function) |
| Snooze | yes, after 5 min |
| Time zone | yes, on the ProWeatherlive server |
| USB hosting | No |
| Application | ProWeatherLive, WSLink setup app |
| Supported systems | Android, iOS |
| Wi-Fi standard | 802.11 b/g/n |
| Wi-Fi frequency | 2.4 GHz |
| Supported router security | WPA/WPA2, WPA3, OPEN, WEP (WEP only supports hexadecimal passwords) |
| Server for data sending | ProWeatherLive. ProWeatherLive server allows sending data from the weather station to other weather servers, such as WeatherUnderground, WeatherCloud, PWSWeather, or AWEKAS |
| Main device display dimensions | 163 x 80 mm and 163 x 24 mm |
| Number size – main unit | date, day name abbreviation 7 mm, time 9 mm, sunrise and sunset time Sun / moon 7 mm, wind direction 6.5 mm, wind speed / wind gust / Beaufort 8 mm, risk impact time / solar radiation intensity, UV index, precipitation, air quality / visibility, cloud cover / lightning detection, barometric pressure 11.5 mm, outdoor temperature / dew point / felt temperature / temperature index / Wind Chill, outdoor relative humidity, indoor temperature and rel. humidity 14 mm, weather forecast – temperature, precipitation probability 7.5 mm |
| Main device display lighting | constant, has two brightness levels, ability to set automatic brightness adjustment depending on ambient light |
| Power supply | main device power adapter 100 - 240 V, 50/60 Hz, 0.3 A / 5 V, 1.0 A, 5.0 W, backup battery 1 x CR2032, 3 V (button type, included) integrated wireless sensor built-in capacitor with solar collector support, backup battery 3 pcs 1.5 V AA type (pencil, not included) |
| Capacitor parameters int. sensors | capacity about 12 mAh daily power consumption 4.5 mAh full charge after 4 hours at exposure 100,000 lx - power time for int. sensors 48 hours full charge after 8 hours at exposure 30,000 lx - power time for int. sensors 48 hours |
| Solar panel operating parameters | 0.5 W (at 40,000 lux) |
| Overall dimensions | Main unit 217 x 152.2 x 23.5 mm Integrated wireless sensor 390 x 231 x 165 mm (without stand) |
| Weight | Main unit 551g (without battery) Integrated wireless sensor 599 g (without batteries and stand) |
| Color | Main unit black Integrated wireless sensor light gray, rain gauge funnel, Black anemometer and wheel |
| Option to stand/hang | Main unit yes / yes Integrated wireless sensor yes / no - option to mount on pole or Diameter from 35 to 40 mm or on a flat surface |
| Instructions | CZ, SK, EN, download DE, PL, HU, NL |
What's in the box
1 x main unit
1 x integrated wireless sensor 7-in-1 model GARNI 1NG
Mounting kit: 1 x stand, 1 x mounting clamp, 1 x plastic rod (length 30 cm, diameter 32 mm), 4 x long screw, 4 x nut for long screw, 4 washers, 1 x short screw, 1 x nut for short screw, 4 x rubber washer
1x power adapter
1 x backup battery for the main device (CR2032)
Instructions CZ, SK, EN, download DE, NL, HU, PL
